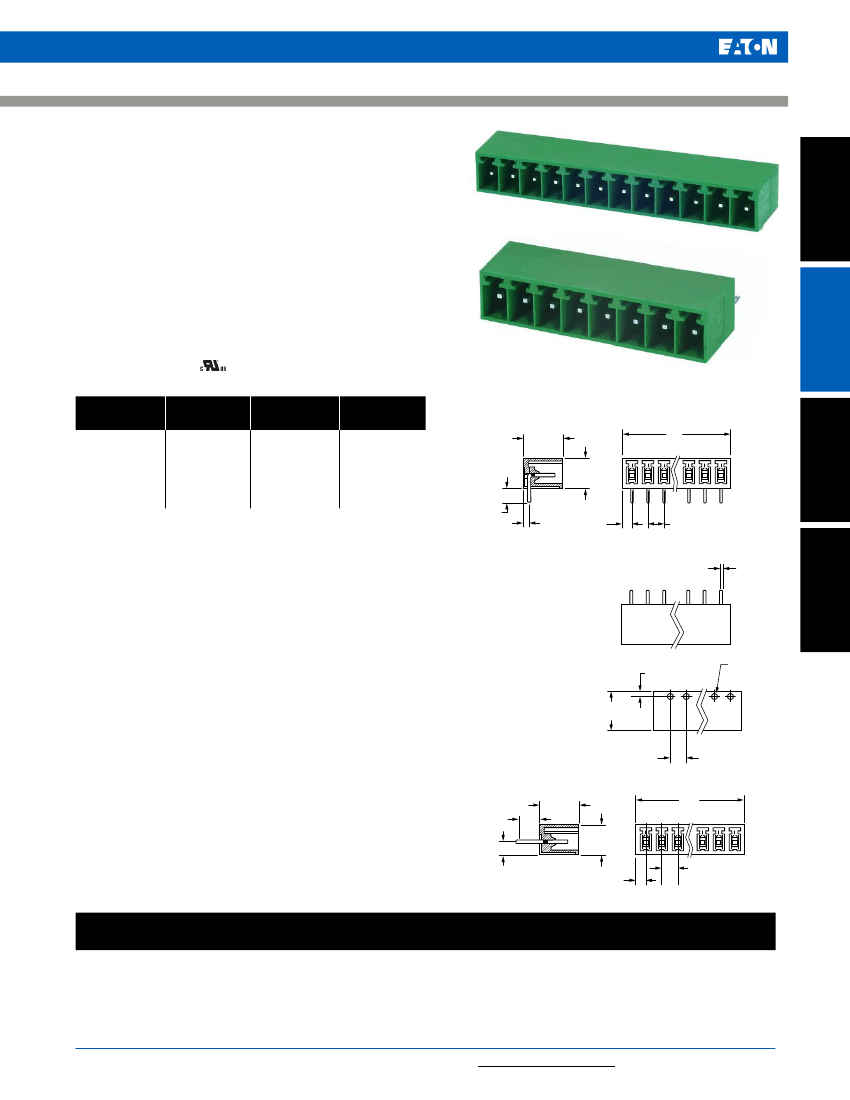

EuroMag Series PCB Mount Pluggable Terminal Blocks
Series EM3593
EuroMag Terminal Blocks
Header (Mates with EM3553, EM3543, and EM3583
Series); 3.81 Centers
EM359312HC
Terminal Blocks:
Single Row
SPECIFICATIONS
Ratings:
10A, 300V
Center Spacing:
0.15" (3.81mm)
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass, Tin-Plated
Operating Temperature:
105°C (221°F) max., –40°C (–40°F) min.
Recommended PCB Hole Diameters:
0.51" (1.30mm)
Construction:
Mold-to-length.
Agency Information:
File E62622; CE Certified
EuroMag Series
Plug & Header
EM359308VC
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
Poles
02
03
04
05
06
07
L (mm)
8.23
12.04
15.85
19.66
23.47
27.28
Poles
08
09
10
11
12
L (mm)
HORIZONTAL
9.20
(0.062)
6.90
(0.272)
3.00
(0.100)
L
31.09
34.90
38.71
42.52
46.33
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
1.21
(0.062)
2.21
(0.087)
3.81
(0.150)
Compliance
References
1.80
(0.031)
1.20
(0.047)
9.20
(0.062)
Ø1.30
(Ø 0.051)
PCB Hole Layout
3.81
(0.150)
VERTICAL
9.20
(0.062)
6.90
(0.272)
2.2
(0.087)
3.81
(0.150)
L
3.60
(0.198)
2.93
(0.110)
Part Numbering System
Inches (Millimeters)
Orientation
EM3 593
nnnnnn
Series
# of Positions
nn
n
Side Base
Mating Plugs:
EM3553 pg.
78
EM3543 pg.
79
EM3583 pg.
80
C
n
02
to
12
H
- Horizontal
V
- Vertical
C
- Closed
For additional product information, visit
www.eaton.com/connectors
