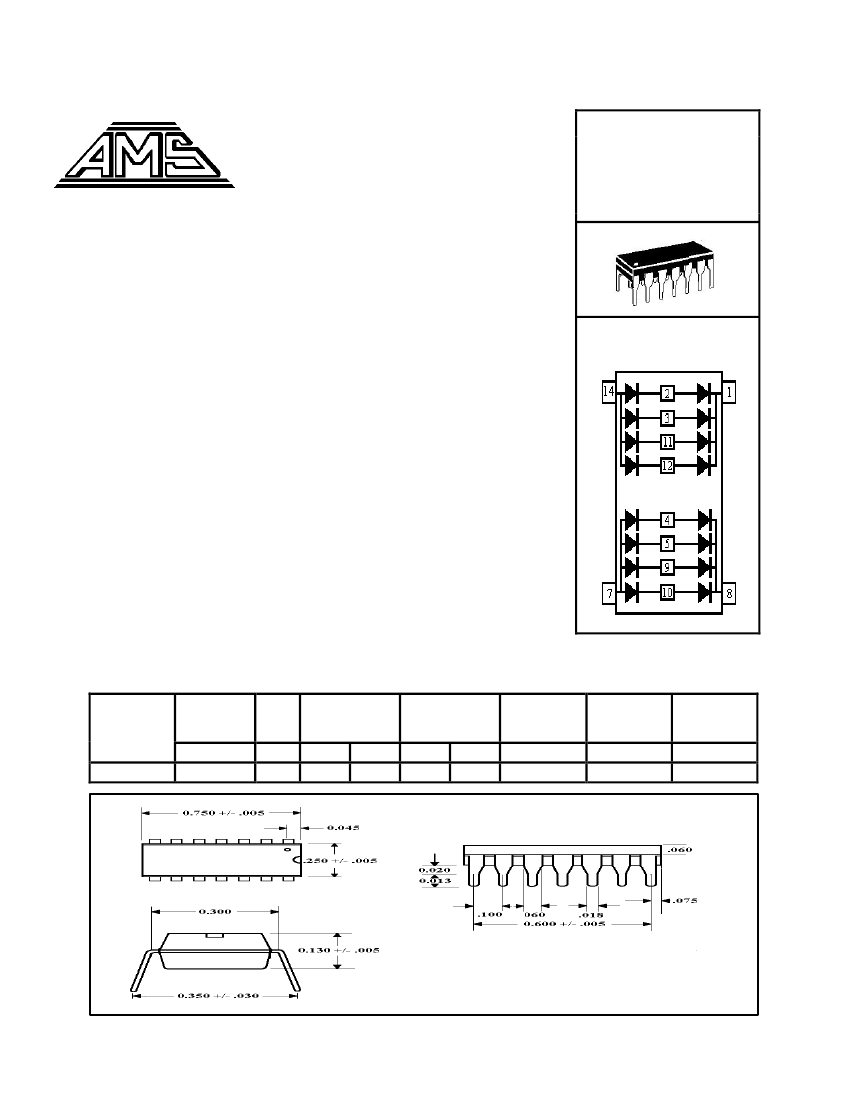

ADA1107P

Switching Diode Array

FEATURES

Dual 8 Diode Array

Standard 14 pin Dual-In-Line Package

UL 94V-0 Flammability Classification

CIRCUIT DIAGRAM

MECHANICAL

Molded 14 Pin Dip

Weight: 0.997 grams (approximate)

Marking: Logo, device number, date code

Pin #1 defined by DOT on top of package

MAXIMUM RATINGS

Operating Temperatures: -55

C to +150

Storage Temperature: -55

C to +150

Forward Surge Current: 2.0 Amps (8.3 mS)

Minimum Breakdown Voltage V

(BR)

: 90V

Working Peak Reverse Voltage V

RWM

: 75V

Continuous forward current I

: 400 mA

Power dissipation (P

): 500 mW

Derating factor: 4.0 mW/°C

PACKAGING

Carrier tube 25 pcs per (STANDARD)

ELECTRICAL CHARACTERISTICS @ 25

C Unless otherwise specified

Part

Number

ADA1107P

(BR)

@100µA

MIN

RWM

MAX

+25ºC

µA

MAX

.100

@ V

+150ºC

µA

MAX

200

@ V

CAP

@0V

MAX

4.0

@If = 10mA

MAX

1.00

@If = 100mA

MAX

1.20
