158-P02142RPU-E datasheet, PDF

Datasheet> All Categories > The connector> 158-P02142RPU-E

158-P02142RPU-E: DescriptionHeaders u0026 Wire Housings 4 CKT VERT HEADER; CategoryThe connector; File Size117KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric Compare View All

158-P02142RPU-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	158-P02142RPU-E	-	-	View	Buy Now

158-P02142RPU-E Overview

Headers u0026 Wire Housings 4 CKT VERT HEADER

158-P02142RPU-E Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	Kobiconn
RoHS	Details
Number of Positions	2 Position
Pitch	5.08 mm
Termination Style	Through Hole
Current Rating	10 A
Voltage Rating	300 V
Packaging	Bulk
Mounting Angle	Right
Factory Pack Quantity	1
Wire Gauge Max	14 AWG
Wire Gauge Min	22 AWG

Preview

Download Datasheet

View All

Terminal Blocks

158-P02142RPU-E, 158-P03142RPU-E, 158-P04142RPU-E, 158-P05142RPU-E,

158-P06142RPU-E, 158-P07142RPU-E, 158-P08142RPU-E, 158-P09142RPU-E,

158-P10142RPU-E, 158-P11142RPU-E, 158-P12142RPU-E

Terminal Blocks

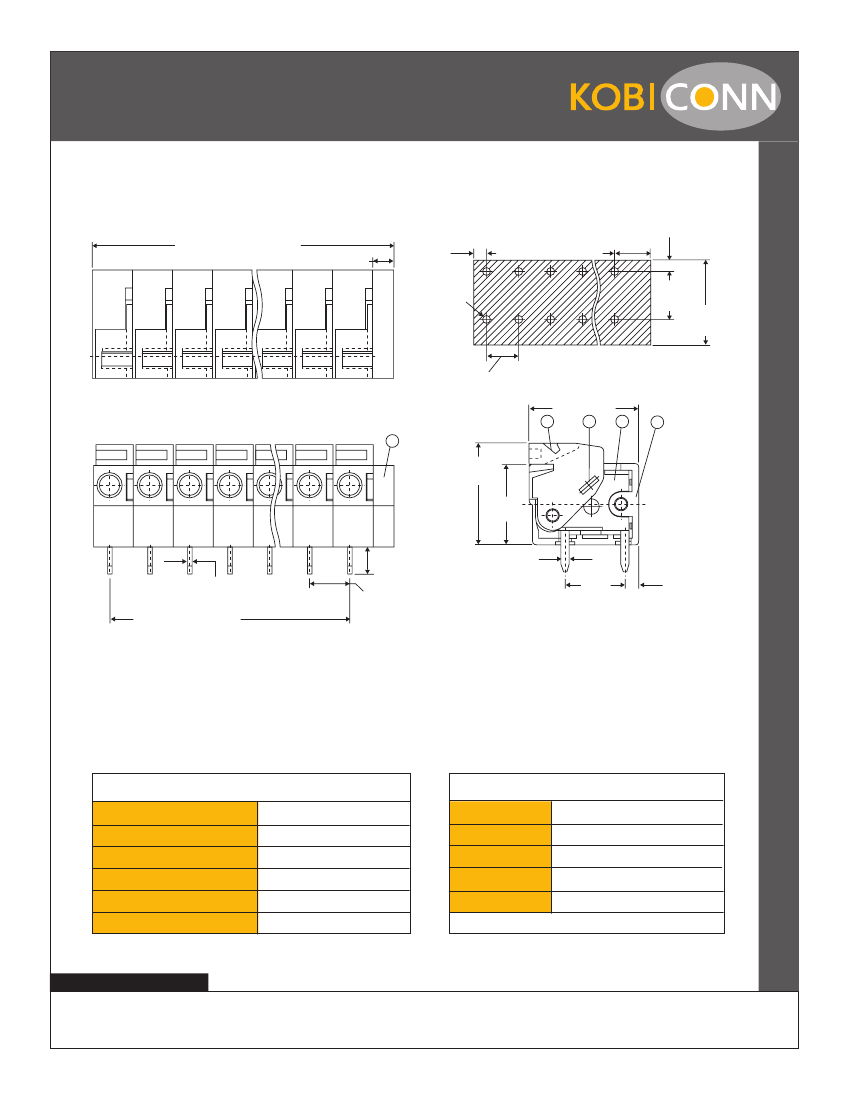

5.08xP+2.54 (.2xP+.1)

2.54 (.1)

(.079)

5.08x(P-1) [.2x(P-1)]

5.62

(.221)

1.75

(.069)

ø1.1~1.2

7.62

(.3)

13.88

(.546)

158-P02142RPU-E, 158-P03142RPU-E, 158-P04142RPU-E, 158-P05142RPU-E, 158-P06142RPU-E, 158-P07142RPU-E,

158-P08142RPU-E, 158-P09142RPU-E, 158-P10142RPU-E, 158-P11142RPU-E, 158-P12142RPU

-E

5.08

(.2)

P.C.B. LAYOUT

13.88 (.546)

(.512)

10.30

(.406)

3.50±.3

(.138±.012)

0.50±.05

(.02±.002)

5.08x(P-1) [.2x(P-1)]

5.08±.08

(.2±.003)

1±.1

(.039±.004)

7.62

(0.3)

1.75

(.069)

Dimensions: mm (In.)

ELECTRICAL SPECIFICATIONS

Rating:

Pitch:

300V 10A

5.08 mm

MATERIAL SPECIFICATIONS

End Cover (5):

Lever (4):

Clamping (3):

Solder Pin (2):

Housing (1):

PA66, Green

PA66, Orange

Stainless Steel

Copper, Tin Plated

PA66, Green

RoHS Compliant

Insulation withstands voltage:

AC 1500V/Min

Insulation resistance:

Temperature range:

Electric wire:

500MΩ or more at DC500V

-40°C~ +105°C

22~14 AWG

Date Last Revised: 7-17-06

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-

301019

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
