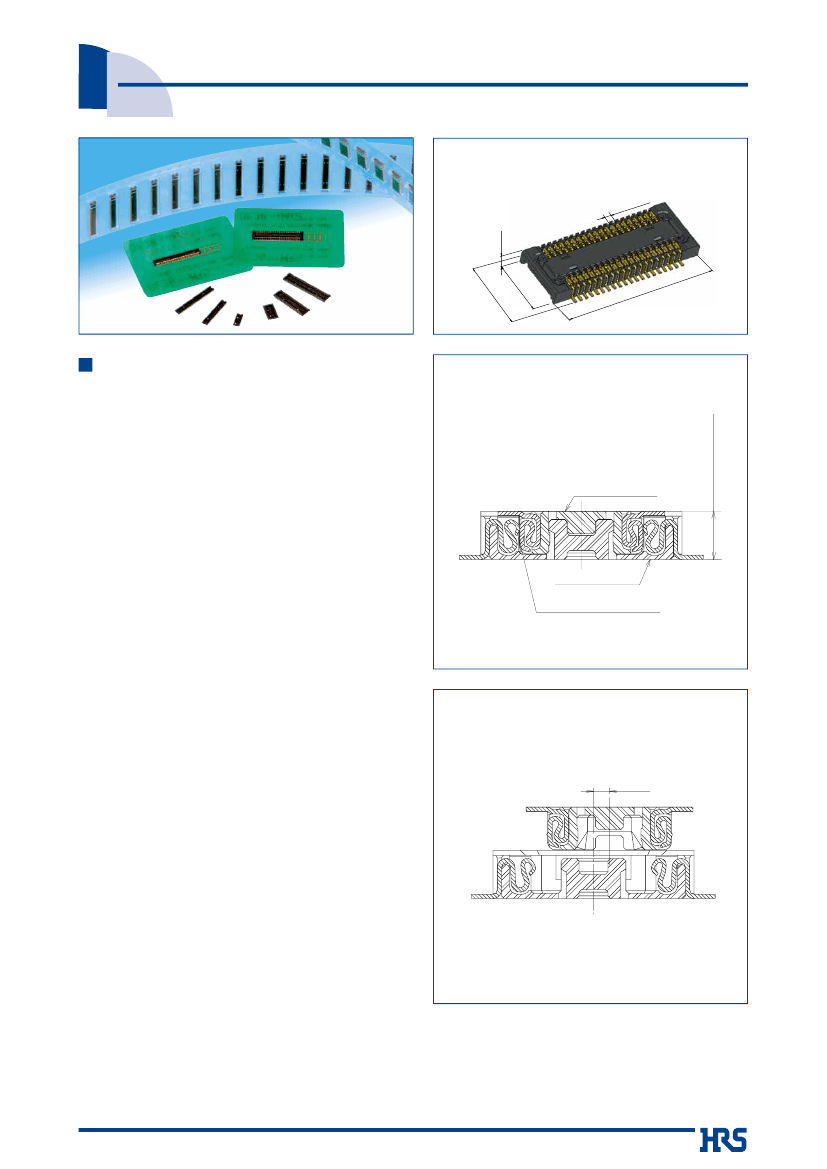

0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
DF30 Series
Space-saving design
Connector footprint is minimized.
<40 contacts, mated>
(0.4
0)
(0.90)
76
(3 .
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(10.
22)
5
(4.
6)
)
Fig.1
Features
1. High-density mounting
This connector offers a space-saving design that
reduces the connector footprint.
The low stacking height of 0.9 mm is highly suited for
applications that require a low mounted height. (Fig.1)
High contact reliability
Mated height: 0.9 mm
2. High contact reliability
Projections on the header terminals increase the
wiping ability and provide superior mating reliability.
During mating, the projections of the header
terminals produce a tactile click, which helps to
confirm proper insertion. (Fig.2)
DF30*-*DP-0.4V
3. Self-alignment feature
A self-alignment range of 0.3 mm is provided on the
receptacle and allows for easier mating in tight
spaces. (Fig.3)
DF30*-*DS-0.4V
Projections on the header
strengthen mating retention.
4. Wide selection of pin counts
Standard pin counts are 20, 22, 24, 30, 34, 40, 50,
60, 70, and 80 positions. Smaller pin counts are
also available that are applicable to LCD and
camera modules in cell phones.
In addition, reinforced types are available for each
pin count model. (The external shape is the same
for both standard and reinforced types.)
Fig.2
Wide self-alignment range: 0.3 mm
5. Suitable for automatic mounting
Although this connector is extremely small, it still
has a sufficient vacuum area for pick-and-place
machines to hold the part.
Receptacle area: 1.12 mm
Header area: 1.11 mm
0.3mm
6. Test connectors
Highly durable test connectors are available which
allow mounted production parts to be tested for
electrical performance. Test connectors feature a
higher number of insertions and removals cycles.
These test connectors are for test purposes only
and cannot be used for production requirements.
For details, please contact your Hirose sales
representative.
Fig.3
2015.1w
1
DF30 Series●0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
Product Specifications
Rating
Operating temperature range : -35
ç
to 85
ç
(Note 1)
Rated current 0.3A
Rated voltage 30V AC
Operating humidity range
: Relative humidity 20% to 80%
Storage temperature range -10
ç
to 60
ç
(Note 2)
Storage humidity range
Relative humidity 40% to 70% (Note 2)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
6. Temperature cycle
Specification
50 Mø min.
No flashover or insulation breakdown.
100 mø max.
No electrical discontinuity of 1 µs or more
Contact resistance: 100 mø max.
Insulation resistance: 25 Mø min.
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
Conditions
100V DC
100V AC / one minute
100 mA
Frequency: 10 to 55 Hz, single amplitude of
0.75mm, 2 hours, 3 axis
96 hours at temperature of 40ç±2ç and RH of
90% to 95%
Temperature: -55ç➝+5ç to +35ç➝+85ç➝+5ç to +35ç
Duration: 30➝10➝30➝10(Minutes)
5 cycles
50 cycles
(Connector for conductivity tests: 500 cycles)
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
7. Durability
Contact resistance: 100 mø max.
(insertions/withdrawals)
8. Resistance to
soldering heat
No deformation of components affecting
performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating temperature range
and humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
Materials
Connectors
Receptacles
and
Headers
Component
Insulator
Contacts
Metal fittings
Material
LCP
Phosphor bronze
Phosphor bronze
Finish
Color : Black
Gold plated
Tin plated
Remarks
UL94V-0
-------------
-------------
Product Number Structure
Receptacles and Headers
DF30 FC
*
DS - 0.4
q
w
e
r
t
V
y
(
**
)
u
qSeries
name: DF30
tContact
pitch: 0.4 mm
wConfiguration
yTermination
section
FB/RB: With metal fittings, without bosses
V: Straight SMT
FC/RC: Without metal fittings, without bosses
uPackaging
CJ: Connector for conductivity tests
(81): Embossed tape packaging (5,000 pcs/reel)
(82): Embossed tape packaging (1,000 pcs/reel)
eNumber
of contacts: 20, 22, 24, 30, 34, 40, 50, 60, 70, 80
rConnector
type
DS: Double row receptacle
DP: Double row header
2
DF30 Series●0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
Receptacles (with metal fittings)
4.56
3.76
A
B
P=0.4
Note 2
CAV. NO.
0.9
0.15
C
Flat surface
HRS logo
0.08
2.54
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
B
Recommended PCB
mounting pattern
4.86
+0.05
0
0
3.46
-0.05
E
+0.05
0
0
D
-0.05
B±0.02
P=0.4±0.02
2.74
+0.05
0
Metal fittings
[Specification number] -**, (
**
)
(81): Embossed tape packaging (5,000 pcs/reel)
(82): Embossed tape packaging (1,000 pcs/reel)
Unit: mm
RoHS
0.23±0.02
Recommended solder paste thickness: 120 μm
Part No.
DF30FB-20DS-0.4V(
**
)
DF30FB-22DS-0.4V(
**
)
DF30FB-24DS-0.4V(
**
)
DF30FB-30DS-0.4V(
**
)
DF30FB-34DS-0.4V(
**
)
DF30FB-40DS-0.4V(
**
)
DF30FB-50DS-0.4V(
**
)
DF30FB-60DS-0.4V(
**
)
DF30FB-70DS-0.4V(
**
)
DF30FB-80DS-0.4V(
**
)
HRS No.
No. of contacts
A
B
C
D
E
684-1098-3 **
684-1099-6 **
684-1100-3 **
684-1101-6 **
684-1102-9 **
684-1103-1 **
684-1104-4 **
684-1105-7 **
684-1106-0 **
684-1107-2 **
20
22
24
30
34
40
50
60
70
80
6.22
6.62
7.02
8.22
9.02
10.22
12.22
14.22
16.22
18.22
3.6
4.0
4.4
5.6
6.4
7.6
9.6
11.6
13.6
15.6
1.2
1.36
1.6
2.0
2.4
2.8
3.2
5.72
6.12
6.52
7.72
8.52
9.72
11.72
13.72
15.72
17.72
6.52
6.92
7.32
8.52
9.32
10.52
12.52
14.52
16.52
18.52
Yes
Note 1: Order by number of reels.
Note 2: Receptacles with 24 or fewer contacts positions will not have recessed areas.
Receptacles (without metal fittings)
A
B
P=0.4
Note 2
[Specification number] -**, (
**
)
(81): Embossed tape packaging (5,000 pcs/reel)
(82): Embossed tape packaging (1,000 pcs/reel)
4.56
3.76
CAV. NO.
0.9
0.15
C
Flat surface
HRS logo
0.08
Unit: mm
Part No.
DF30FC-20DS-0.4V(**)
DF30FC-22DS-0.4V(**)
DF30FC-24DS-0.4V(**)
DF30FC-30DS-0.4V(**)
DF30FC-34DS-0.4V(**)
DF30FC-40DS-0.4V(**)
DF30FC-50DS-0.4V(**)
DF30FC-60DS-0.4V(**)
DF30FC-70DS-0.4V(**)
DF30FC-80DS-0.4V(**)
HRS No.
684-1109-8 **
684-1110-7 **
684-1111-0 **
684-1112-2 **
684-1113-5 **
684-1078-6 **
684-1114-8 **
684-1082-3 **
684-1115-0 **
684-1116-3 **
No. of
contacts
20
22
24
30
34
40
50
60
70
80
A
B
C
RoHS
6.22 3.6
6.62 4.0
7.02 4.4
8.22 5.6
9.02 6.4
10.22 7.6
12.22 9.6
14.22 11.6
16.22 13.6
18.22 15.6
B
Recommended PCB
mounting pattern
B ±0.02
P=0.4±0.02
1.2
1.36
1.6
2.0
2.4
2.8
3.2
0.23±0.02
Recommended solder paste thickness: 120 μm
Note 1: Order by number of reels.
Note 2: Receptacles with 24 or fewer contacts positions will not have recessed areas.
0
3.46
-0.05
Yes
4.86
+0.05
0
3
DF30 Series●0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
Header (with metal fittings)
P=0.4
Note 2
3.12
2.32
A
B
Note 2
A
CAV. NO.
0.8
0.15
C
Flat surface
HRS logo
0.08
1.1
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Recommended PCB mounting pattern
E
+0.05
0
0
D
-0.05
B ±0.02
P=0.4±0.02
Metal fittings
1.3
+0.05
0
3.42
+0.05
0
0
2
-0.05
[Specification number -**, (
**
)
(81): Embossed tape packaging (5,000 pcs/reel)
(82): Embossed tape packaging (1,000 pcs/reel)
0.23±0.02
Recommended solder paste thickness: 120 μm
Unit: mm
Part No.
DF30RB-20DP-0.4V(**)
DF30RB-22DP-0.4V(**)
DF30RB-24DP-0.4V(**)
DF30RB-30DP-0.4V(**)
DF30RB-34DP-0.4V(**)
DF30RB-40DP-0.4V(**)
DF30RB-50DP-0.4V(**)
DF30RB-60DP-0.4V(**)
DF30FB-70DP-0.4V(**)
DF30FB-80DP-0.4V(**)
HRS No.
684-1279-8 **
684-1280-7 **
684-1281-0 **
684-1282-2 **
684-1283-5 **
684-1284-8 **
684-1286-3 **
684-1287-6 **
684-1075-8 **
684-1136-0 **
No. of contacts
20
22
24
30
34
40
50
60
70
80
A
5.14
5.54
5.94
7.14
7.94
9.14
11.14
13.14
15.14
17.14
B
3.6
4.0
4.4
5.6
6.4
7.6
9.6
11.6
13.6
15.6
C
1.2
1.36
1.6
2.0
2.4
2.8
3.2
D
4.64
5.04
5.44
6.64
7.44
8.64
10.64
12.64
14.64
16.64
E
5.44
5.84
6.24
7.44
8.24
9.44
11.44
13.44
15.44
17.44
RoHS
Yes
Note 1: Order by number of reels.
Note 2: Headers with 24 or fewer contacts positions will not have protruding areas.
Header (without metal fittings)
P=0.4
Note 2
3.12
2.32
A
B
Note 2
[Specification number] -**, (
**
)
(81): Embossed tape packaging (5,000 pcs/reel)
(82): Embossed tape packaging (1,000 pcs/reel)
A
CAV. NO.
0.8
0.15
C
Flat surface
HRS logo
0.08
Unit: mm
Part No.
DF30RC-20DP-0.4V(**)
DF30RC-22DP-0.4V(**)
DF30RC-24DP-0.4V(**)
DF30RC-30DP-0.4V(**)
DF30RC-34DP-0.4V(**)
DF30RC-40DP-0.4V(**)
DF30RC-50DP-0.4V(**)
DF30RC-60DP-0.4V(**)
DF30FC-70DP-0.4V(**)
DF30FC-80DP-0.4V(**)
HRS No.
684-1268-1 **
684-1269-4 **
684-1270-3 **
684-1271-6 **
684-1272-9 **
684-1273-1 **
684-1275-7 **
684-1276-0 **
684-1077-3 **
684-1144-9 **
No. of
contacts
20
22
24
30
34
40
50
60
70
80
A
B
C
RoHS
5.14 3.6
5.54 4.0
5.94 4.4
7.14 5.6
7.94 6.4
9.14 7.6
11.14 9.6
13.14 11.6
15.14 13.6
17.14 15.6
B
Recommended PCB
mounting pattern
B ±0.02
P=0.4±0.02
1.2
1.36
1.6
2.0
2.4
2.8
3.2
Yes
3.42
+0.05
0
0
2
-0.05
0.23±0.02
Note 1: Order by number of reels.
Recommended solder paste thickness: 120 μm
Note 2: Receptacles with 24 or fewer contacts positions will not have recessed areas.
4
DF30 Series●0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
Packaging Specification
Embossed Carrier Tape Dimensions - Receptacle
F-F
1.75±0.1
(1.7)
1.4±0.15
0.3±0.1
Reel Dimensions
.2
Ø1
3
±0
Part number label
8±0.1
2±0.1
4±0.1
F
Unreeling direction
C±0.1
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
B±0.1
A±0.3
D±0.5
E±1
G
Unreeling direction
G-G
G
H F
0.2±0.05
H
75
.
R0
R0
.7
5
.1
+0 0
Unit: mm
Part No.
A
B
C
D
E
+
0
0 .1
DF30#-20DS-0.4V(**)
DF30#-22DS-0.4V(**)
DF30#-24DS-0.4V(**)
DF30#-30DS-0.4V(**)
DF30#-34DS-0.4V(**)
DF30#-40DS-0.4V(**)
DF30#-50DS-0.4V(**)
DF30#-60DS-0.4V(**)
DF30#-70DS-0.4V(**)
DF30#-80DS-0.4V(**)
16.0
—
24.0
32.0
28.4
7.5
17.5
21.5
11.5
14.2
25.5
33.5
29.5
37.5
Embossed tape 32mm or wider will have perforated feed holes on two sides.
Embossed Carrier Tape Dimensions - Header
E-E
1.75±0.1
(1.6)
1.3±0.15
0.3±0.1
Reel Dimensions
Part number label
0.2
4±0.1
B±0.1
Ø1
8±0.1
2±0.1
E
3±
Unreeling direction
A±0.3
C±0.5
D±1
E
Unreeling direction
F
F-F
F
Unit: mm
Part No.
A
B
C
D
DF30#-20DP-0.4V(**)
DF30#-22DP-0.4V(**)
DF30#-24DP-0.4V(**)
DF30#-30DP-0.4V(**)
DF30#-34DP-0.4V(**)
DF30#-40DP-0.4V(**)
DF30#-50DP-0.4V(**)
DF30#-60DP-0.4V(**)
DF30#-70DP-0.4V(**)
DF30#-80DP-0.4V(**)
16.0
7.5
17.5
21.5
24.0
11.5
25.5
29.5
Ø380±2
Ø80±1
PS
Ø380±2
Ø80±1
PS
A
A
A
A
A
5
Ø1.
A
.1
+00
5
Ø1.
.1
+00
5
京公网安备 11010802033920号
EEWORLD
