CM453232-220JL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CM453232-220JL

CM453232-220JL: Description8-bit Microcontrollers - MCU 64KB 3968 RAM 36I/O; CategoryPassive components inductor; File Size611KB，6 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

CM453232-220JL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM453232-220JL	-	-	View	Buy Now

CM453232-220JL Overview

8-bit Microcontrollers - MCU 64KB 3968 RAM 36I/O

CM453232-220JL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	1812
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	1812
structure	Rectangular
core material	FERRITE
DC Resistance	3.2 Ω
Nominal inductance(L)	22 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	4.5 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.18 A
self resonant frequency	13 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.52 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

High resistance to heat and humidity

■

Resistance to mechanical shock and

pressure

■

Accurate dimensions for automatic

surface mounting

■

Wide inductance range (1.0 nH to 1000 µH)

■

RoHS compliant*

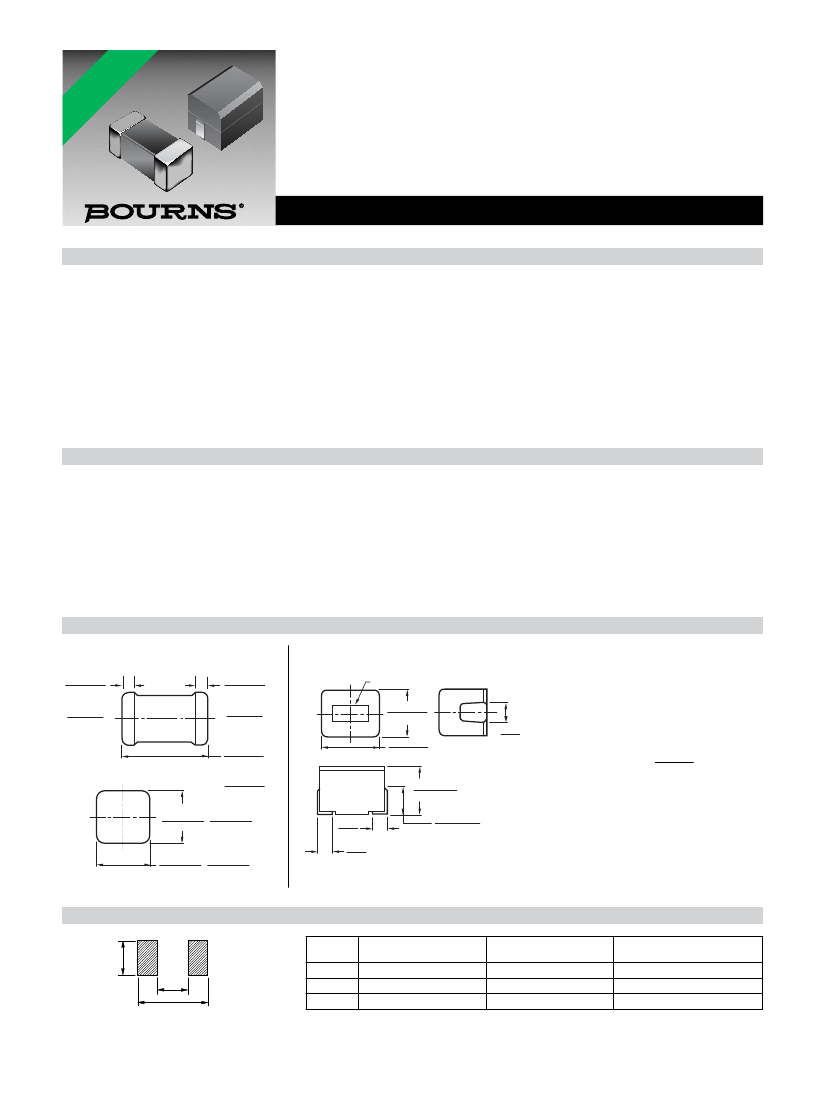

CM45, CM16, CM10 SMT Chip Inductors

General Speciﬁcations

Temperature Rise

CM10, CM16, CM45 .............................................................................................................................................................. 20 ˚C max.

Ambient Temperature

CM10, CM16 .......................................................................................................................................................................... 80 ˚C max.

CM45.................................................................................................................................................................................... 100 ˚C max.

Operating Temperature

CM10, CM16 ................................................................................................................................................................-40 °C to +100 °C

CM45............................................................................................................................................................................-40 °C to +125 °C

Storage Temperature

CM10, CM16 ................................................................................................................................................................-40 °C to +100 °C

CM45............................................................................................................................................................................-40 °C to +125 °C

Resistance to Soldering Heat .........................................................................................................................................260 ˚C, 5 seconds

Materials

Core Material

CM10, CM16 ................................................................................................................................................................. Alumina ceramic

CM45.....................................................................................................................................................................................Ferrite Core

Coil Type

CM10, CM16 .....................................................................................................................................................................Copper plating

CM45.....................................................................................................................................................................................Copper wire

Enclosure

CM10, CM16 ...................................................................................................................................................................................Resin

CM45..................................................................................................................................................................................... Epoxy resin

Terminal ...................................................................................................................................................................................................Sn

Product Dimensions

CM100505, CM160808

CM10:

0.2

0.1

(.008

.004)

CM16:

0.3

0.15

(.012

.006)

CM10:

0.2

0.1

(.008

.004)

CM16:

0.3

0.15

(.012

.006)

CM10:

1.0

0.1

(.040

.004)

CM16:

1.6

0.15

(.063

.006)

CM10:

CM16:

0.5

0.1

0.80

0.15

(.020

.004) (.032

.006)

CM10:

CM16:

0.5

0.1

0.80

0.15

(.020

.004) (.032

.006)

CM453232

Marking

3.2 ± 0.2

(.125 ± .008)

4.5 ± 0.3

(.177 ± .012)

1.2

(.047)

DIMENSIONS:

(INCHES)

3.2

0.2

(.125

.008)

1.0

(.039)

1.0

(.039)

1.7

0.2

(.066

.008)

Recommended Land Pattern Dimensions

Series

CM10

0.5 to 0.6 (.019 to .023)

0.8 to 1.0 (.032 to .039)

2.4 to 2.6 (.094 to .102)

1.5 to 1.7 (.059 to .067)

2.0 to 2.6 (.079 to .102)

5.5 to 6.0 (.217 to .236)

0.5 to 0.6 (.019 to .023)

0.7 to 0.9 (.028 to .035)

2.0 to 3.0 (.079 to .118)

CM16

CM45

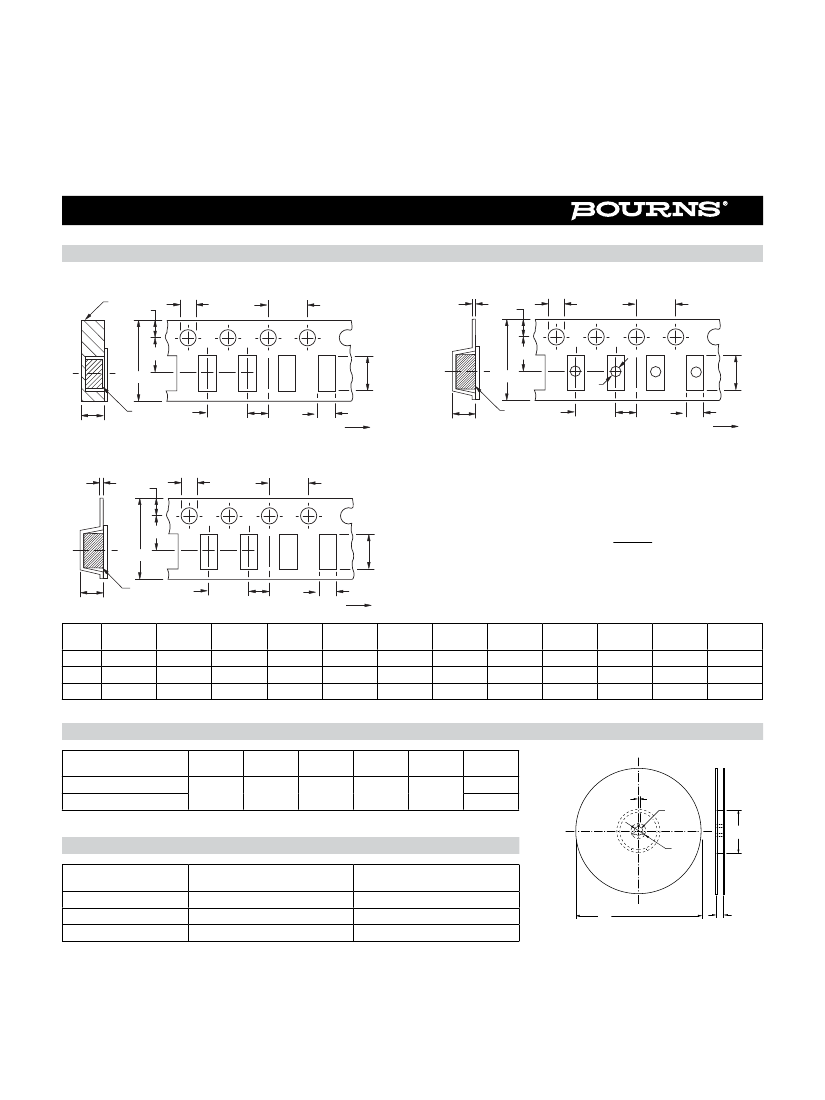

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
