5962-9231501M2X datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-9231501M2X

5962-9231501M2X: DescriptionLog Or Antilog Amplifier, 2 Func, 1099.65MHz Band Width, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC The signal circuit; File Size297KB，16 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

5962-9231501M2X Overview

Log Or Antilog Amplifier, 2 Func, 1099.65MHz Band Width, CQCC20, CERAMIC, LCC-20

5962-9231501M2X Parametric

Parameter Name	Attribute value
Maker	Zarlink Semiconductor (Microsemi)
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	LOG OR ANTILOG AMPLIFIER
Nominal bandwidth	1099.65 MHz
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Number of functions	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	6.1 V
Minimum supply voltage (Vsup)	5.9 V
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

Preview

Download Datasheet

View All

SL2524

1.3GHz Dual Wideband Logarithmic Amplifier

DS4548 - 2.1 July 1995

The SL2524 is a pin compatible replacement for the

SL2521 and SL2522 series of log amplifiers, and exhibits a

superior stability performance. The amplifier is a successive

detection type which provides linear gain and accurate loga-

rithmic signal compression over a wide bandwidth. The two

stages can be operated independently.

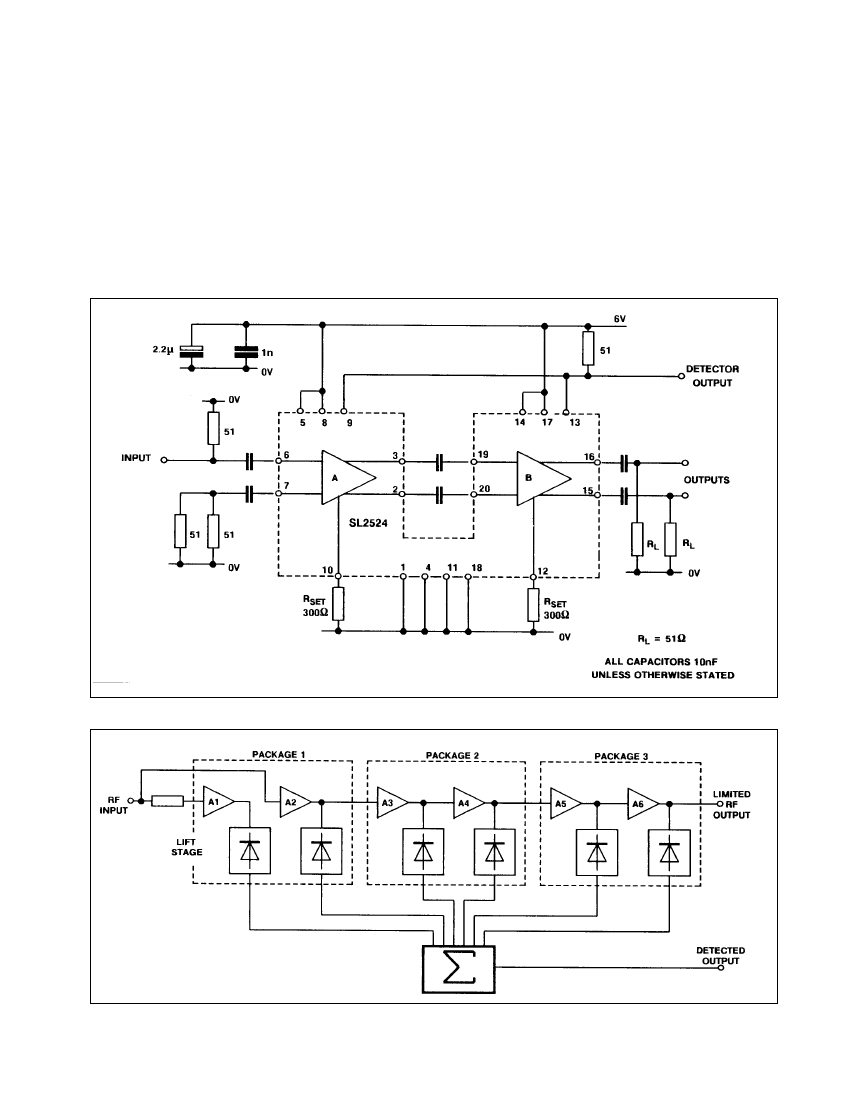

When six stages (three SL2524s) are cascaded the strip

can be used for IFs between 30-650MHz whilst achieving

greater than 65dB dynamic range with a log accuracy of

<±1.0dB. The balanced limited output also offers accurate

phase information with input amplitude.

FEATURES

1.3GHz Bandwidth (-3dB)

Balanced IF limiting

3ns Rise Times/5ns Fall Times (six stages)

20ns Pulse Handling (six stages)

Temperature Stabilised

Surface Mountable

APPLICATIONS

Ultra Wideband Log Receivers

Channelised Receivers

Monopulse Applications

OPTIONAL PIN

REFERENCE

ABSOLUTE MAXIMUM RATINGS

Supply Voltage (V

above V

)

+7.0V

Storage temperature

-65°C to +150°C

Operating temperature range

SL2524/B/LC

-40°C to +85°C

SL2524/C/HP

-30°C to +85°C

Junction temperature - LC20

+175°C

- HP20

+150°C

Applied DC voltage to RF input

±0.4V

(between RF I/P

pins)

Applied RF power to RF input

+15dBm

NOT less than 180Ω

Value of R

SET

resistors

Thermal resistance:-

Die to case

-LC 20

28°C/W

- HP20

20°C/W

Die to ambient - LC20

73°C/W

- HP20

82°C/W

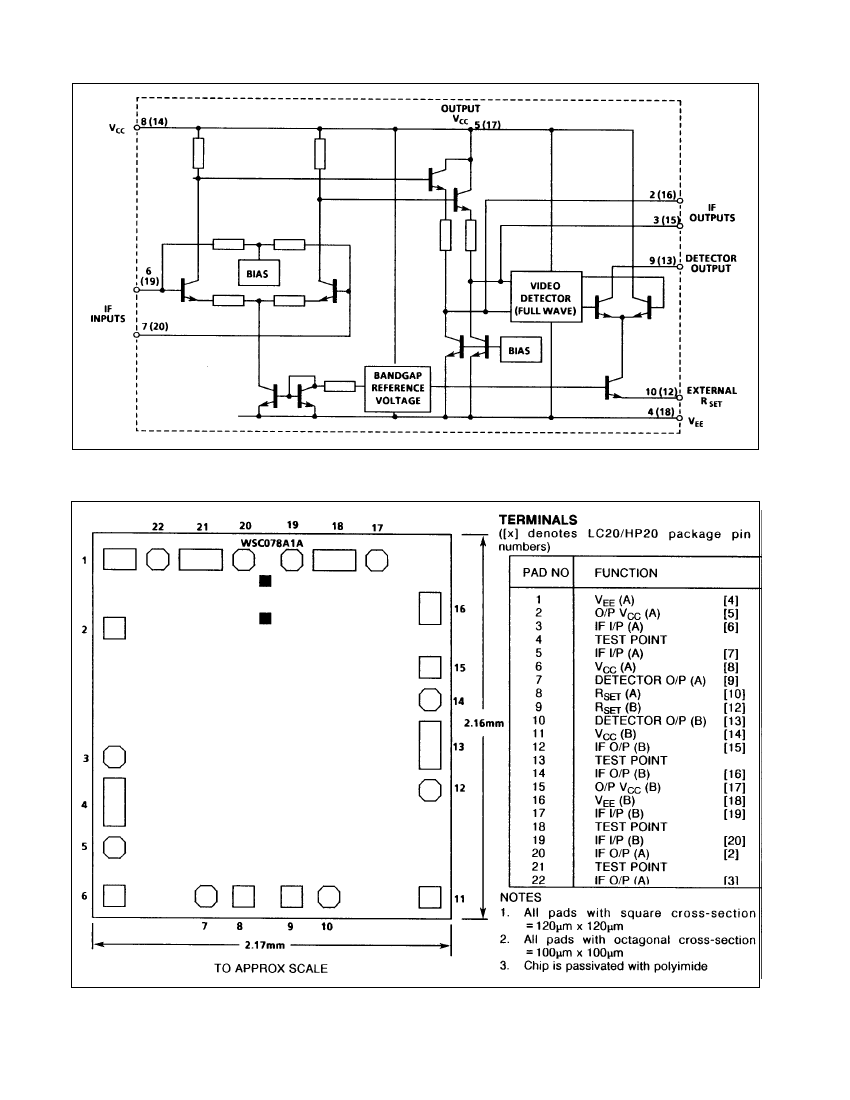

DESCRIPTION

SUB V

IF OUTPUT (A)

(A)

OUTPUT V

(A)

IF INPUT (A)

(A)

DET. OUTPUT (A)

R SET (A)

DESCRIPTION

N/C

R SET (B)

DET. OUTPUT (B)

(B)

IF OUTPUT (B)

OUTPUT V

(B)

IF INPUT (B)

ORDERING INFORMATION

SL2524/B/LC (Ceramic leadless chip carrier package)

SL2524/C/HP (Plastic J lead chip carrier package)

SL2524/NA/1C (DC probe tested bare die)

5962 - 92315 (SMD)

Fig.1 Pin connections top view

5962-9231501M2X Related Products

	5962-9231501M2X	5962-9231501M2C
Description	Log Or Antilog Amplifier, 2 Func, 1099.65MHz Band Width, CQCC20, CERAMIC, LCC-20	Log Or Antilog Amplifier, 2 Func, 1099.65MHz Band Width, CQCC20, CERAMIC, LCC-20
Maker	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)
package instruction	QCCN,	QCCN,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	LOG OR ANTILOG AMPLIFIER	LOG OR ANTILOG AMPLIFIER
Nominal bandwidth	1099.65 MHz	1099.65 MHz
JESD-30 code	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e4
length	8.89 mm	8.89 mm
Number of functions	2	2
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.03 mm	2.03 mm
Maximum supply voltage (Vsup)	6.1 V	6.1 V
Minimum supply voltage (Vsup)	5.9 V	5.9 V
Nominal supply voltage (Vsup)	6 V	6 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	GOLD
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	8.89 mm	8.89 mm
