B37-30-B-S-C-1-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> B37-30-B-S-C-1-G

B37-30-B-S-C-1-G: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size270KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

B37-30-B-S-C-1-G Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

B37-30-B-S-C-1-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

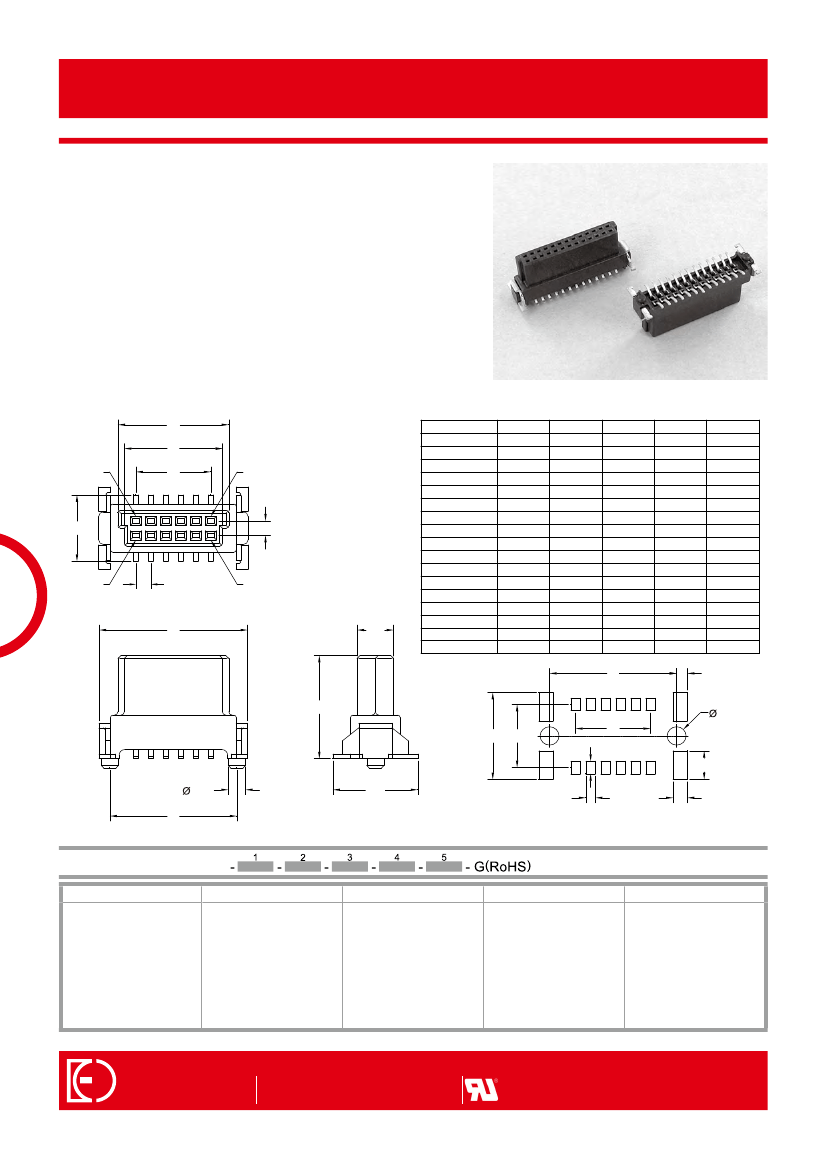

B37 HALF PITCH FEMALE HEADER SMT (H: 9.0mm)

PITCH: 1.27mm * 1.27mm

SPECIFICATIONS

Material

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute

Operating Temperature : -40˚C to +105˚C

►Mating

Suggestion : C56, C57, C57a & C58 series.

POSITION

5.7

1.27

3.1

5.60

6.87

8.14

9.41

10.68

11.95

14.49

15.76

18.30

20.84

23.38

27.19

29.73

33.54

39.89

44.97

52.59

4.50

5.77

7.04

8.31

9.58

10.85

13.39

14.66

17.20

19.74

22.28

26.09

28.63

32.44

68.79

43.87

51.49

2.54

3.81

5.08

6.35

7.62

8.89

11.43

12.70

15.24

17.78

20.32

24.13

26.67

30.48

36.83

41.91

49.53

8.79

10.06

11.33

12.60

13.87

15.14

17.68

18.95

21.49

24.03

26.57

30.38

32.92

36.73

43.08

48.16

55.78

0.9

6.96

8.23

9.50

10.77

12.04

13.31

15.85

17.12

19.66

22.20

24.74

28.55

31.09

34.90

41.25

46.33

53.95

9.0

7.6 5.5

1.1

0.8

1.6

2.5

1.45

7.2

1.2

RECOMMENDED P.C.B LAYOUT

How to order:

1.NO. OF CONTACT

08 10 12 14

20 22 26 30

40 44 50 60

B37

2.CONTACT MATERIAL

B: PHOSPHOR BRONZE

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

4.PACKAGING

A: TUBE WITH PAD

B: TUBE W/O PAD

C: TAPE & REEL

WITH PAD

5.INSULATOR COLOR

1. BLACK

264

886 2 86483356 | F

886 2 86485885

EL E CT RON IC S CO ., LT D

e-mail

info@donconnex.com.tw

DON CONNEX

Connector:E163339 | Flat cable:E162690

Wiring Harnesses:E312257
