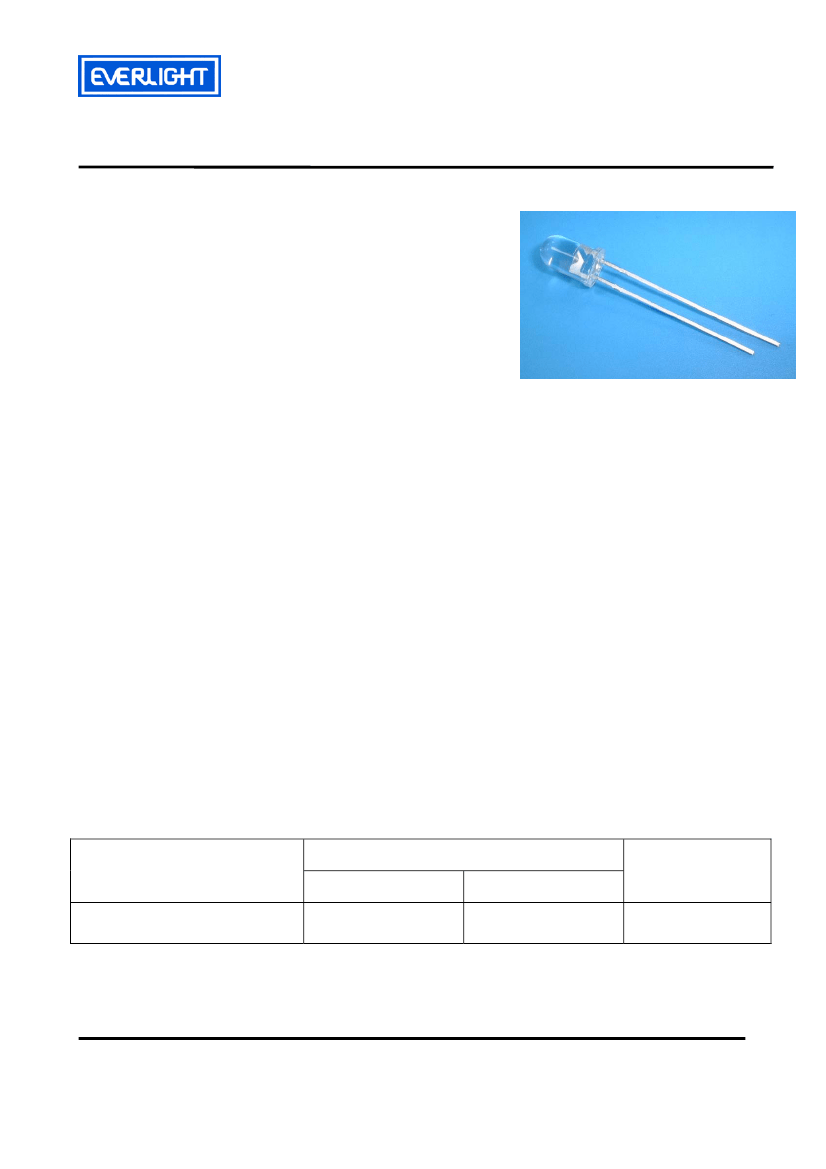

Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C1-1SUB
Features
․Popular
T-1
3/4
colorless 5mm package.
․High
luminous power.
․Typical
chromaticity coordinates x=0.29, y=0.28
according to CIE1931.
․Bulk,
available taped on reel.
․Pb
free .
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Outdoor
Displays
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
Chip
PART NO.
Material
334-15/W2C1-1SUB
InGaN/Sapphire
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A27
http\\:www.everlight.com
Established date: 09-02-2005
Rev
2
Page: 1 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C1-1SUB
Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Zener Reverse Current
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Iz
ESD
Rating
25
100
5
-40 ~ +85
-40 ~ +100
260 ± 5
100
50
4K
Unit
mA
mA
V
℃
℃
℃
mW
mA
V
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A27
http\\:www.everlight.com
Established date: 09-02-2005
Rev
2
Page: 2 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C1-1SUB
Production Designation
334-15/W2C1-□
□ □ □
Voltage Group
Luminous Intensity Bins
Color Group
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Zener Reverse Voltage
Reverse Current
Symbol
V
F
Vz
I
R
I
V
2θ1/2
x
Chromaticity Coordinates
y
I
F
=20mA
--
0.28
--
Condition
I
F
=20mA
Iz=5mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Min.
--
5.8
--
5650
--
--
15
0.29
Typ.
3.5
----
--
Max.
4.0
-----
50
11250
--
--
Units
V
V
uA
mcd
deg
Luminous Intensity
Viewing Angle
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A27
http\\:www.everlight.com
Established date: 09-02-2005
Rev
2
Page: 3 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C1-1SUB
Luminous Intensity Combination (
mcd at 20mA)
Rank
S
T
Min
5650.0
7150.0
Max
7150.0
9000.0
11250.0
U
9000.0
*Measurement Uncertainty of Luminous Intensity:
±15%
Forward Voltage Combination (
V at 20mA)
Group
Rank
Min.
Max.
1
3.00
3.20
2
3.20
3.40
B
3
3.40
3.60
4
3.60
3.80
5
3.80
4.00
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
1
2
3
4
5
6
A1+A0
A0+B3+B4
A0+B5+B6
B3+B4+C0
B5+B6+C0
Bins
A1+A0+B3+B4+B5+B6+C0
CIE Chromaticity Diagram
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A27
http\\:www.everlight.com
Established date: 09-02-2005
Rev
2
Page: 4 of 8
Established by: Amy Ma
Technical Data Sheet
5 mm Round White LED (T-13/4)
334-15/W2C1-1SUB
Color Ranks (IF=20mA，Ta=25℃)
Color Ranks
A1
A0
B3
B4
B5
B6
C0
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
0.255
0.245
0.264
0.267
0.283
0.305
0.304
0.33
0.287
0.295
0.307
0.315
0.33
0.264
0.267
0.283
0.305
0.304
0.33
0.33
0.36
0.307
0.315
0.33
0.339
0.361
CIE
0.28
0.248
0.296
0.267
0.307
0.315
0.33
0.339
0.311
0.294
0.33
0.318
0.355
0.35
0.27
0.23
0.28
0.248
0.287
0.295
0.307
0.315
0.296
0.276
0.311
0.294
0.33
0.318
Y
0.36
0.385
Measurement uncertainty of the color coordinates：±0.01
Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
Everlight Electronics Co., Ltd.
Device Number:DLE-033-A27
Forward Current vs. Forward Voltage
Rev
2
Page: 5 of 8
http\\:www.everlight.com
Established date: 09-02-2005
Established by: Amy Ma
