BTCPower
B30 Series
Description
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion

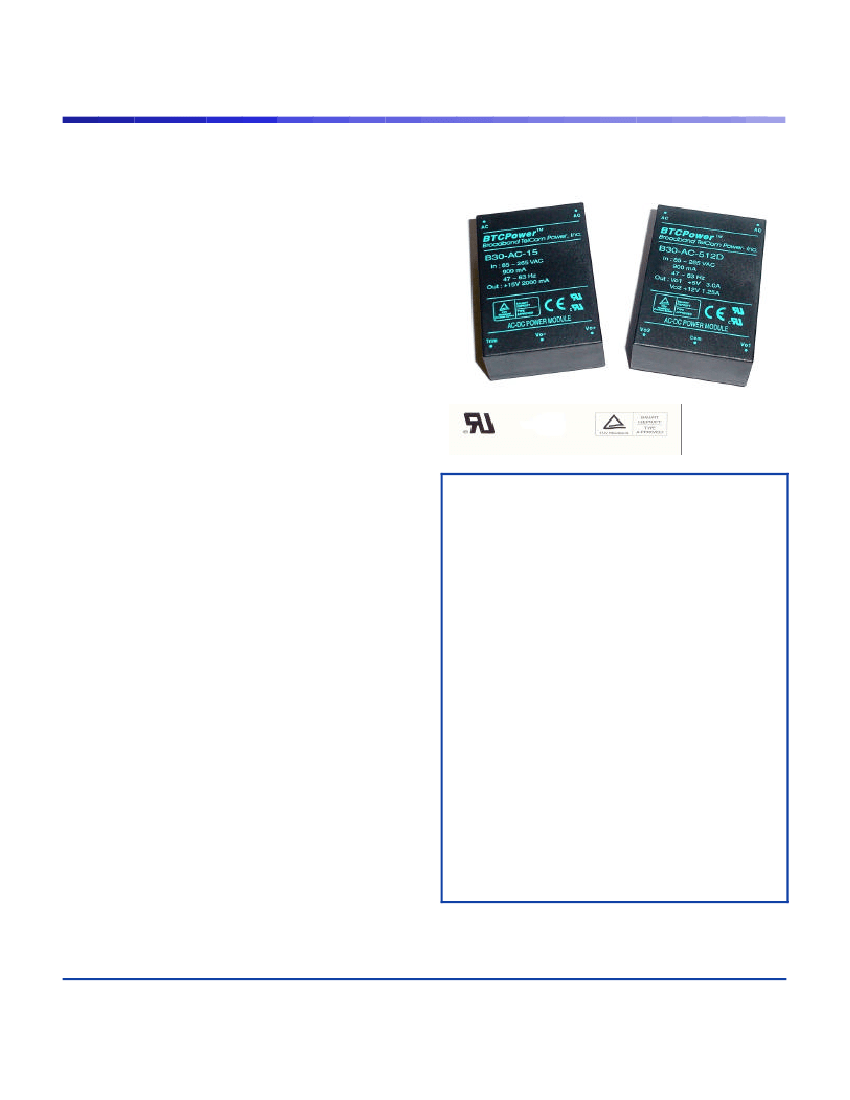

30W AC/DC Power Module
The B15 series of the efficiency, AC/DC power modules offer
85-265V AC input and 30W DC output within samll footprint.
With a wide input voltage range of 85-265Vac they are
available with an output voltage of either 3.3, 5, 12, 15, or
24Vdc. All models feature an input filter, output current
limiting and short circuit protection. The fully enclosed,
encapsulated construction heat spreader design achieves
very efficient heat transfer with no hot spots. The modules
combine creative design concepts with highly derated power
devices to achieve very high reliability, high performance
and low cost solution to systems designers that are
challenged to maximize power and minimize board space.
Features
•
•
•
•
•
•
•
Delivers up to 30W with AC input in 2.51”x 3.51” format
No airflow or heatsink required
Low profile of only 1.27”
3.3V, 5V, 12V, 15V, 24V or Dual output modules
-20°C to +71 °C ambient operation
Meets Basic Insulation requirements of EN60950
UL 1950 recognized and TUV IEC60950
Specification Summary
•
7.5A @ 3.3V, 6A @ 5V, 2.50A @ 12V, 2A @ 15V,
1.25 A @ 24 V, ±1.25A @ ±12V, ,±1A @ ±15V,
1.5A @ 3.3V and 3A @ 5V, 3A @ 5V and 1.25A @ 12V
• Tightly output regulation, typical ±2%
• No minimum load required
• Ripple & Noise ( 20Mhz BW) 100 mv typ.(pk-pk)
• Wide input operating range 85-265Vac
• 1500V, 10M
input-to-output isolation
• Meets conducted limits of EN55022 and EN50082-1
Applications
•
•
•
•
•
•
•
Telecommunications
Data Communications
Wireless Communications
Networking Gear
Servers, Switches and Data Storage
Semiconductor Test Equipment
Distributed Power Architecture
• Enclosed construction with heat spreader for low
temperature rise
• Enclosed six-sided metal shield contruction for low
EMI/RFI
• Output overcurrent protection
• Input Under voltage protection
• MTBF of 205,000 hours @ 50°C ( MIL-HDBK-217 )
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840 • www.btcpower.com • Email: sales@btcpower.com
PB B30 Rev1 12-11-02
B30 Series
30W AC/DC Power Modules
BTCPower
TM
Product Brief
Part Number and Selection Information
Input
Model
Part Number
B30-AC-3.3
B30-AC-5
B30-AC-12
B30-AC-15
B30-AC-24
B30-AC-12D
B30-AC-15D
B30-AC-335D
B30-AC-512D
Voltage (Vac)
Nominal
110/220
110/220
110/220
110/220
110/220
110/220
110/220
110/220
110/220
Range
85-265
85-265
85-265
85-265
85-265
85-265
85-265
85-265
85-265
Current (Aac)
No load
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
Full load
0.29/0.15
0.34/0.17
0.34/0.17
0.32/0.16
0.32/0.16
0.32/0.16
0.32/0.16
0.25/0.13
0.33/0.17
(Vdc)
3.3
5.0
12
15
24
±12
±15
3.3 / 5.0
5.0 / 12.0
Output
Voltage
Current
(Adc)
7.5
6.0
2.5
2.0
1.25
±1.25
±1.0
1.5 / 3.0
3.0 / 1.25
Efficiency
75% Load
(%)
76
79
80
84
84
83
84
71
81
Typical at Ta= +25 ºC under nominal line voltage and 75% load conditions, unless noted.

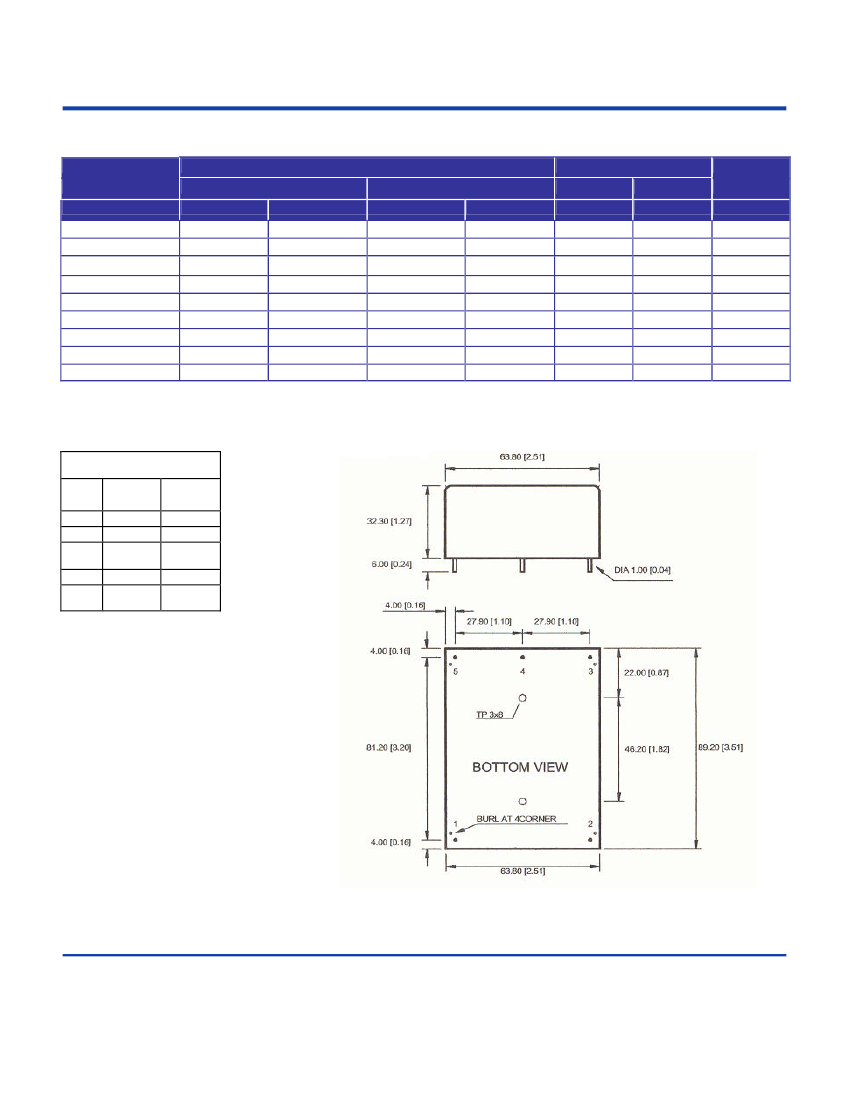

Outline Information and Pin-out
Pin Connection (Function)
Dual
Pin#
Single
Output
Output
1
2
3
4
5
AC In
AC In
Vout +
Vout -
Trim
AC In
AC In
Vout 1 /
Vo +
Com
Vout 2 /
Vo -
All dimensions are in inches [mm]
All pins are dia. 0.040 [1.02]
Pin material: Brass
Case: Plastic
Weight: 160 g
The information and specifications contained in this brief are believed to be accurate and reliable at the time of publication. Specifications are
subject to change without notice. Refer to product specification sheet for performance characteristics and application guidelines.
Worldwide Headquarter:
Broadband TelCom Power, Inc.
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 Fax: 714-259-0840
Email: sales@btcpower.com
www.btcpower.com
European Headquarter:
Broadband TelCom Power Europe B.V.
Dukaatstraat 14, 4879 AD Etten-Leur, The Netherlands
Tel.: 31-76-5038350 Fax: 31-76-5012038
Email: info.europe@btcpower.com
PB B30 Rev 1 12-11-02
