802-008-06Z115-85SC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-008-06Z115-85SC

802-008-06Z115-85SC: DescriptionCircular Connector, 85 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-008-06Z115-85SC Overview

Circular Connector, 85 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug,

802-008-06Z115-85SC Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	15
Termination type	CRIMP
Total number of contacts	85
Base Number Matches	1

Preview

Download Datasheet

View All

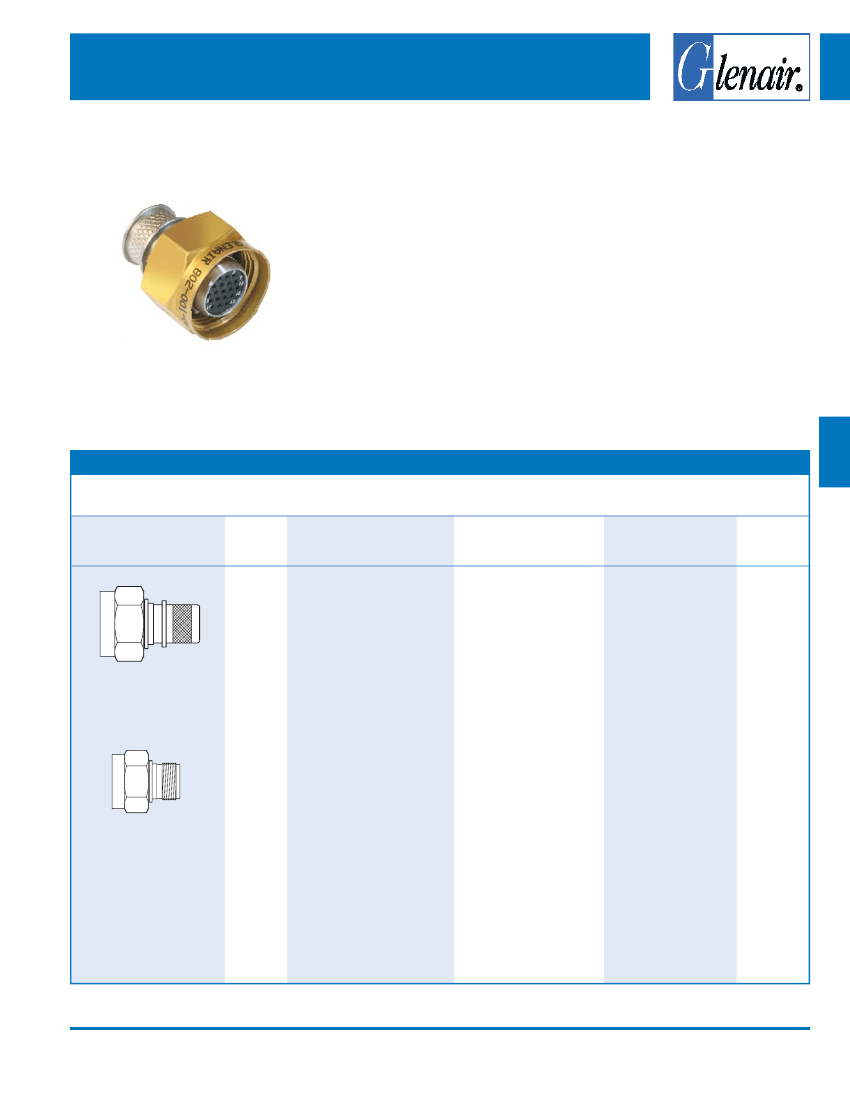

Series 802 “Aqua Mouse”

3500 PSI Rated

Series 802 Plug Connectors

Stainless Steel Shell

and

Nickel-

Aluminum-Bronze Coupling Nut

withstand corrosion in the most

hostile environments. Rated for 3500

PSI when mated, these connectors

are suitable for geophysical and

underwater applications.

Gold-Plated Contacts

are supplied

loose for crimping to wire. High density

size 23 contact arrangements accept

#22 – #30 AWG wire, or choose #12

or #16 contacts for higher current.

Two Shell Styles:

Integral platform

for direct shield attachment using

BAND-IT® termination system, or

accessory thread for attaching a strain

relief.

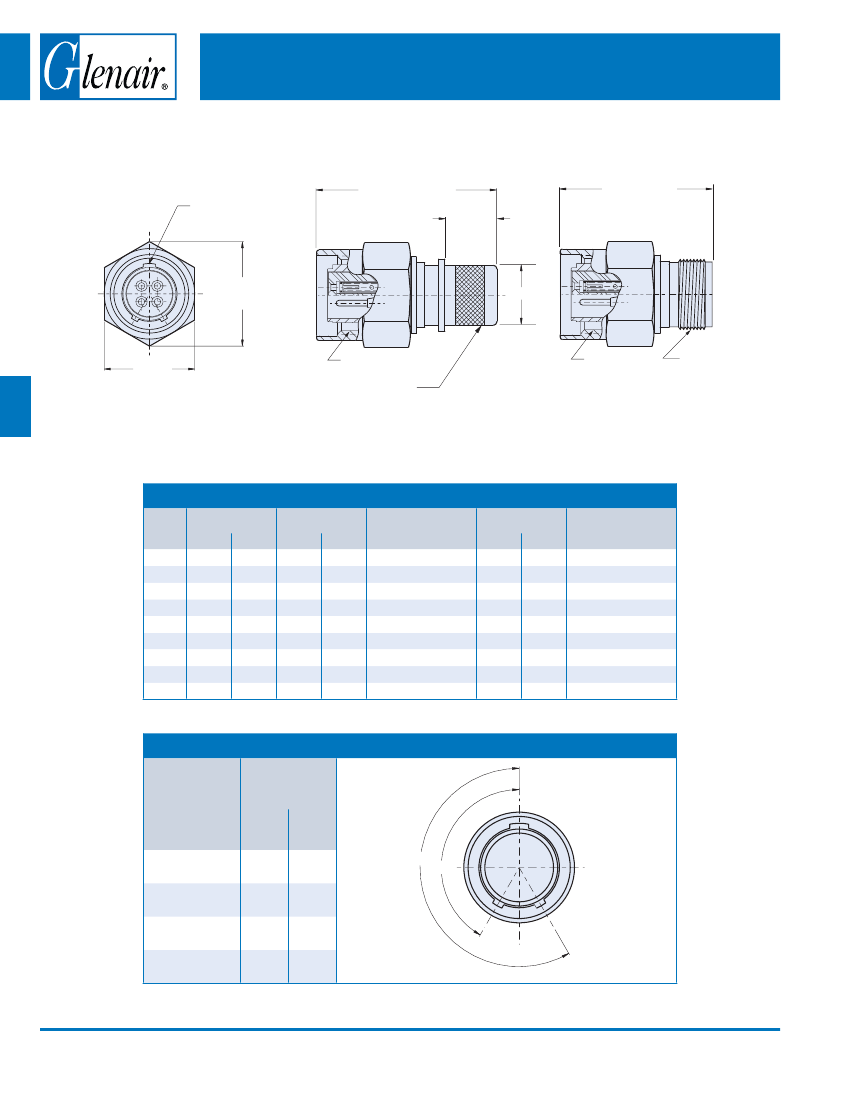

Series 802 Plugs

HOW TO ORDER SERIES 802 PLUGS

Sample Part Number

802-009

Series

-06

Shell

Style

-06

Plug

Shell Material / Finish

9-19

Shell Size- Insert

Arrangement

Contact Type

Shell Key

Position

Normal

802-008

Plug with Banding

Platform

5-3

Stainless Steel / Passivated

6-1

6-4

6-7

Stainless Steel / Electroless

7-1

Nickel Plated

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

Standard #23 contacts

3 #23 Contacts

accept #22 through

1 #16 Contact

#28 AWG wire. Use the

4 #23 Contacts

following contact codes to

7 #23 Contacts

specify these contacts:

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

Socket

26 #23 Contacts

Special contacts for

2 #12 Contacts

#26 to #30 AWG are

37 #23 Contacts

also available. Use the

55 #23 Contacts

following contact codes to

85 #23 Contacts

specify these contacts:

Pos. B

Pos. C

Pos. D

802-009

Plug with Accessory

Thread

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Socket

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-3

Rev. 05-APR-2007

E-Mail: sales@glenair.com
