151234-7322-TY

Description
HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,NATURAL
CategoryThe connector    The connector
File Size142KB,2 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric View All

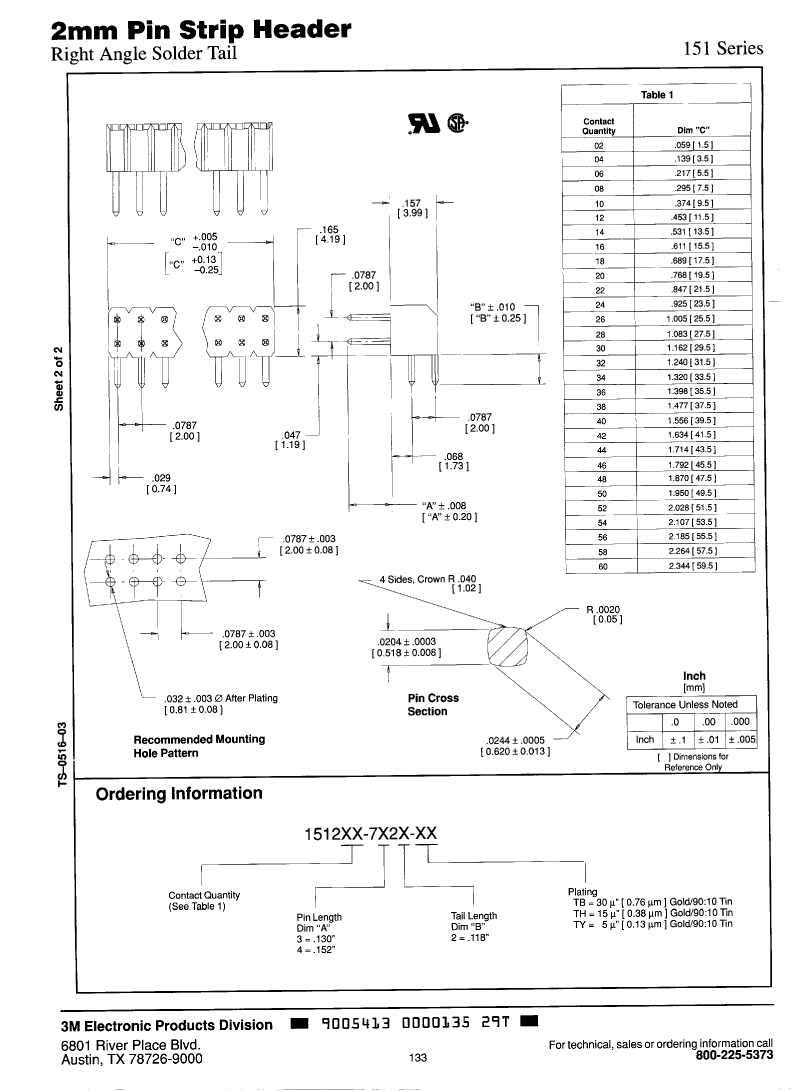

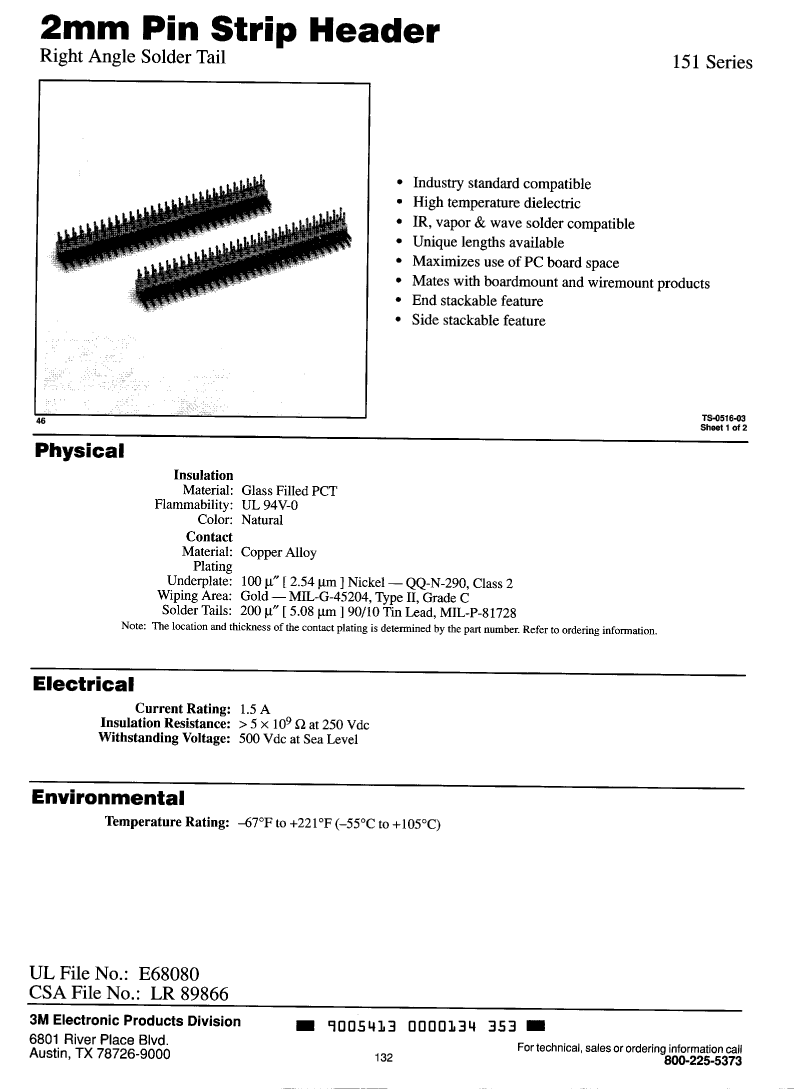

151234-7322-TY Overview

HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,NATURAL

151234-7322-TY Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
body width0.165 inch
subject depth0.157 inch
body length1.32 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VDC V
Insulation resistance5000000000 Ω
Insulator colorNATURAL
insulator materialGLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
Manufacturer's serial number151
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness5u inch
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts34
Base Number Matches1
