5962-9154507MQX datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9154507MQX

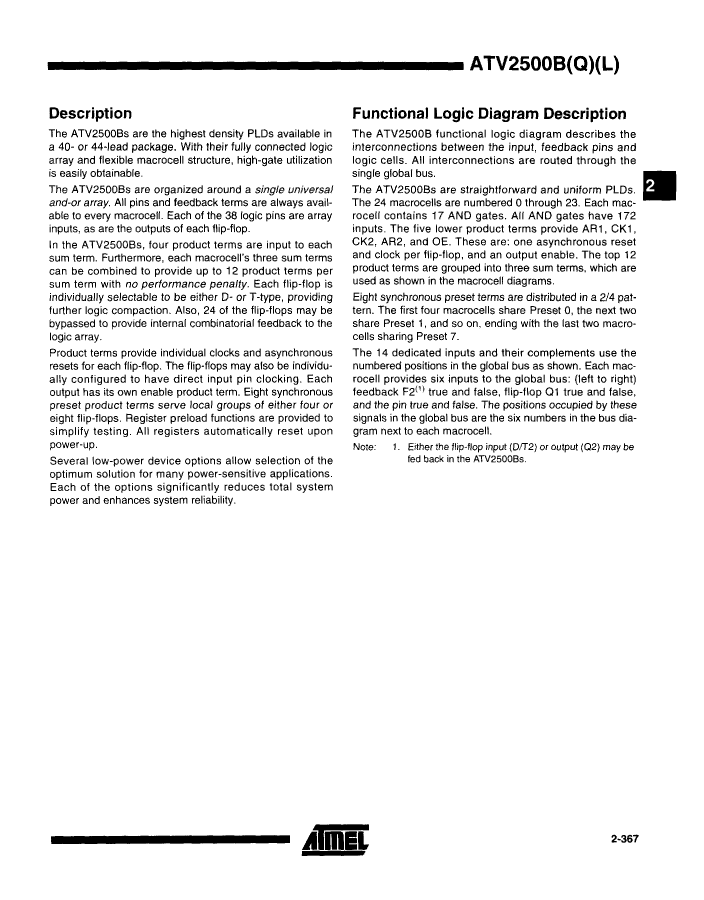

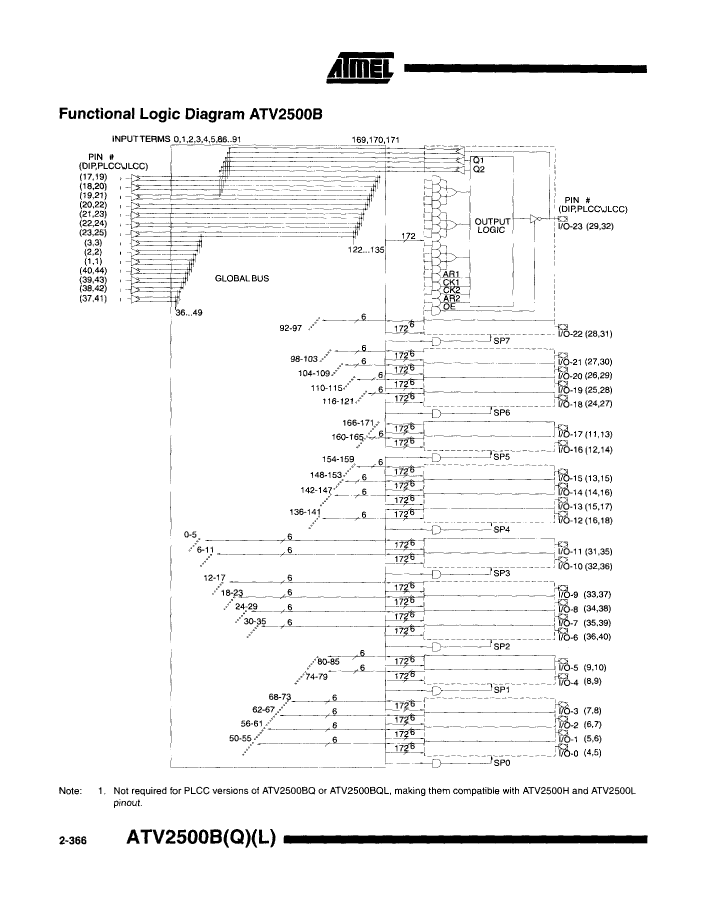

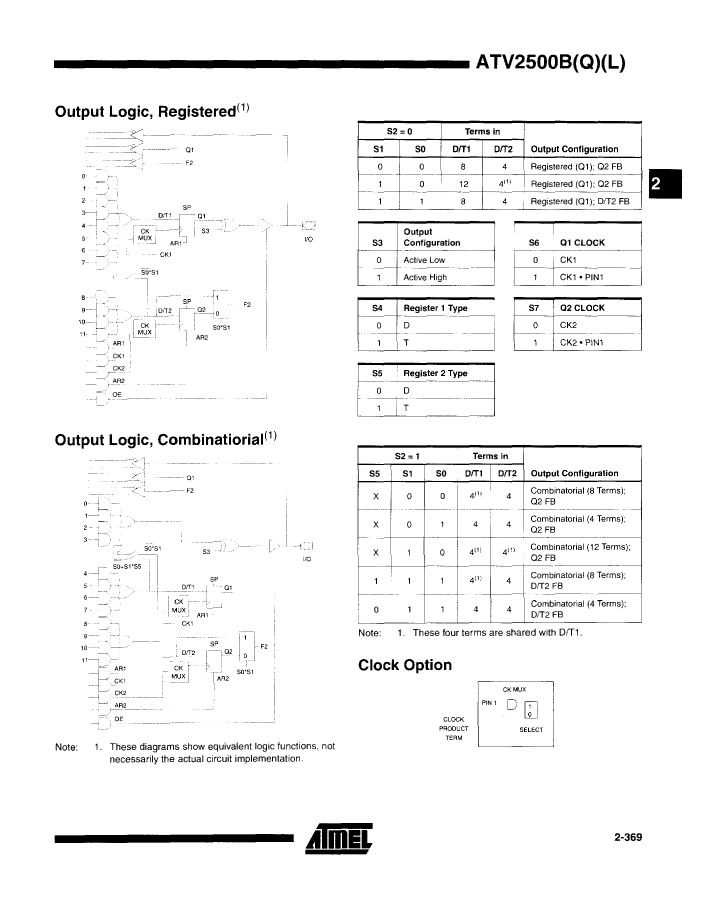

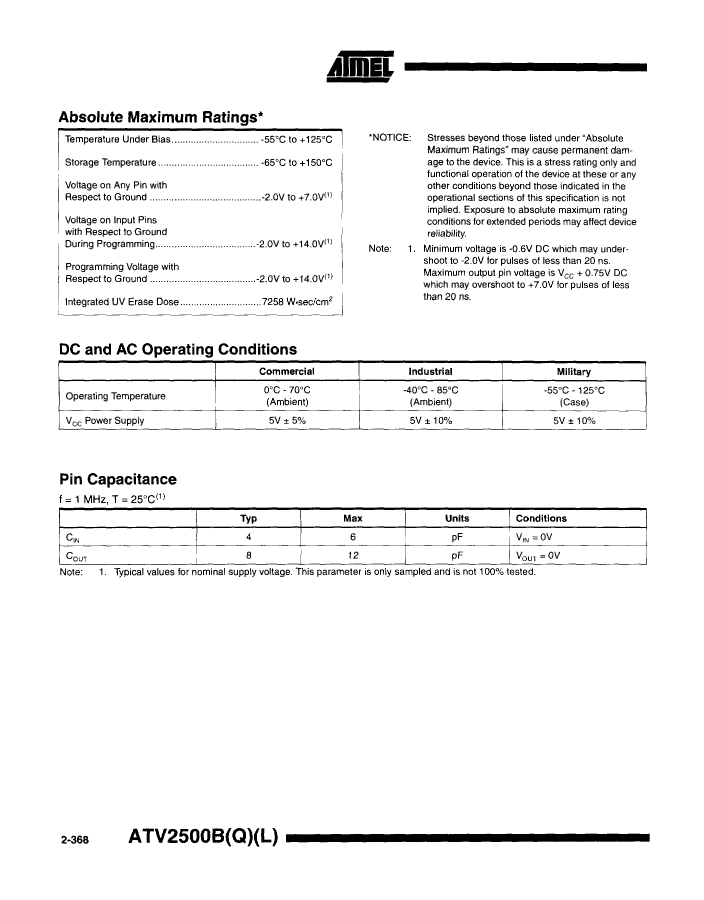

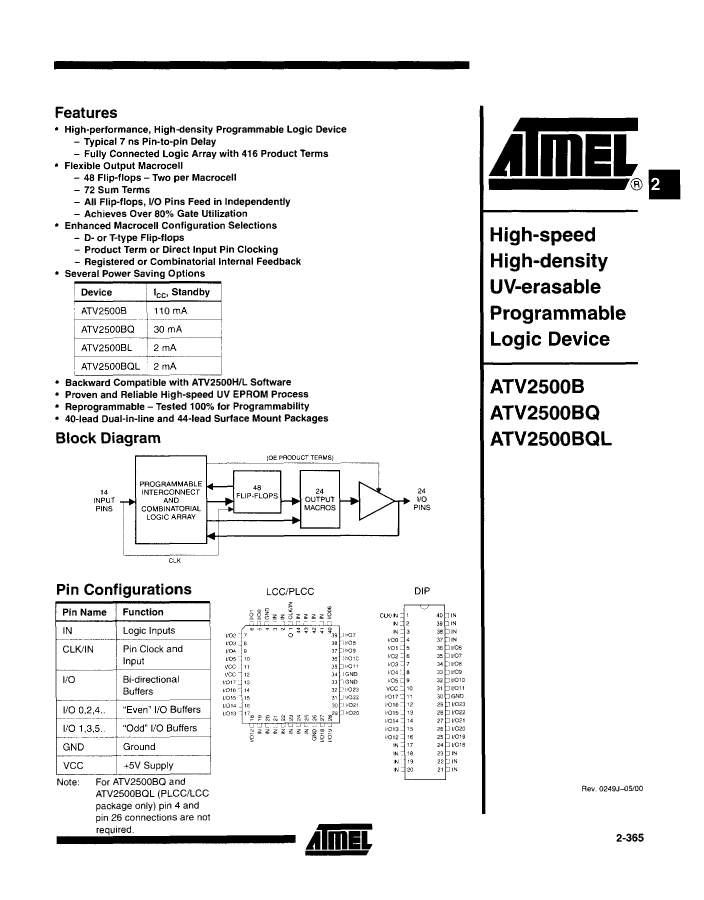

5962-9154507MQX: DescriptionUV PLD, 30ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40; CategoryProgrammable logic devices Programmable logic; File Size703KB，18 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

5962-9154507MQX Overview

UV PLD, 30ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40

5962-9154507MQX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	26 MHz
JESD-30 code	R-GDIP-T40
length	52.45 mm
Dedicated input times	13
Number of I/O lines	24
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	13 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	UV PLD
propagation delay	30 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.72 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9154507MQX Related Products

	5962-9154507MQX	5962-9154506MQX	ATV2500BQL-25DM	ATV2500BQL-25DM/883	ATV2500BQL-25KM	ATV2500BQL-25KM/883	ATV2500BQL-25LM/883	ATV2500BQL-25LM
Description	UV PLD, 30ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44
Parts packaging code	DIP	DIP	DIP	DIP	LCC	LCC	LCC	LCC
package instruction	DIP,	DIP,	DIP,	DIP,	QCCN,	QCCN,	QCCJ,	QCCJ,
Contacts	40	40	40	40	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	24 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	26 MHz	31 MHz	31 MHz	31 MHz	31 MHz	31 MHz	31 MHz	31 MHz
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	S-CQCC-N44	S-CQCC-N44	S-CQCC-J44	S-CQCC-J44
length	52.45 mm	52.45 mm	52.45 mm	52.45 mm	16.51 mm	16.51 mm	16.5862 mm	16.5862 mm
Dedicated input times	13	13	13	13	13	13	13	13
Number of I/O lines	24	24	24	24	24	24	24	24
Number of terminals	40	40	40	40	44	44	44	44
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C
organize	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O	13 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	QCCN	QCCN	QCCJ	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD
propagation delay	30 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.72 mm	5.72 mm	5.72 mm	5.72 mm	3.05 mm	3.05 mm	4.57 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	16.51 mm	16.51 mm	16.5862 mm	16.5862 mm
ECCN code	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-
