HN624116P-25L: DescriptionMASK ROM, 2MX8, 250ns, CMOS, PDIP42, PLASTIC, DIP-42; Categorystorage storage; File Size137KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN624116P-25L Overview

MASK ROM, 2MX8, 250ns, CMOS, PDIP42, PLASTIC, DIP-42

HN624116P-25L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP42,.6
Contacts	42
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	250 ns
Spare memory width	16
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	52.8 mm
memory density	16777216 bi
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	42
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	3.5/5.5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.00003 A
Maximum slew rate	0.065 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

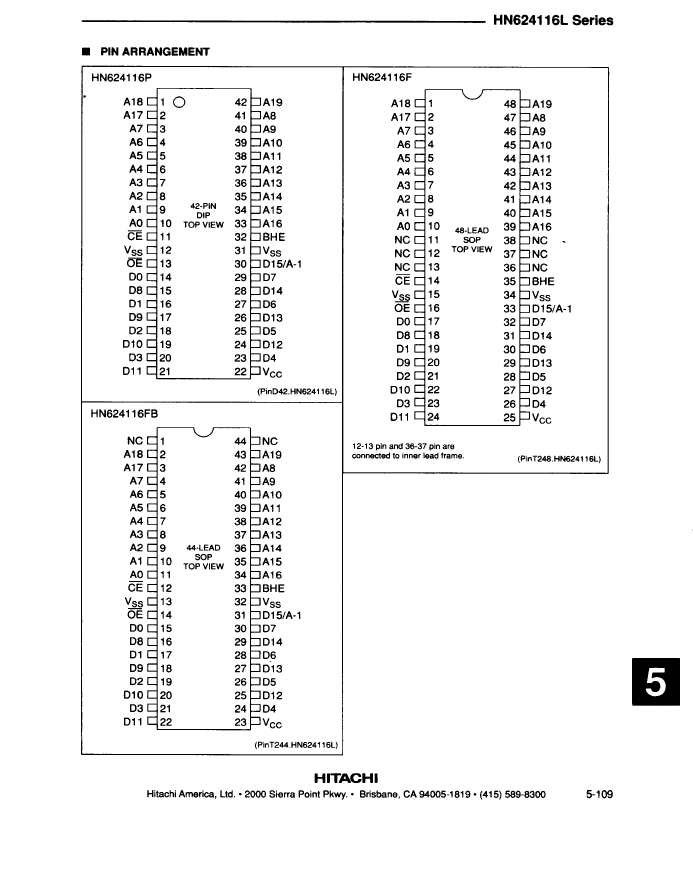

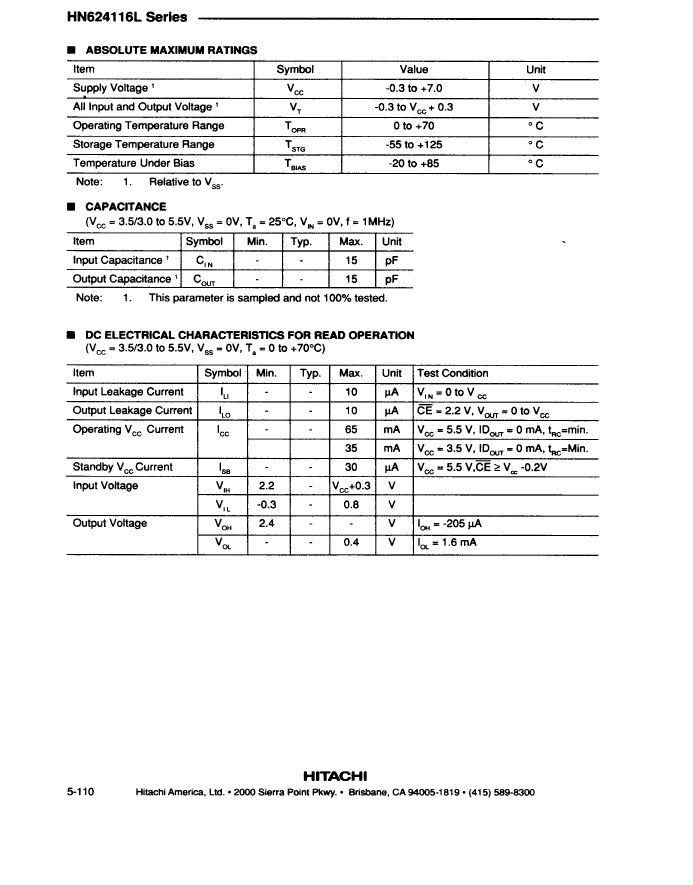

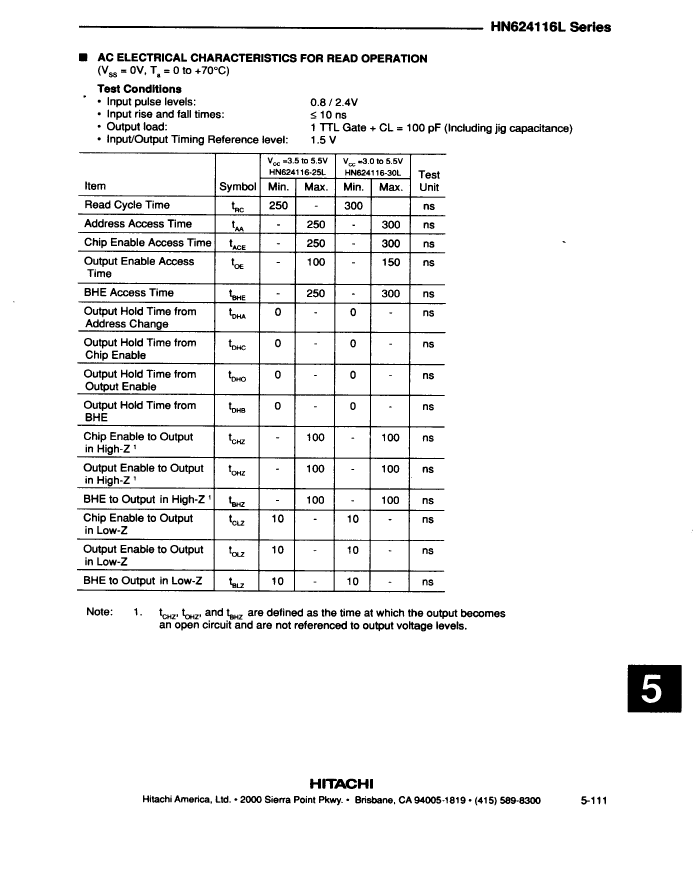

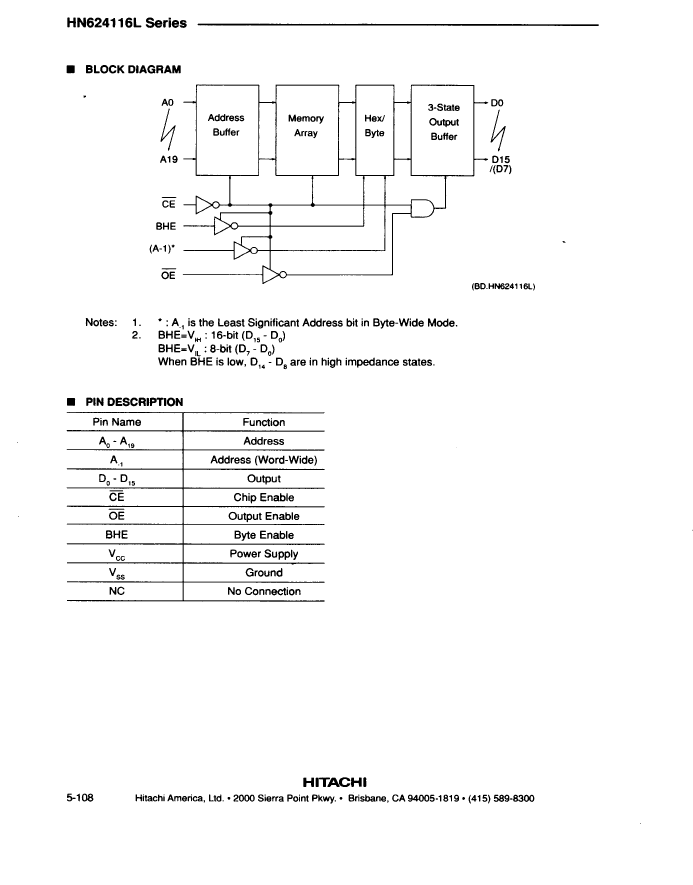

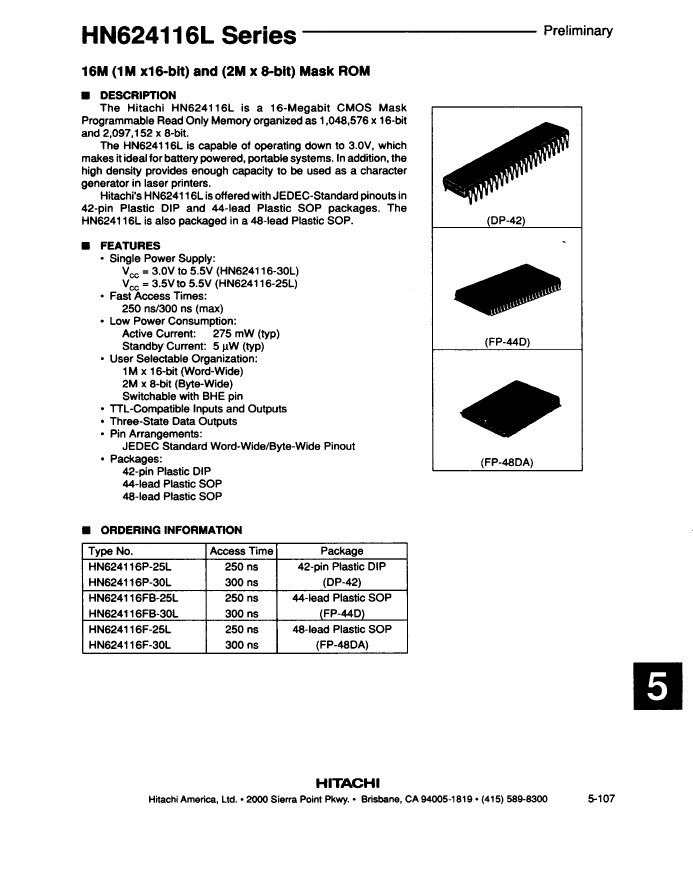

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HN624116P-25L Related Products

	HN624116P-25L	HN624116FB-25L	HN624116F-25L	HN624116F-30L	HN624116FB-30L	HN624116P-30L
Description	MASK ROM, 2MX8, 250ns, CMOS, PDIP42, PLASTIC, DIP-42	MASK ROM, 2MX8, 250ns, CMOS, PDSO44, PLASTIC, SOP-44	MASK ROM, 2MX8, 250ns, CMOS, PDSO48, PLASTIC, SOP-48	MASK ROM, 2MX8, 300ns, CMOS, PDSO48, PLASTIC, SOP-48	MASK ROM, 2MX8, 300ns, CMOS, PDSO44, PLASTIC, SOP-44	MASK ROM, 2MX8, 300ns, CMOS, PDIP42, PLASTIC, DIP-42
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	DIP
package instruction	DIP, DIP42,.6	SOP, SOP44,.63	SSOP, SOP48,.61,32	SSOP, SOP48,.61,32	SOP, SOP44,.63	DIP, DIP42,.6
Contacts	42	44	48	48	44	42
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	250 ns	250 ns	250 ns	300 ns	300 ns	300 ns
Spare memory width	16	16	16	16	16	16
JESD-30 code	R-PDIP-T42	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44	R-PDIP-T42
JESD-609 code	e0	e0	e0	e0	e0	e0
length	52.8 mm	28.5 mm	20 mm	20 mm	28.5 mm	52.8 mm
memory density	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	42	44	48	48	44	42
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SSOP	SSOP	SOP	DIP
Encapsulate equivalent code	DIP42,.6	SOP44,.63	SOP48,.61,32	SOP48,.61,32	SOP44,.63	DIP42,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	3.22 mm	3 mm	3 mm	3.22 mm	5.08 mm
Maximum standby current	0.00003 A	0.00003 A	0.00003 A	0.00003 A	0.00003 A	0.00003 A
Maximum slew rate	0.065 mA	0.065 mA	0.065 mA	0.065 mA	0.065 mA	0.065 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	12.6 mm	14 mm	14 mm	12.6 mm	15.24 mm
Maker	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
