5962-8764803YA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8764803YA

5962-8764803YA: DescriptionUVPROM, 64KX8, 250ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32; Categorystorage storage; File Size320KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-8764803YA Overview

UVPROM, 64KX8, 250ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32

5962-8764803YA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFJ
package instruction	WQCCN, LCC32,.45X.55
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	250 ns
I/O type	COMMON
JESD-30 code	R-CQCC-N32
JESD-609 code	e0
length	13.97 mm
memory density	524288 bit
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER, WINDOW
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.556 mm
Maximum standby current	0.000325 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

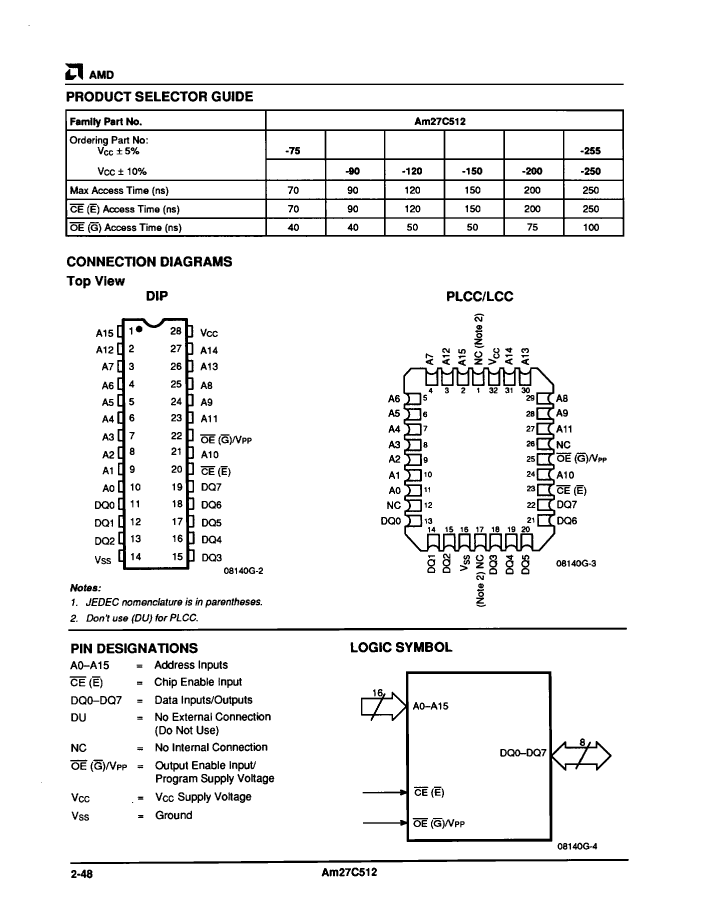

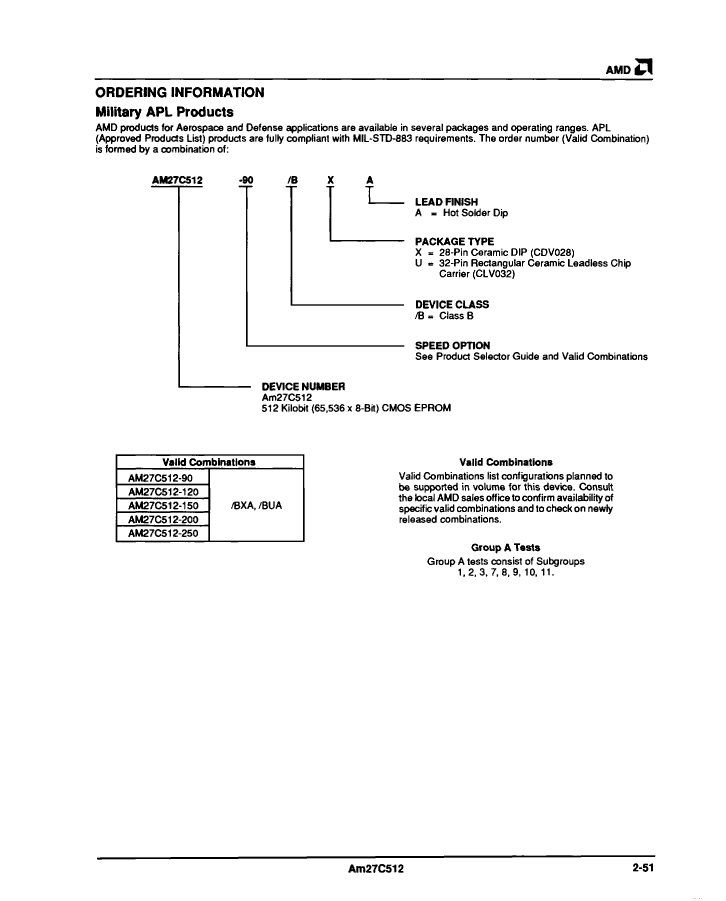

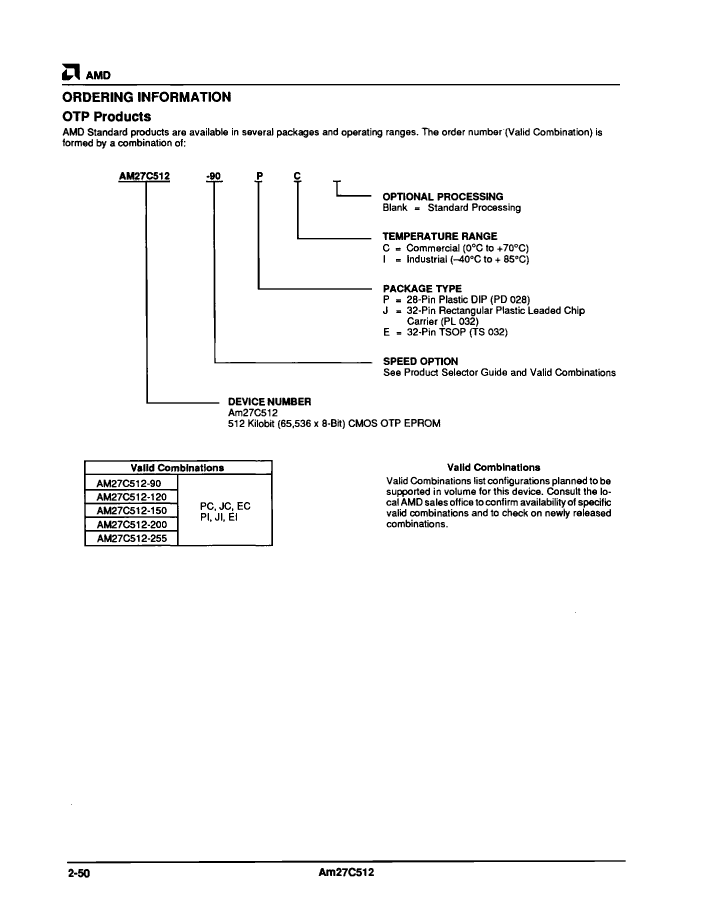

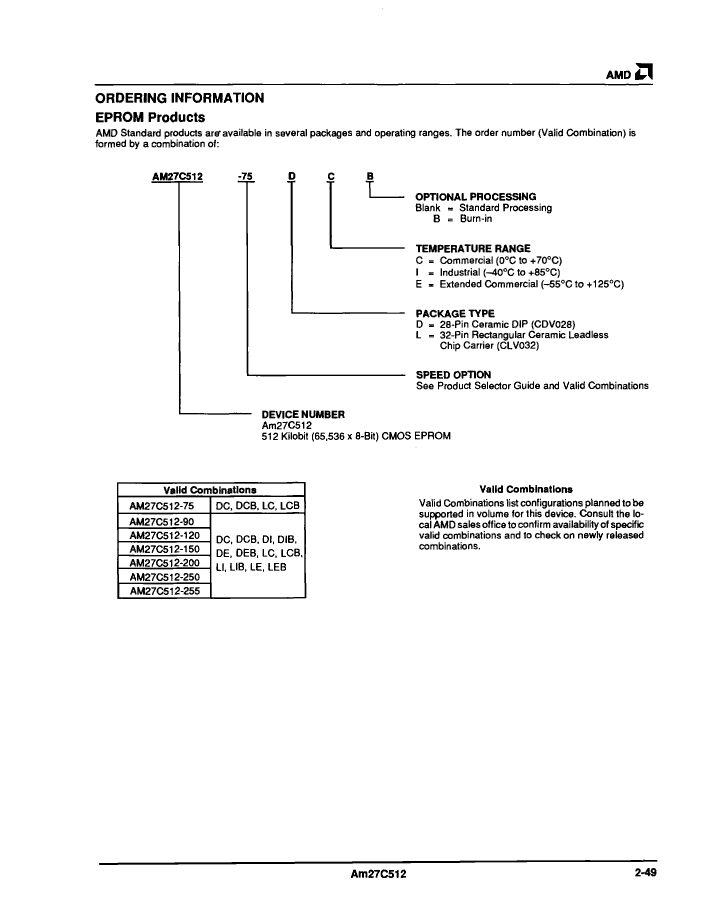

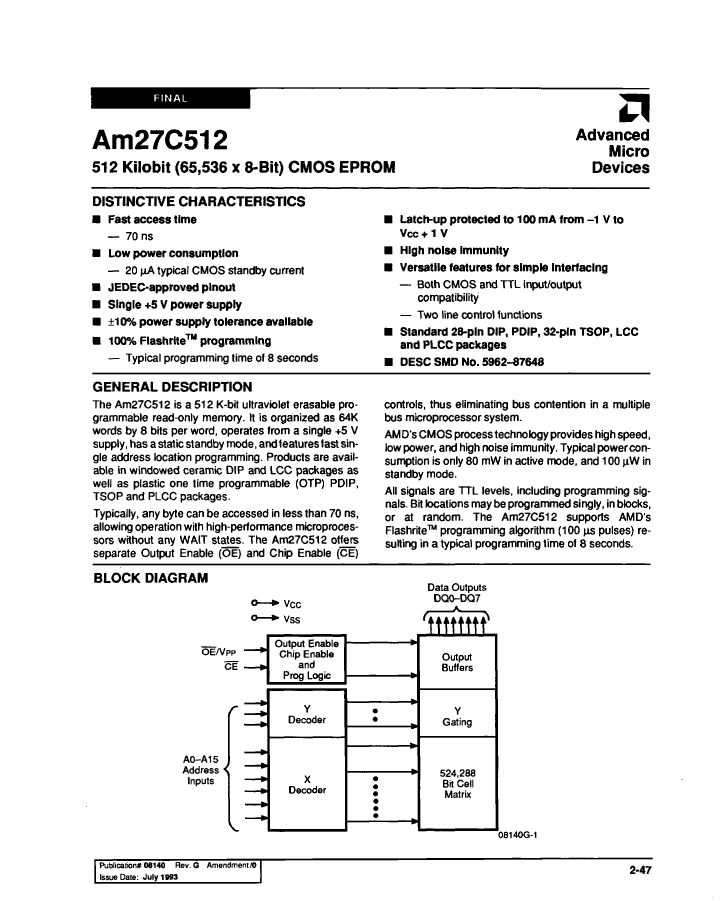

Preview

Download Datasheet

View All

5962-8764803YA Related Products

	5962-8764803YA	5962-8764805XA	5962-8764801XA	5962-8764804YA	5962-8764802XA	5962-8764803XA	5962-8764805YA	5962-8764801YA	5962-8764804XA	5962-8764802YA
Description	UVPROM, 64KX8, 250ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 90ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 150ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 120ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 200ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 250ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 90ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 150ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 120ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 200ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFJ	DIP	DIP	QFJ	DIP	DIP	QFJ	QFJ	DIP	QFJ
package instruction	WQCCN, LCC32,.45X.55	WDIP, DIP28,.6	WDIP, DIP28,.6	WQCCN, LCC32,.45X.55	WDIP, DIP28,.6	WDIP, DIP28,.6	WQCCN, LCC32,.45X.55	WQCCN, LCC32,.45X.55	WDIP, DIP28,.6	WQCCN, LCC32,.45X.55
Contacts	32	28	28	32	28	28	32	32	28	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	250 ns	90 ns	150 ns	120 ns	200 ns	250 ns	90 ns	150 ns	120 ns	200 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-CQCC-N32	R-GDIP-T28	R-GDIP-T28	R-CQCC-N32	R-GDIP-T28	R-GDIP-T28	R-CQCC-N32	R-CQCC-N32	R-GDIP-T28	R-CQCC-N32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	13.97 mm	37.1475 mm	37.1475 mm	13.97 mm	37.1475 mm	37.1475 mm	13.97 mm	13.97 mm	37.1475 mm	13.97 mm
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	32	28	28	32	28	28	32	32	28	32
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN	WDIP	WDIP	WQCCN	WDIP	WDIP	WQCCN	WQCCN	WDIP	WQCCN
Encapsulate equivalent code	LCC32,.45X.55	DIP28,.6	DIP28,.6	LCC32,.45X.55	DIP28,.6	DIP28,.6	LCC32,.45X.55	LCC32,.45X.55	DIP28,.6	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	3.556 mm	5.588 mm	5.588 mm	3.556 mm	5.588 mm	5.588 mm	3.556 mm	3.556 mm	5.588 mm	3.556 mm
Maximum standby current	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A	0.000325 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	QUAD
width	11.43 mm	15.24 mm	15.24 mm	11.43 mm	15.24 mm	15.24 mm	11.43 mm	11.43 mm	15.24 mm	11.43 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	-
Maker	-	AMD	-	AMD	-	AMD	AMD	AMD	AMD	AMD
