AIC-43C97

Automated, High-performance, Integrated, SCSI Protocol Controller

designed for SCSI-2/SCSI-3 embedded peripheral applications

DATA BRIEF

■

SCSI Host Interface Block

Dual Mode Ultra-2 I/O supporting Low

Voltage Differential (LVD) and Single

Ended SCSI Interfaces

– Ultra-2 (80 MB/s wide, 40 MB/s narrow) and

slower with LVD

– Ultra (40 MB/s wide, 20 MB/s narrow) and

slower with Single Ended

Supports Target and Initiator Modes

Programmable SCSI Sequencer for Target

Mode

– Automatic Command receipt with messages

– Automatic Disconnect and Reconnect

– Automatic Message

– Automatic Status

– Automatic parsing of frequently used SCSI

commands

– Reduced Microprocessor Overhead

– Auto Write & Auto Match operations

– Two active contexts to support command ex-

ecution pipelining or overlapping

Two 16-byte SCSI Control FIFO’s

128-byte SCSI Data FIFO

Block or byte-based transfer counter

Odd-byte transfer support in byte mode

Stores configuration information for up to three

SCSI devices

Supports automatic SCAM selection and SCAM

transfer cycles

Selectable REQ/ACK noise Filtering

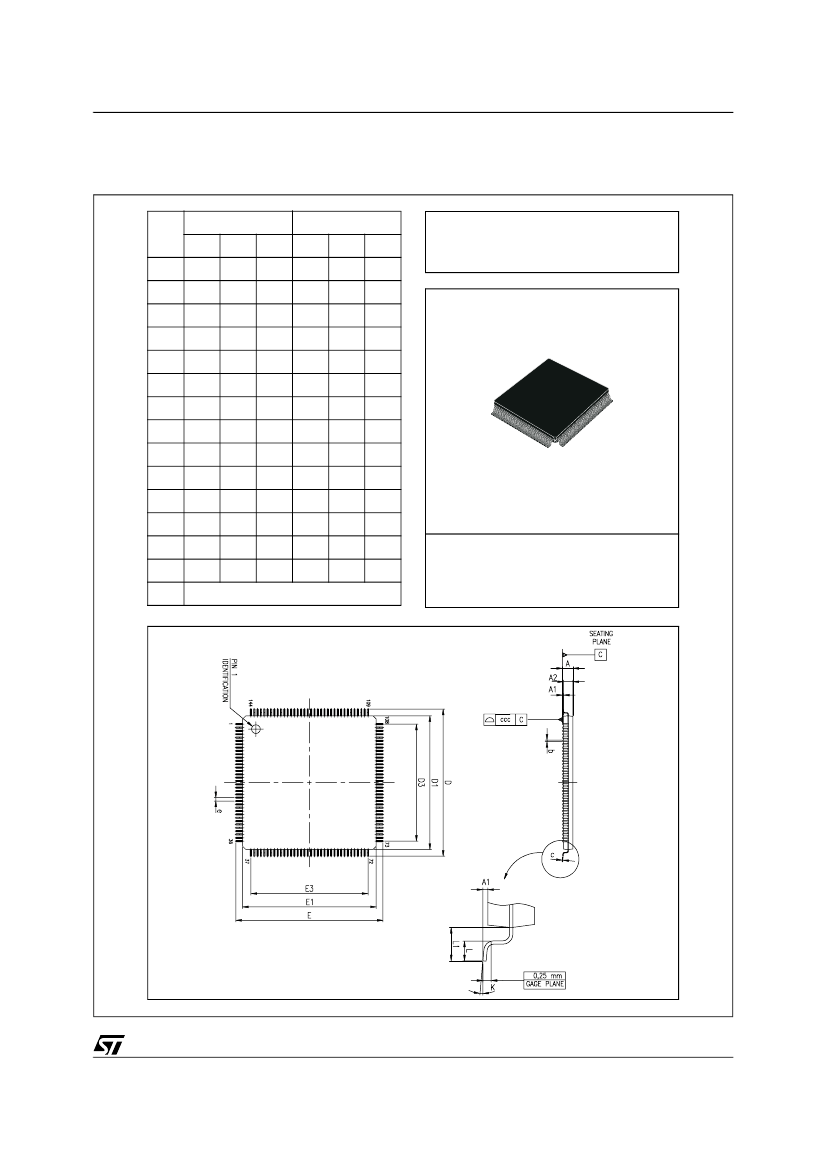

Figure 1. Package

TQFP144

Table 1. Order Codes

Part Number

AIC-43C97M/C

Package

TQFP144

■

Microcontroller Interface Block

Selectable µP Style and Bus Mode

– Multiplexed or non-multiplexed

– Selectable strobing style (*RD & *WR, or E/

*DS & R/*W)

– 16-bit or 8-bit data (8-bit data only in non-mul-

tiplexed mode)

– Programmable CS and INT polarities

Supports wide variety of MPUs

– Intel 80C196xx

– Motorola 68HC11 & 68HC16

– NEC V852

– Hitachi SH-1 7034 & H8 3002

– Intel 80C186

■

Buffer Manager and Buffer RAM

8KB RAM for buffering data and speed

matching between and Host DMA ports

Concurrent Buffer RAM access by Host and

DMA ports

MPU access of Buffer RAM when DMA port is

disabled

Parity protection on buffer data

Block or Byte based data flow control between

Host and DMA ports

■

DMA Interface Block

“ATA DMA Master/Slave” mode:

– Supports 8/16-bit transfers with programma-

ble speeds up to 40 MB/s in 16-bit mode

“SCSI DMA” mode:

– Supports 8/16-bit transfers with programma-

ble speeds up to 100 MB/s in 16-bit asynchro-

nous/synchronous mode

“Generic” mode:

– Supports 8/16-bit transfers with programma-

ble speeds up to 40 MB/s in 16-bit mode

■

Frequency Synthesizer

960 MHz PLL for high resolution on selections

of HIFCLK and DIFCLK

December 2004

This is preliminary information on a new product now in development. Details are subject to change without notice.

Rev. 1

1/5

AIC-43C97

■

Other Features

144-pin TQFP package

End-to-end parity protection on data path

5V Single-ended SCSI I/O support with dedicated 5V supply

5V tolerant 3.3V I/O on non-SCSI pins

0.35µ 3.3V CMOS

Introduction

The AIC-43C97C is an automated, high-performance, integrated, SCSI protocol controller designed for

SCSI-2/SCSI-3 embedded peripheral applications. The AIC-43C97C provides the necessary support for

interfacing the SCSI bus to a peripheral using a DMA bus. It consists of three main blocks: SCSI Bus In-

terface, Buffer Controller and associated embedded 8 Kbyte FIFO RAM, and DMA Interface. Automation

within this device enables a more efficient SCSI operation, thus minimizing microprocessor involvement.

The AIC-43C97C Ultra-2 SCSI Protocol chip supports the Low Voltage Differential (LVD) feature required

to enable connectivity to the Ultra-2 80 MB/s bus. The AIC-43C97C also maintains backward compatibility

to single-ended operation by detecting signal variance on the SCSI bus and automatically defaulting to the

proper SCSI bus characteristic of single ended or Low Voltage Differential.

An embedded 960 MHz Phase Locked Loop Frequency Synthesizer provides high resolution on selection

of SCLK and BCLK frequencies for the SCSI bus.

The AIC-43C97C supports both Initiator and Target modes. As a Target, the SCSI sequencer handles

SCSI commands with as few as 0 interrupts to the microprocessor. In the case of Auto Matched Read or

Write operation, 0 interrupts may be generated requiring no additional processing time. The sequencer

can be custom programmed to handle most tasks to achieve maximum performance. The AIC-43C97C

also has automated support for SCAM Level 1 and SCAM Level 2.

The AIC-43C97C has incorporated three DMA modes: an ATA mode which runs in Master and Slave

Modes and sustains DMA transfers to 40 MB/s in 16-bit mode, a SCSI mode which runs in asynchronous

and synchronous initiator modes up to 100 MB/s, and a Generic DMA mode that sustains DMA transfers

up to 40 MB/s in 16-bit mode.

Figure 2. AIC-43C97C Block Diagram

MPU

Interface

“MPIF”

Host (SCSI)

Bus

Ultra-2 SCSI

Host Interface

“HIF”

Buffer

Manager

“BUFMAN”

DMA

Interface

“DIF”

DMA

Bus

SLCLK

DMACLK/2

DMACLK

REFCLK

Frequency

Synthesizer

“FSYN”

Buffer

RAM

“BUFRAM”

2/5
