IXLD4424COE datasheet, PDF - EEWORLD Datasheet

IXLD4424COE: DescriptionBuffer/Inverter Based MOSFET Driver, 3A, CMOS, PDSO16, SOP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size2MB，15 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

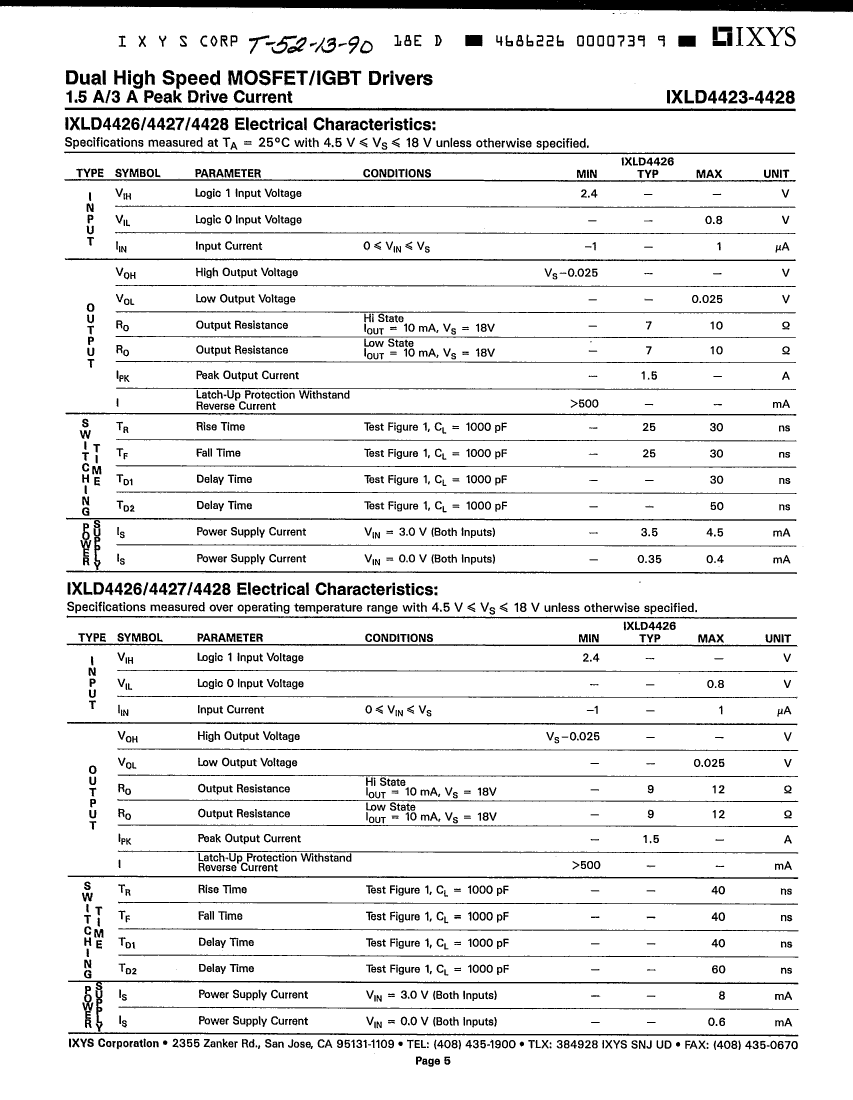

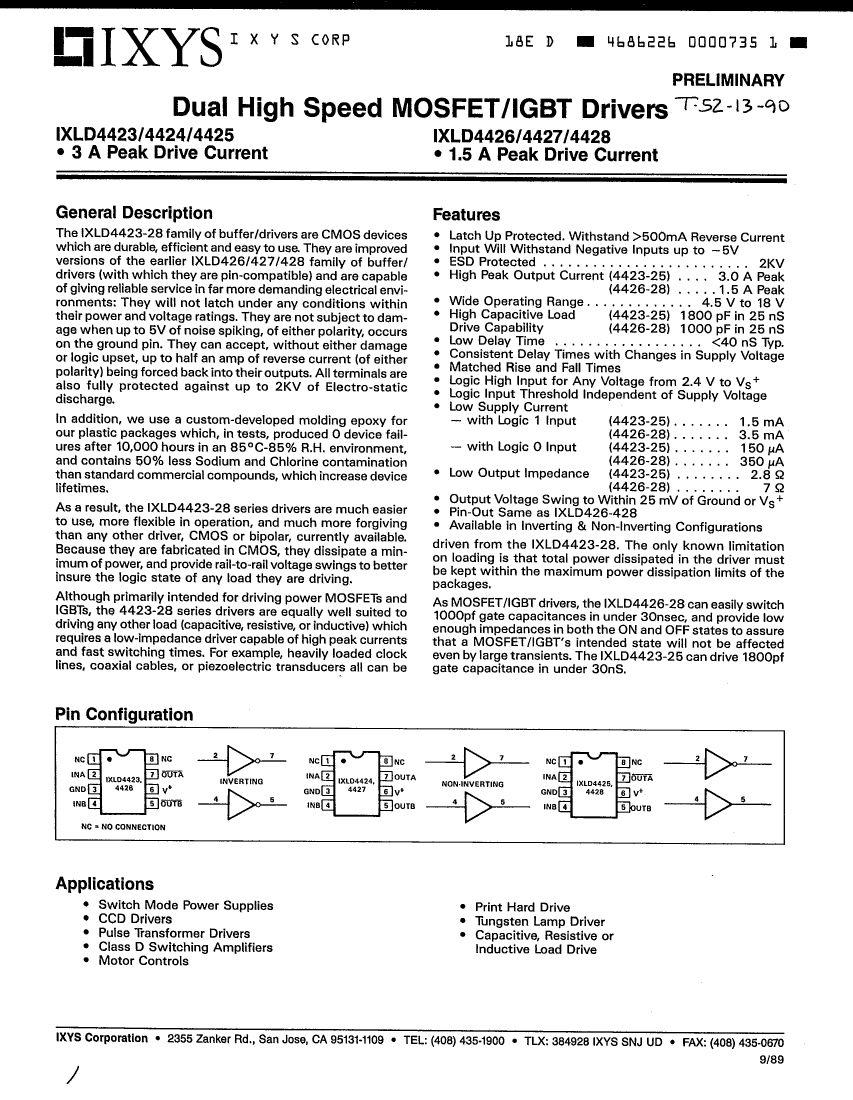

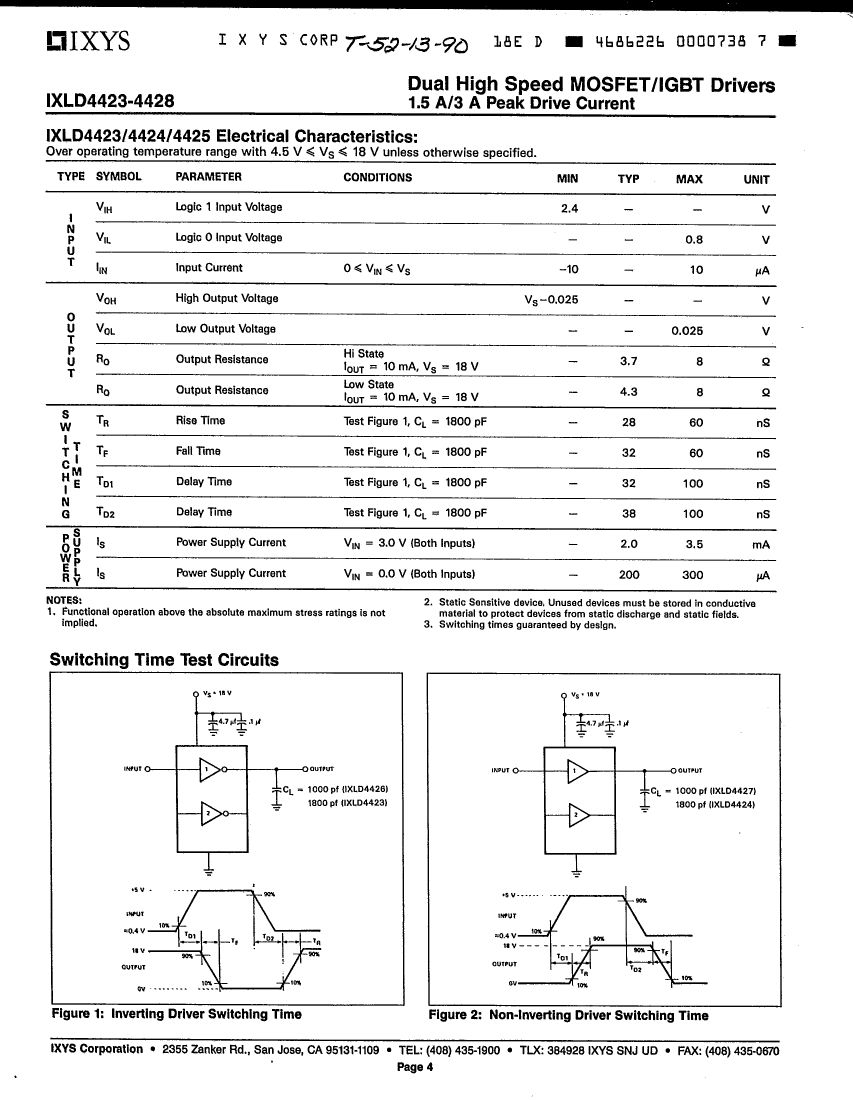

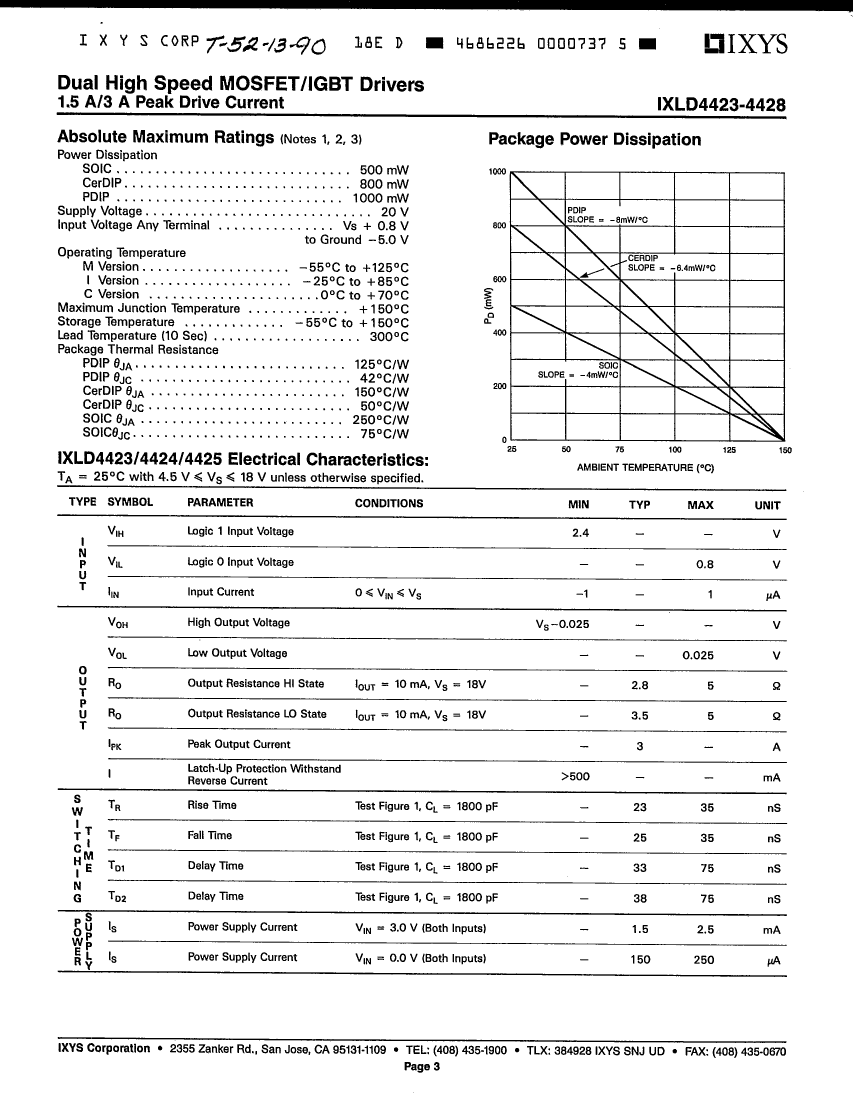

IXLD4424COE Overview

Buffer/Inverter Based MOSFET Driver, 3A, CMOS, PDSO16, SOP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	SOIC
package instruction	SOP-16
Contacts	16
Reach Compliance Code	unknown
high side driver	NO
Interface integrated circuit type	BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.375 mm
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output peak current	3 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum seat height	2.642 mm
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Disconnect time	0.1 µs
connection time	0.1 µs
width	7.6745 mm
Base Number Matches	1
