5962R9576901TEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9576901TEC

5962R9576901TEC: DescriptionHCT SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16; Categorylogic logic; File Size121KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9576901TEC Overview

HCT SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16

5962R9576901TEC Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-GDIP-T16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP
MaximumI(ol)	0.004 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	35 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

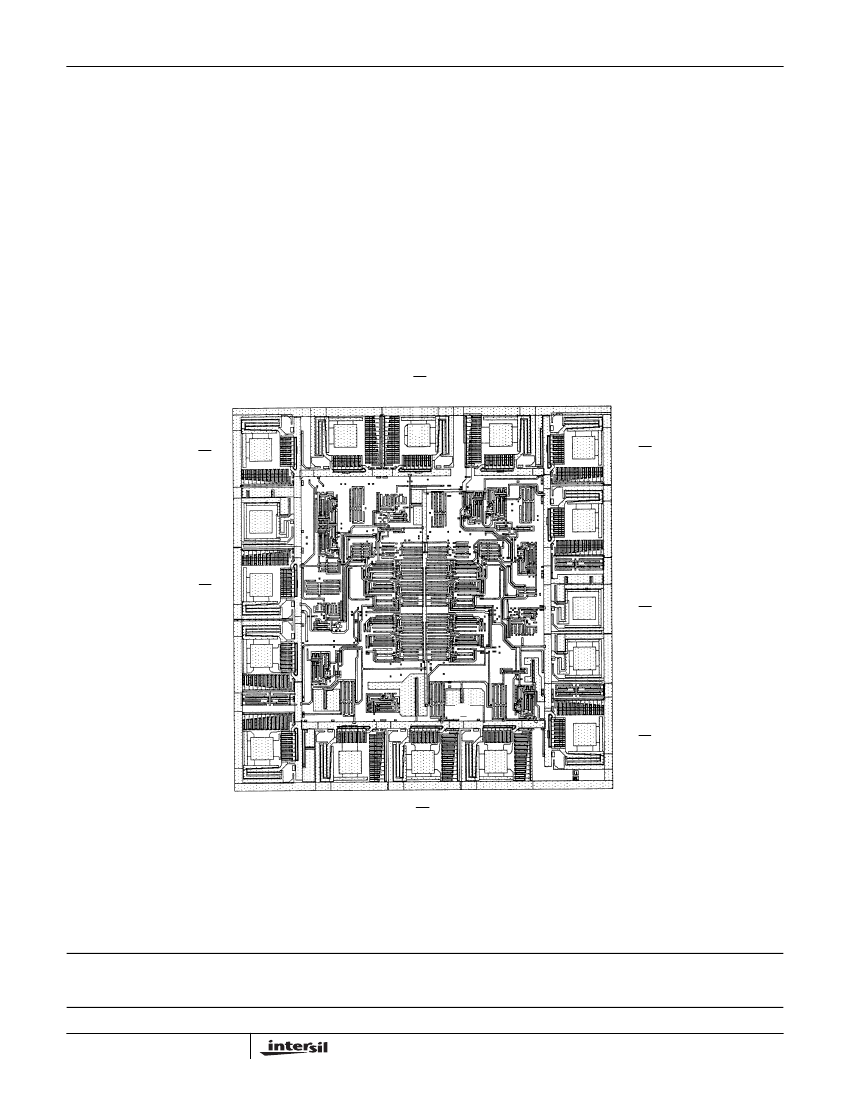

HCTS109T

Data Sheet

July 1999

File Number

4624.1

Radiation Hardened Dual JK Flip Flop

Intersil’s Satellite Applications Flow

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Intersil HCTS109T is a Radiation Hardened Dual JK Flip

Flop with set and reset. The ﬂip ﬂop changes state with the

positive transition of the clock (CP1 or CP2).

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened SOS CMOS

• Signiﬁcant Power Reduction Compared to LSTTL ICs

• DC Operating Voltage Range: 4.5V to 5.5V

• LSTTL Input Logic Compatibility

- V

= 0.8V Max

- V

= V

CC/2

Min

• Input Current Levels Ii

≤

5mA at V

, V

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HCTS109T are

contained in SMD 5962-95769.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

Pinouts

HCTS109T (SBDIP), CDIP2-T16

TOP VIEW

16 V

15 R2

14 J2

13 K2

12 CP2

11 S2

10 Q2

9 Q2

Ordering Information

ORDERING

NUMBER

5962R9576901TEC

5962R9576901TXC

PART

NUMBER

HCTS109DTR

HCTS109KTR

TEMP.

RANGE

(

-55 to 125

CP1

GND

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CP1

GND

HCTS109T (FLATPACK), CDFP4-F16

TOP VIEW

CP2

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

5962R9576901TEC Related Products

	5962R9576901TEC	5962R9576901TXC
Description	HCT SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16	HCT SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, DFP-16
Parts packaging code	DIP	DFP
package instruction	DIP, DIP16,.3	DFP, FL16,.3
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	HCT	HCT
JESD-30 code	R-GDIP-T16	R-CDFP-F16
JESD-609 code	e4	e4
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP
MaximumI(ol)	0.004 A	0.004 A
Number of digits	2	2
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	35 ns	35 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	6.73 mm
Base Number Matches	1	1
