9173B-01CS08LFT datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 9173B-01CS08LFT

9173B-01CS08LFT: DescriptionSOIC-8, Reel; CategoryThe embedded processor and controller Microcontrollers and processors; File Size328KB，10 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

9173B-01CS08LFT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9173B-01CS08LFT	-	-	View	Buy Now

9173B-01CS08LFT Overview

SOIC-8, Reel

9173B-01CS08LFT Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Manufacturer packaging code	DCG8
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	SOIC 150 MIL
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	75 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	1 MHz
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, VIDEO
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

VIDEO GENLOCK PLL

Description

The ICS9173B provide the analog PLL circuit blocks to

implement a frequency multiplier. Because the device is

configured to use an external divider in the PLL clock

feedback path, a large divider can be used to result in a

large frequency multiplication ratio. This is useful when

using a low frequency input clock to generate a high

frequency output clock. The ICS9173B contains a phase

detector, charge pump, loop filter, and voltage-controlled

oscillator (VCO). The ICS674-01 can be used as the

external feedback divider.

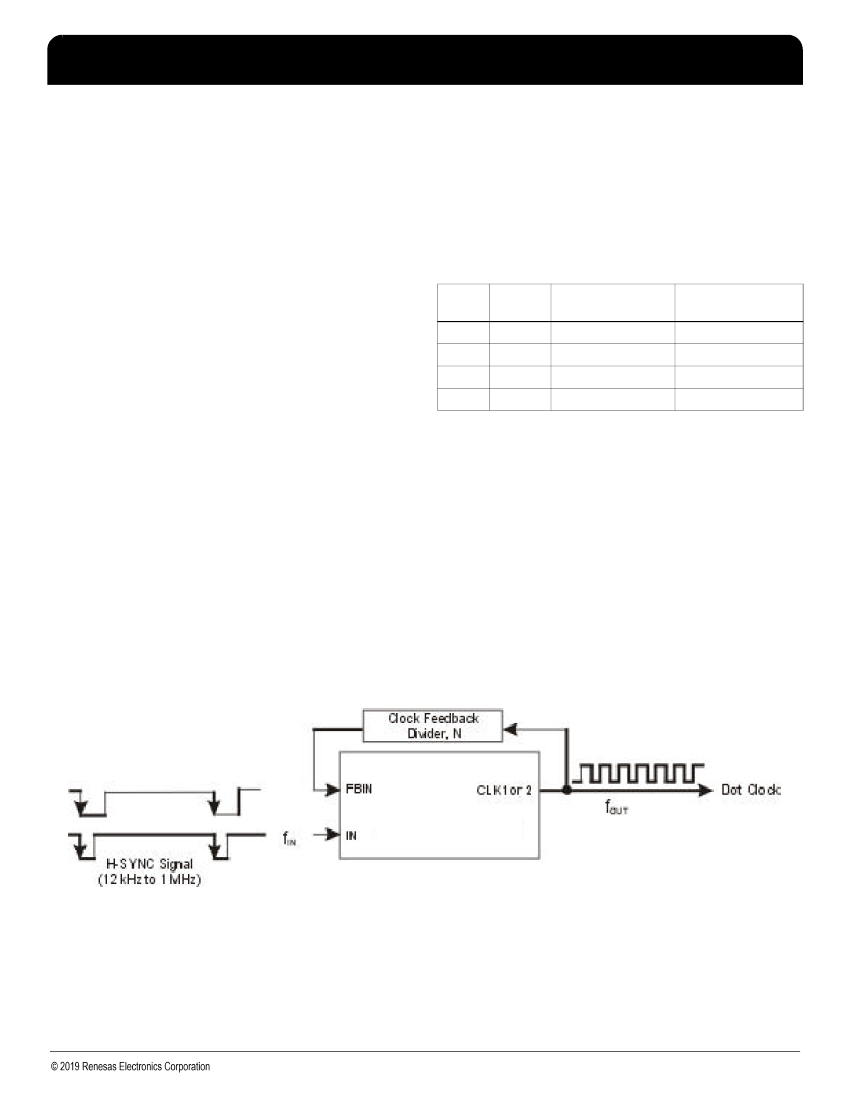

A common application of the ICS9173B is the

implementation of a video genlock circuit. Because of this,

the ICS9173B inputs operate on the negative-going clock

edge.

The ICS9173B is pin and function compatible to the

AV9173-01/15.

ICS9173B

Features

•

Phase-detector/VCO circuit block

•

Ideal for genlock system

•

Reference clock range 12 kHz to 1 MHz for full output

clock range

•

Output clock range of 1.25 to 75 MHz (-01), and 0.625 to

37.5 MHz (-15). See “Allowable Input Frequency to

Output Frequency” table for conditions

•

On-chip loop filter

Single 5 V power supply

Low power CMOS technology

8-pin SOIC package

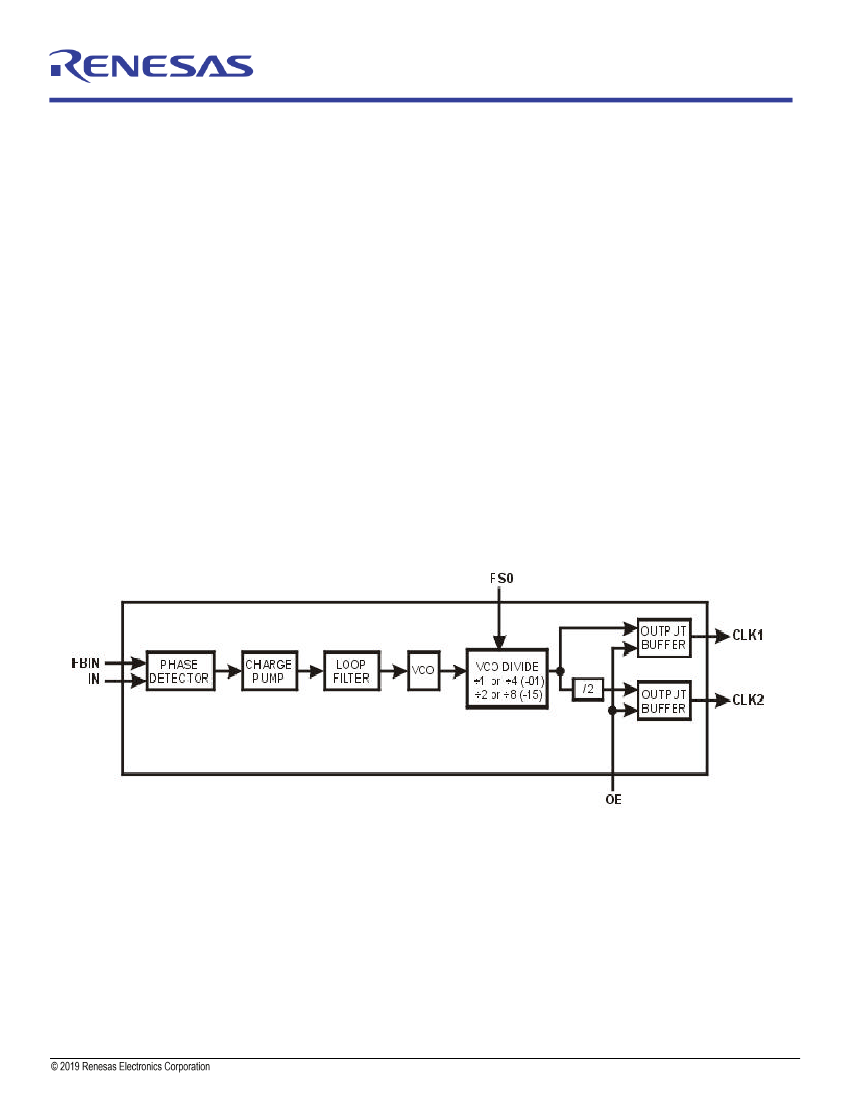

Block Diagram

IDT®

VIDEO GENLOCK PLL

ICS9173B

REV D 012913

9173B-01CS08LFT Related Products

	9173B-01CS08LFT	9173B-15CS08LF
Description	SOIC-8, Reel	SOIC-8, Tube
Brand Name	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	8	8
Manufacturer packaging code	DCG8	DCG8
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Samacsys Description	SOIC 150 MIL	SOIC 150 MIL
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	e3
length	4.9 mm	4.9 mm
Humidity sensitivity level	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	75 MHz	37.5 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Master clock/crystal nominal frequency	1 MHz	1 MHz
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, VIDEO	CLOCK GENERATOR, VIDEO
