54LS395DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS395DMQB

54LS395DMQB: DescriptionShift Register, 4-Bit, Right Direction, TTL, CDIP16,; Categorylogic logic; File Size190KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS395DMQB Overview

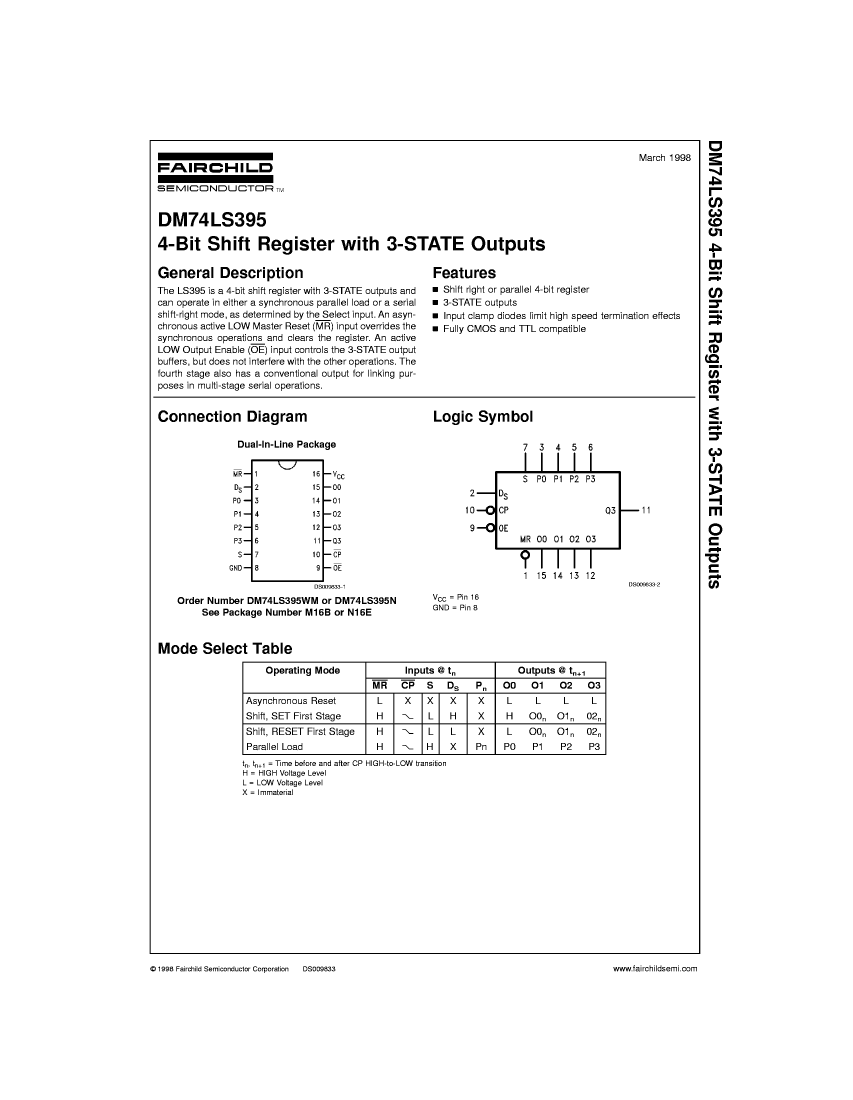

Shift Register, 4-Bit, Right Direction, TTL, CDIP16,

54LS395DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant

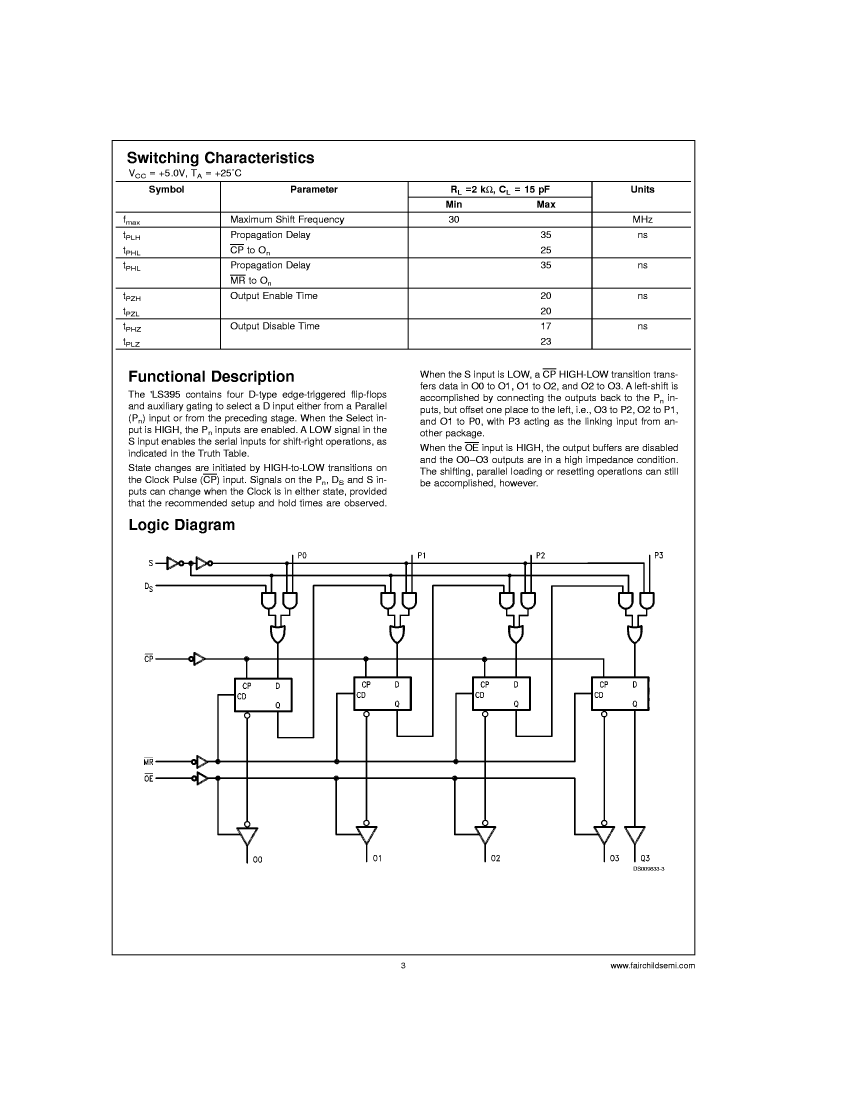

Counting direction	RIGHT
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of digits	4
Number of functions	1
Number of terminals	16

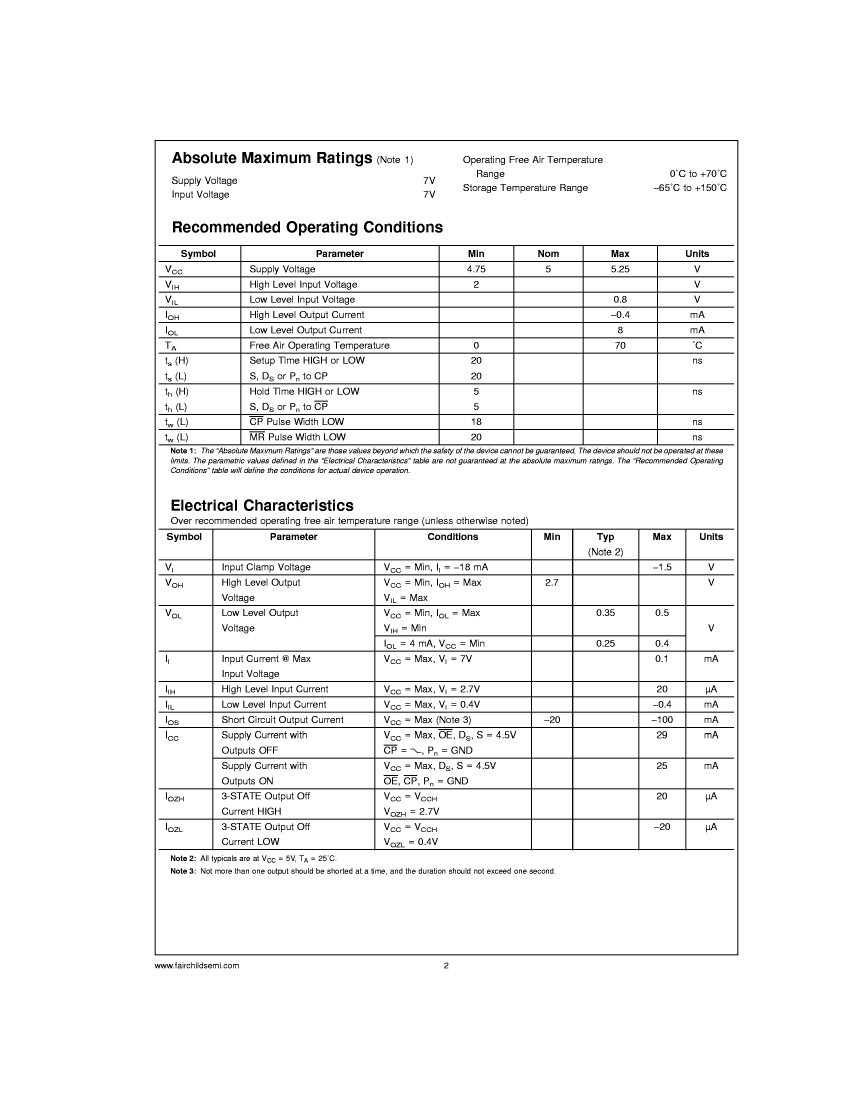

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC

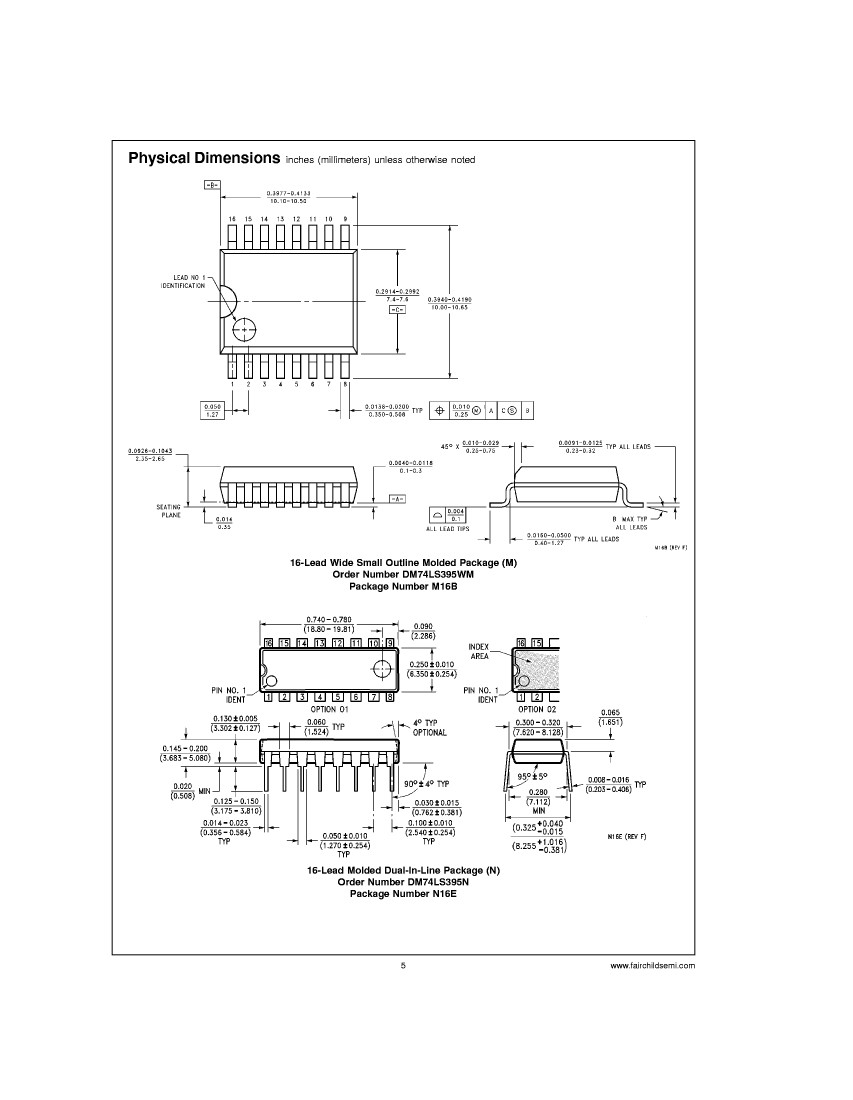

encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54LS395DMQB Related Products

	54LS395DMQB	54LS395L1MQB	54LS395FMQB	74LS395DCQR	74LS395FCQM	74LS395DCQM
Description	Shift Register, 4-Bit, Right Direction, TTL, CDIP16,	Shift Register, 4-Bit, TTL, CQCC20,	Shift Register, 4-Bit, Right Direction, TTL, CDFP16,	Shift Register, 4-Bit, TTL, CDIP16,	Shift Register, 4-Bit, TTL, CDFP16,	Shift Register, 4-Bit, TTL, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDIP-T16	S-XQCC-N20	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	16	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DFP	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Is it lead-free?	-	Contains lead	-	Contains lead	Contains lead	Contains lead
package instruction	-	QCCN, LCC20,.35SQ	-	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Humidity sensitivity level	-	2A	-	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	250	-	250	250	250
Maximum time at peak reflow temperature	-	30	-	30	30	30
