PD-20352J
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
20CLQ045
JANS1N7041CCU1
JANTX1N7041CCU1
JANTXV1N7041CCU1
20Amp, 45V
Ref: MIL-PRF-19500/735
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular waveform
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half-sine
(Per Leg)
V
F
@ 10Apk, T
J
=125°C
(Per Leg)
1N7041CCU1 Units
20
45
250
0.48
A
V
A
V
°C
Description/Features
The 1N7041CCU1 center tap Schottky rectifier has been
expressly designed to meet the rigorous requirements of
high reliabilty environments. It is packaged in the hermetic
surface mount SMD-1 ceramic package. The device's
forward voltage drop and reverse leakage current are
optimized for the lowest power loss and the highest circuit
efficiency for typical high frequency switching power
supplies and resonent power converters. Full MIL-PRF-
19500 quality conformance testing is available on source
controlled drawings to TX, TXV and S levels.
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long
Term Reliability
• Surface Mount
• Lightweight
• ESD Rating: Class 3A per MIL-STD-750, Method 1020
•
•
•
•
•
T
J
,T
stg
Operating and storage
-65 to 150
CASE STYLE
( ISOLATED BASE )
2
1
3
ANODE COMMON ANODE
CATHODE

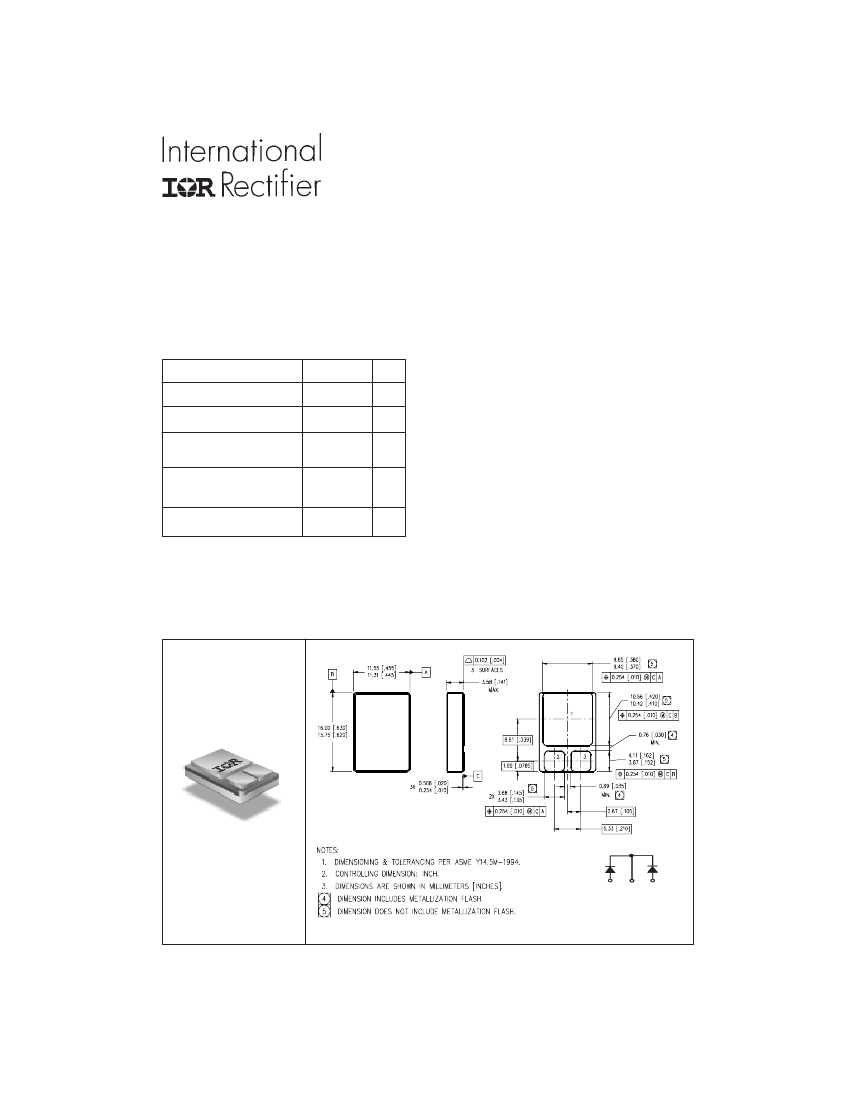

Case Outline and Dimensions - SMD-1
www.irf.com
1
10/05/12
20CLQ045, 1N7041CCU1
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V) (Per Leg)
V
RWM
Max. Working DC Reverse Voltage (V) (Per Leg)
1N7041CCU1
45
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
See Fig. 5
I
FSM
Max. Peak One Cycle Non - Repetitive
Surge Current (Per Leg)
250
A
@ t
p
= 8.3 ms half-sine
Limits
20
Units
A
Conditions
50% duty cycle @ T
C
= 135°C, rectangular waveform
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg) See Fig. 1
Limits
0.65
0.74
0.57
0.69
0.48
0.61
Units
V
V
V
V
V
V
mA
mA
pF
nH
@ 10A
@ 20A
@ 10A
@ 20A
@ 10A
@ 20A
Conditions
T
J
= -55°C
T
J
= 25°C
T
J
= 125°C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg) See Fig. 2
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
0.5
67
900
5.9
T
J
= 25°C
T
J
= 125°C
V
R
= 5V
DC
( 1MHz, 25°C )
Measured from center of cathode pad to center of
anode pad
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max.Junction Temperature Range
Max. Storage Temperature Range
to Case (Per Leg)
R
thJC
Max. Thermal Resistance, Junction
to Case (Per Package)
wt
Weight (Typical)
Die Size
Case Style
Pulse Width < 300µs, Duty Cycle < 2%
2.6
125X125
SMD-1
g
mils
0.83
°C/W
DC operation
Limits Units
-65 to 150
-65 to 150
1.67
°C
°C
°C/W
DC operation
Conditions
R
thJC
Max. Thermal Resistance, Junction
See Fig. 4
2
www.irf.com
20CLQ045, 1N7041CCU1
100
Reverse Current - I
R
(mA)
10
1
0.1
0.01
0.001
0.0001
0
T
J
= 175°C
150°C
125°C
75°C
50°C
25°C
A
5
10
15
20
25
30
35
40
45
Reverse Voltage -V
R
(V)

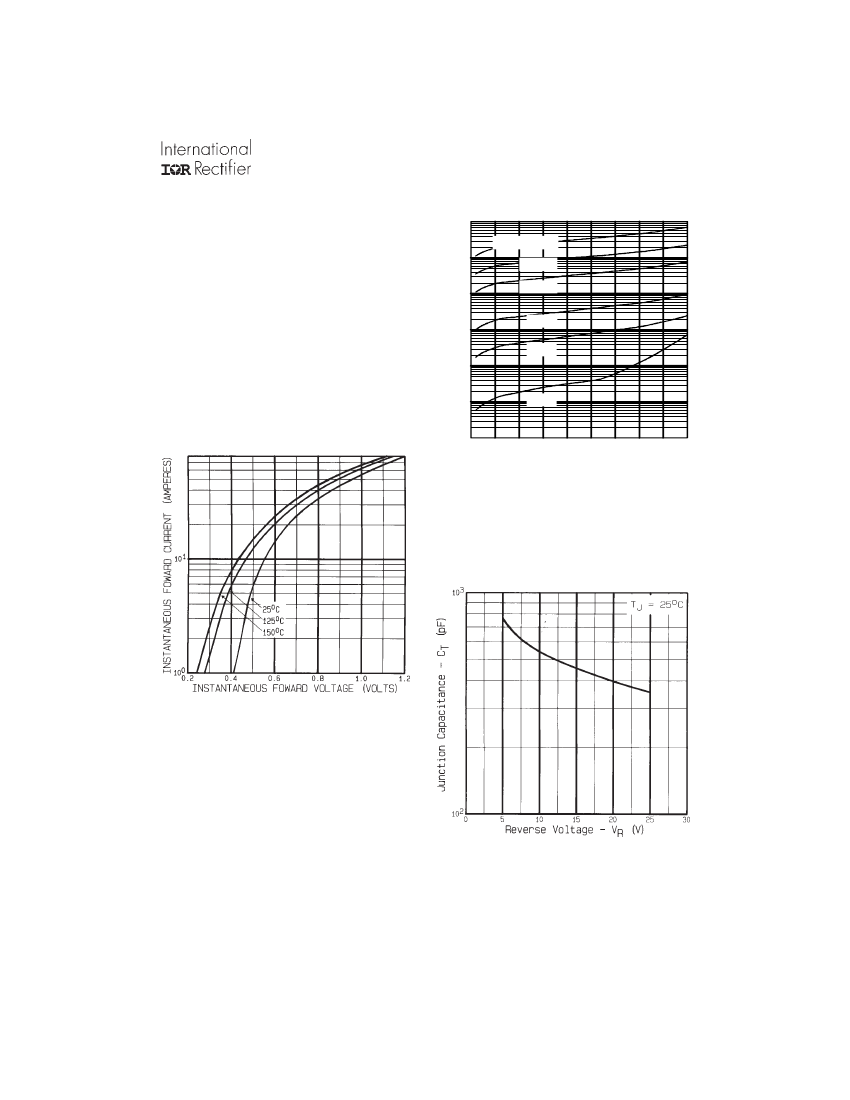

Fig. 2 - Typical Values of Reverse Current
Vs. Reverse Voltage (Per Leg)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
Fig. 3 - Typical Junction Capacitance Vs.
Reverse Voltage (Per Leg)
www.irf.com
3
20CLQ045, 1N7041CCU1
10
Thermal Response ( Z thJC )
1
D = 0.4
D = 0.3
D = 0.2
D = 0.1
D = 0.5
SINGLE PULSE
( THERMAL RESPONSE )
0.1
Notes:
1. Duty Factor D = t1/t2
2. Peak Tj = P dm x Zthjc + Tc
0.01
1E-005
0.0001
0.001
0.01
0.1
1
10
t1 , Rectangular Pulse Duration (sec)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
160
R
thJC
(DC) = 0.83°C/W
Allowable Case Temperature - (°C)
140
120
100
80
60
40
20
0
0
5
10
15
20
25
DC
Square Wave (D=0.50)
80% Rated VR applied
Average Forward Current - I F(AV) (A)
Fig. 5 - Max. Allowable Case Temperature Vs.
Average Forward Current (Per Package)
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
IR LEOMINSTER :
205 Crawford St., Leominster, Massachusetts 01453, USA Tel: (978) 534-5776
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.
Data and specifications subject to change without notice. 10/2012
4
www.irf.com
