TMP91CP27U Overview

16-Bit Low Cost General Purpose Microcontroller in 64-pin Package

TMP91CP27U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	LFQFP, QFP64,.47SQ,20
Contacts	64
Reach Compliance Code	unknow
ECCN code	3A991.A.2
Has ADC	YES
Other features	OPERATES AT 1.8V MINIMUM SUPPLY @ 10MHZ
Address bus width	22
bit size	16
CPU series	TLCS-900/L
maximum clock frequency	27 MHz
DAC channel	NO
DMA channel	YES
External data bus width	16
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	10 mm
Number of I/O lines	53
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP64,.47SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/3.3 V
Certification status	Not Qualified
RAM (bytes)	4096
rom(word)	49152
ROM programmability	MROM
Maximum seat height	1.6 mm
speed	27 MHz
Maximum slew rate	19 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

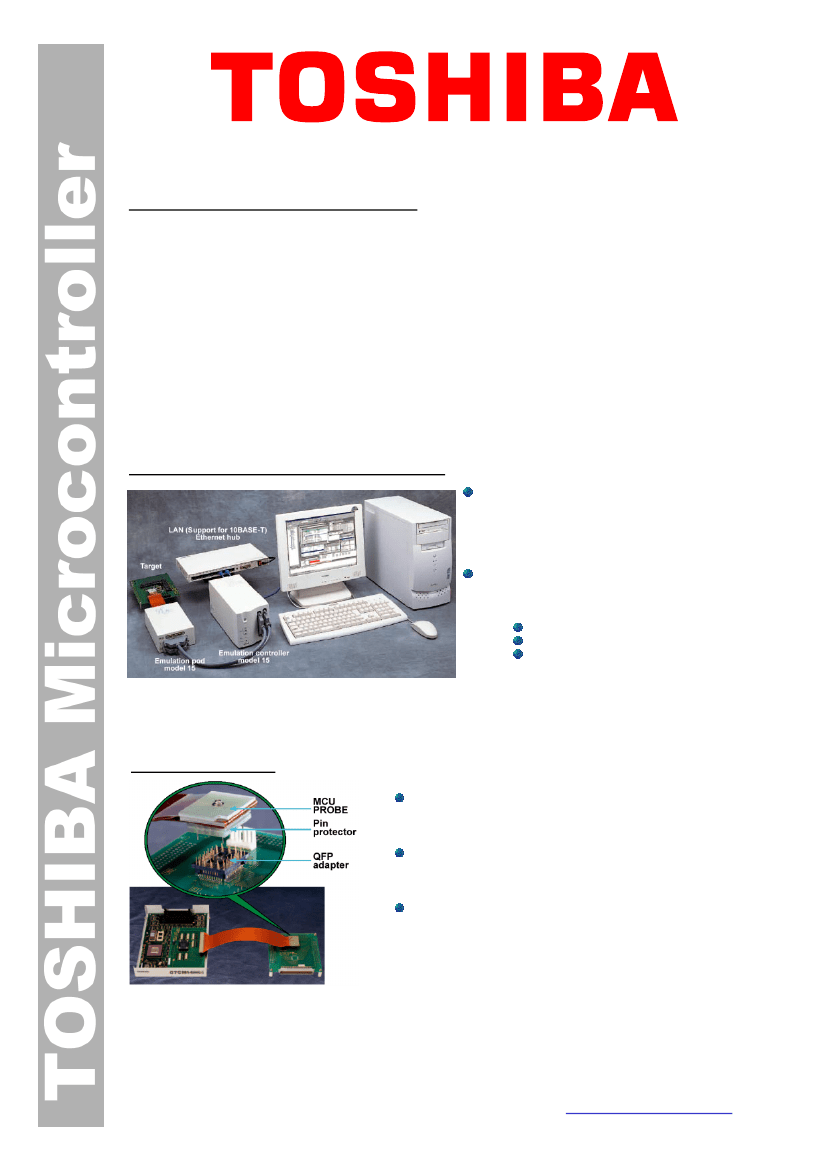

Preview

Download Datasheet

View All

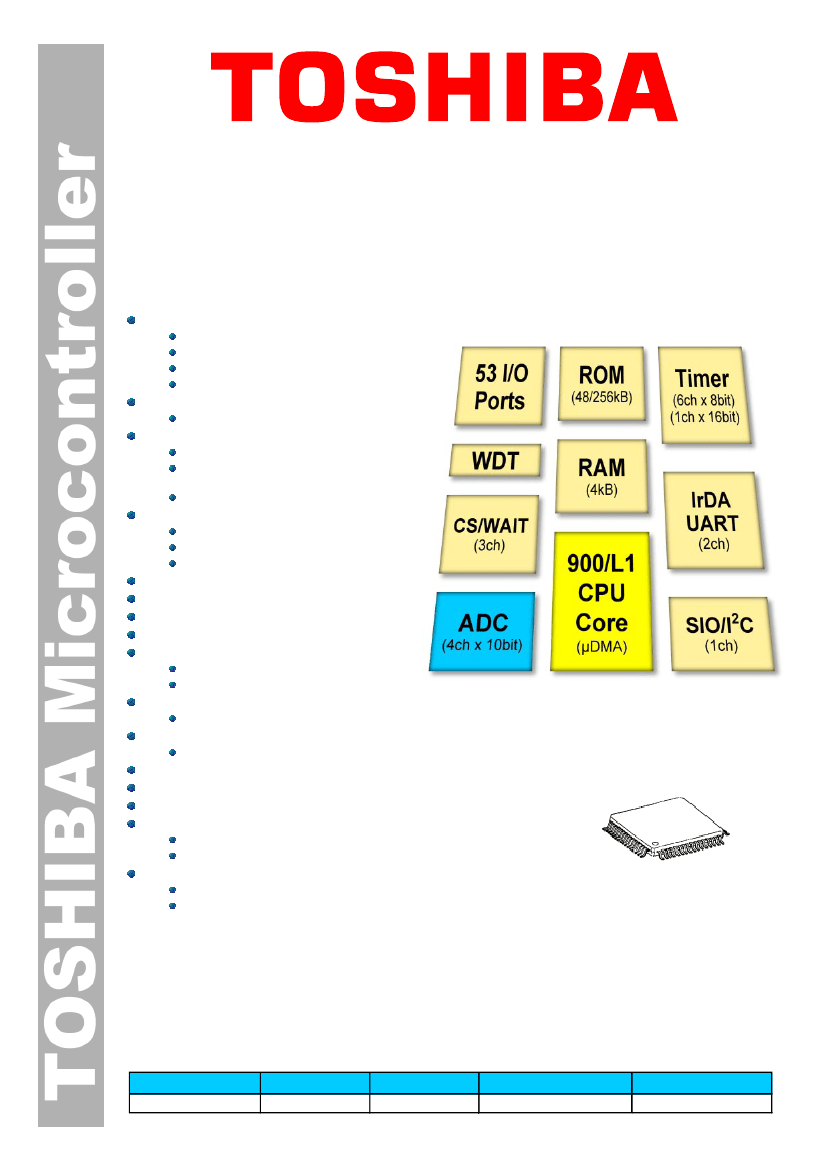

16-bit Low Cost General Purpose Microcontroller

in 64-pin Package

16-bit single chip microcomputer TLCS-900/L1 Series

Instruction mnemonics are upward-compatible with TLCS-90/900

16 Mbytes of linear address space

General purpose registers and register banks

16-bit multiplication and division instructions

TMP91CP27U

Instruction execution time:

148 ns at 27 MHz

External memory expansion

Expandable up to 16 Mbytes

Can simultaneously

support 8/16-bit width external data bus

Dynamic data bus sizing

34 interrupt sources

9 CPU interrupts: Software interrupt instructions

21 internal interrupts: 7 priority levels selectable

4 external interrupts: 7 priority levels selectable

Input/Output ports: 53 pins max.

16-bit Timer/Counter: 1ch

8-bit Timer/Counter: 6ch

Watchdog timer

General purpose serial interface: 2ch

UART/Synchronous mode: 2ch

IrDA Ver. 1.0 (115.2 kbps) mode selectable: 1ch

Serial bus interface: 1ch

C bus mode/clock synchronous select mode

10-bit AD converter (built in sample-hold circuit)

Analog input: 4ch

Timer for real-time clock (RTC)

Chip Select/Wait controller: 4ch

Three standby modes

Dual clock controller

Clock gear function: Max. clock speed (fc) to fc/16

Slow mode (fs = 32.768 kHz)

P-LQFP64-1010-0.50D

Operating voltage :

1.8 V to 3.6 V at 10 MHz

2.7 V to 3.6 V at 27 MHz

Product

TMP91CP27U

ROM

48kB x 8-bit

RAM

4kB x 8-bit

Package

P-LQFP64-1010-0.50D

Flash MCU

TMP91FY27U
