291C6022F624AB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 291C6022F624AB

291C6022F624AB: DescriptionEncoders 2-Bit Quad 5Volt -40C to 85C 6PPR; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，14 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric Compare View All

291C6022F624AB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	291C6022F624AB	-	-	View	Buy Now

291C6022F624AB Overview

Encoders 2-Bit Quad 5Volt -40C to 85C 6PPR

291C6022F624AB Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CTS [CTS Corporation]
Product Category	Encoders
RoHS	Details
Mounting Style	PCB Mount
Product	Optical
Type	-
Resolution	6 PPR
Number of Detents	24 Detent
Number of Channels	2 Channel
Termination Style	SMD/SMT
Output Type	2 bit Gray Code
Shaft Diameter	6.35 mm
With Switch	Switch
Operating Supply Voltage	5 VDC
Packaging	Tray
Operating Temperature Range	- 40 C to + 85 C
Size / Dimension	12 mm x 14 mm x 7 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Shaft Length	17.45 mm
Factory Pack Quantity	54

Preview

Download Datasheet

View All

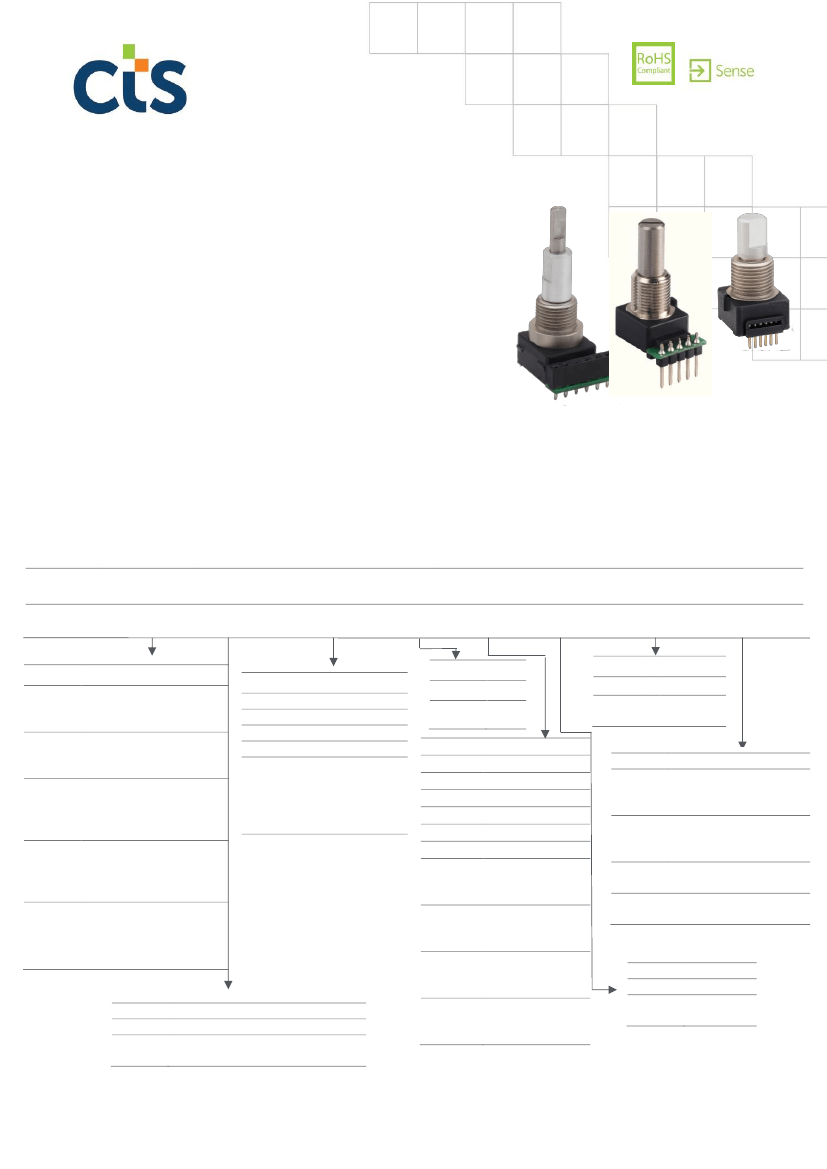

Series 291

Precision, Long-life 12mm Optical Encoder

▪

Available with 4, 6, 8, 24,32, 64 Pulses per Revolution

▪

Optional Momentary Switch

▪

Multiple options for terminations, resolution,

cable lengths, and operating voltage

Description

The 291 Series allows versatility in design applications by providing

highly reliable, precise digital output and long rotational life with our non-contacting design. This product

provides flexibility in resolution, power consumption, and operating temperatures. The options of Schmitt

trigger, detents, momentary switch, shaft & bushing length, dual shaft, termination styles, torque, operating

voltage, and IP ratings provide flexibility to meet your exacting design requirements.

Ordering Information

Series

291

2022124

Bushing

Termination Length

Shaft

Length

Shaft

Output

Operating

Trim C Combination Voltage

Switch

Code

Schmitt Trigger

& Locating Lug

RTTT T

T T

TTT

Spec.

None

Momentary

TSS

(not for 64 PPR)

832

Code

Termination

.050” pitch pins

Rear facing

.132” length(not for 64 PPR)

.10”

pitch

pins

Rear facing

.236” length

4” ribbon cable

With .050” pitch

connector terminals (not

for 64 PPR)

5” ribbon cable

With .050” pitch

connector terminals (not

for 64 PPR)

6” ribbon cable

With .050” pitch

connector terminals (not

for 64 PPR)

Code

Shaft Length “L”

Spec.

Flat

Slotted

*C4

Single shaft structure

.687”

24 .875”

Dual shaft structure

Outer shaft: .685”

Inner shaft: 1.059”

(Not available with locating

lug, 32 and 64 PPR, see page

8 for additional details)

Output

832

624

416

5 positions

800

600

400

X00

Combination

8 PPR, 32 Detents

6 PPR, 24 Detents

4 PPR, 16 Detents

8 PPR, No Detents

6 PPR, No Detents

4 PPR, No Detents

24 PPR, No Detents

(only available with

Schmitt trigger)

24 PPR, 24 Detents

(only available with

Schmitt trigger)

32 PPR, No Detents

(only available with

Schmitt trigger)

64 PPR, No Detents

(only available with

Schmitt trigger)

Code

BLANK

Spec.

Without Schmitt trigger,

With locating lug (not for

32, 64 PPR)

Without Schmitt trigger,

Without locating lug (not

for 32, 64 PPR)

With Schmitt trigger,

Without locating lug

With Schmitt trigger,

With locating lug

*C5

*C6

X24

Y00

Code

Spec.

5.0V

3.3V (not for

64 PPR)

Code

Bushing Length

“B”

.312” For single

shaft construction

.256” For dual

shaft construction

(not for 32, 64 PPR)

Z00

Note: * Cable connector for C4, C5, C6 is AMP P/N 215083-6 or Equivalent

2017-07-24 Rev. D

www.ctscorp.com

Page 1 of 13

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

291C6022F624AB Related Products

	291C6022F624AB	291V1022F832AB	291C6022F832AB
Description	Encoders 2-Bit Quad 5Volt -40C to 85C 6PPR	Encoders 2-Bit Quad 5Volt -40C to 85C 8PPR	Encoders 2-Bit Quad 5Volt -40C to 85C 8PPR
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]
Product Category	Encoders	Encoders	Encoders
RoHS	Details	Details	Details
Mounting Style	PCB Mount	Through Hole	PCB Mount
Product	Optical	Optical	Optical
Resolution	6 PPR	8 PPR	8 PPR
Number of Detents	24 Detent	32 Detent	32 Detent
Number of Channels	2 Channel	2 Channel	2 Channel
Termination Style	SMD/SMT	Through Hole	SMD/SMT
Output Type	2 bit Gray Code	2 bit Gray Code	2 bit Gray Code
Shaft Diameter	6.35 mm	6.35 mm	6.35 mm
With Switch	Switch	Switch	Switch
Operating Supply Voltage	5 VDC	5 VDC	5 VDC
Packaging	Tray	Tray	Tray
Operating Temperature Range	- 40 C to + 85 C	- 40 C to + 85 C	- 40 C to + 85 C
Size / Dimension	12 mm x 14 mm x 7 mm	12 mm x 14 mm x 7 mm	12 mm x 14 mm x 7 mm
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C
Shaft Length	17.45 mm	17.45 mm	17.45 mm
Factory Pack Quantity	54	72	54
Technology	-	Rotary Optical	Rotary Optical
