2-968291-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-968291-2

2-968291-2: DescriptionMQS BU-GEH 6P,NATUR; CategoryThe connector; File Size249KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-968291-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-968291-2	-	-	View	Buy Now

2-968291-2 Overview

MQS BU-GEH 6P,NATUR

2-968291-2 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to wire, wire to device
Sealable	no
Hybrid connector	no
Main locking features	on the terminal
strain relief	no
Line spacing	6 mm [ .236 in ]
Number of Positions	6
Rows	2
color	nature
Cable exit angle	180°
Main material	PBT GF
Width of docking male end	.63 mm [ .025 in ]
Installation features	Without
Terminal position guarantee	yes
polarization	yes
Centerline (Pitch)	2.54 mm [ .1 in ]
width	11.1 mm [ .437 in ]
high	16.6 mm [ 0.654 in ]
length	11.1 mm [ .437 in ]
Working group temperature range	-40 – 120 °C [ -40 – 248 °F ]
Circuit Application	Signal
Encapsulation method	carton
Package quantity	3000
Able to ensure connector position	no
Repairable	no

Preview

Download Datasheet

View All

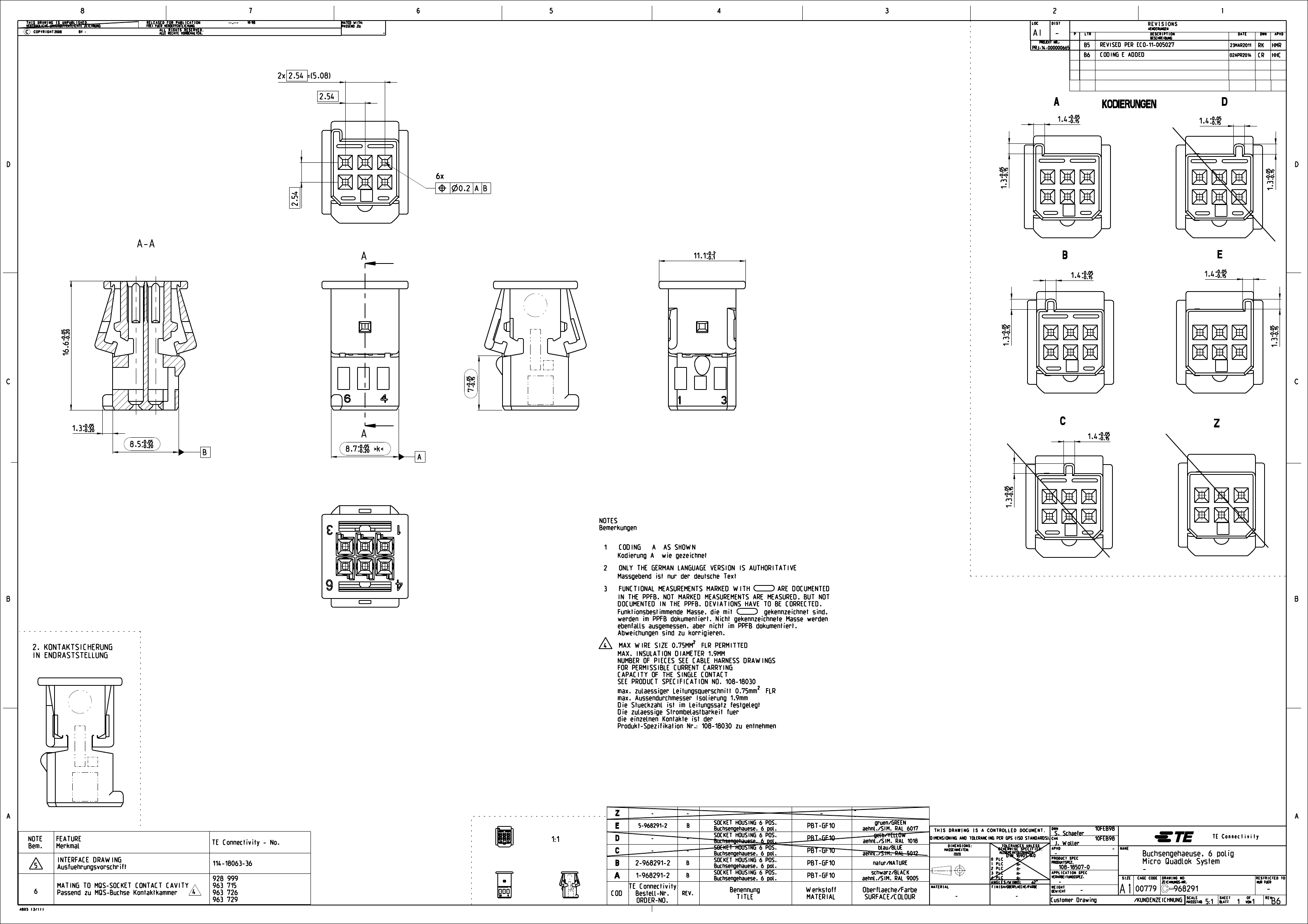

THIS DRAWING IS UNPUBLISHED.

VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG

2008

BY -

RELEASED FOR PUBLICATION

FREI FUER VEROEFFENTLICHUNG

--.---

MATED WITH:

PASSEND ZU:

LOC

DIST

REVISIONS

AENDERUNGEN

LTR

DESCRIPTION

BESCHREIBUNG

DATE

DWN

APVD

PRJ-14-000000665

PROJEKT NR.:

REVISED PER ECO-11-005027

CODING E ADDED

23MAR2011

02APR2014

HMR

HHC

2x 2.54 =(5.08)

2.54

+0.05

1.4

-0.15

KODIERUNGEN

+0.05

1.4

-0.15

+0.05

1.3

-0.15

2.54

A-A

+0.2

11.1

-0.1

+0.05

1.4

-0.15

+0.05

1.4

-0.15

+0.05

-0.15

+0.05

16.6

-0.20

1.3

+0.05

-0.15

1.3

+0.05

-0.20

+0.05

8.5

-0.20

8.7

+0.05

>k<

-0.20

+0.05

1.4

-0.15

NOTES

Bemerkungen

CODING

A AS SHOWN

Kodierung A wie gezeichnet

ONLY THE GERMAN LANGUAGE VERSION IS AUTHORITATIVE

Massgebend ist nur der deutsche Text

FUNCTIONAL MEASUREMENTS MARKED WITH

ARE DOCUMENTED

IN THE PPFB. NOT MARKED MEASUREMENTS ARE MEASURED, BUT NOT

DOCUMENTED IN THE PPFB. DEVIATIONS HAVE TO BE CORRECTED.

Funktionsbestimmende Masse, die mit

gekennzeichnet sind,

werden im PPFB dokumentiert. Nicht gekennzeichnete Masse werden

ebenfalls ausgemessen, aber nicht im PPFB dokumentiert.

Abweichungen sind zu korrigieren.

MAX WIRE SIZE 0.75MM

FLR PERMITTED

MAX. INSULATION DIAMETER 1.9MM

NUMBER OF PIECES SEE CABLE HARNESS DRAWINGS

FOR PERMISSIBLE CURRENT CARRYING

CAPACITY OF THE SINGLE CONTACT

SEE PRODUCT SPECIFICATION NO. 108-18030

2. KONTAKTSICHERUNG

IN ENDRASTSTELLUNG

max. zulaessiger Leitungsquerschnitt 0.75mm

FLR

max. Aussendurchmesser Isolierung 1.9mm

Die Stueckzahl ist im Leitungssatz festgelegt

Die zulaessige Strombelastbarkeit fuer

die einzelnen Kontakte ist der

Produkt-Spezifikation Nr.: 108-18030 zu entnehmen

NOTE

Bem.

FEATURE

Merkmal

INTERFACE DRAWING

Ausfuehrungsvorschrift

MATING TO MQS-SOCKET CONTACT CAVITY

Passend zu MQS-Buchse Kontaktkammer

TE Connectivity - No.

114-18063-36

928

963

999

715

726

729

1:1

5-968291-2

SOCKET HOUSING 6 POS.

Buchsengehauese, 6 pol.

SOCKET HOUSING 6 POS.

Buchsengehauese, 6 pol.

SOCKET HOUSING 6 POS.

Buchsengehauese, 6 pol.

SOCKET HOUSING 6 POS.

Buchsengehauese, 6 pol.

SOCKET HOUSING 6 POS.

Buchsengehauese, 6 pol.

PBT-GF10

Werkstoff

MATERIAL

gruen/GREEN

aehnl./SIM. RAL 6017

gelb/YELLOW

aehnl./SIM. RAL 1018

blau/BLUE

aehnl./SIM. RAL 5012

natur/NATURE

schwarz/BLACK

aehnl./SIM. RAL 9005

+0.05

1.3

-0.15

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

MASSEINHEITEN:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ALLGEMEINTOLERANZEN

DWN

DIMENSIONING AND TOLERANCING PER GPS

CHK

(ISO STANDARDS).

10FEB98

S. Schaefer

J. Woller

10FEB98

NAME

TE Connectivity

2-968291-2

1-968291-2

APVD

4805 (3/11)

TE Connectivity

COD

Bestell-Nr.

REV.

ORDER-NO.

Benennung

TITLE

Oberflaeche/Farbe

SURFACE/COLOUR

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

/WINKEL

ANGLES

DIN 16901-140

PRODUCT SPEC

PRODUKTSPEZ.

/OBERFLAECHE/FARBE WEIGHT

FINISH

GEWICHT

2 $

APPLICATION SPEC

VERARBEITUNGSSPEZ.

108-18507-0

SIZE

Customer Drawing

00779

CAGE CODE DRAWING NO

ZEICHNUNGS-NR.

Buchsengehaeuse, 6 polig

Micro Quadlok System

968291

SCALE

RESTRICTED TO

NUR FUER

KUNDENZEICHNUNG

MASSSTAB

5:1

BLATT

SHEET

VON

REV

+0.05

-0.15

+0.05

1.3

-0.15
