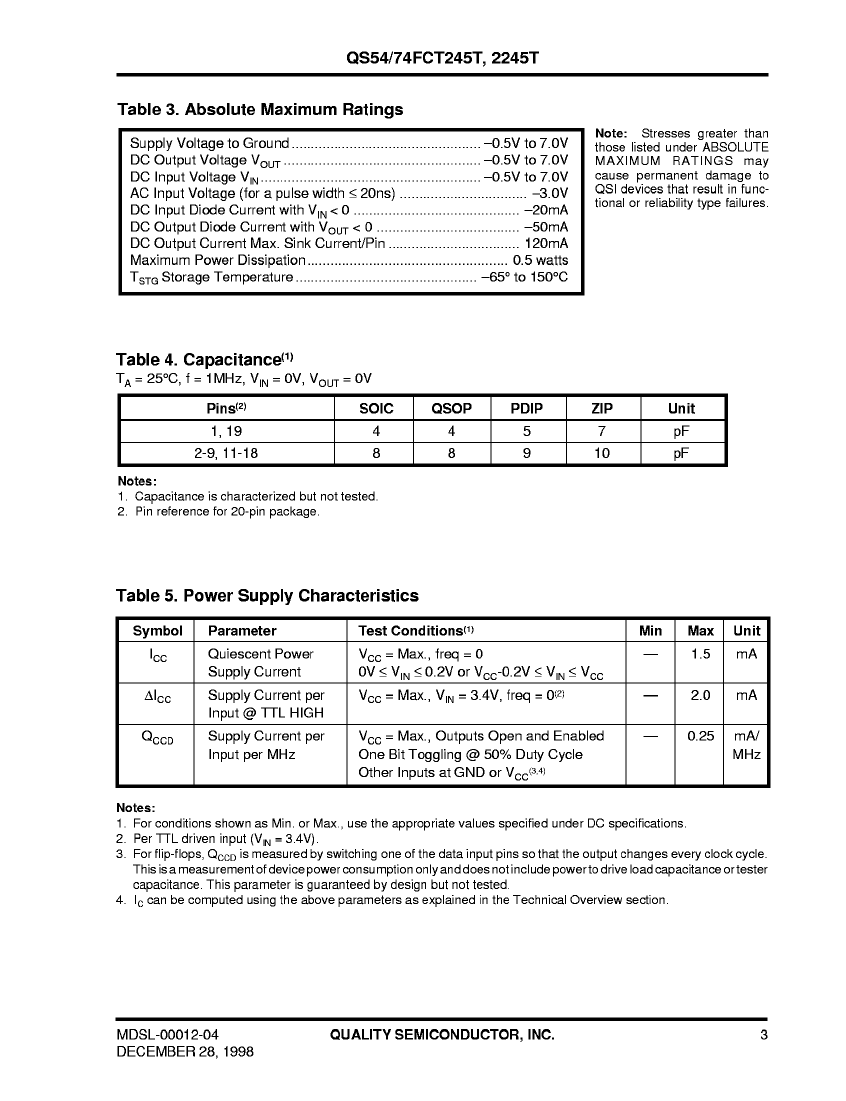

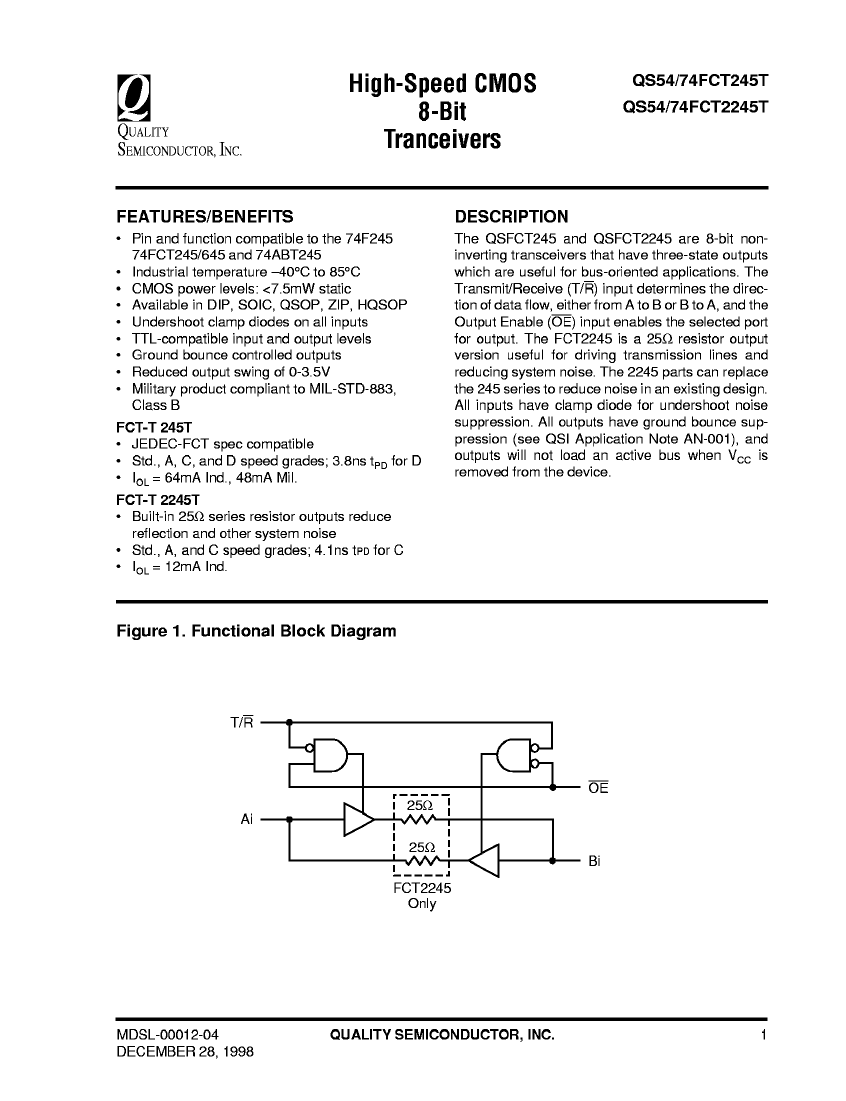

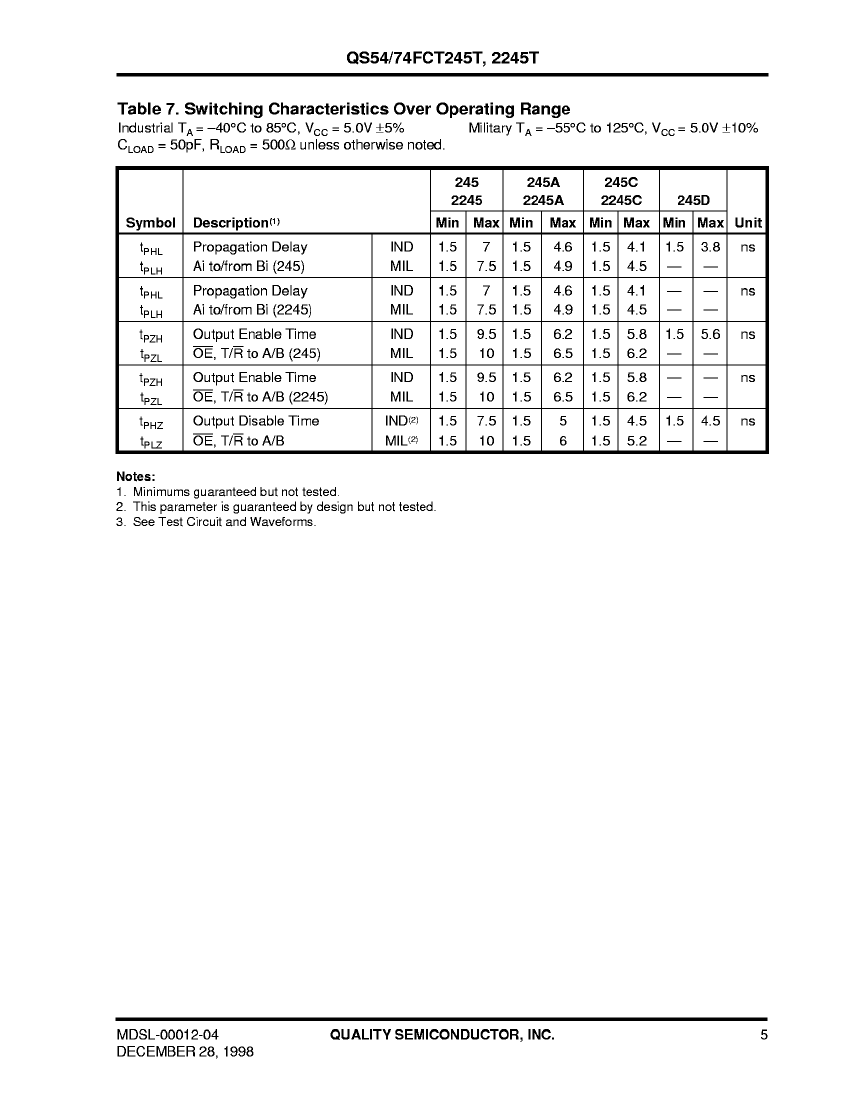

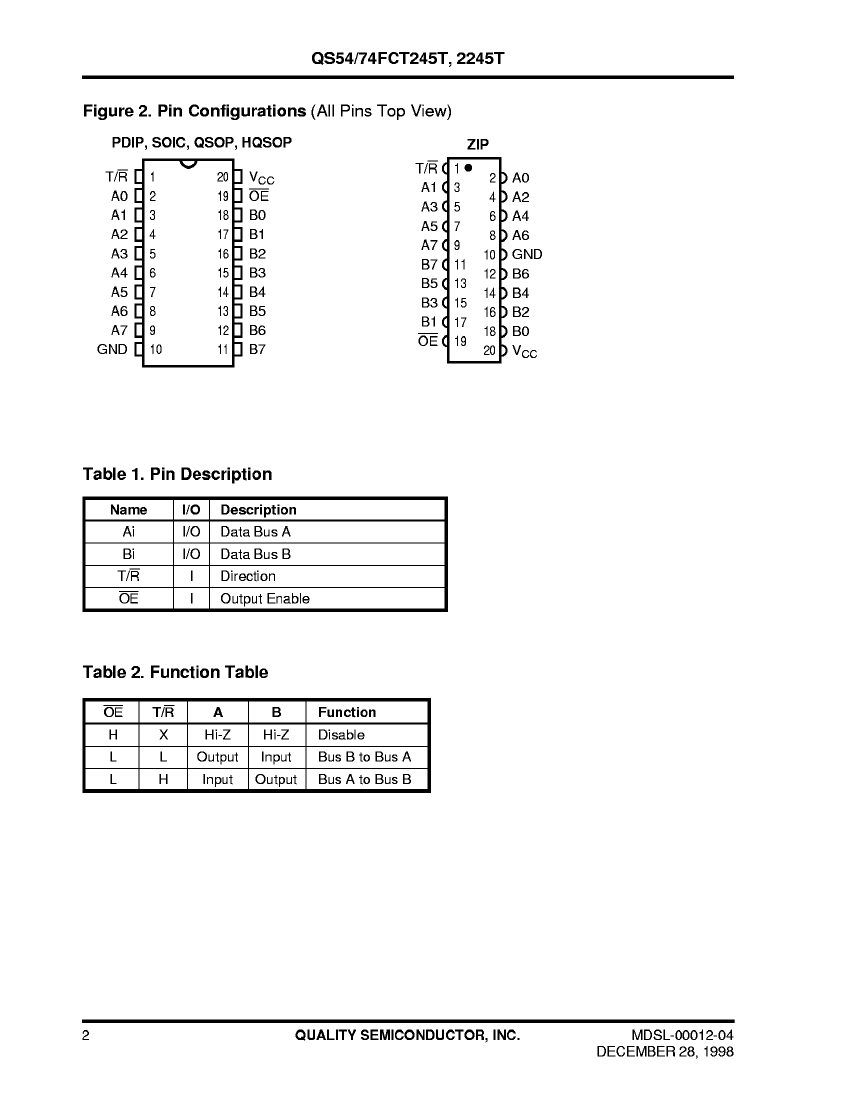

QS54FCT2245ATHB datasheet, PDF

QS54FCT2245ATHB: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDSO20,; Categorylogic logic; File Size91KB，5 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

QS54FCT2245ATHB Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDSO20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SSOP, SSOP20,.25
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-CDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.012 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	4.9 ns
propagation delay (tpd)	4.9 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Base Number Matches	1
