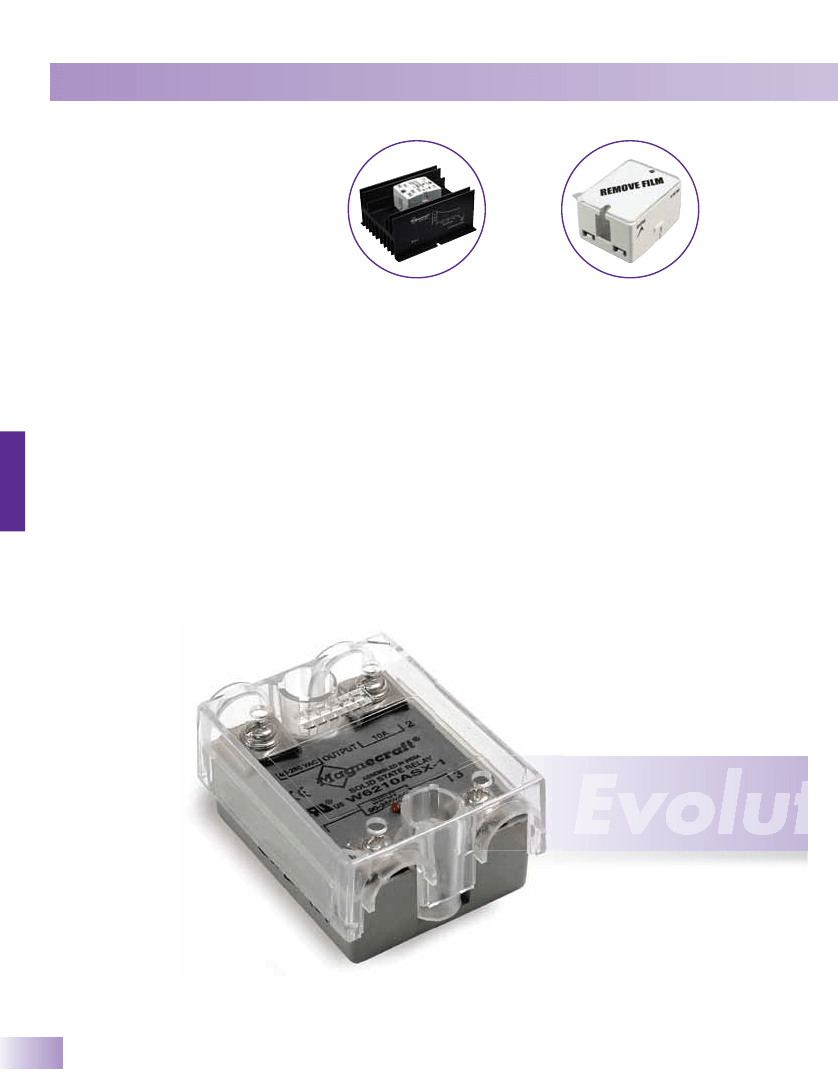

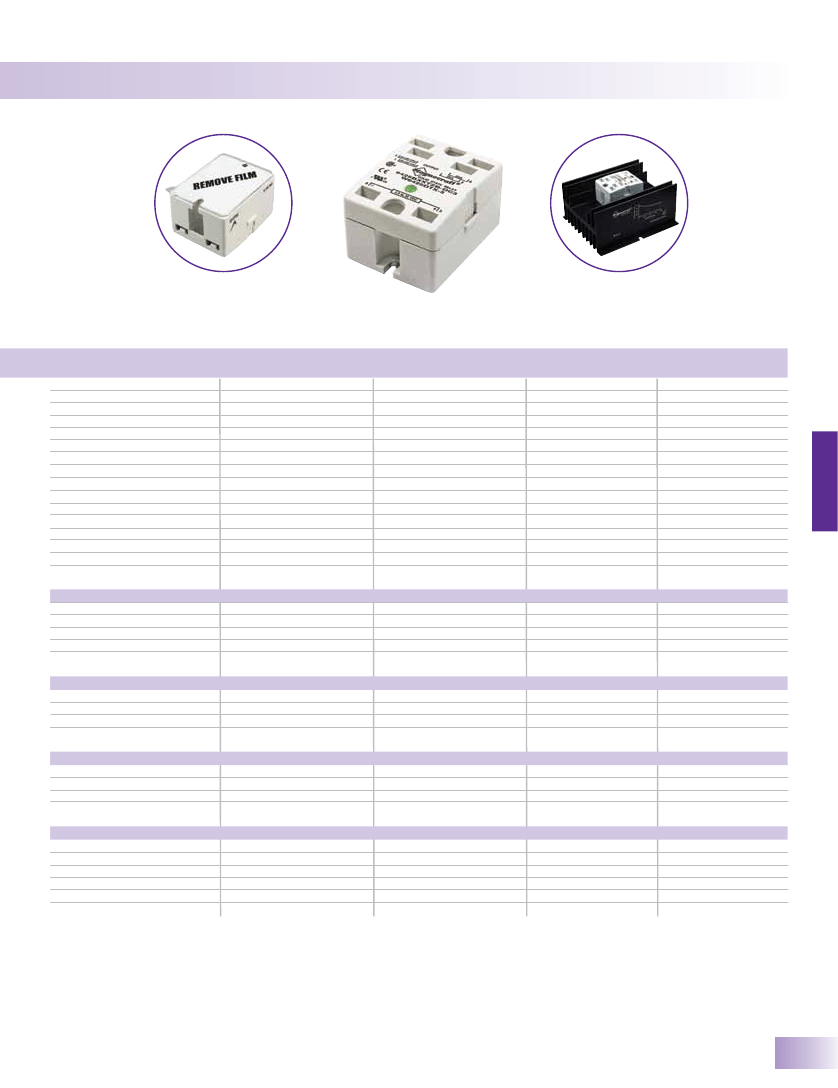

Advantages of the Class 6 Solid State Relay
The Complete
System Solution!
Optional Heat Sink
(SSR-HS-1)
Section 3 p.20
Optional Thermal Pad
(SSR-TP-1)
Section 3 p.21
SECTION 4
We at Magnecraft strive to be your one-stop-shop for all of your solid state relay needs. The new line of 6 series
solid-state relays give industrial relay users an energy-efficient current switching alternative. Depending on the
application, these solid-state relays offer a number of advantages over electromechanical relays, including
longer life cycles, less energy consumption and reduced maintenance costs. This is why great care and attention
was given when developing the next generation of “Hockey Puck” style SSRs. These new SSRs will be finger-
safe , fit a pre-cut heat transfer thermal pad (sold separately) and have the ability to be mounted onto a factory
tested pre-drilled and tapped heat sink (sold separately).
Magnecraft’s expertise in both SSR design and thermal management enables us to provide customers with a
solution to their solid state relay requirements. This solution comes ready-to-use, virtually eliminating in-house
assembly and complex heat sink calculations. Furthermore, each SSR, thermal pad (sold separately) and heat
sink assembly (sold separately) utilizes the reliability and technology only available in our 6 series solid state
relays. These features, coupled with Magnecraft’s superior customer service and engineering support team,
provide our customers with a level of convenience not easily found in the market today!
Legacy
4/18
M a gn e c r af t S ol u t i on G u ide 1 0 5 A
a ft o lu io n ui de
The Class 6 is also available
with
Blade Terminals.

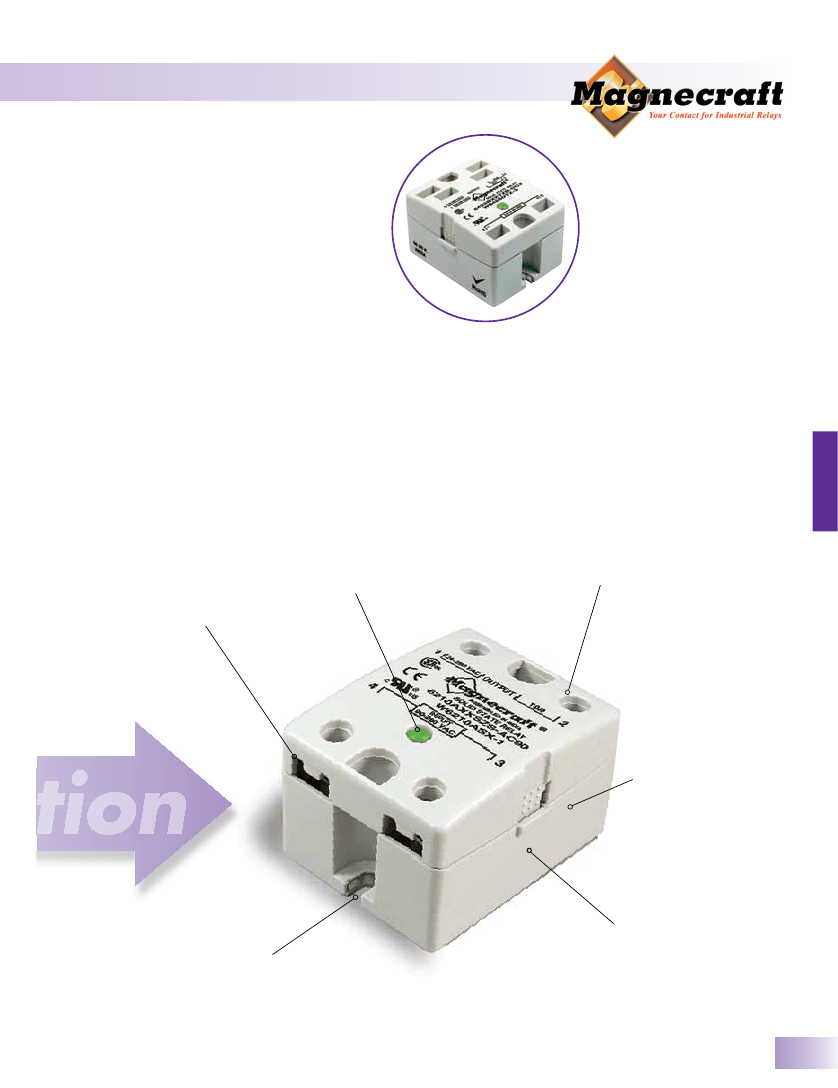

The new finger-safe Class 6* “Hockey Puck” Style Solid State Relay (SSR) expands and enhances the current
Magnecraft Solid State Relay product line.
This product features a finger-safe cover and LED Status Indicator. The optically coupled circuitry isolates the
input from the output to give pure solid state performance. This product carries with it agency certifications
from UL, CSA, and CE.
*Available
for products up to 40 Amps (AC Load) and 12 Amps (DC Load).
Finger Safe
Protects Operators
from live circuits.
Input Indication
Green LED.
Optically Coupled Circuit
NO Interference between
seperate circuits.
Solid State Circuitry
No Moving Parts
Involved.
Panel Mounting
Internal Snubber
Protects from Transients.
New
Mag necraf t S o lu t io n Gu ide 1 0 5 A
4/19

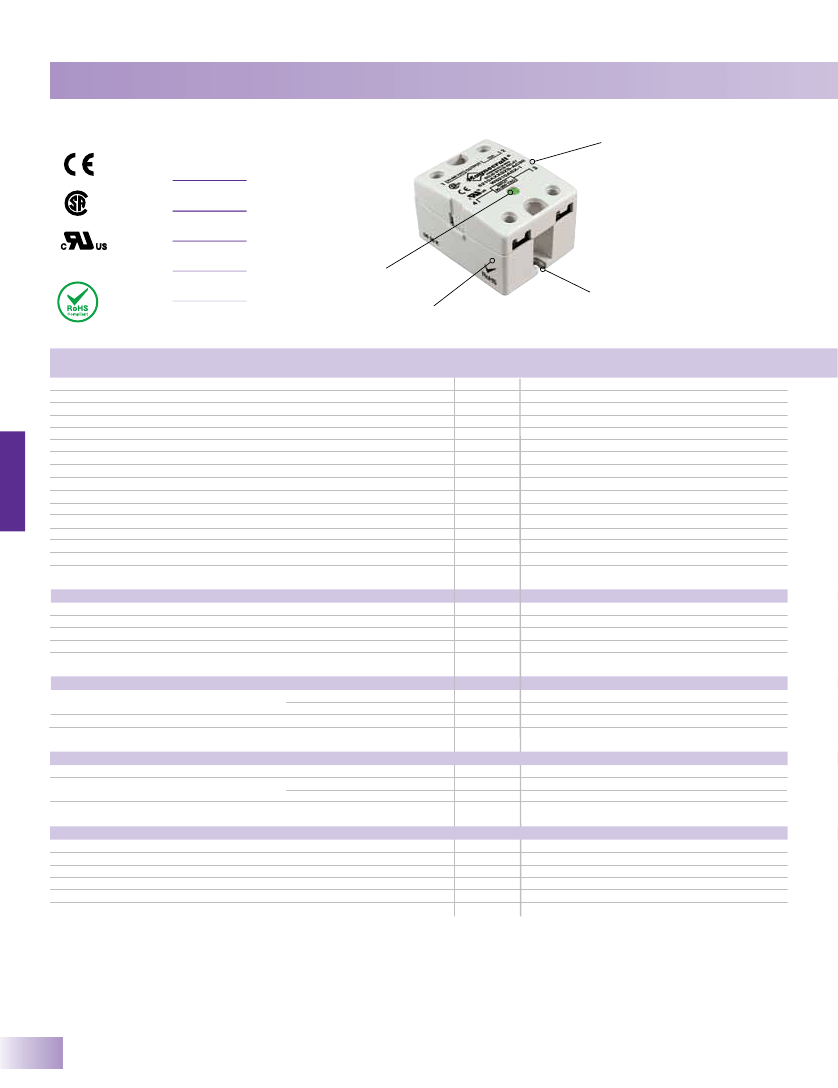

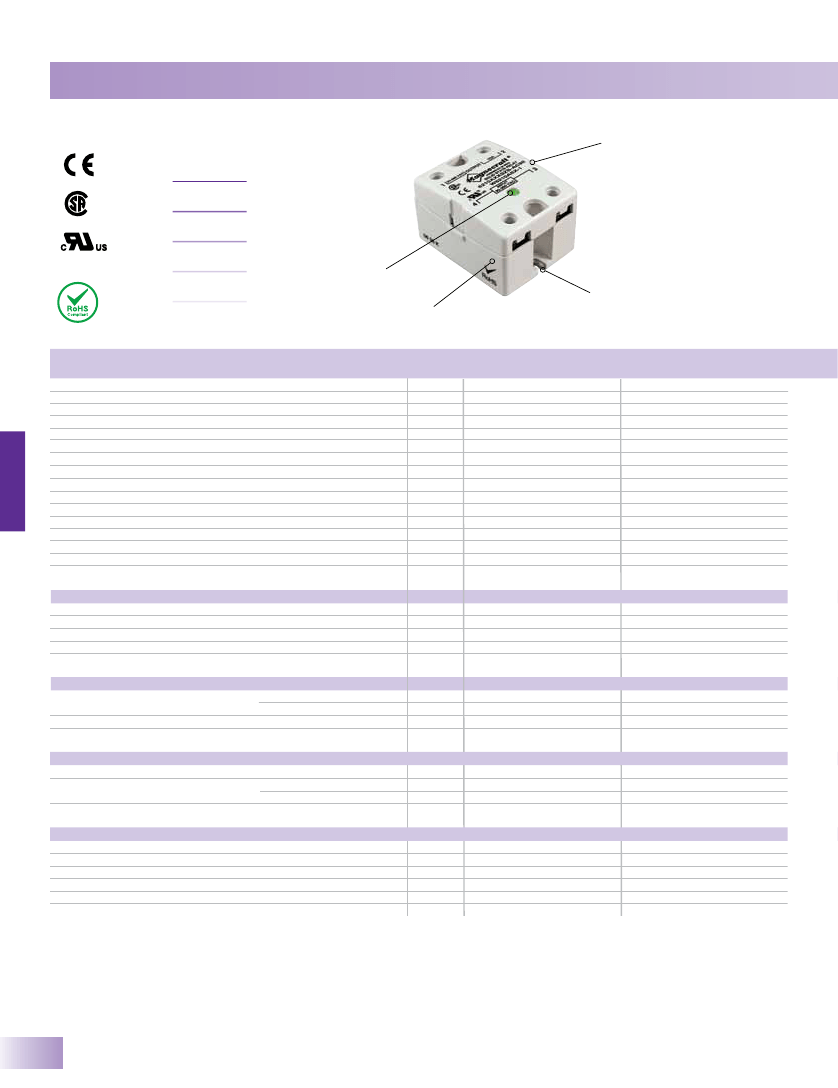

SECTION 4
Class 6 Solid State Relays/SPST-NO,
SPST-NC, DPST-NO, 10-125 Amp Rating
Solid State Circuitry.
No Moving Parts
WHITE
NEW
NEW
NEW
NEW
NEW
General Specifications (@ 25° C)
(UL 508)
Output Characteristics
Number and type of Contacts
Switching Device
Current rating
Switching voltage
Switching Type
Maximum Rate of Rise Off State Voltage (dv/dt)
Incandescent Lamp Ampere Rating (rms)
Motor Load Rating (rms)
Min. Load current to maintain on
Non-Repetitive Surge Current (1 cycle)
Max. RMS overload current (1 second)
Max. Off state leakage current (rms)
Peak Blocking Voltage
Typical On State Voltage Drop (rms)
Max. On State Voltage Drop (rms)
Maximum I² T for Fusing (A²)
Input Characteristics
Voltage Range
Must Release Voltage
Nominal Input Impedance
Typical Input Current @ 5VDC or 240VAC
Reverse Polarity Protection
Performance Characteristics
Operating Time (response time)
Rated Insulation Voltage
Dielectric strength
Environment
Product certifications
Ambient air temperature
around the device
Degree of protection
Miscellaneous Characteristics
Thermal Resistance (Junction to Case)
Weight
LED
Input Terminals
Output Terminals
Mounting Screw Torque
Green LED
Status Lamp
Internal
Snubber
Panel Mounting
New Part #
Superceding Part #
Units
A
V
V/us
A
A
mA
A
A
mA
Vpk
V
V
6210AXXSZS-AC90
6210ASX-1
SPST-NO
SCR (2)
10
24….280 AC
Zero Cross
200
8
4.5
50
83
24
8
600
1.6 AC
1.6 AC
72
90...280 AC/80...140 DC
10 AC
13K
20
N/A
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
3.5
100 (3.5)
Green
M3.5 or equivalent
M4 or equivalent
1.0
SECTION 4
V
V
Ω
mA
On
Off
Input to Output
Terminals to Chassis
Standard version
Storage
Operation
ms
ms
V
V
°C
°C
Input
°C/W
g (oz)
Nm
4/20
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
www.magnecraft.com
847-441-2540
Thermal Pad
(SSR-TP-1)
Section 3 p.21
6225AXXSZS-AC90
6225ASX-1
SPST-NO
SCR (2)
25
24….280 AC
Zero Cross
500
16
8
120
250
40
8
600
1.6 AC
1.6 AC
312
90...280 AC/80...140 DC
10 AC
13K
20
N/A
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
1.02
100 (3.5)
Green
M3.5 or equivalent
M4 or equivalent
1.0
6250AXXSZS-AC90
6250ASX-1
SPST-NO
SCR (2)
50
24….280 AC
Zero Cross
500
39
14
250
520
100
10
600
1.1 AC
1.8 AC
1250
90…280 AC/80…140 DC
10 AC
13K
20
N/A
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
0.63
135 (4.8)
Green
M3.5 or equivalent
M4 or equivalent
1.0
Blade Terminals
DPST-NO
6275AXXSZS-AC90
6275ASX-1
SPST-NO
SCR (2)
75
24….280 AC
Zero Cross
500
39
25
250
1150
150
10
600
1.8 AC
1.8 AC
5000
90…280 AC/80…140 DC
10 AC
13K
20
N/A
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
0.6
200 (7.1)
Green
M3.5 or equivalent
M4 or equivalent
1.0
Heat Sink
(SSR-HS-1)
Section 3 p.20
6210AXXSZS-DC3
6210DSX-1
SPST-NO
SCR (2)
10
24….280 AC
Zero Cross
200
8
4.5
50
83
24
10
600
1.6 AC
1.6 AC
83
3…32
1 DC
Current Regulator
16
Yes
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
3.50
100 (3.5)
Green
M3.5 or equivalent
M4 or equivalent
1.0
6225AXXSZS-DC3
6225DSX-1
SPST-NO
SCR (2)
25
24….280 AC
Zero Cross
500
16
8
120
250
40
10
600
1.6 AC
1.6 AC
250
3…32
1 DC
Current Regulator
16
Yes
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
1.02
100 (3.5)
Green
M3.5 or equivalent
M4 or equivalent
1.0
Magnecra f t So l u t io n Gu i de 1 0 5 A
4/21
SECTION 4
Class 6 Solid State Relays/SPST-NO,
SPST-NC, DPST-NO, 10-125 Amp Rating
continued
Solid State Circuitry.
No Moving Parts
WHITE
UL Recognized
File No. E258297
NEW
NEW
NEW
NEW
NEW
(UL 508)
Green LED
Status Lamp
Internal
Snubber
Panel Mounting
General Specifications (@ 25° C)
Output Characteristics
Number and type of Contacts
Switching Device
Current rating
Switching voltage
Switching Type
Maximum Rate of Rise Off State Voltage (dv/dt)
Incandescent Lamp Ampere Rating (rms)
Motor Load Rating (rms)
Min. Load current to maintain on
Non-Repetitive Surge Current (1 cycle)
Max. RMS overload current (1 second)
Max. Off state leakage current (rms)
Peak Blocking Voltage
Typical On State Voltage Drop (rms)
Max. On State Voltage Drop (rms)
Maximum I² T for Fusing (A²)
Input Characteristics
Voltage Range
Must Release Voltage
Nominal Input Impedance
Typical Input Current @ 5VDC or 240VAC
Reverse Polarity Protection
Performance Characteristics
Operating Time (response time)
Rated Insulation Voltage
Dielectric strength
Environment
Product certifications
Ambient air temperature
around the device
Degree of protection
Miscellaneous Characteristics
Thermal Resistance (Junction to Case)
Weight
LED
Input Terminals
Output Terminals
Mouniting Screw Torque
New Part #
Superceding Part #
Units
A
V
V/us
A
A
mA
A
A
mA
Vpk
V
V
6250AXXSZS-DC3
6250DSX-1
SPST-NO
SCR (2)
50
24….280 AC
Zero Cross
500
39
14
250
520
100
8
600
1.8
1.8
1250
3….32
1 DC
Current Regulator
16
Yes
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
0.63
135 (4.8)
Green
M3.5 or equivalent
M4 or equivalent
1.0
6275AXXSZS-DC3
6275DSX-1
SPST-NO
SCR (2)
75
24….280 AC
Zero Cross
500
39
25
250
1150
150
10
600
1.8
1.8
5000
3….32
1 DC
Current Regulator
16
Yes
8.3
8.3
4000 AC
4000 AC
UR, CSA, CE
-40…+100
-40…+80
IP 20
0.6
200 (7.1)
Green
M3.5 or equivalent
M4 or equivalent
1.0
SECTION 4
V
V
Ω
mA
On
Off
Input to Output
Terminals to Chassis
Standard version
Storage
Operation
ms
ms
V
V
°C
°C
Input
°C/W
g (oz)
Nm
4/22
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
