SURFACE MOUNT LED
WHITE, 2835 PACKAGE, 0.2W
SM2835UWDX02
♦
♦
♦
♦
♦
♦
Industry Standard 2835 Package
RoHS Compliant
Small Package and Footprint
X
- (C) Cool White, (N) Neutral White, (W) Warm White
Wide Viewing Angle
Ideal for Lighting and Backlighting Application
Bivar Surface Mount 2835 package LED may be used in nearly any lighting or backlighting application.
These 0.2 Watt SMD LED’s have a minimum CRI Value of 80 and are available in 3 color temperatures
to meet any illumination needs: Cool, Neutral and Warm White. The SM2835 Series is conveniently
packaged in standard tape and reels for pick and place assemblies.
Luminous Flux
(lm) TYP.
24
23
22
Part Number
SM2835UWDC02
SM2835UWDN02
SM2835UWDW02
Material
InGaN
InGaN
InGaN
Emitted Color
Cool White
Neutral White
Warm White
Lens Color
Diffused
Diffused
Diffused
Viewing Angle
120°
120°
120°

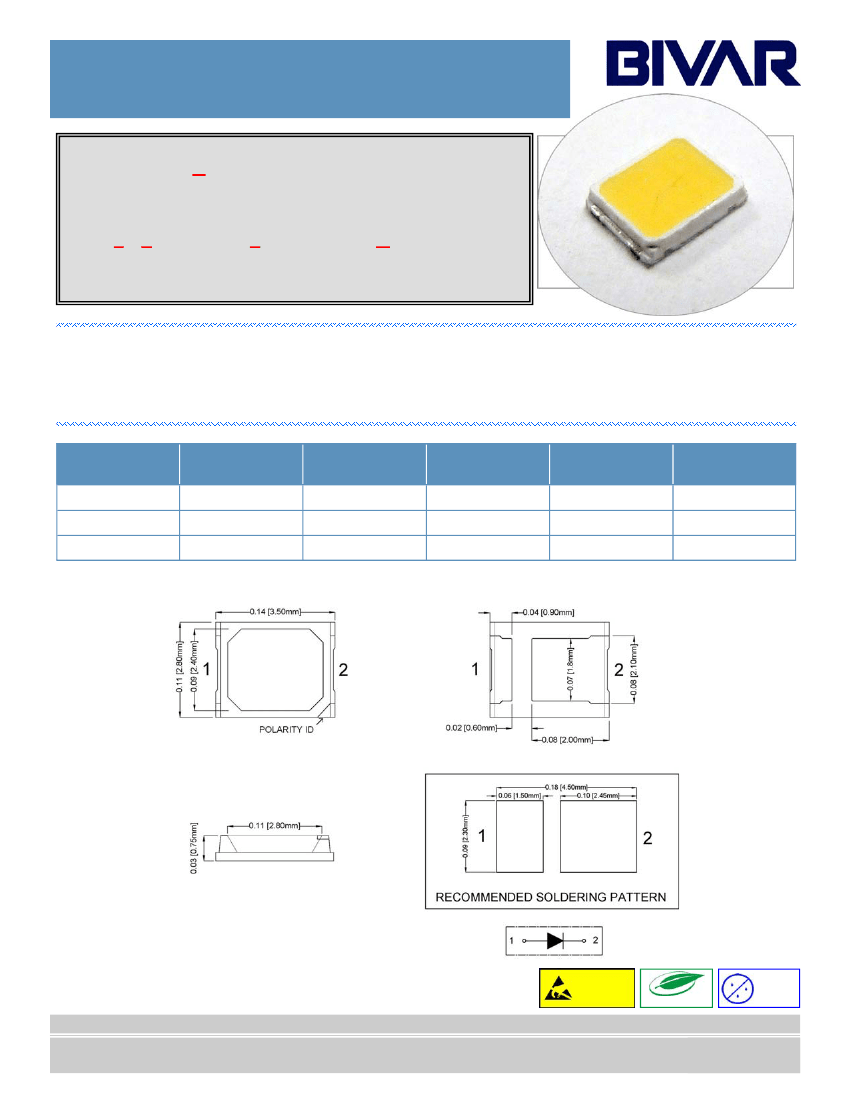

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010” unless otherwise noted.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 4
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 10/15
Page 1 of 5
SURFACE MOUNT LED
WHITE, 2835 PACKAGE, 0.2W
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Electrostatic Discharge (HBM)
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Lead Soldering Temperature
2
Notes: 1.
≤
10% Duty Cycle, Pulse Width
≤
0.1 msec.
2. Solder time less than 5 seconds at temperature extreme.
0.26 W
75 mA
120 mA
5V
2000 V
-40 ~ +100°C
-40 ~ +100°C
115°C
260°C
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 60 mA unless otherwise noted
Forward
Voltage (V)
MIN
SM2835UWDC02
SM2835UWDN02
SM2835UWDW02
2.9
2.9
2.9
TYP
/
/
/
MAX
3.5
3.5
3.5
Recommend
Forward
Current (mA)
TYP
60
60
60
Reverse
Current (µA)
V
R
=5V
MAX
10
10
10
CCT (Kelvin)
Luminous
Flux (lm)
MIN
20
20
20
TYP
24
23
22
MAX
28
28
26
Viewing
Angle
2
Ө
½
(deg)
TYP
120
120
120
Part Number
MIN
5800
3700
2750
TYP
6500
4000
3000
MAX
7300
4400
3150
Notes: 1. The above forward voltage measurement allowance tolerance is ±0.1V.
2. The above luminous flux measurement allowance tolerance ±10%.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 10/15
Page 2 of 5
SURFACE MOUNT LED
WHITE, 2835 PACKAGE, 0.2W

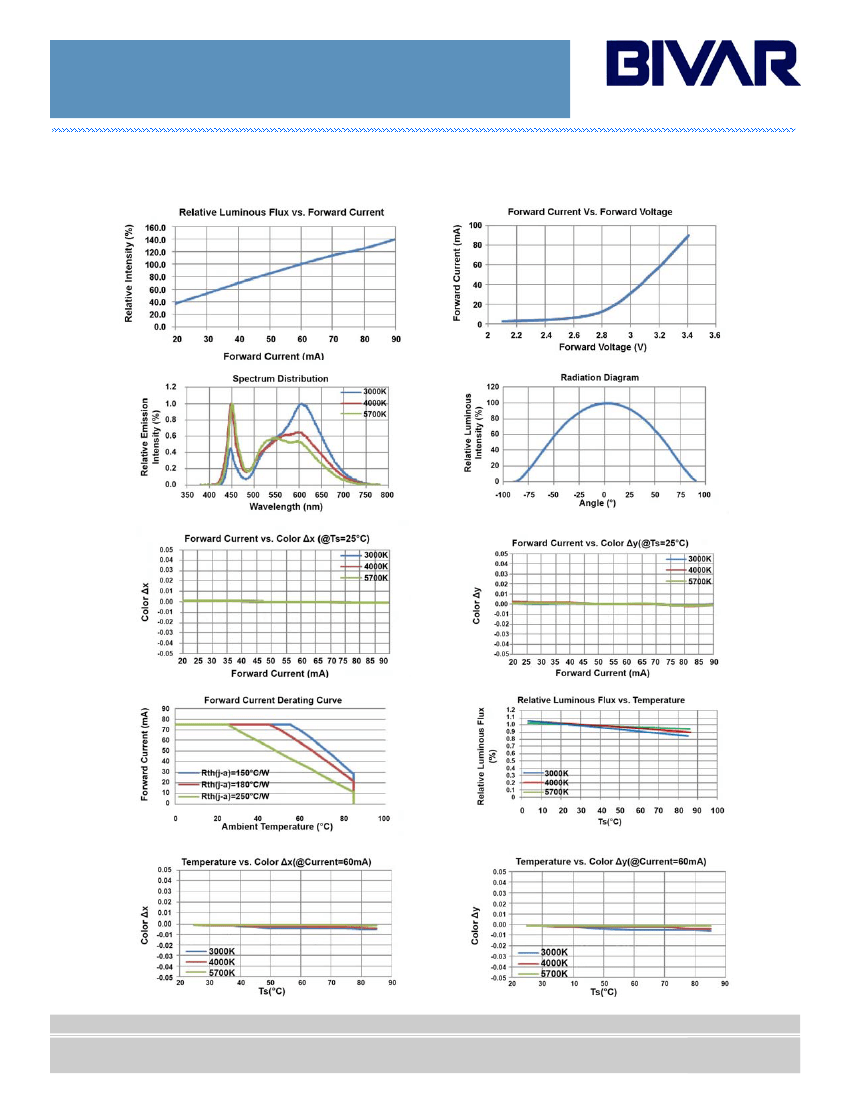

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 10/15
Page 3 of 5
SURFACE MOUNT LED
WHITE, 2835 PACKAGE, 0.2W

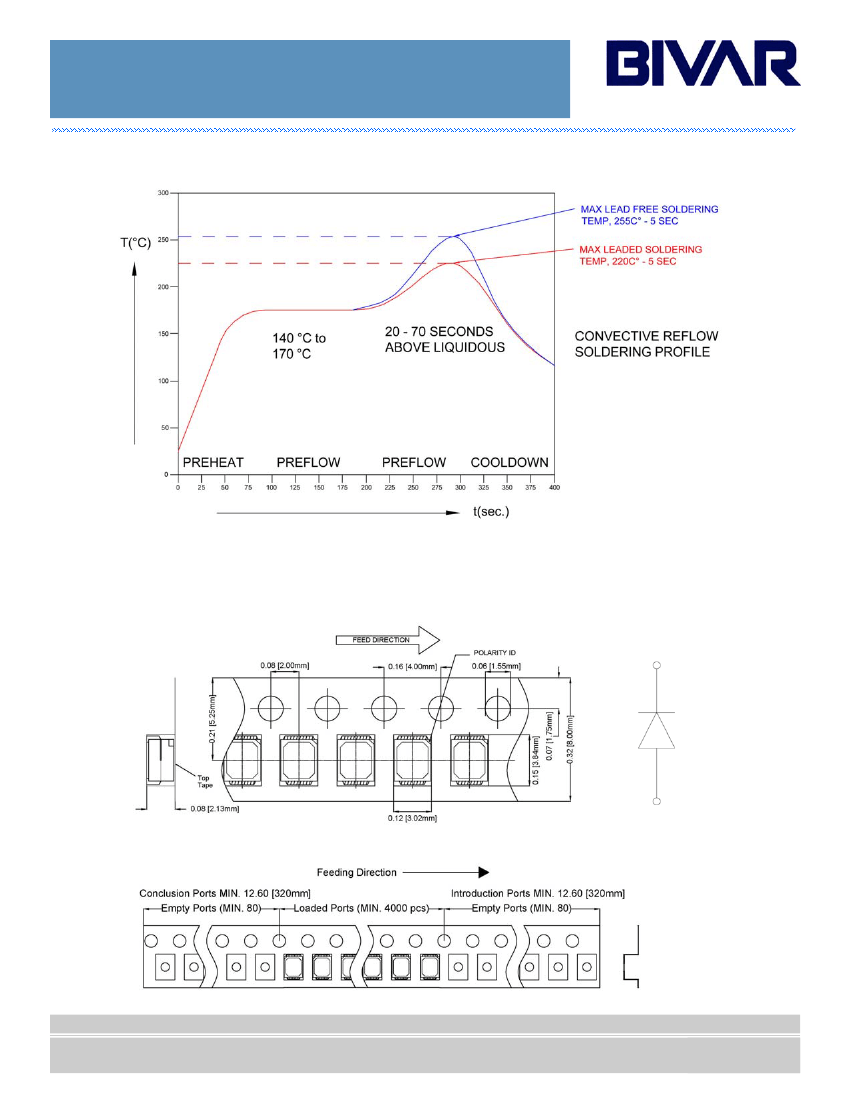

Recommended Soldering Conditions
Tape and Reel Dimensions
Note: 4000 pcs/Reel
•
Dimensions of Tape
•
Arrangement of Tape
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010” unless otherwise noted.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 10/15
Page 4 of 5
SURFACE MOUNT LED
WHITE, 2835 PACKAGE, 0.2W

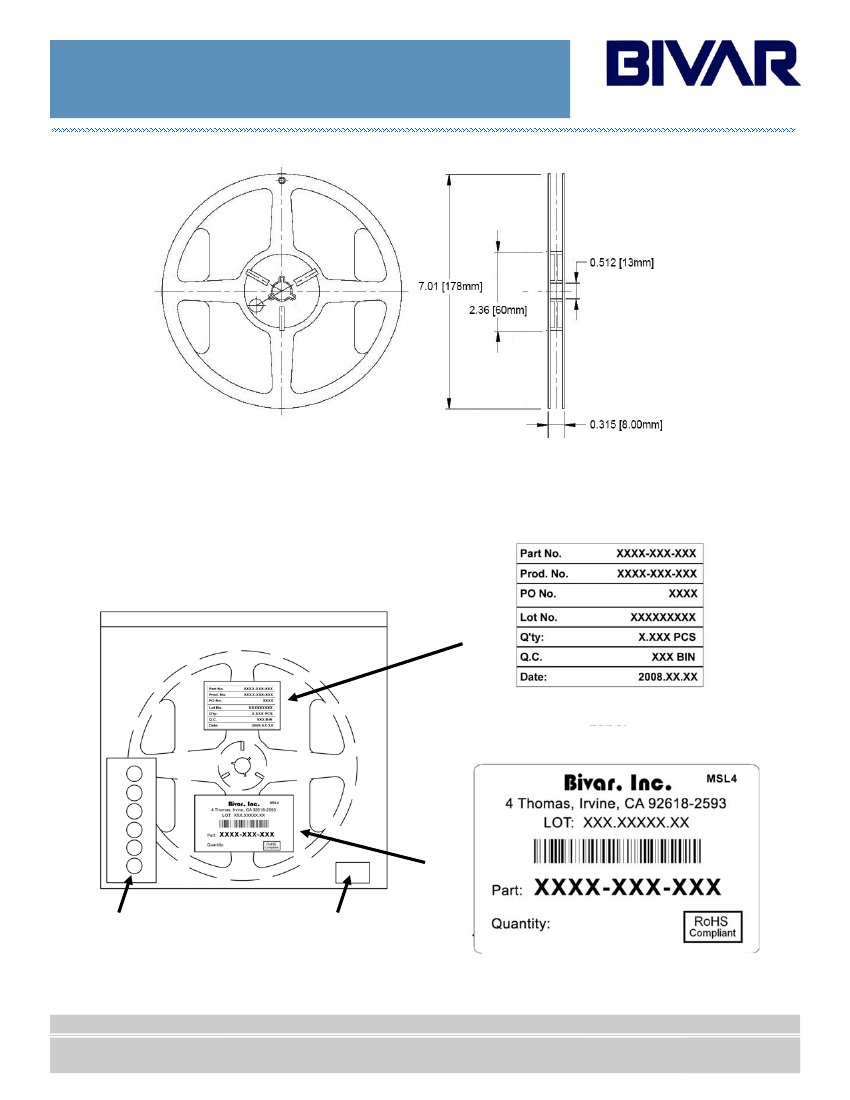

Packaging and Labeling Plan
Note: 1 Reel / Bag
Vacuum and Heat Sealed
ESD/MBB Bag
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance unless otherwise noted: X.XXX ± 0.010"
X.X ± 0.1”
Internal Quality Control
X.XXX
Humidity Indicator Card
Desiccants
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 10/15
Page 5 of 5
