SIDC30D120F6

Description
35 A, 1200 V, SILICON, RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size206KB,4 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

SIDC30D120F6 Overview

35 A, 1200 V, SILICON, RECTIFIER DIODE

SIDC30D120F6 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerInfineon
Parts packaging codeDIE
package instruction5.50 X 5.50 MM, DIE-1
Contacts1
Reach Compliance Code_compli
ECCN codeEAR99
applicationFAST SOFT RECOVERY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeS-XUUC-N1
Number of components1
Phase1
Number of terminals1
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current35 A
Package body materialUNSPECIFIED
Package shapeSQUARE
Package formUNCASED CHIP
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1200 V
surface mountYES
Terminal formNO LEAD
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Preliminary
SIDC30D120F6
Fast switching diode chip in EMCON-Technology
FEATURES:
1200V EMCON technology 120 µm chip
soft, fast switching
low reverse recovery charge
small temperature coefficient
A
This chip is used for:
EUPEC power modules and
discrete devices
Applications:
SMPS, resonant applications,
drives
C
Chip Type
SIDC30D120F6
V
R
1200V
I
F
35A

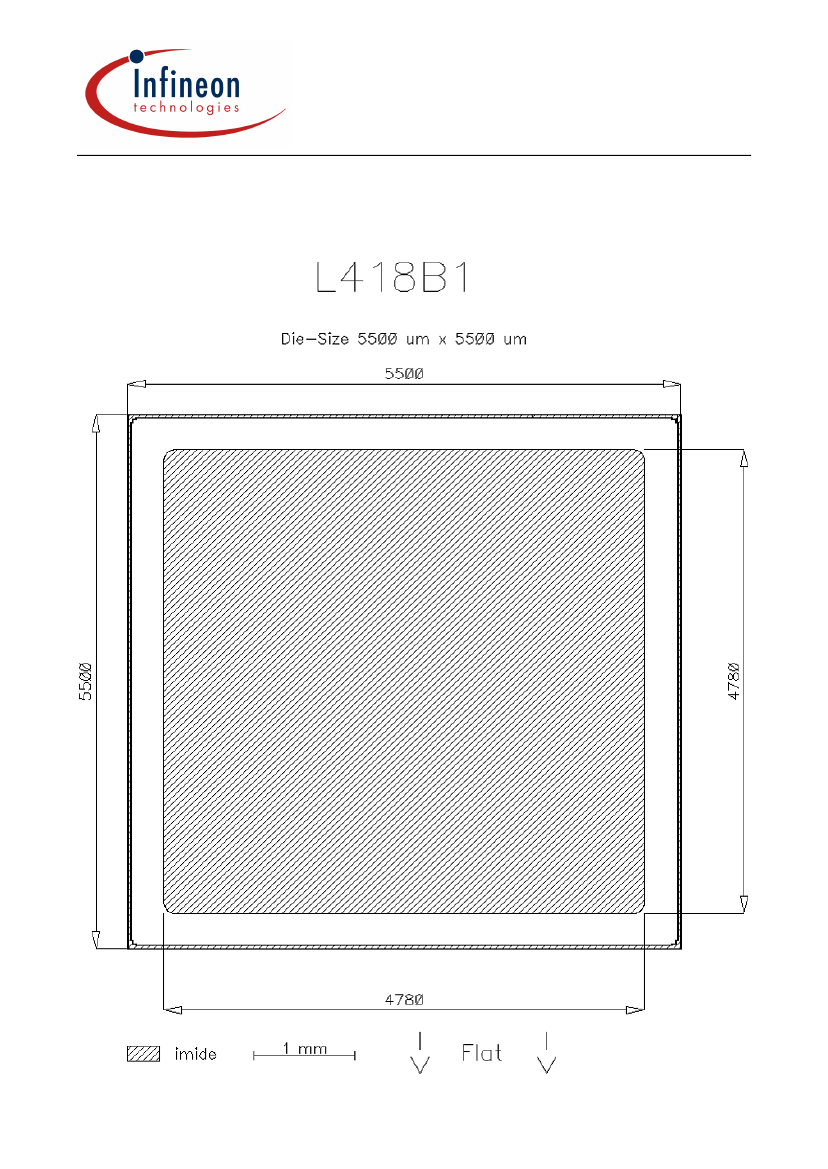

Die Size
5.5 x 5.5 mm
2
Package
sawn on foil
Ordering Code
Q67050-A4184-
A001
MECHANICAL PARAMETER:
Raster size
Area total / active
Anode pad size
Thickness
Wafer size
Flat position
Max. possible chips per wafer
Passivation frontside
Anode metallisation
Cathode metallisation
Die bond
Wire bond
Reject Ink Dot Size
Recommended Storage Environment
5.5 x 5.5
30.25 / 23.33
4.78 x 4.78
120
150
180
482 pcs
Photoimide
3200 nm AlSiCu
1400 nm Ni Ag –system
suitable for epoxy and soft solder die bonding
electrically conductive glue or solder
Al,
≤500µm
0.65mm ; max 1.2mm
store in original container, in dry nitrogen,
< 6 month at an ambient temperature of 23°C
µm
mm
deg
mm
2
Edited by INFINEON Technologies AI PS DD HV3, L 4185M, Edition 1, 8.01.2002
