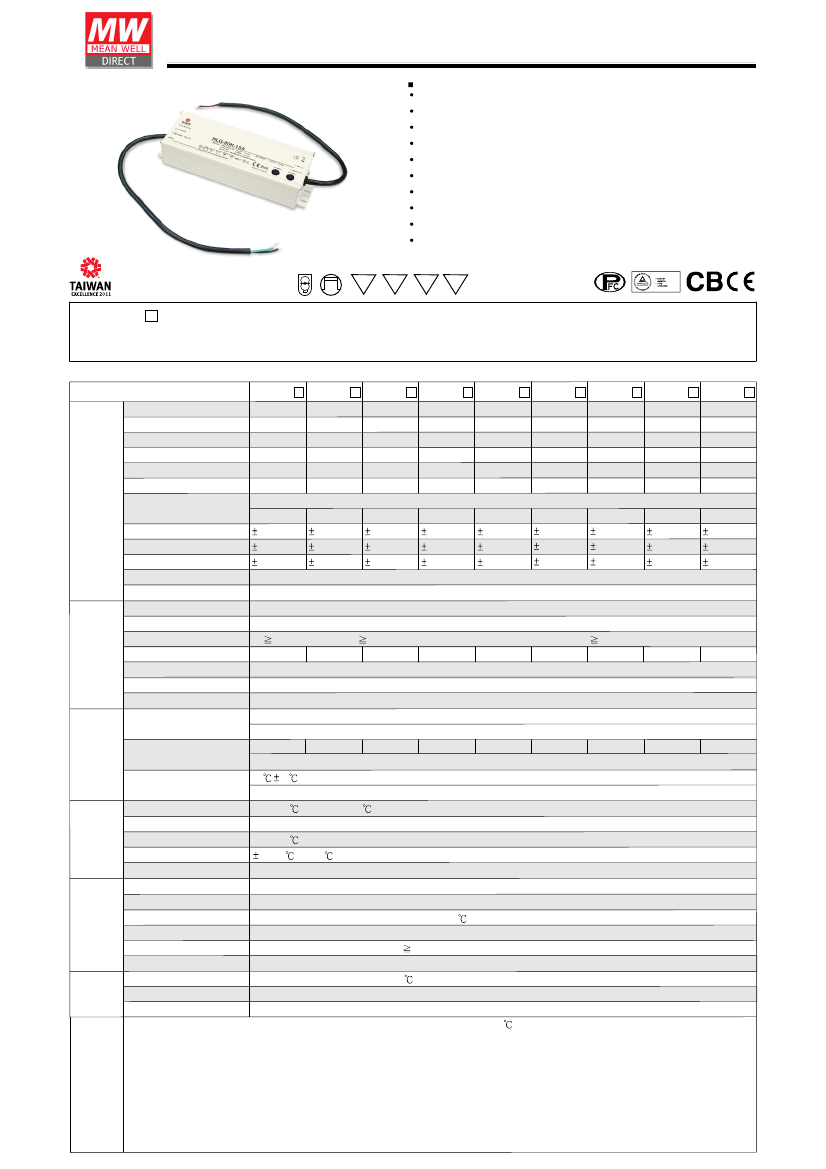

80W Single Output Switching Power Supply
Features :
HLG-80H
series
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potential meter
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1~10Vdc or PWM signal or resistor)
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
5 years warranty (Note.10)
F
110
M
M
SELV
IP65 IP67
HLG-80H-12 A
Blank : IP67 rated. Cable for I/O connection.
A : IP65 rated. Output voltage and constant current level can be adjusted through internal potential meter.
B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistor.
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-80H-12
12V
5A
60W
CONSTANT CURRENT REGION
Note.4
7.2 ~12V
HLG-80H-15
15V
9 ~ 15V
5A
75W
150mVp-p
HLG-80H-20
20V
12 ~ 20V
4A
80W
150mVp-p
17 ~ 22V
2.4 ~ 4A
1.0%
0.5%
HLG-80H-24
24V
14.4 ~ 24V
3.4A
81.6W
150mVp-p
22 ~ 27V
2.04 ~ 3.4A
1.0%
0.5%
0.5%
HLG-80H-30
30V
18 ~ 30V
2.7A
81W
200mVp-p
27 ~ 33V
1.62 ~ 2.7A
1.0%
0.5%
0.5%
HLG-80H-36
36V
21.6 ~ 36V
2.3A
82.8W
200mVp-p
33 ~ 40V
1.38 ~ 2.3A
1.0%
0.5%
0.5%
HLG-80H-42
42V
25.2 ~ 42V
1.95A
81.9W
200mVp-p
38 ~ 46V
HLG-80H-48
48V
28.8 ~ 48V
1.7A
81.6W
200mVp-p
43 ~ 53V
HLG-80H-54
54V
32.4 ~ 54V
1.5A
81W
200mVp-p
49 ~ 58V
0.9 ~ 1.5A
1.0%
0.5%
0.5%
230VAC / 115VAC
RIPPLE & NOISE (max.)
Note.2
150mVp-p
OUTPUT
VOLTAGE ADJ. RANGE
Note.6
10.8 ~ 13.5V 13.5 ~ 17V
CURRENT ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
OVER CURRENT
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
WITHSTAND VOLTAGE
Note.4
Can be adjusted by internal potential meter or through output cable
3 ~ 5A
2.5%
0.5%
3 ~ 5A
2.0%
0.5%
1.17 ~ 1.95A 1.02 ~ 1.7A
1.0%
1.0%
0.5%
0.5%
0.5%
0.5%
1.5%
1.0%
2.0%
Note.8
2000ms, 80ms / 115VAC at full load
16ms at full load
Note.5
90 ~ 305VAC
1000ms, 80ms / 230VAC at full load ; B type 2000ms, 200ms at 95% load
230VAC /115VAC
127 ~ 431VDC
PF
0.96/115VAC at full load and rated output voltage
91%
90.5%
0.4A / 277VAC
91%
PF
0.9 at 60 ~ 100% load
91%
91%
91%
47 ~ 63Hz
PF
88%
0.96/230VAC
90%
89%
0.85A / 115VAC
0.425A / 230VAC
COLD START 70A/230VAC
<0.75mA / 277VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
47 ~ 53V
34 ~ 38V
14 ~ 17V
18 ~ 21V
28 ~ 34V
41 ~ 46V
23 ~ 27V
Protection type : Shut down o/p voltage, re-power on to recover
85
10 (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +60 @ full load ; +70
20 ~ 95% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH
0.03%/
(0 ~ 60 )
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
I/P-O/P:3.75KVAC
I/P-FG:1.88KVAC
O/P-FG:0.5KVAC
@ 60% load (Refer to derating curve)
54 ~ 60V
59 ~ 65V
SAFETY STANDARDS
Note.7
EN61347-1, EN61347-2-13 independent IP65 or IP67 approved ; Design refer to UL60950-1, TUV EN60950-1, UL8750
SAFETY & ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC
EMI CONDUCTION & RADIATION
Compliance to EN55015 Class B
Compliance to EN61000-3-2 Class C ( 60% load) ; EN61000-3-3
HARMONIC CURRENT
EMS IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, heavy industry level (surge 4KV), criteria A
357.8Khrs min. MIL-HDBK-217F (25 )
195.6*61.5*38.8mm (L*W*H)
0.84Kg; 16pcs/14.4Kg/0.54CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Type A only.
7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.

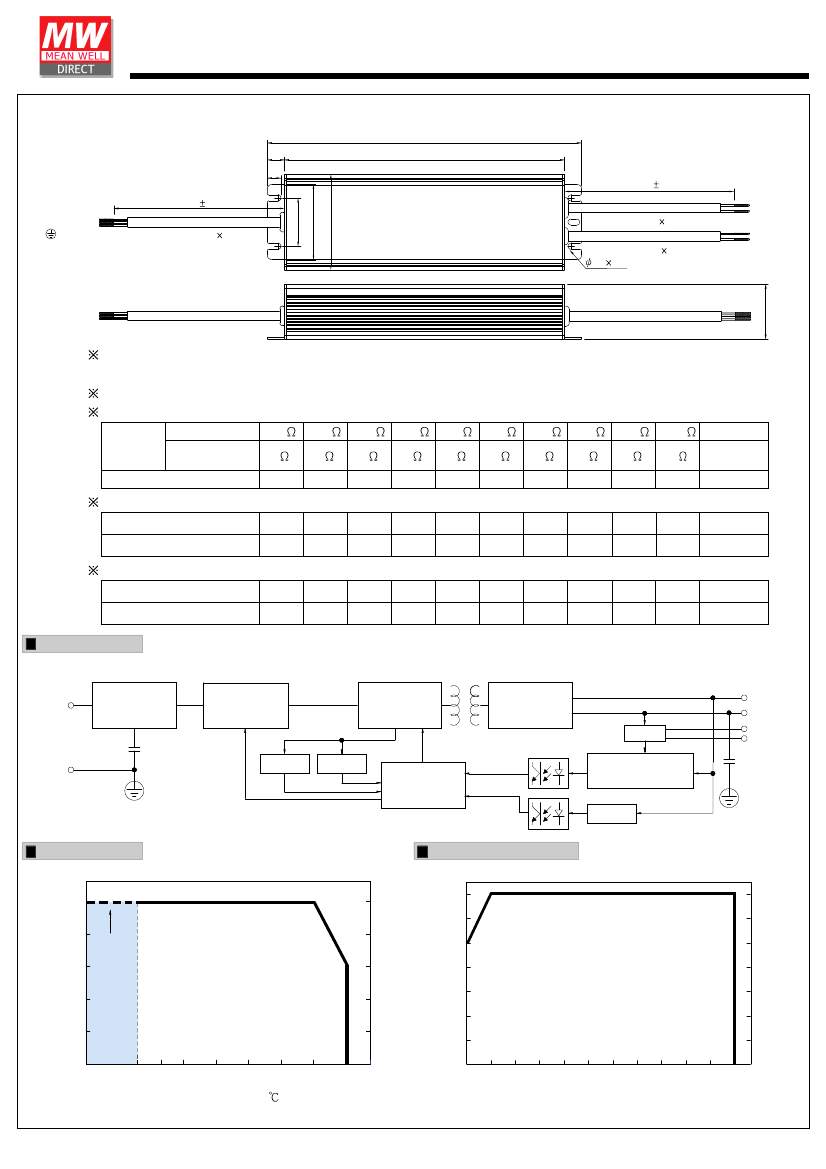

80W Single Output Switching Power Supply
B Type:(HLG-80H-_B)
195.6
12
9.6
171.8
HLG-80H
series
300 20
AC/L(Brown)
AC/N(Blue)
FG (Green/Yellow)
300 20
32
46.5
61.5
18AWG 2C
18AWG 2C
4.2 4PL
+V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
SJTW 18AWG 3C
IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistor or 1 ~ 10Vdc or 10V PWM
signal between DIM+ and DIM-.
Please DO NOT connect "DIM-" to "-V".
Reference resistance value for output current adjustment (Typical)
Single driver
60K
100K
20K
10K
30K
40K
50K
70K
80K
90K
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
/N 20K /N 30K /N 40K /N 50K /N 60K /N 70K /N 80K /N 90K /N 100K /N
dimming operation)
OPEN
-----
102%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
102%~108%
10V PWM signal for output current adjustment (Typical): Frequency range :100HZ ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
102%~108%
Block Diagram
Fosc : 100KHz
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
FG
O.T.P.
O.L.P.
PWM & PFC
CONTROL
DETECTION
CIRCUIT
O.V.P.
+V
-V
DIM+
DIM-
(B Type)
I/P
Derating Curve
100
Static Characteristics
fosc : 100KHz
100
90
80
230VAC
Input only
80
70
60
LOAD (%)
40
LOAD (%)
60
50
40
20
-40
-25
-10
0
15
30
50
60
70
(HORIZONTAL)
90
100
125
135
145
155 165
175
180
200
230
305
AMBIENT TEMPERATURE ( )
INPUT VOLTAGE (V) 60Hz
MeanWell Direct
Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
File Name:HLG-80H-SPEC 2011-03-29
38.8
80W Single Output Switching Power Supply
DRIVING METHODS OF LED MODULE
HLG-80H
series
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
100
(B)
Constant
Current area
(A) Constant
Voltage area
60
(max.)
(C)
Hiccup
Protection
50
95
Io (%)
Vo(%)
Typical LED power supply I-V curve
Direct driving :
Under direct driving, the power supply will work in "constant current mode (CC)" and output voltage of the power supply will be clamped by sum of
forward voltage (V
F
) of the LED strip.
The total forward voltage of series connecting LEDs is suggested for 60%~95% of power supply rated output voltage due to concern of the best PF
value and efficiency.
AC
source
I/P
HLG-80H
O/P
With LED driver
Using additional driver, the power supply will work in "constant voltage mode (CV)" and output voltage of the power supply will be kept in rated value.
In this drive mode, several design issues need to be considered:
1.Output voltage of PSU must be higher than total forward voltage of series connecting LEDs by 3V minimum.
2.Input capacitor (Cin) of LED driver circuit should use 47uF ~ 100uF(typ.) of rating depends on the operating frequency of the LED driver.
The higher the operating frequency is used, the smaller value of Cin should be chosen, and vice versa.
3.Do not use B type with LED driver.
~
~
AC
source
I/P
HLG-80H
O/P
R
Cin
L
Cout
V
F
IC Circuit
