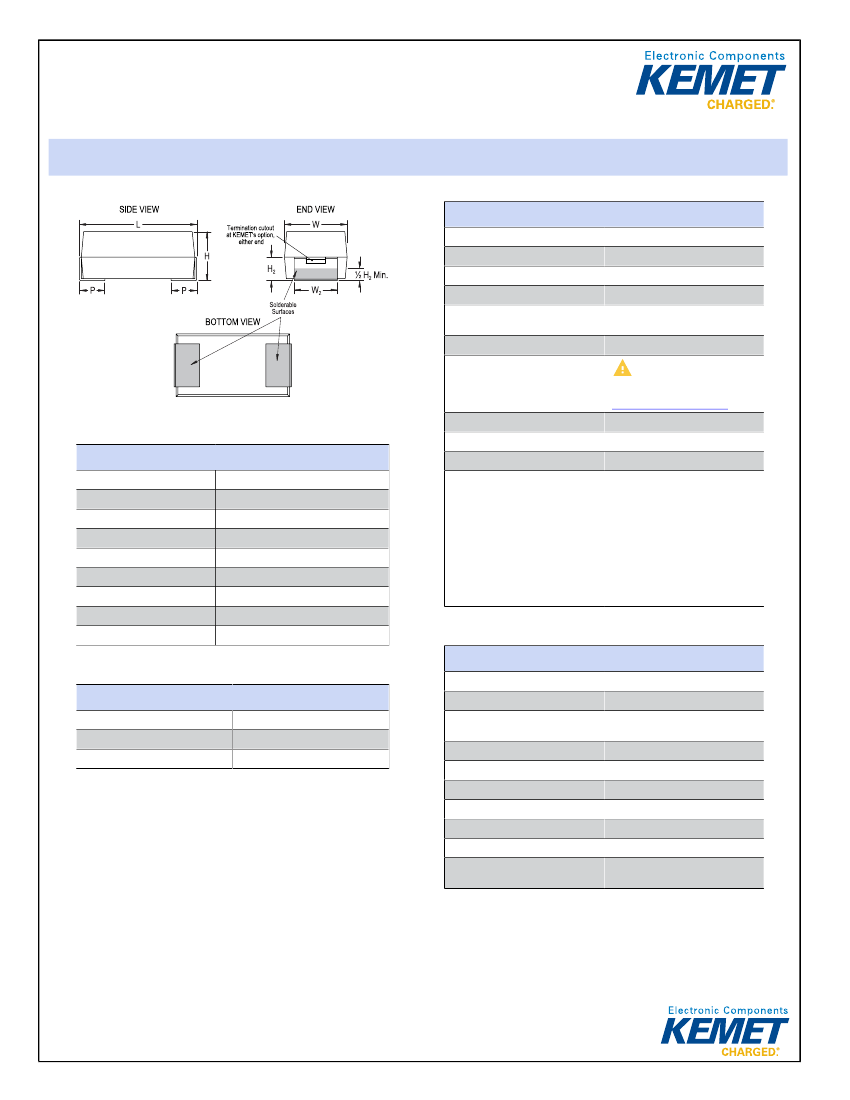

KEMET Part Number: CWR09KC156KBB
(T409H156K025BC4251)
T409_CWR09, Tantalum, MnO2 Tantalum, Military/High Reliability, 15 uF, 10%, 25 VDC, SMD, MnO2, Molded, Military Equivalent,
B (0.1%/1000 Hrs), 1 Ohms, 7238, Height Max = 3.17mm
General Information
Supplier:
Series:
Dielectric:
Style:
Description:
RoHS:
Prop 65:
REACH:
KEMET
T409_CWR09
MnO2 Tantalum
SMD Chip
SMD, MnO2, Molded, Military
Equivalent
No
WARNING:
Cancer
and reproductive harm -
www.p65warnings.ca.gov.
SVHC (Pb – CAS 7439-92-1)
Hot Solder Dipped
MIL-PRF-55365/4, CWR09 Style
Note: When Option C Is Selected
For Lead Material, Add An
Additional 0.38mm To The
Tolerances For "L", "W", "H",
"K" ,"F" And "S". P And R
Dimensions Represents The
Minimum Solderable Area Of
The Termination Surface Entirely
Below Cutout (If One Is Present)
Dimensions
Footprint
L
W
H
S
F
A
K
P
7238
7.24mm +/-0.38mm
3.81mm +/-0.38mm
2.79mm +/-0.38mm
1.27mm +0.025/-0.13mm
3.68mm +0.13/-0.51mm
4.7mm NOM
1.52mm MIN
0.76mm MIN
Termination:
Qualifications:
Notes:
Specifications
Packaging Specifications
Weight:
Packaging:
Packaging Quantity:
349.01 mg
T&R, 178mm
500
Capacitance:
Capacitance Tolerance:
Voltage DC:
Temperature Range:
Rated Temperature:
Dissipation Factor:
Failure Rate:
Resistance:
Leakage Current:
Testing and Reliability:
15 uF
10%
25 VDC (85C), 16.75 VDC
(125C)
-55/+125C
85C
6.00%
B (0.1%/1000 Hrs)
1 Ohms (100kHz)
4 uA (20C)
Surge Testing At -55C And +85C
After Weibull
