Connectorized
Amplifier
Features
• Wide Bandwidth, 20 MHz to 3 GHz
• Low Noise Figure, 2.7 dB Typ.
• Output Power,Up to 12.8 dBm Typ.
NEW!
ZX60-3018G
50Ω, 20 MHz to 3 GHz
Applications
•
•
•
•
•
•
Buffer Amplifier
Cellular
PCS
Lab
Instrumentation
Test Equipment
CASE STYLE: GC957
PRICE: $49.95 ea. QTY (1-9)
Electrical Specifications at T
AMB
= 25
o
C
MODEL
NO.
FREQ.
(GHz)
DC
GAIN over frequency in GHz
VOLTAGE
Typ (dB)
@ Pin V+
(V)
0.1
12.0
1.0
2.0
MAXIMUM
DYNAMIC
POWER
RANGE
(dBm)
Output
(1 dB Comp.) NF IP3
3.0 Min.at
Typ.
(dB) (dBm)
2 GHz
f
U
Typ. Typ.
f
L
12.8 10.2
2.7
25.0
VSWR
(:1)
Typ.
ACTIVE
DC
DIRECTIVITY OPERATING
(dB)
CURRENT @
Isolation-Gain
Pin V+
(mA)
Out
1.4
Typ.
2-6
Typ. Max.
34
45
f
L
- f
U
ZX60-3018G
0.02-3
In
1.3
22.8 21.9 20.3 18.8 18.0
Maximum Ratings
Operating Temperature
Storage Temperature
DC Voltage
Input Power(no Damage)
Power
-45
o
C to 85
o
C
-55
o
C to 100
o
C
12.5V
13dBm
0.7W

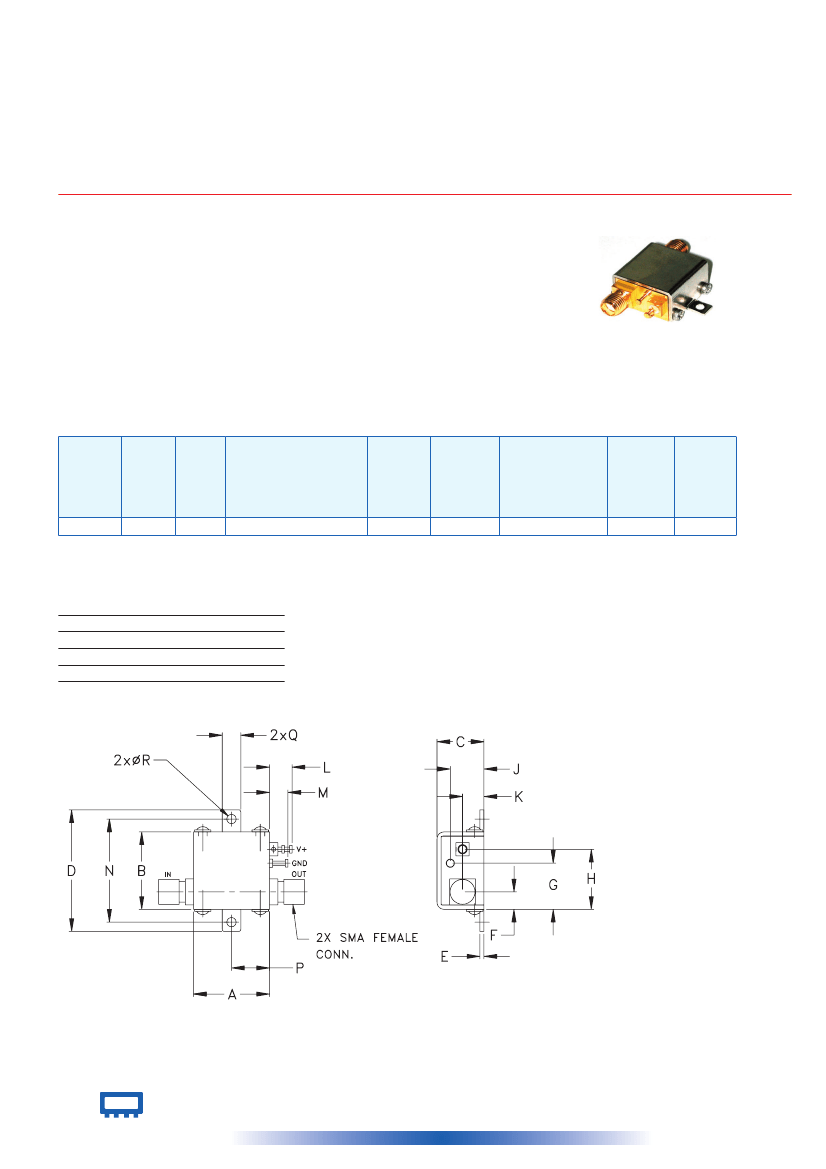

Outline Drawing
Outline Dimensions (
inch
)
mm
A
B
C
D
.74 .75 .46 1.18
18.8 19.1 11.6 30.0
E
.04
1.0
F
G H
.17 .45 .59
4.3 11.4 14.9
J
.33
8.3
K
.21
5.3
L
.22
5.6
M
N
P
.18 1.00 0.37
4.6 25.4 9.4
Q
.18
4.6
R
wt.
.09 grams
2.3
23.0
