NJU7119
LOW POWER SUPER SMALL-SIZED
SINGLE C-MOS COMPARATOR
sGENERAL
DESCRIPTION
The
NJU7119
is super small-sized package single C-MOS
comparator with open drain output.
The operating voltage is from 1.8V to 5.5V. The output can
drive TTL, C-MOS and various voltage levels.
The input offset voltage is lower than 7mV and the
package is super small-sized SC88A. The
NJU7119
is
suitable for battery use items and other portable items.
sFEATURES
qSingle
Low Power Supply
qLow
Offset Voltage
qLow
Operating Current
qPropagation
Delay(t
PLH
/t
PHL
)
qOutput
Signal Falling Time(t
THL
)
qOpen
Drain Output
qPackage
Outline
qC-MOS
Technology
sPACKAGE
INFORMATION
NJU7119F3
V
DD
=1.8~5.5V
V
IO
=7mV (max.)
I
DD
=100µA(typ.)
160/70ns(typ.)
4ns(typ.)
SC88A
sPIN
CONFIGURATION
(Top View)
IN-
1
5 V
DD
V
SS
2
IN+ 3
4 OUT
sEQUIVALENT
CIRCUIT
V
DD
IN
-
OUT
IN+
V
SS
(1)
NJU7119
sABSOLUTE
MAXIMUM RATINGS
(Ta=25°C)
PARAMETER
SYMBOL
RATING
UNIT
Supply Voltage
V
DD
7.0
V
Differential Input Voltage
V
ID
V
±7.0
(Note1)
Common Mode Input Voltage
V
IC
-0.3~7.0
V
Power Dissipation
P
D
250 (Note3)
mW
Operating Temperature
Topr
-40~+85
°C
Storage Temperature
Tstg
-55~+125
°C
Note1)
If the supply voltage (V
DD
) is less than 7.0V, the input voltage must not exceed the V
DD
level though
7.0V is limit specified.
Note2) The output pull-up voltage must not over the V
DD
level.
Note3) The power dissipation is value mounted on a glass epoxy board (FR-4) in size of 50x50x1.6
millimeters square.
Note4)
Decoupling capacitor should be connected between V
DD
and V
SS
due to the stabilized operation for
the circuit.
sRECOMMENDED
OPERATING CONDITION
PARAMETER
Operating Voltage
SYMBOL
V
DD
CONDITIONS
MIN
1.8
TYP
-
(Ta=25°C)
MAX
UNIT
5.5
V
sELECTRICAL
CHARACTERISTICS
qDC
CHARACTERISTICS
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Common Mode
Voltage Range
Low Level Output Voltage
Operating Current
SYMBOL
V
IO
I
IO
I
IB
V
ICM
V
OL
I
DD
I
OL
=+5mA
CONDITIONS
V
IN
=V
DD
/2
MIN
-
-
-
0~2.4
-
-
(V
DD
=3.0V,R
L
=∞,Ta=25°C)
TYP
MAX
UNIT
-
7
mV
1
-
pA
1
-
pA
-
-
100
-
0.3
200
V
V
µA
qTRANSIENT
CHARACTERISTICS
PARAMETER
Propagation Delay
Low to High
Propagation Delay
High to Low
Output Signal Falling Time
SYMBOL
t
PLH
t
PHL
t
THL
CONDITIONS
Over Drive=100mV
Over Drive=100mV
Over Drive=100mV
(V
DD
=3.0V,f=10kHz,C
L
=15pF,Ta=25°C)
MIN
TYP
MAX
UNIT
-
-
-
160
70
4
-
-
-
ns
ns
ns
(2)
NJU7119
sTERMINAL
EQUIVALENT CIRCUIT
No.
1
Symbol
IN-
V
DD
Equivalent Circuit
Typ. DC
Voltage(V)
-
Function
inverting input
V
SS
3
IN+
V
DD
-
non-inverting
input
V
SS
4
OUT
V
DD
-
output
V
SS
(3)
NJU7119

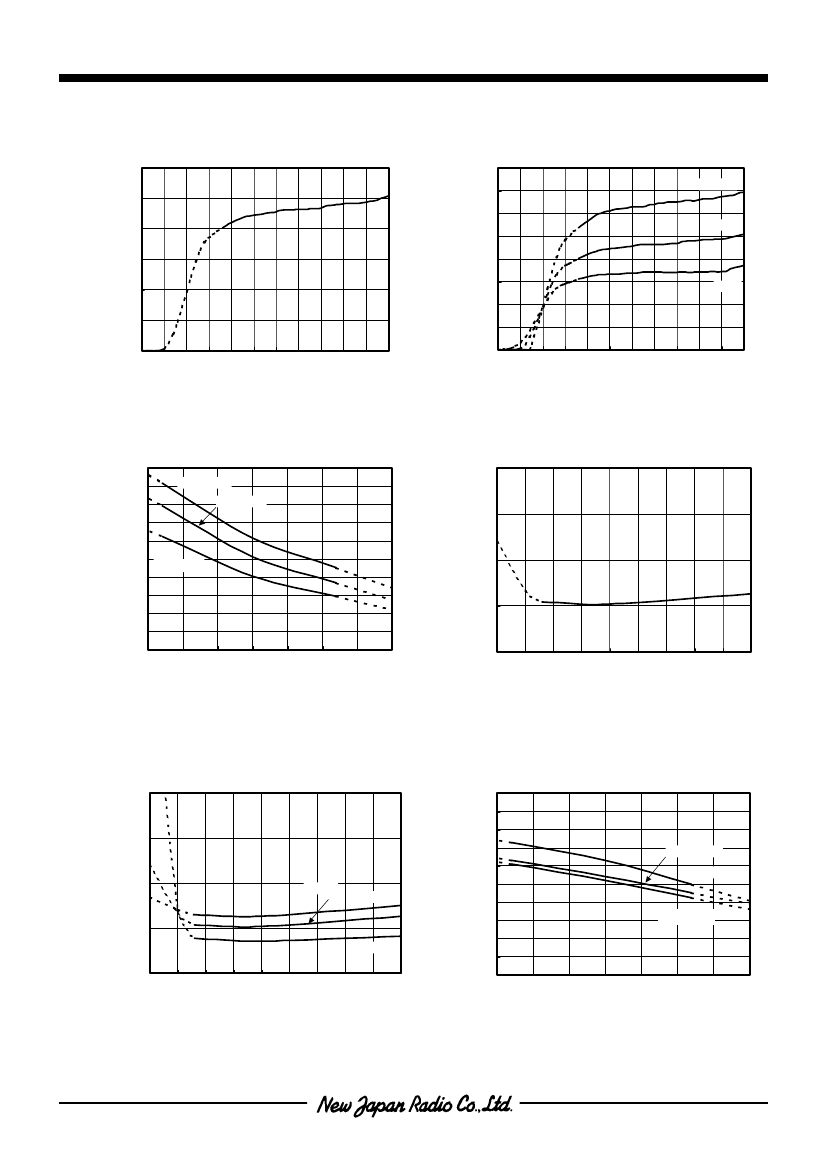

sTYPICAL
CHARACTERISTICS
Operating Current vs. Operating Voltage
Ta=25°C
120
100
Operating Current vs. Operating Voltage
160
140
Ta=-40°
Operating Current [µA]
Operating Current [µA]
120
100
80
60
40
20
0
85°C
25°C
80
60
40
20
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
Operating Voltage [V]
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
Operating Voltage [V]
Operating Current vs. Ambient Temperature
140
130
VDD=5.5V
120
110
100
90
80
70
60
50
40
-50
-25
0
25
50
75
100
125
Ambient Temperature [°C]
VDD=1.8V
VDD=3.0
Input Offset Voltage vs. Operating Voltage
15
Ta=25°C
Input Offset Voltage [mV]
Operating Current [µA]
10
5
0
-5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
Operating Voltage [V]
Input Offset Voltage vs. Operating Voltage
15
Input Offset Voltage vs. Ambient Temperature
5
4
3
2
1
0
-1
-2
-3
-4
-5
5.5
Input Offset Voltage [mV]
10
Input Offset Voltage [mV]
VDD=3.0V
VDD=5.5V
5
25°C
Ta=-40°C
VDD=1.8V
0
85°C
-5
1
1.5
2
2.5
3
3.5
4
4.5
5
Operating Voltage [V]
-50
-25
0
25
50
75
100
125
Ambient Temperature [°C]
(4)
NJU7119
Input Bias Current vs. Ambient Temperature
10000
1000
VDD/VSS=±1.5V
Input Offset Current vs. Ambient Temperature
VDD/VSS=±1.5V
1000
100
Input Offset Current [pA]
Input Bias Current [pA]
100
10
1
0.1
0.01
-50
-25
0
25
50
75
100
125
Ambient Temperature [°C]
10
1
0.1
0.01
0.001
-50
-25
0
25
50
75
100
125
Ambient Temperature [°C]
Input Offset Voltage vs.
Input Common Mode Voltage
VDD/VSS=±1.5V, Ta=25°C
10
8
Input Offset Voltage [mV]
10
8
6
4
2
0
-2
-4
-6
-8
-10
Input Offset Voltage vs.
Input Common Mode Voltage (correlation with Ta)
VDD/VSS=±1.5V
Input Offset Voltage [mV]
6
4
2
0
-2
-4
-6
-8
-10
0
0.5
1
1.5
2
2.5
Input Common Mode Voltage [V]
Ta=-40°C
25°C
85°C
0
0.5
1
1.5
2
2.5
Input Common Mode Voltage [V]
(5)
