381A304-71/42-0 datasheet, PDF

Datasheet> All Categories > Wire/cable> 381A304-71/42-0

381A304-71/42-0: Description381A304-71/42-0; CategoryWire/cable; File Size186KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

381A304-71/42-0 Overview

381A304-71/42-0

381A304-71/42-0 Parametric

Parameter Name	Attribute value
Molded part shape	Y shape
Molded Part Type	Branching point/transfer point
size code	04
Number of branches/legs	3
Material system code	10
Adhesive pre-coated	yes
color	black
Transfer type	T-junction
Material	Semi-rigid modified polyolefin
Softness	Flexible
Shrinkage type	high
Material code	71
Inner diameter range (main body)	33.3 – 83.3 mm [ 1.31 – 3.28 in ]
Inner diameter range (foot 1)	33.3 – 54.9 mm [ 1.31 – 2.16 in ]
Inner diameter range (foot 2)	33.3 – 54.9 mm [ 1.31 – 2.16 in ]
range of working temperature	-55 – 135 °C [ -67 – 275 °F ]
Resistant	bending
Flammability	ignition retardation
Power cable accessories	no
Meet government qualifications	no
Encapsulation method	bag/box
Cable outer diameter	36.6 – 74.9 mm [ 1.44 – 2.95 in ]
Cable main branch outer diameter	36.6 – 49.4 mm [ 1.44 – 1.94 in ]
Cable small branch outer diameter	36.6 – 49.4 mm [ 1.44 – 1.94 in ]
Fluid/Chemical Resistance	occasional exposure to liquids
special requirements	flame retardant
Adhesive options	/180 pre-coated film
Adhesive type	Hot Melt
tap angle	22.5
Adhesive code	42

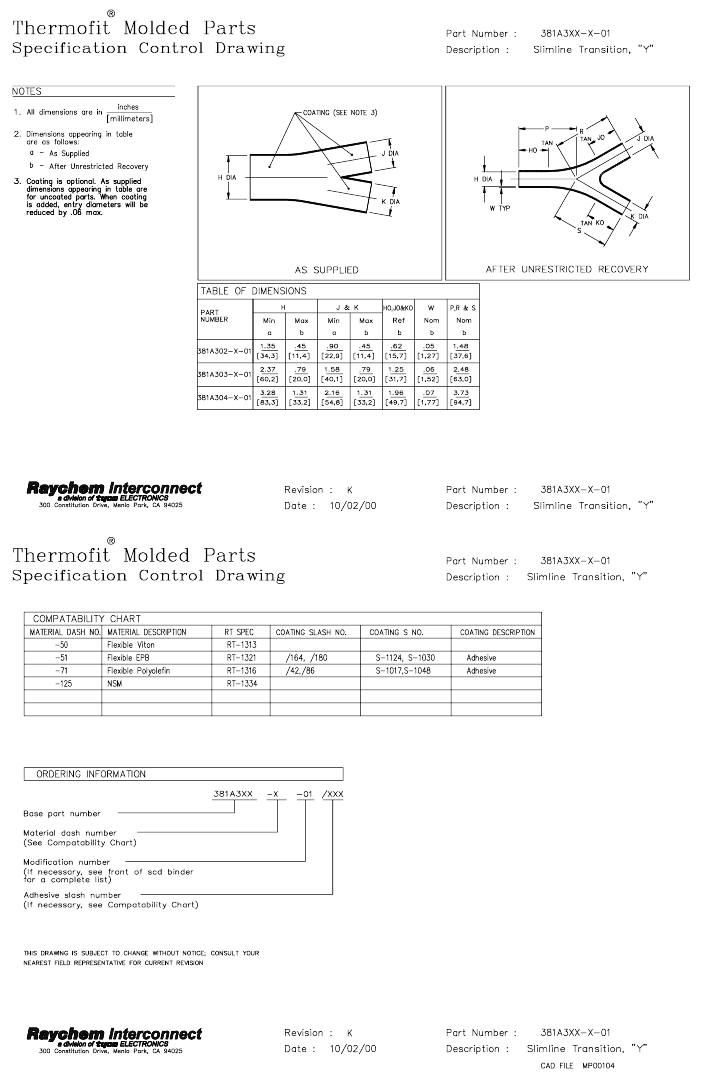

Preview

Download Datasheet

View All

If this document is printed it becomes uncontrolled.

Check with document control for latest revision.

381A304-71/42-0 Related Products

	381A304-71/42-0	381A303-71-0	381A303-50-01-0	381A302-51/86-0	381A303-71/180-0	381A304-71-0	381A304-50-0	381A304-71/86-0	381A301-71/180-0	381A302-50-01-0
Description	381A304-71/42-0	381A303-71-0	381A303-50-01-0	381A302-51/86-0	381A303-71/180-0	381A304-71-0	381A304-50-0	381A304-71/86-0	381A301-71/180-0	381A302-50-01-0
Molded part shape	Y shape	Y shape	Y shape	Y shape	Y shape	Y shape	Y shape	Y shape	Y shape	Y shape
Molded Part Type	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point	Branching point/transfer point
Number of branches/legs	3	3	3	3	3	3	3	3	3	3
Material system code	10	10	30	20	10	10	30	10	10	30
Adhesive pre-coated	yes	no	no	yes	yes	no	no	yes	yes	no
color	black	black	black	black	black	black	black	black	black	black
Transfer type	T-junction	T-junction	T-junction	T-junction	T-junction	T-junction	T-junction	T-junction	T-junction	T-junction
Material	Semi-rigid modified polyolefin	Semi-rigid modified polyolefin	Fluid-resistant modified elastomer	Elastomeric Polymer Blend (EPB)	Semi-rigid modified polyolefin	Semi-rigid modified polyolefin	Fluid-resistant modified elastomer	Semi-rigid modified polyolefin	Semi-rigid modified polyolefin	Fluid-resistant modified elastomer
Softness	Flexible	Flexible	Flexible	Flexible	Flexible	Flexible	Flexible	Flexible	Flexible	Flexible
Shrinkage type	high	high	high	high	high	high	high	high	high	high
Inner diameter range (main body)	33.3 – 83.3 mm [ 1.31 – 3.28 in ]	20.1 – 60.2 mm [ .79 – 2.37 in ]	20.1 – 60.2 mm [ .79 – 2.37 in ]	11.4 – 34.3 mm [ .45 – 1.35 in ]	20.1 – 60.2 mm [ .79 – 2.37 in ]	33.3 – 83.3 mm [ 1.31 – 3.28 in ]	33.3 – 83.3 mm [ 1.31 – 3.28 in ]	33.3 – 83.3 mm [ 1.31 – 3.28 in ]	6.6 – 19.8 mm [ .26 – .78 in ]	11.4 – 34.3 mm [ .45 – 1.35 in ]
Inner diameter range (foot 1)	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	11.4 – 22.9 mm [ .45 – .9 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	6.6 – 13.2 mm [ .26 – .52 in ]	11.4 – 22.9 mm [ .45 – .9 in ]
Inner diameter range (foot 2)	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	11.4 – 22.9 mm [ .45 – .9 in ]	20.1 – 40.1 mm [ .79 – 1.58 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	33.3 – 54.9 mm [ 1.31 – 2.16 in ]	6.6 – 13.2 mm [ .26 – .52 in ]	11.4 – 22.9 mm [ .45 – .9 in ]
range of working temperature	-55 – 135 °C [ -67 – 275 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 150 °C [ -67 – 302 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 150 °C [ -67 – 302 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 135 °C [ -67 – 275 °F ]	-55 – 150 °C [ -67 – 302 °F ]
Resistant	bending	bending	liquid	liquid	bending	bending	liquid	bending	bending	liquid
Power cable accessories	no	no	no	no	no	no	no	no	no	no
Encapsulation method	bag/box	bag/box	bag/box	bag/box	bag/box	bag/box	bag/box	bag/box	bag/box	bag/box
Cable outer diameter	36.6 – 74.9 mm [ 1.44 – 2.95 in ]	22.1 – 54.1 mm [ .86 – 2.13 in ]	22.1 – 54.1 mm [ .86 – 2.13 in ]	12.5 – 30.8 mm [ .49 – 1.21 in ]	22.1 – 54.1 mm [ .86 – 2.13 in ]	36.6 – 74.9 mm [ 1.44 – 2.95 in ]	36.6 – 74.9 mm [ 1.44 – 2.95 in ]	36.6 – 74.9 mm [ 1.44 – 2.95 in ]	7.2 – 17.8 mm [ .28 – .7 in ]	12.5 – 30.8 mm [ .49 – 1.21 in ]
Cable main branch outer diameter	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	12.5 – 20.6 mm [ .49 – .81 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	7.2 – 11.8 mm [ .28 – .46 in ]	12.5 – 20.6 mm [ .49 – .81 in ]
Cable small branch outer diameter	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	12.5 – 20.6 mm [ .49 – .81 in ]	22.1 – 36 mm [ .86 – 1.42 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	36.6 – 49.4 mm [ 1.44 – 1.94 in ]	7.2 – 11.8 mm [ .28 – .46 in ]	12.5 – 20.6 mm [ .49 – .81 in ]
Fluid/Chemical Resistance	occasional exposure to liquids	occasional exposure to liquids	Prolonged exposure to elevated temperatures	Prolonged exposure to elevated temperatures	occasional exposure to liquids	occasional exposure to liquids	Prolonged exposure to elevated temperatures	occasional exposure to liquids	occasional exposure to liquids	Prolonged exposure to elevated temperatures
special requirements	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant	flame retardant
Adhesive options	/180 pre-coated film	/180 pre-coated film	none	/164 pre-coated film	/180 pre-coated film	/180 pre-coated film	none	/180 pre-coated film	/180 pre-coated film	none
tap angle	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5
Flammability	ignition retardation	ignition retardation	-	-	ignition retardation	ignition retardation	-	ignition retardation	ignition retardation	-
Adhesive type	Hot Melt	Hot Melt	-	Hot melt elastic polymer	Hot Melt	Hot Melt	-	Hot Melt	Hot Melt	-
