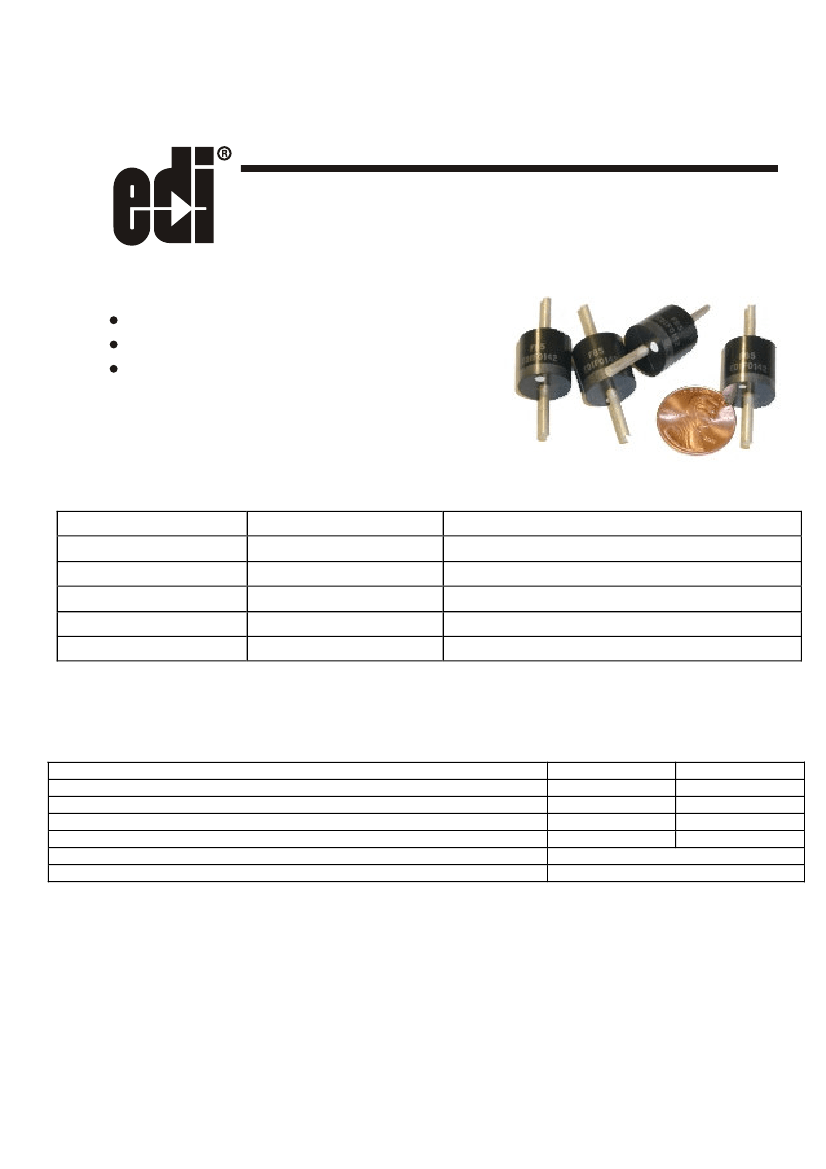

FB FBR
HIGH VOLTAGE, HIGH CURENT,
STANDARD & FAST RECOVERY,
SILICON RECTIFIER DIODES
Up to 250 nanosec. max recovery
Exceptionally low leakage
Avalanche characteristics
EDI T YPE #
FB4
FB5
FBR3
FBR3.5
FBR4
PRV VOLTS
4,000
5,000
3,000
3,500
4,000
REVERSE RECOVERY TIME
Not Applicable
Not Applicable
250 Nanoseconds Max
250 Nanoseconds Max
250 Nanoseconds Max
Electrical Characteristics (at T
A
= 25°C Unless Otherwise Specified)
ELECTRICAL CHARACTERISTIC
AVERAGE FORWA RD CURRENT, I
O
(With Proper Heat sink)
AVERAGE FORWA RD CURRENT, I
O
(Circuit Board Mounted)
MAX FORWARD VOLTAGE DROP (@ 20 Amps),
MAX SURGE CURRENT (1/2 CYCLE, 60 Hz)
MAX DC REVERSE CURRENT (25ºC)
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
FB Series
FBR Series
4.0 A
3.0 A
2.0 A
1.5 A
5.0 V
6.5 V
800 A
800 A
5.0 ìA
5.0 ìA
-55 To 150ºC
-55 To 150ºC
NOTES: It is recommended that a proper heat sink be used on the terminals of this device between the
body and the soldering point to prevent damage from excess heat.
EDI reserves the right to change these specifications at any time without notice.
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
EE-mail:sales@edidiodes.com
*
Wwebsite:
http://www.edidiodes.com
FB FBR
NOTE: Maximum lead and terminal temperature for soldering: 1/4 inch from case, for 5 seconds at 250°C

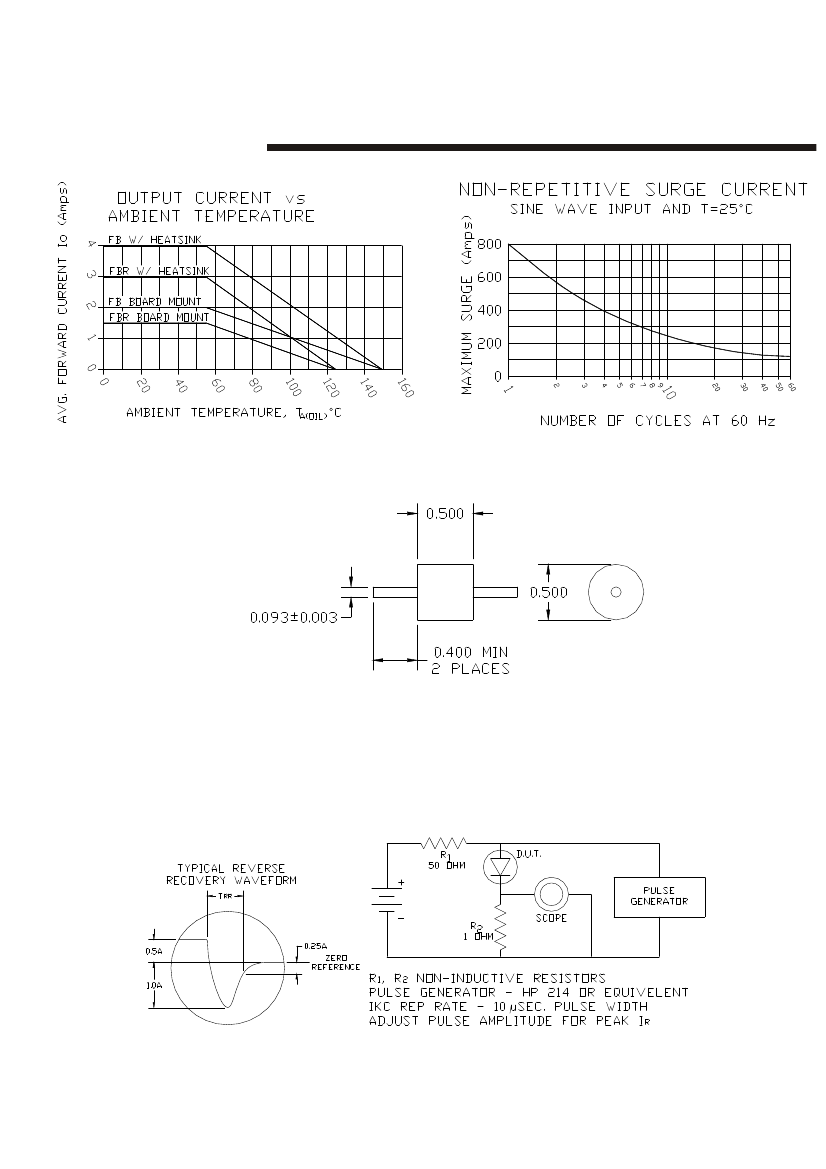

TEST CIRCUIT
EDI reserves the right to change these specifications at any time without notice.
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
EE-mail:sales@edidiodes.com
*
Wwebsite:
http://www.edidiodes.com
