EGP10A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> EGP10A

EGP10A: Description1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL; CategoryDiscrete semiconductor diode; File Size61KB，2 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EGP10A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EGP10A	-	-	View	Buy Now

EGP10A Overview

1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL

EGP10A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
Humidity sensitivity level	1
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

EGP10A

THRU

EGP10M

1.0 AMP. Glass Passivated High Efficient Plastic Rectifiers

Voltage Range

50 to 1000 Volts

Current

1.0 Ampere

Features

Plastic material used carries Underwriters Laboratory

Classification 94V-0

Glass passivated cavity-free junction

Superfast recovery time for high efficiency

Low forward voltage, high current capability

Low leakage current

High surge current capability

High temperature soldering guaranteed:

300℃/10seconds, .375”(9.5mm) lead length at 5 lbs.,

(2.3kg) tension

DO-41

Mechanical Data

Cases: JEDEC DO-41 molded plastic over glass

body

Lead: Plated axial leads, solderable per MIL-STD-

750, Method 2026

Polarity: Color band denotes cathode end

Mounting position: Any

Weight: 0.012 ounce, 0.3 gram

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25℃ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Symbol

EGP EGP EGP

Type Number

10A 10B 10D

Maximum Recurrent Peak Reverse Voltage

RRM

50 100 200

Maximum RMS Voltage

RMS

35 70 140

Maximum DC Blocking Voltage

50 100 200

Maximum Average Forward Rectified

Current .375” (9.5mm) Lead Length

= 55℃

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated

Load (JEDEC method )

Maximum Instantaneous Forward Voltage

@ 1.0A

Maximum DC Reverse Current @ T

=25℃

at Rated DC Blocking Voltage @ T

=125℃

Maximum Reverse Recovery Time ( Note 1 )

=25

℃

Typical Junction Capacitance ( Note 2 )

Typical Thermal Resistance (Note 3)

Operating Temperature Range

Storage Temperature Range

EGP EGP EGP EGP EGP

Units

10F 10G 10J 10K 10M

300 400 600 800 1000

210 280 420 560 700

300 400 600 800 1000

1.0

30.0

(AV)

FSM

Trr

0.95

1.25

5.0

100.0

1.7

-65 to + 150

℃/W

℃

STG

Notes: 1. Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

2. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0 Volts D.C.

3. Mount on Cu-Pad Size 5mm x 5mm on P.C.B.

- 584 -

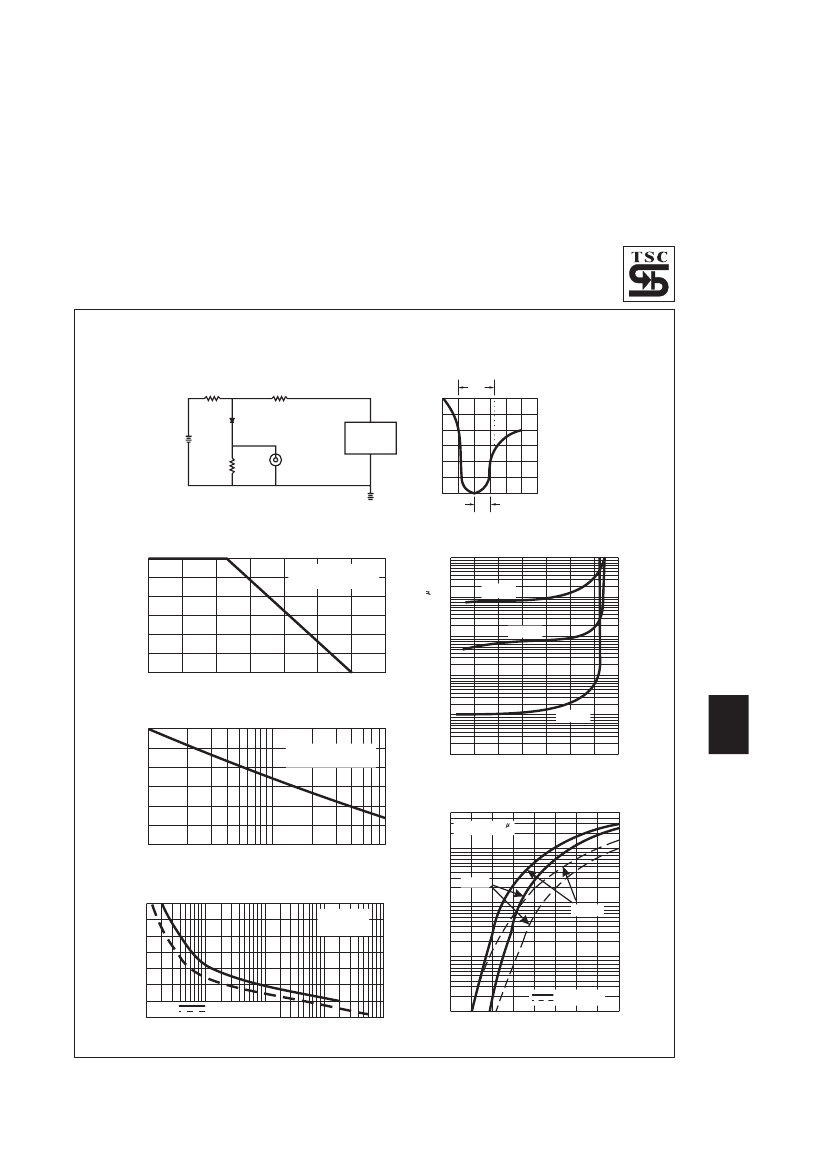

EGP10A Related Products

	EGP10A	EGP10F	EGP10D	EGP10B	EGP10M	EGP10J	EGP10G	EGP10K
Description	1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL	1 A, 300 V, SILICON, SIGNAL DIODE, DO-41	1 A, 200 V, SILICON, SIGNAL DIODE, DO-41	SIGNAL DIODE	1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL	1 A, 600 V, SILICON, SIGNAL DIODE, DO-41	1 A, 400 V, SILICON, SIGNAL DIODE, DO-41	SIGNAL DIODE
Maker	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknow
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	1.3 V	0.95 V	0.95 V	-	1.7 V	1.3 V	1.7 V
Humidity sensitivity level	1	1	1	1	-	1	1	1
Number of components	1	1	1	1	-	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	-	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	50 V	300 V	200 V	100 V	-	600 V	400 V	800 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	-	0.075 µs	0.05 µs	0.075 µs
surface mount	NO	NO	NO	NO	-	NO	NO	NO
Base Number Matches	1	1	1	1	-	1	-	1
