BLF001. datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BLF001.

BLF001.: DescriptionFAST BLOW ELECTRIC FUSE, 1A, 250VAC, 10000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size169KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

BLF001. Overview

FAST BLOW ELECTRIC FUSE, 1A, 250VAC, 10000A (IR), INLINE/HOLDER

BLF001. Parametric

Parameter Name	Attribute value
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	FAST
body height	38.1 mm
Body length or diameter	10.31 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	10.31mm x 38.1mm
Rated breaking capacity	10000 A
Rated current	1 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

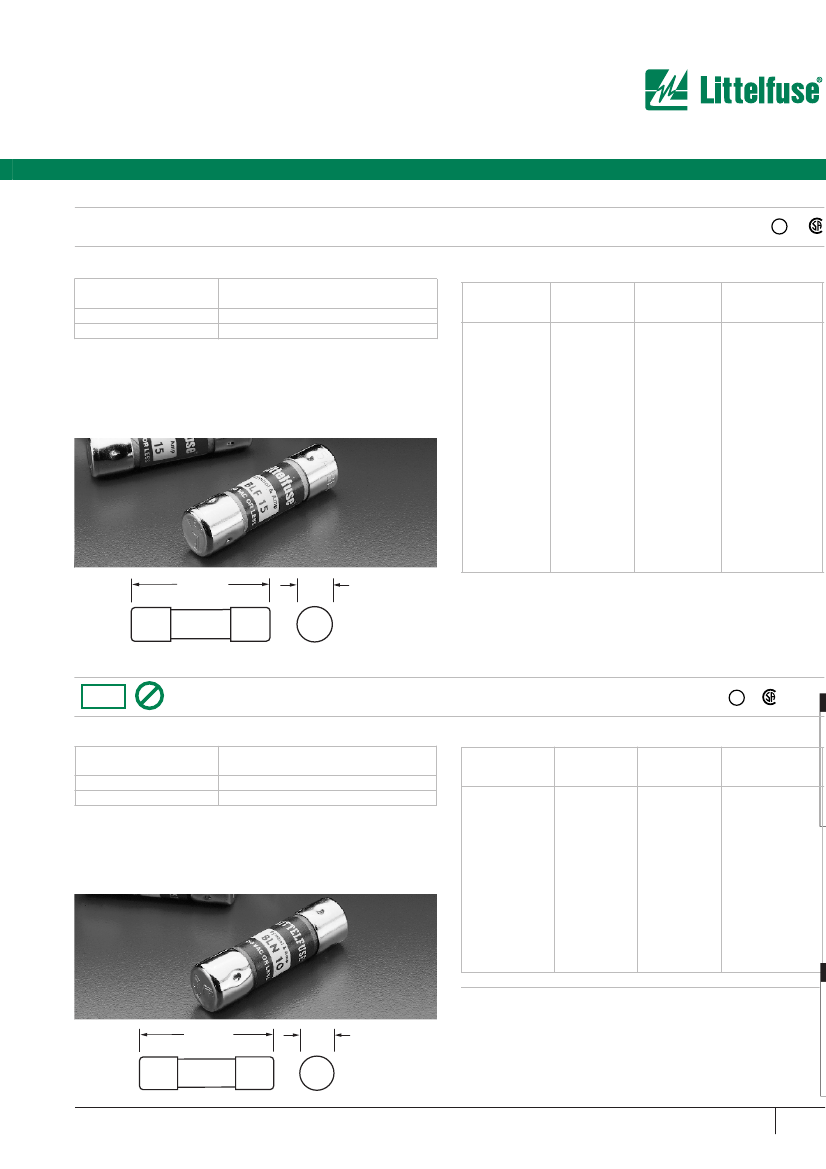

Axial Lead and Cartridge Fuses

Midget

Laminated Body

Fast-Acting Type BLF Series

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

135%

200%

Certified by CSA.

Opening

Time

1 hour,

Maximum

2 minutes,

Maximum

ORDERING INFORMATION:

Cartridge

Catalog

Number

BLF

.500

BLF

001.

BLF

1.5

BLF

002.

BLF

2.5

BLF

003.

BLF

004.

BLF

005.

BLF

006.

BLF

6.25

BLF

007.

BLF

008.

BLF

009.

BLF

010.

BLF

012.

BLF

015.

BLF

020.

BLF

025.

BLF

030.

Ampere

Rating

.500

1.5

2.5

6.25

AC Voltage

Rating

250

260

250

125

Nominal

Resistance

Cold Ohms

1.57

.395

.2191

.125

.0946

.0696

.0432

.0413

.02842

.02741

.02282

.01664

.01364

.01097

.00920

.00684

.00528

.00378

.00289

AGENCY APPROVALS:

Listed by Underwriters Laboratories and

INTERRUPTING RATING:

10,000 amperes at rated VAC.

NOTE: Not recommended for applications in humid areas.

38.1

(1.50")

10.31

(.406")

RoHS

Fibre Body

Fast-Acting Type BLN Series

ORDERING INFORMATION:

Cartridge

Catalog

Ampere

AC Voltage

Number

Rating

250

BLN

1 1/2

1.5

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

BLN

250

* 2 A device not lead-free or RoHS compliant

Opening

Time

1 hour,

Maximum

2 minutes,

Maximum

QPL

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

135%

200%

Certified by CSA.

AGENCY APPROVALS:

Listed by Underwriters Laboratories and

INTERRUPTING RATING:

10,000 amperes at 250 VAC.

FUSES TO MIL SPEC:

See F09A type in Military Section.

Nominal

Resistance

Cold Ohms

.395

.222

.125

.071

.0432

.0413

.0284

.0166

.011

.00920

.00684

.0036

.00270

.00230

38.1

(1.50")

10.31

(.406")

w w w. l i t t e l f u s e . c o m
