851-13-035-30-001000: DescriptionBoard Connector, 35 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size207KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

851-13-035-30-001000 Overview

Board Connector, 35 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

851-13-035-30-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	851
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
Base Number Matches	1

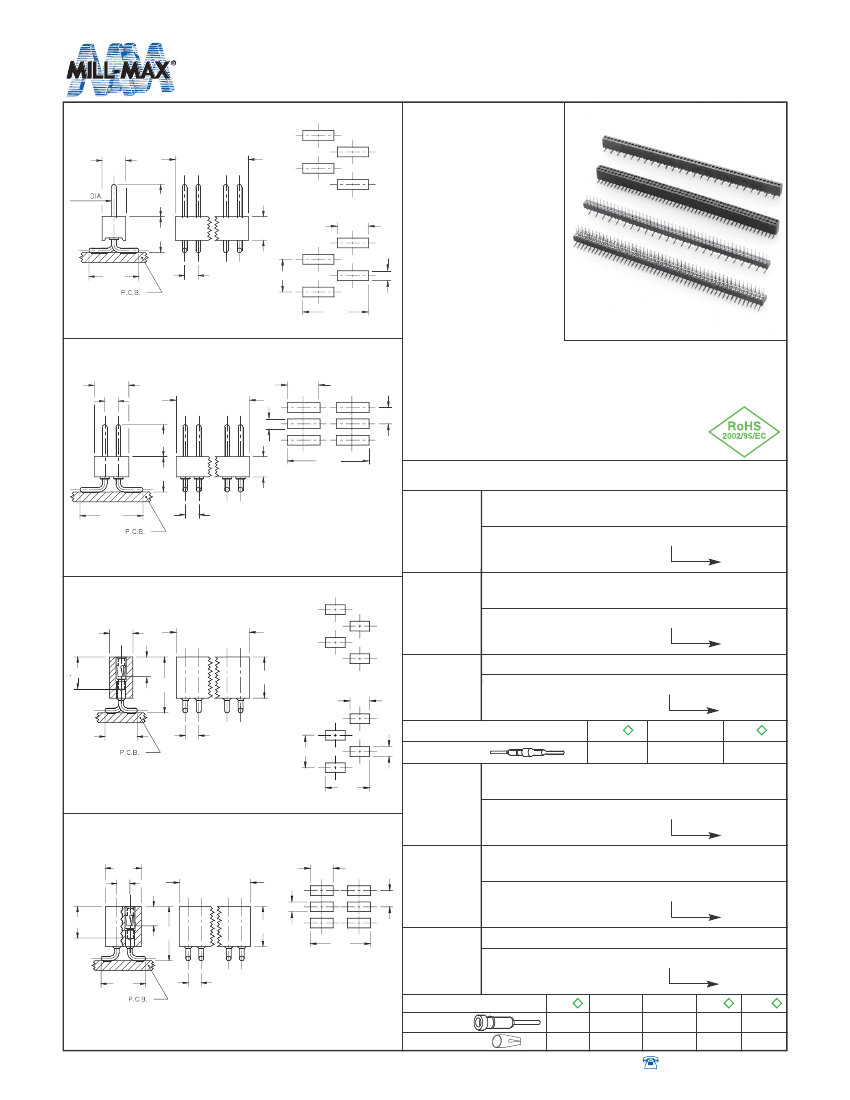

Preview

Download Datasheet

View All

INTERCONNECTS

1,27 Grid

Surface Mount Headers and Sockets

●

Left Hand

Footprint

2,21

Series 850, 851

852, 853

(Number of Pins

X 1,27) + 0,38

0,41

3,0

2,21

●

Right Hand

Footprint

2,41

3,35

4,62

1,27

2,54

0,76

Series 850 and 851

interconnects are

available in single

and double row

form.

Single row intercon-

nects having an

even number of pins

are now available

with a left or right

hand footprint.

Headers (850 &

852) use MM# 4006

pins. (See page 166 for details)

Sockets (851 & 853) use MM# 4890-0 receptacles

and accept pin diameters from 0,38-0,53 (See page

129 for details)

Insulators are high temp. thermoplastic.

Fig. 1

5,08

●

3,05

1,27

2,54

Footprint

1,27

●

(Number of Pins

X 1,27 /2) + 0,38

0,76

3,0

1,91

6,35

●

3,35

Ordering Information

Fig. 1L

Single Row Header, Left Hand Footprint

Odd or Even # of pins

5,89

1,27

850-XX-0_ _-30-001000

Specify # of pins

01-50

Single Row Header, Right Hand Footprint

Even # of pins

Fig. 2

Left Hand

Footprint

2,21

Fig. 1R

(Number of Pins

X 1,27 ) + 0,38

1,91

5,26

3,78

850-XX-0_ _-30-002000

Specify even # of pins

02-50

Double Row Header, Even # of pins

3,05

Right Hand

Footprint

1,27

2,54

Fig. 2

1,52

852-XX-_ _ _-30-001000

Specify even # of pins

002-100

90

5,08µm Sn/Pb

3,02

SPECIFY PLATING CODE XX=

0,76

10



0,25µm Au

40



5,08µm Sn

Pin Plating

Fig. 3

3,43

Fig. 3L

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

851-XX-0_ _-30-001000

Specify # of pins

01-50

Single Row Socket, Right Hand Footprint

Even # of pins

3,05

1,27

1,78

Footprint

1,27

(Number of Pins

X 1,27 /2) + 0,38

1,91

5,26

3,78

4,7

0,76

Fig. 3R

851-XX-0_ _-30-002000

Specify even # of pins

02-50

Double Row Socket, Even # of pins

3,05

Fig. 4

4,29

1,27

853-XX-_ _ _-30-001000

Specify even # of pins

002-100

99

43



44



13



0,76µm Au

SPECIFY PLATING CODE XX=

93

Fig. 4

w w w. m i l l - m a x . c o m

Sleeve (Pin)

Contact (Clip)

0,25µm Au 5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn 5,08µm Sn

0,76µm Au 5,08µm Sn/Pb 0,76µm Au 5,08µm Sn

72



516-922-6000
