8413202YX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 8413202YX

8413202YX: DescriptionStandard SRAM, 16KX1, 45ns, CMOS, 0.440 X 0.305 INCH, 0.120 INCH HEIGHT, LCC-20; Categorystorage; File Size189KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

8413202YX Overview

Standard SRAM, 16KX1, 45ns, CMOS, 0.440 X 0.305 INCH, 0.120 INCH HEIGHT, LCC-20

8413202YX Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	45 ns
JESD-30 code	S-XQCC-N20
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of terminals	20
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX1
Package body material	UNSPECIFIED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

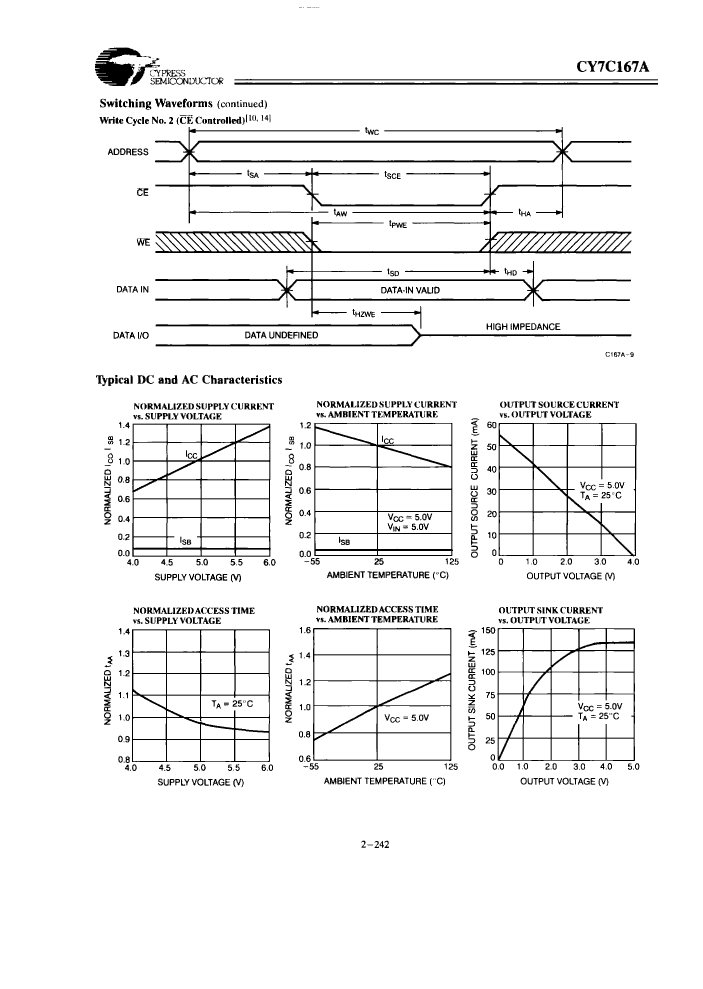

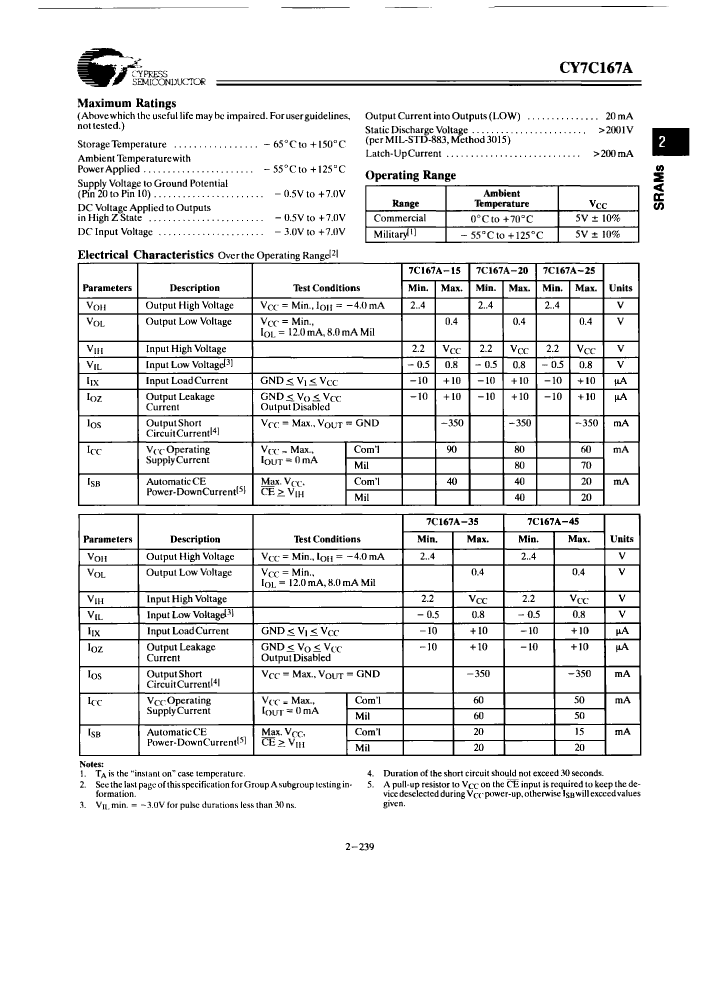

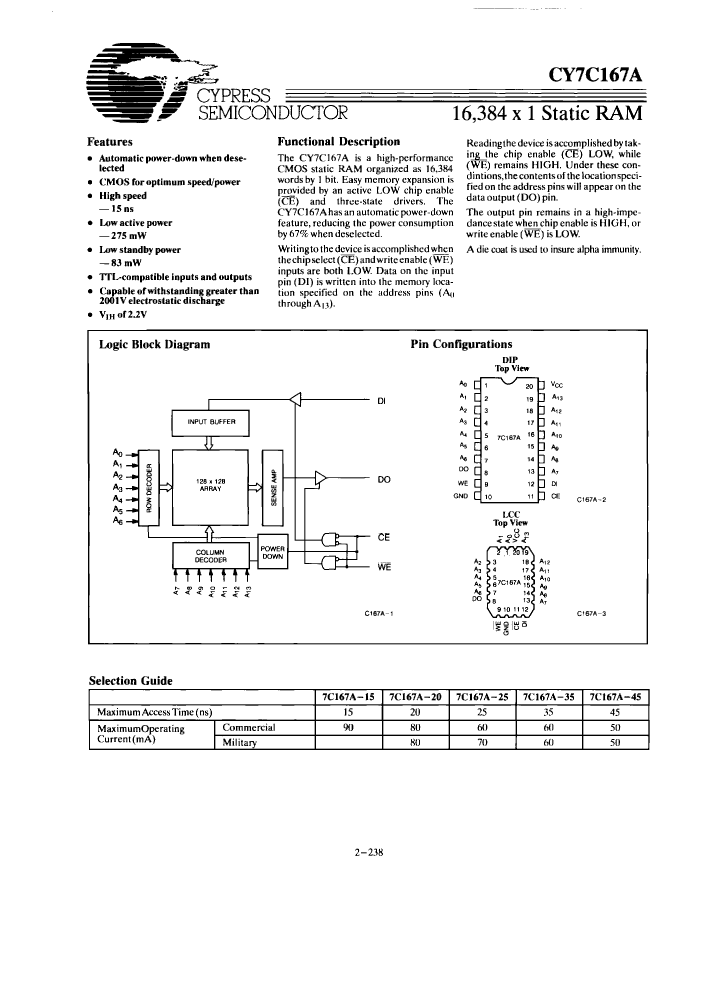

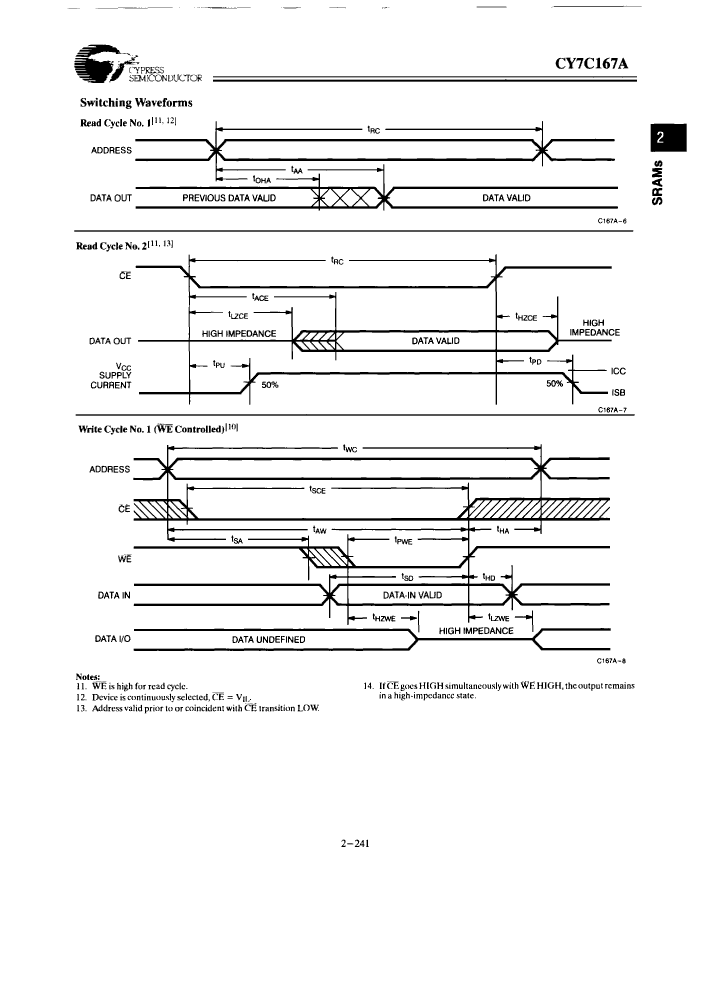

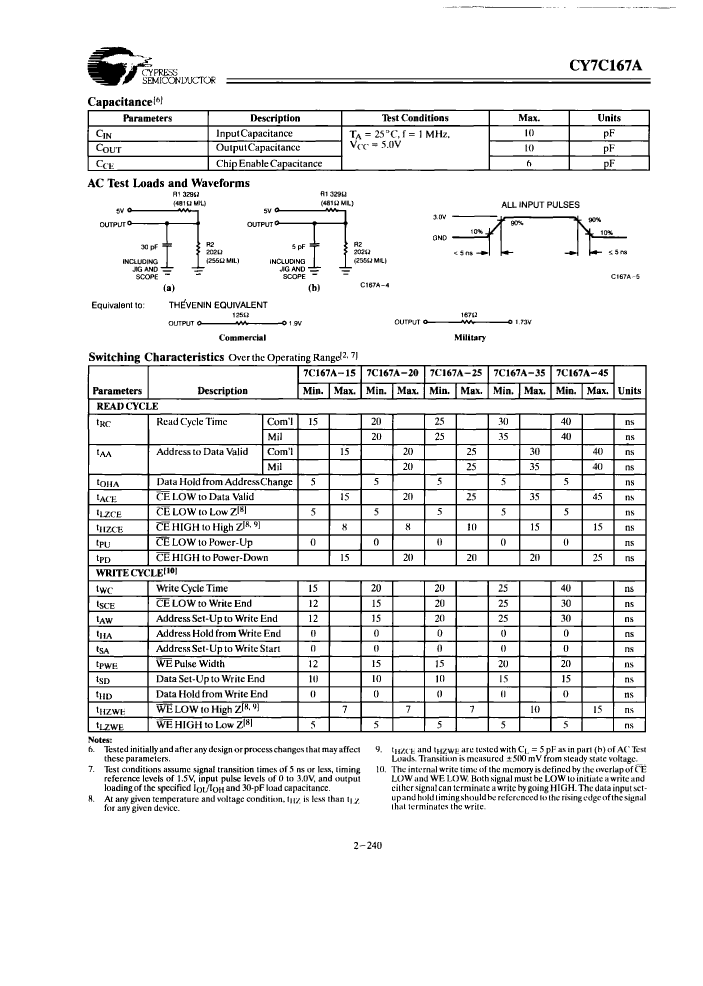

Preview

Download Datasheet

View All

8413202YX Related Products

	8413202YX	8413202SX	8413202SA	8413202YA	8413205SA	8413205YA	8413205SX	2661250402_18	8413205YX
Description	Standard SRAM, 16KX1, 45ns, CMOS, 0.440 X 0.305 INCH, 0.120 INCH HEIGHT, LCC-20	Standard SRAM, 16KX1, 45ns, CMOS, 0.540 X 0.300 INCH, 0.100 INCH HEIGHT, FP-20	Standard SRAM, 16KX1, 40ns, CMOS, CDFP20, CERPACK-20	Standard SRAM, 16KX1, 40ns, CMOS, CQCC20, CERAMIC, LCC-20	Standard SRAM, 16KX1, 35ns, CMOS, CDFP20, CERPACK-20	Standard SRAM, 16KX1, 35ns, CMOS, CQCC20, CERAMIC, LCC-20	Standard SRAM, 16KX1, 35ns, CMOS, 0.540 X 0.300 INCH, 0.100 INCH HEIGHT, FP-20	EMI Suppression Beads	Standard SRAM, 16KX1, 35ns, CMOS, 0.440 X 0.305 INCH, 0.120 INCH HEIGHT, LCC-20
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	-	Cypress Semiconductor
Parts packaging code	QLCC	DFP	DFP	QLCC	DFP	QLCC	DFP	-	QLCC
package instruction	QCCN,	DFP,	DFP,	CERAMIC, LCC-20	CERPACK-20	CERAMIC, LCC-20	DFP,	-	QCCN,
Contacts	20	20	20	20	20	20	20	-	20
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant	unknown	-	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C
Maximum access time	45 ns	45 ns	40 ns	40 ns	35 ns	35 ns	35 ns	-	35 ns
JESD-30 code	S-XQCC-N20	R-XDFP-F20	R-GDFP-F20	R-CQCC-N20	R-GDFP-F20	R-CQCC-N20	R-XDFP-F20	-	S-XQCC-N20
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	-	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	-	STANDARD SRAM
memory width	1	1	1	1	1	1	1	-	1
Number of functions	1	1	1	1	1	1	1	-	1
Number of terminals	20	20	20	20	20	20	20	-	20
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	-	16384 words
character code	16000	16000	16000	16000	16000	16000	16000	-	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
organize	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1	16KX1	-	16KX1
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	-	UNSPECIFIED
encapsulated code	QCCN	DFP	DFP	QCCN	DFP	QCCN	DFP	-	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	SQUARE
Package form	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	-	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883	-	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	-	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal form	NO LEAD	FLAT	FLAT	NO LEAD	FLAT	NO LEAD	FLAT	-	NO LEAD
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	-	QUAD
Base Number Matches	1	1	1	1	1	1	1	-	-
Other features	-	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	-	-
length	-	12.7 mm	12.7 mm	10.8585 mm	12.7 mm	10.8585 mm	12.7 mm	-	-
Maximum seat height	-	2.286 mm	2.286 mm	1.9812 mm	2.286 mm	1.9812 mm	2.286 mm	-	-
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	-
width	-	6.985 mm	6.985 mm	7.366 mm	6.985 mm	7.366 mm	6.985 mm	-	-
