TC74AC299P_07: DescriptionCMOS Digital Integrated Circuit Silicon Monolithic 8-Bit PIPO Shift Register with Asynchronousclear; File Size421KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TC74AC299P_07 Overview

CMOS Digital Integrated Circuit Silicon Monolithic 8-Bit PIPO Shift Register with Asynchronousclear

Preview

Download Datasheet

View All

TC74AC299P/F

TOSHIBA CMOS Digital Integrated Circuit

Silicon Monolithic

TC74AC299P,TC74AC299F

8-Bit PIPO Shift Register with Asynchronousclear

TC74AC299P

The TC74AC299 is an advanced high speed CMOS 8-BIT PIPO

SHIFT REGISTER fabricated with silicon gate and double-layer

metal wiring C

MOS technology.

It achieves the high speed operation similar to equivalent

Bipolar Schottky TTL while maintaining the CMOS low power

dissipation.

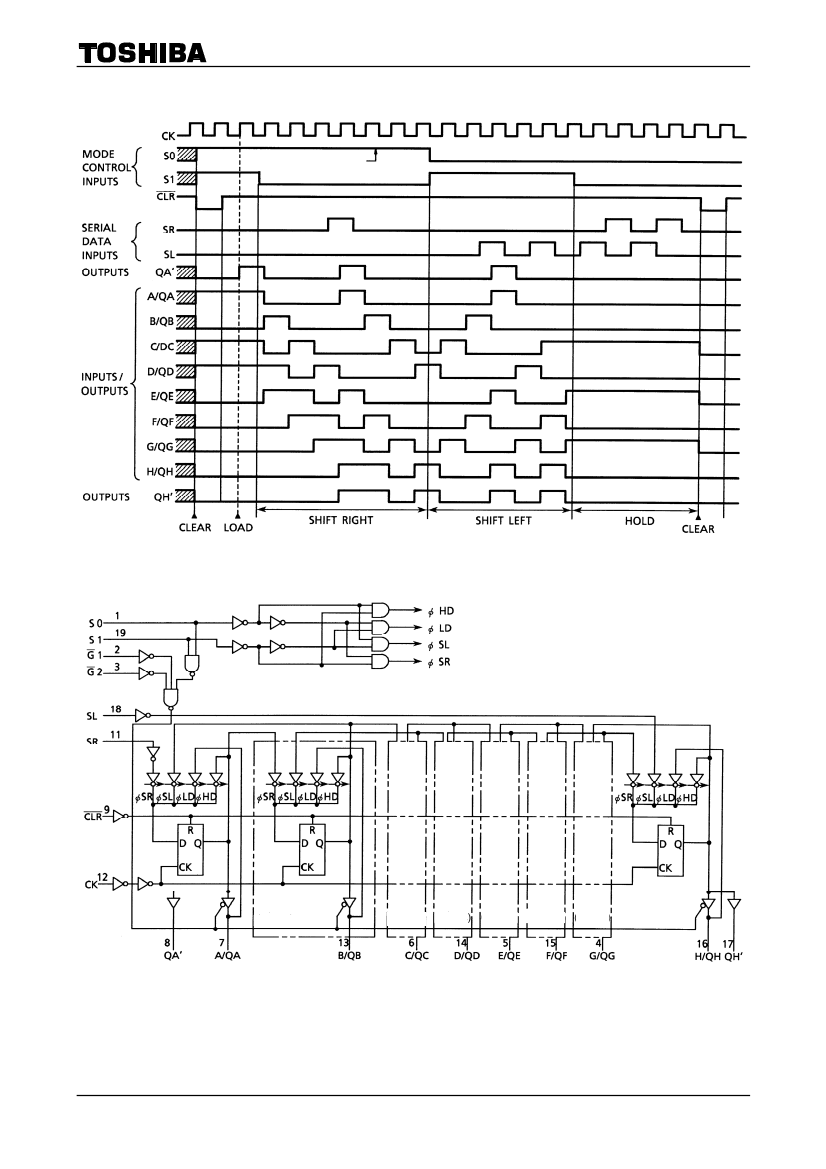

It has a four modes (HOLD, SHIFT LEFT, SHIFT RIGHT and

LOAD DATA) controlled by the two selection inputs (S0, S1).

When one or both enable (

) are high, the eight I/O

outputs are forced to the high-impedance state; however,

sequential operation or clearing of the register is not affected.

All inputs are equipped with protection circuits against static

discharge or transient excess voltage.

TC74AC299F

Features (Note 1)(Note 2)

•

High speed: f

max

150 MHz (typ.) at V

5 V

Low power dissipation: I

μA

(max) at Ta

25°C

High noise immunity: V

NIH

NIL

28% V

(min)

Symmetrical output impedance: |I

24 mA (min)

Capability of driving 50

•

tansmission lines.

∼

Balanced propagation delays: t

pLH

−

pHL

Wide operating voltage range: V

(opr)

2 to 5.5 V

Pin and function compatible with 74F299

Note 1: Do not apply a signal to any bus terminal when it is in the output mode. Damage may result.

Note 2: All floating (high impedance) bus terminals must have their input levels fixed by means of pull up or pull

down resistors.

Weight

DIP20-P-300-2.54A

SOP20-P-300-1.27A

: 1.30 g (typ.)

: 0.22 g (typ.)

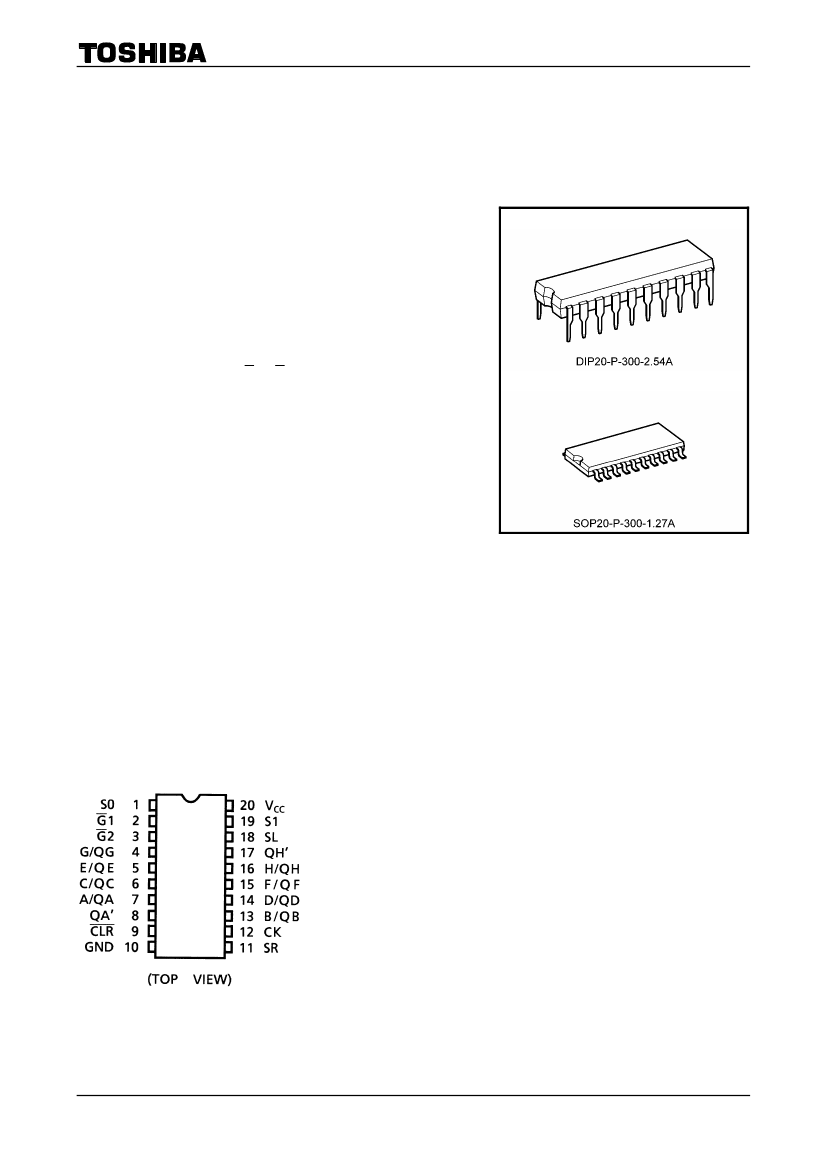

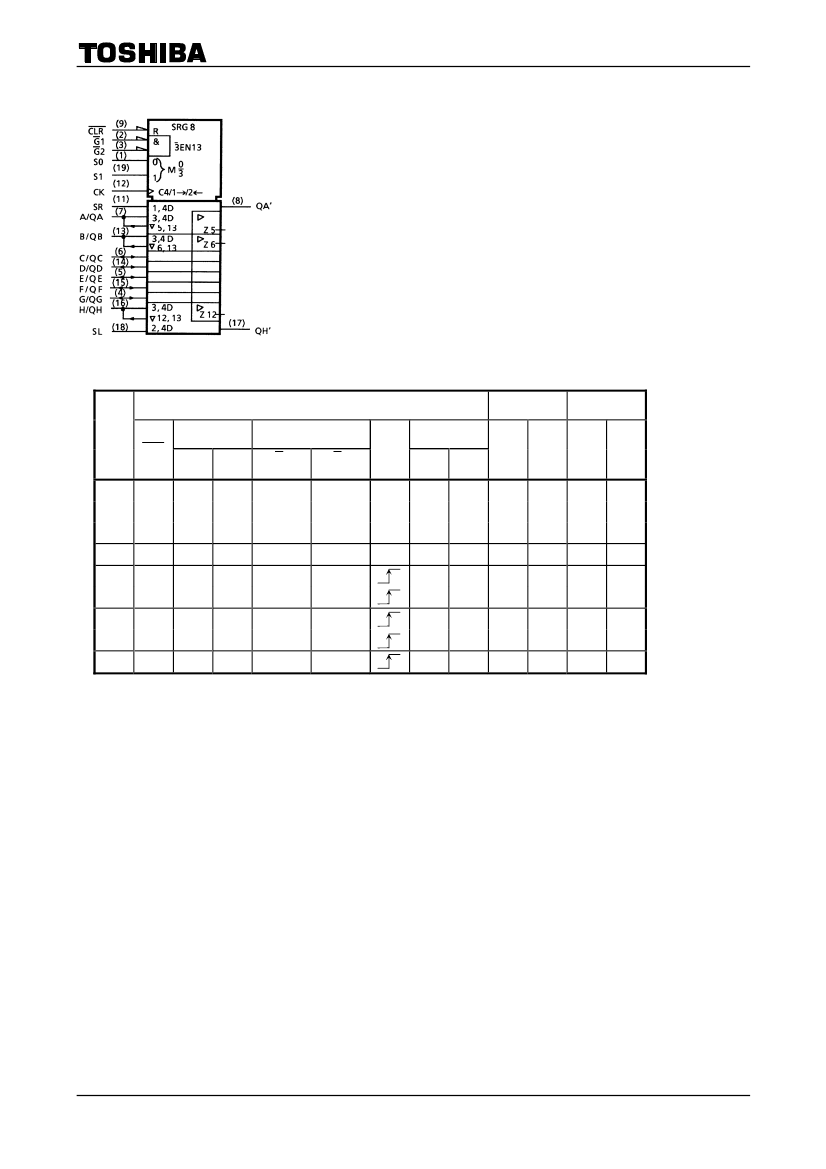

Pin Assignment

2007-10-01
