TA76431F Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PSSO3

TA76431F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	, TO-243
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3
length	4.5 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.1 A
Maximum output voltage	2.55 V
Minimum output voltage	2.44 V
Nominal output voltage	2.495 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TO-243
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.6 mm
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
width	2.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

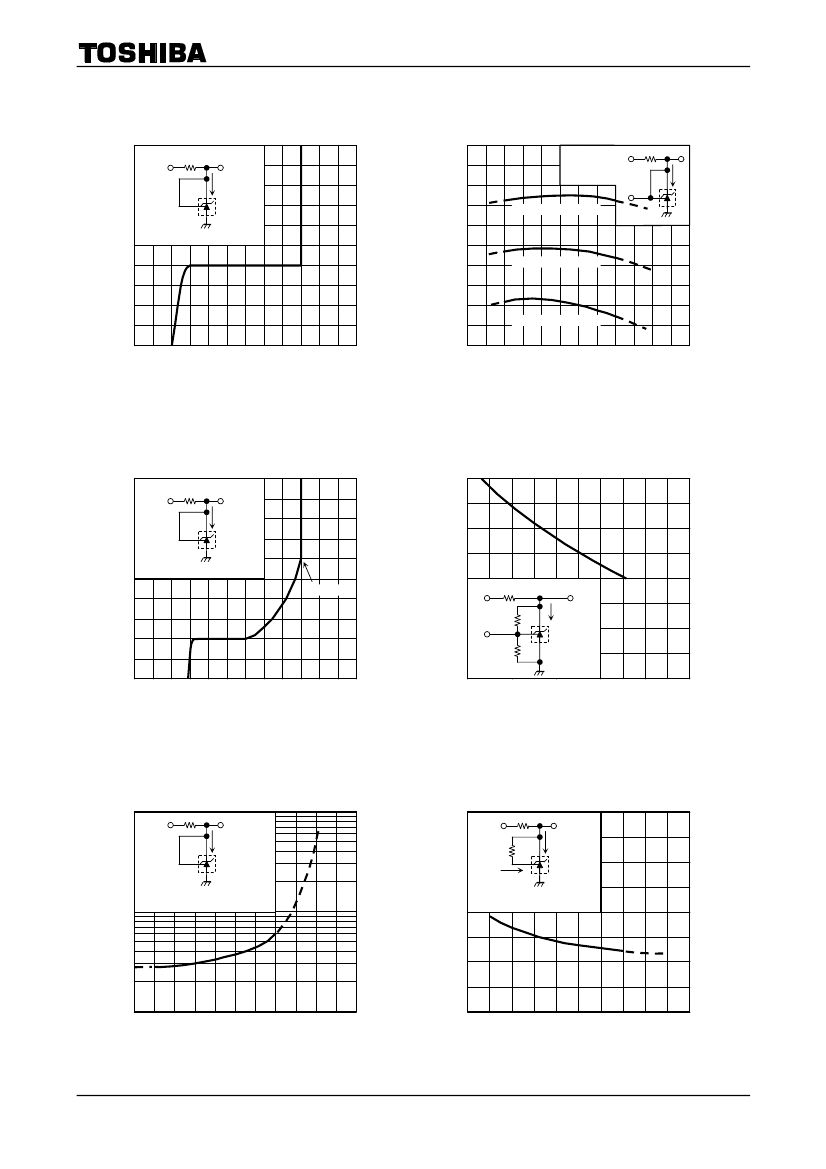

TA76431F/FR

TOSHIBA Bipolar Linear Integrated Circuit

Silicon Monolithic

TA76431F, TA76431FR

Adjustable Precision Shunt Regulator

Features

•

Precision Reference Voltage: V

REF

= 2.495 V ± 2%

Small Temperature Coefficient: |αV

REF

| = 46 ppm/°C

Adjustable Output Voltage: V

REF

≤

OUT

≤

36 V

Low Dynamic Output Impedance: |Z

| = 0.15

Ω

(Typ.)

Small Flat Package

TA76431FR is a new Toshiba shunt regulator.

This device’s pin assignment is the reverse of that of the

TA76431F.

Weight: 0.05 g (typ.)

Functional Block Diagram

Reference (REF)

Cathode (K)

Circuit Symbol

Cathode (K)

Reference (REF)

Anode (A)

This IC contains electrostatic sensitive elements. Please take care to avoid generating static electricity when

handling these devices.

Marking

(1) TA76431F

Part No. (or abbreviation code)

(2) TA76431FR

Part No. (or abbreviation code)

Lot No.

(weekly code)

A line indicates

lead (Pb)-free package or

lead (Pb)-free finish.

Lot No.

(weekly code)

A line indicates

lead (Pb)-free package or

lead (Pb)-free finish.

Pin Assignment

No.

(1) TA76431F

Cathode (K)

Anode (A)

Reference (REF)

(2) TA76431FR

Reference (REF)

Anode (A)

Cathode (K)

2006-11-06
