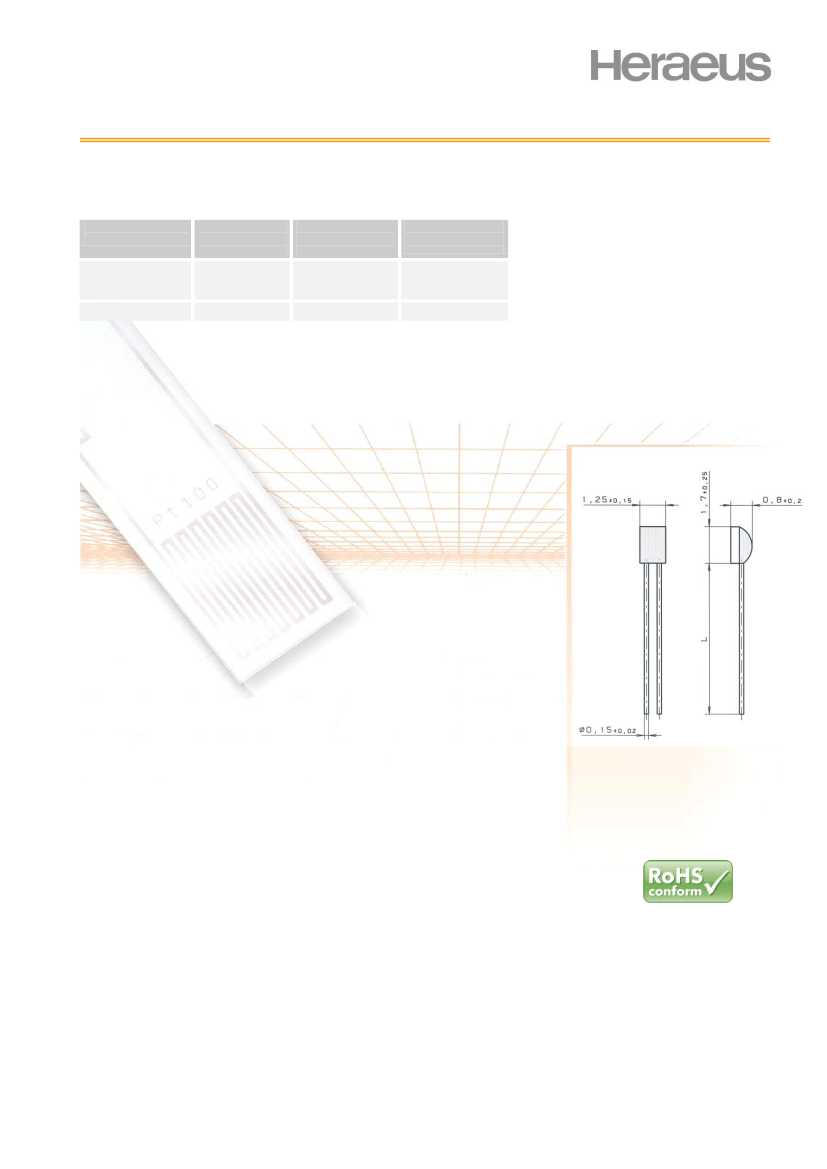

Platinum Resistance Temperature Detector
M 213
M series PRTDs are designed for large volume applications where long term stability, interchangeability and
accuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,
Energy management, Medical and Industrial equipment.
Nominal
Resistance R0
100 Ohm at 0°C
1000 Ohm at 0°C
Tolerance
DIN EN 60751
1996-07
Class 1/3 B
Class A
Class B
Class B
Tolerance
DIN EN 60751
2009-05
F 0.1
F 0.15
F 0.3
F 0.3
Order Number
Plastic Box
32 207 692
32 207 691
32 207 690
32 207 695
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Specification
Temperature range
DIN EN 60751 (according to IEC 751)
-70°C to +500°C (continuous operation)
(temporary use to 550 °C possible)
Tolerance Class B:
-70°C to +500°C
Tolerance Class A:
-50°C to +300°C
Tolerance Class 1/3 B:
0°C to +150°C
TC = 3850 ppm/K
Pt clad Ni- wire
Recommended connection technology:
Welding, Crimping and Brazing
10mm ±1mm
max. R
0
-drift 0.04% after 1000h at 500°C
at least 40g acceleration at 10 to 2000 Hz,
depends on installation
at least 100g acceleration with 8ms half sine
wave, depends on installation
unhoused for dry environments only
> 100 M at 20°C; > 2 M at 500°C
0.6 K/mW at 0°C
water current (v= 0.4m/s):
air stream (v= 2m/s):
t
0.5
= 0.04s
t
0.9
= 0.12s
t
0.5
= 2.2s
t
0.9
= 7.0s
Temperature coefficient
Leads
Lead lengths (L)
Long-term stability
Vibration resistance
Shock resistance
Environmental conditions
Insulation resistance
Self heating
Response time
Measuring current
100: 0.3 to 1.0 mA
1000: 0.1 to 0.3 mA
(self heating has to be considered)
Other tolerances, values of resistance and wire
lengths are available on request.
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
Heraeus Sensor Technology USA
770 Township Line Road, Suite 300
Yardley, PA 19067 USA
Phone 1-215-944-9010 Fax 1-215-944-9392
Email info.hst-us@heraeus.com
www.hst-us.com
Name of document: 30910012 Index C
Status: 06/2016
