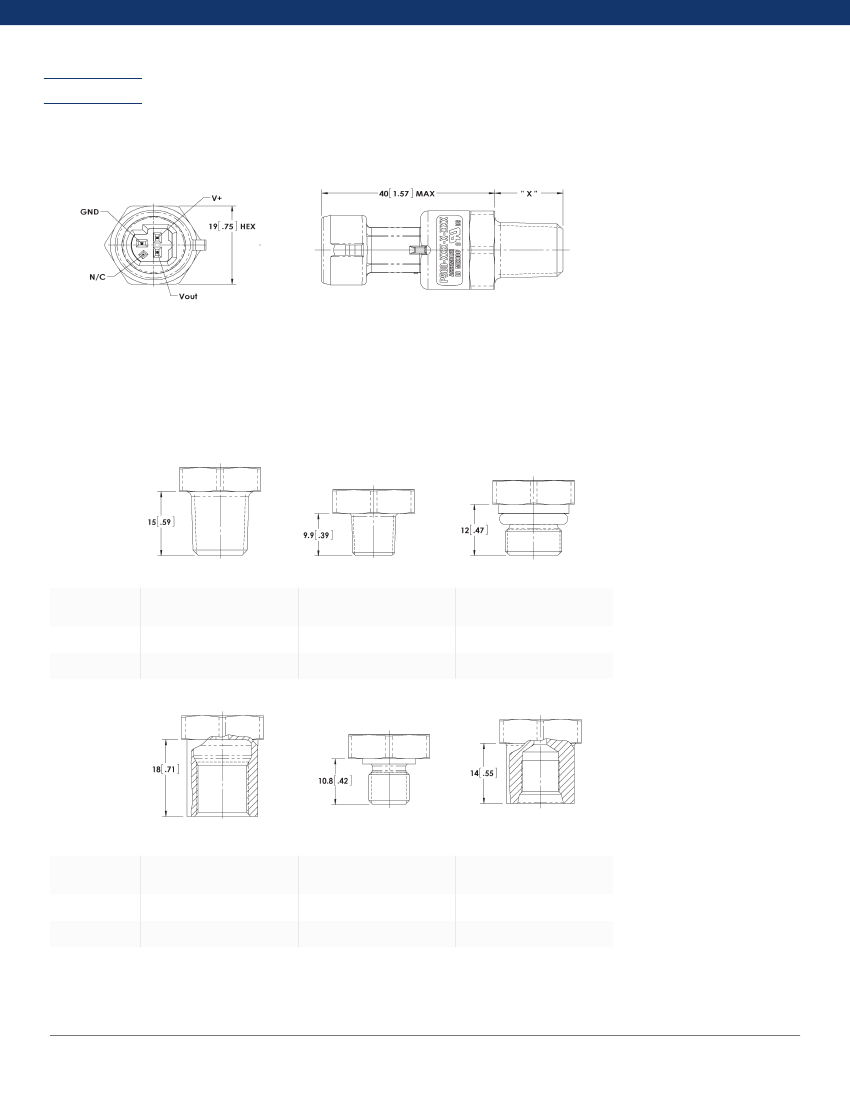

Pressure Connections and Recommended Installation Torque
Dimensions in mm [Inch]
Name
Thread
Torque
1/4 - 18 NPT
External
25 Nm
1/8 - 27 NPT
External
20 Nm
Stud End
DIN 3852-B-G1/4
External
20 Nm
Name
Thread
Torque
Tapped Hole
DIN 3852-Y-G1/4
Internal
15 Nm
3/8-24 UNF-2A PER
SAE J 1926/2
External
22 Nm
3/8-24 UNF-2B PER
SAE J 1926/1
Internal
22 Nm
Note: Recommended torque may varify according to material and specific application.
www.kavlico.com

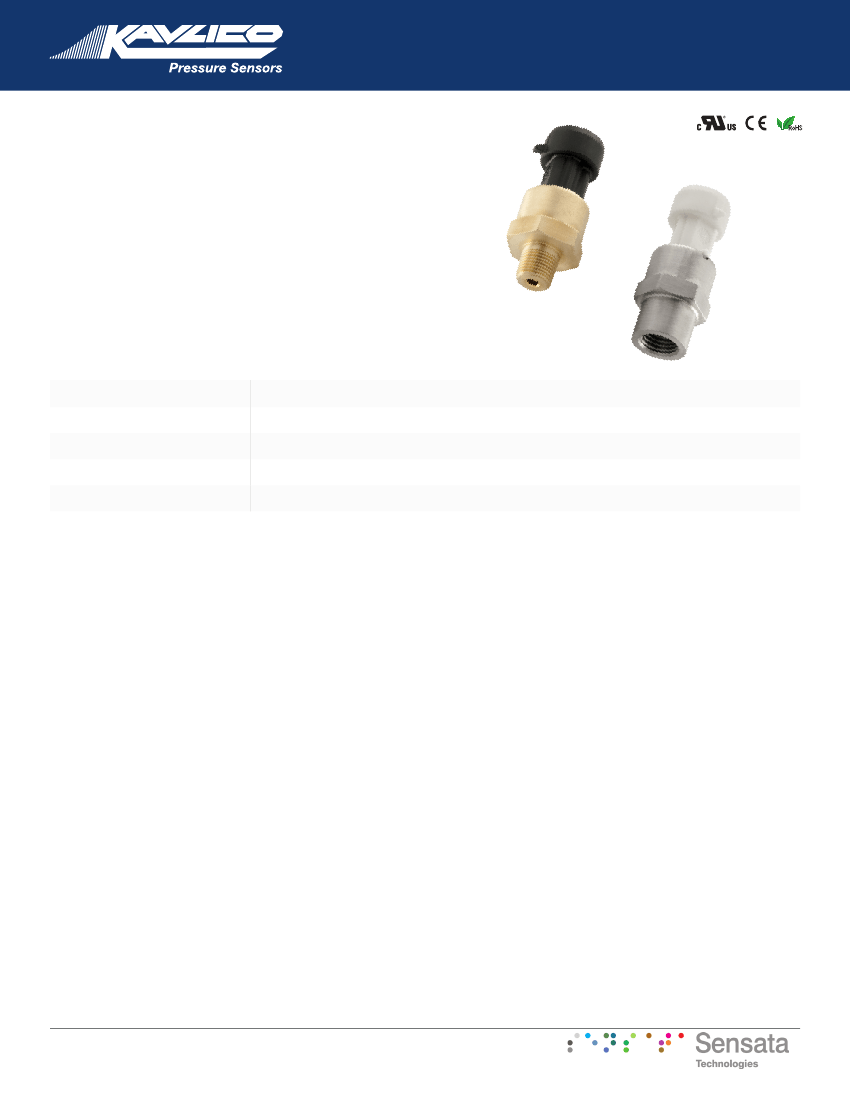

P500 Data Sheet
4
How to Order
Pressure Connection (port)
Seal Material
D
Fluorocarbon / Viton (-25° to
+125°C)
E
Fluorosilicone (-40° to 125°C)
F
Ethylene Propylene (-30° to 120°C)
1
1/4 - 18 NPT (External Threads)
4
1/8 - 27 NPT (External Threads)
5
Stud End DIN 3852-B-G 1/4 (External Threads)
6
Tapped Hole DIN 3852-Y-G 1/4 (Internal Threads)
9
3/8 - 24 UNF-2A Per SAE J1926/2 (External Threads)
10
3/8 - 24 UNF-2B Per SAE J1926/1 (Internal Threads)
P500
Pressure Ranges
1B
0 – 1 Bar
15
20
30
50
75
16B
A
Reference
E
1
A
Built-in Electrical Connection
A
With Mating Connector, w/12”, 18 AWG
Leads
C
Without Mating Connector
0 – 15 PSI
0 – 20 PSI
0 – 30 PSI
0 – 50 PSI
0 – 75 PSI
A
Absolute
G
Gage
S
Sealed Gage (Referenced to 14.7
PSIA)
1.6B
0 – 1.6 Bar
2.5B
0 – 2.5 Bar
4B
0 – 4 Bar
6B
0 – 6 Bar
10B
0 – 10 Bar
16B
0 – 16 Bar
25B
0 – 25 Bar
40B
0 – 40 Bar
50B
0 – 50 Bar
70B
0 – 70 Bar
100
0 – 100 PSI
150
0 – 150 PSI
200
0 – 200 PSI
300
0 – 300 PSI
500
0 – 500 PSI
750
0 – 750 PSI
1000
0 – 1000PSI
Example:
P500 -16B - A - E1A
Description:
P500 Sensor, 0 - 16 Bar Absolute, Fluorosilicone Seal Material, 1/4 - 18 NPT Pressure Connection,
with Mating Connector
Before installation and operation, ensure that the appropriate pressure sensor has been selected in terms of pressure range, design and specific measuring
conditions. Non-compliance can result in serious injury and/or damage to the equipment.
Warning:
The product information contained in this catalogue is given purely as information and does not constitute a representation, warranty or any form of
contractual commitment. Kavlico reserve the right to modify their products without notice. It is imperative that we should be consulted over any particular use
or application of our products and it is the responsibility of the buyer to establish, particularly through all the appropriate tests, that the product is suitable for
the use or application. Under no circumstances will our warranty apply, nor shall we be held responsible for any application (such as any modification, addition,
deletion, use in conjunction with other electrical or electronic components, circuits or assemblies, or any other unsuitable material or substance) which has not
been expressly agreed by us prior to the sale of our products.
