CZP2AFTTE400P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> CZP2AFTTE400P

Preview

CZP2AFTTE400P: DescriptionFerrite Beads 0805 40ohm 25%; CategoryAnalog mixed-signal IC filter; File Size184KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

CZP2AFTTE400P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CZP2AFTTE400P	-	-	View	Buy Now

CZP2AFTTE400P Overview

Ferrite Beads 0805 40ohm 25%

CZP2AFTTE400P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NICKEL BARRIER TERMINATION
Maximum DC resistance	0.03 Ω
filter type	FERRITE CHIP
high	0.9 mm
Minimum insulation resistance	1000 MΩ
JESD-609 code	e3
length	2 mm
Manufacturer's serial number	CZP
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	40 OHM Ω
method of packing	TAPE AND REEL
physical size	L2XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
Rated current	2 A
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm

Preview

Download Datasheet

View All

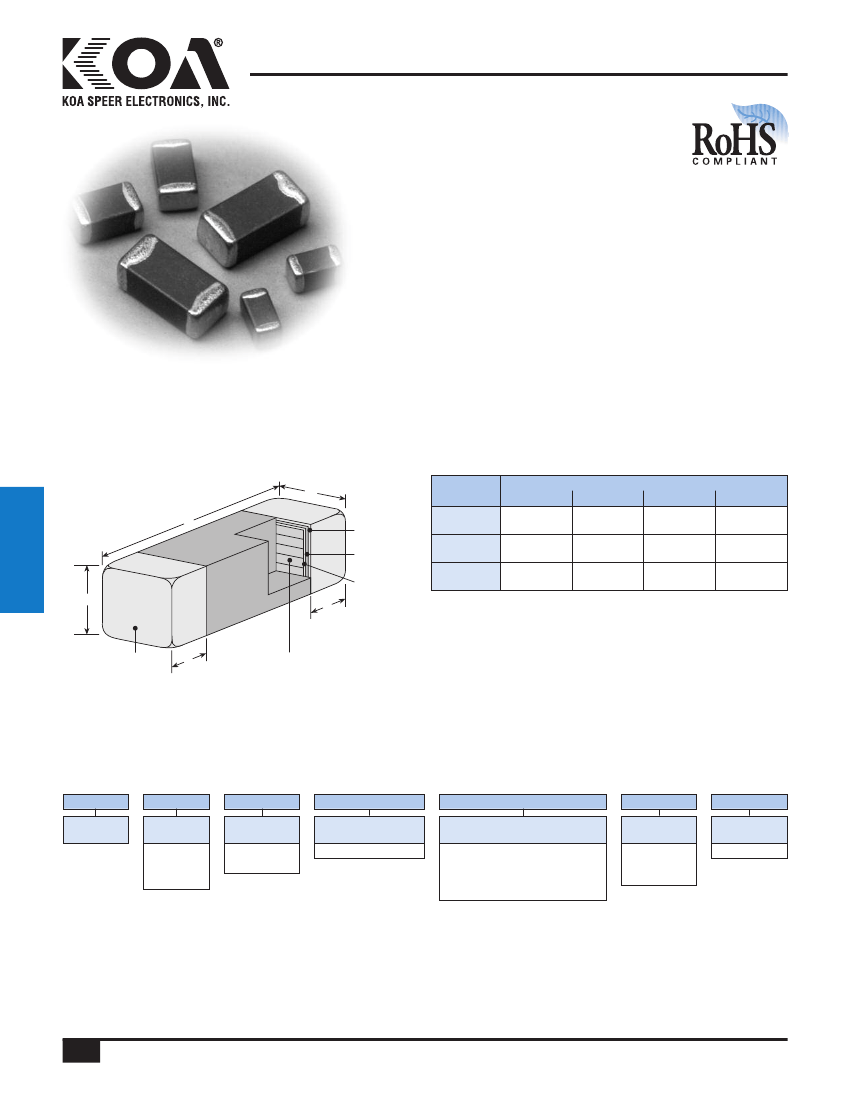

CZP

multilayer power ferrite bead

EU

features

•

Designed to reduce noise at high frequencies

•

Standard EIA packages: 1J, 2A, 2B

•

Nickel barrier with solder overcoat for excellent

solderability

•

Magnetically shielded

•

Marking: Black body color with no marking

•

Products with lead-free terminations meet

EU RoHS requirements

dimensions and construction

Type

W

EMI/EMC

filtering

(Inch Size Code)

L

.063±.006

(1.6±0.15)

.079±.008

(2.0±0.2)

.126±.008

(3.2±0.2)

Dimensions

inches

(mm)

W

t

.031±.006

(0.8±0.15)

.047±.008

(1.20±0.2)

.063±.008

(1.6±0.2)

.031±.006

(0.8±0.15)

.035±.008

(0.9±0.2)

.043±.008

(1.1±0.2)

d

.014±.006

(0.36±0.15)

.02±.012

(0.51±0.30)

.02±.012

(0.51±0.30)

L

Solder

Plating

Ni

Plating

Silver

Metallization

d

1J

(0603)

2A

(0805)

2B

(1206)

t

Terminations

(Metallization

Bands)

d

Electrodes

ordering information

CZP

Type

2A

Size

1J

2A

2B

F

Permeability

Code

F

P

T

Termination

Material

T: Sn

TD

Packaging

TD: 7" paper tape

(1J, 2A - 4,000 pieces/reel)

TE: 7" embossed plastic

(2B - 3,000 pieces/reel)

300

Impedance

2 significant

figures + 1

multiplier

P

Tolerance

P: ±25%

For further information

on packaging, please refer

to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

6/29/17

284

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
