ITEM
A
B
D
DESCRIPTION
U.FL PLUG
SEALED RP-SMA FEM.
BULKHEAD MOUNT
CONNECTOR
CABLE
NUT
WASHER
O-RING
HEAT SHRINK TUBING
MATERIAL
BRASS
BRASS
1.13mm
COAXIAL
BRASS
BRASS
Si RUBBER
POLYOLEFIN
FINISH
GOLD
NICKEL
GRAY
NICKEL
NICKEL
BLACK
BLACK
A INITIAL RELEASE OF LINX INTERNAL DRAWING
B
C
D
E
F
G
UPDATED TO ADD DIMENSIONS TO NUT, WASHER AND
C O-RING
D
SEE PART NUMBER TABLE
C
.472
12
.083
2.10
.228
5.80
C
7
A
H .31
8
1/4 - 36UNS - 2B
THREADS
.40
10.2
.36
9.1
C
G
B
1/4 - 36UNS - 2A
THREADS
B
B
A
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSIONS ARE IN INCHES [mm].
2. DIMENSIONS APPLY AFTER FINISHING.
3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE, USE
MATERIALS THAT DO NOT CONTAIN REACH SUBSTANCES OF VERY
HIGH CONCERN >1000ppm, AND USE DRC CONFLICT-FREE
SOURCED MATERIALS.
4. MINIMUM FREQUENCY RANGE: DC TO 3GHz.
5. CABLE ASSEMBLY SPECIFICATIONS;
- CHARACTERISITIC IMPEDANCE: 50Ω ± 3Ω
- INSERTION LOSS: 100mm - 0.34√f IN GHz TYP.
200mm - 0.56√f IN GHz TYP.
300mm - 0.73√f IN GHz TYP.
6. CONNECTOR TO BE APPLIED IN ACCORDANCE WITH CONNECTOR
SUPPLIER RECOMMENDED PROCEDURE.
7 CONNECTORS TO BE ORIENTED WITH U.FL CONNECTOR MATING
FACE 90° CLOCKWISE FROM BULKHEAD CONNECTOR THREAD
FLAT FACE, AS SHOWN.
8
7
6
D
E
F
PART NUMBER
CSI-RSFE-100-UFFR
CSI-RSFE-200-UFFR
CSI-RSFE-300-UFFR
CABLE LENGTH
100mm
200mm
300mm
159 ORT LANE
MERLIN, OR 97532
WARNING:
THIS DRAWING CONTAINS PROPRIETARY INFORMATION
THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE
TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS
DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE
EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS
DESIGNATED AGENTS.
INTERPRET DIMENSIONS AND
TOLERANCES PER ASME Y14.5.
32
A
TITLE:
MATERIAL:
PROJECTION:
FINISH:
SURFACE FINISH:
ANGLES: 1
TOLERANCES: .X .1 .XX .01 .XXX .005
SIZE DWG. NO.

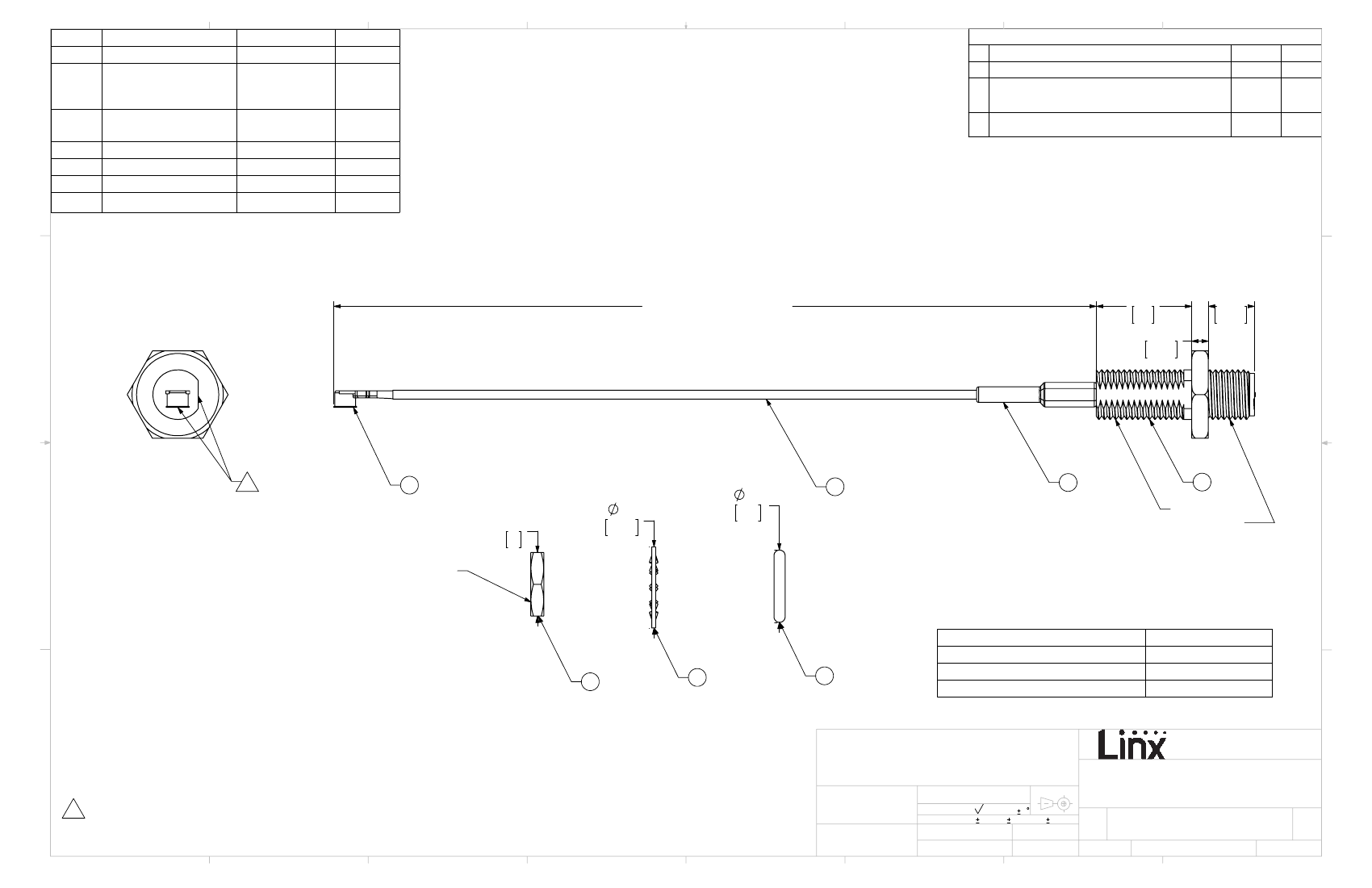

CABLE ASSEMBLY, U.FL TO FEM.
BLKHD RP-SMA, 1.13mm CBL
DRAWN: B.MURPHY DT: 26-MAR-14
CSI-RSFE-ccc-UFFR
ENGR: S.HOGAN
DT: 15-APR-14 SCALE: 2.5:1
DO NOT SCALE DRAWING
2
1
B
REV
SHEET 1 OF 1
