MC74VHC1G66DTT1 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74VHC1G66DTT1

MC74VHC1G66DTT1: DescriptionAnalog Switch ICs 2-5.5V Hi Speed ANLG; CategoryAnalog mixed-signal IC The signal circuit; File Size139KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Related ProductsFound12parts with similar functions to MC74VHC1G66DTT1

Download Datasheet Parametric Compare View All

MC74VHC1G66DTT1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74VHC1G66DTT1	-	-	View	Buy Now

MC74VHC1G66DTT1 Overview

Analog Switch ICs 2-5.5V Hi Speed ANLG

MC74VHC1G66DTT1 Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TSOP
package instruction	TSSOP, TSOP5/6,.11,37
Contacts	5
Manufacturer packaging code	483
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	3 mm
normal position	NO
Number of channels	1
Number of functions	1
Number of terminals	5
Nominal off-state isolation	80 dB
Maximum on-state resistance (Ron)	60 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	50 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn80Pb20)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	1.5 mm

Preview

Download Datasheet

View All

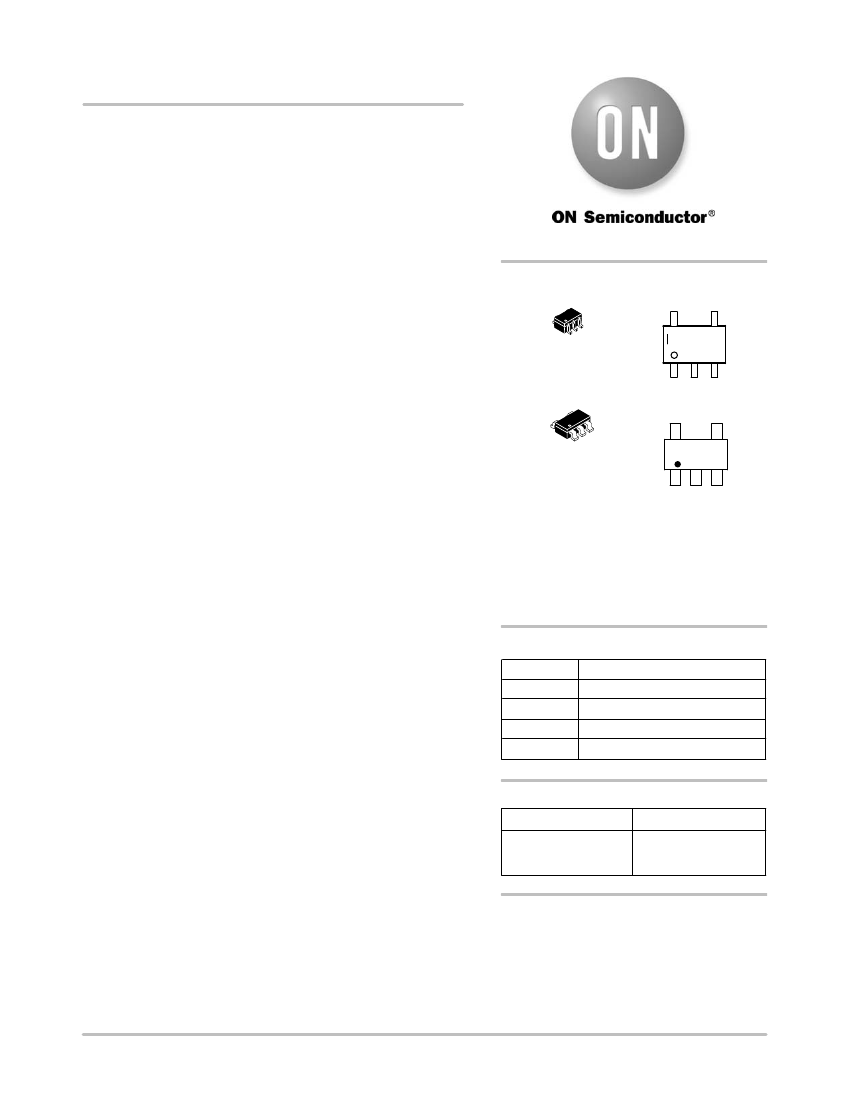

MC74VHC1G66

SPST (NO) Normally Open

Analog Switch

The MC74VHC1G66 is a single pole single throw (SPST) analog

switch. It achieves high speed propagation delays and low ON

resistances while maintaining low power dissipation. This bilateral

switch controls analog and digital voltages that may vary across the

full power−supply range (from V

to GND).

The MC74VHC1G66 is compatible in function to a single gate of

the High Speed CMOS MC74VHC4066 and the metal−gate CMOS

MC14066. The device has been designed so that the ON resistances

) are much lower and more linear over input voltage than R

the metal−gate CMOS or High Speed CMOS analog switches.

The ON/OFF control inputs are compatible with standard CMOS

outputs. The ON/OFF control input structure provides protection when

voltages between 0 V and 5.5 V are applied, regardless of the supply

voltage. This input structure helps prevent device destruction caused by

supply voltage

−

input/output voltage mismatch, battery backup,

hot insertion, etc.

Features

http://onsemi.com

MARKING DIAGRAMS

SC−88A

DF SUFFIX

CASE 419A

V9 MG

TSOP−5

DT SUFFIX

CASE 483

V9 MG

•

High Speed: t

= 20 ns (Typ) at V

= 5.0 V

Low Power Dissipation: I

= 1.0

(Max) at T

= 25°C

Diode Protection Provided on Inputs and Outputs

Improved Linearity and Lower ON Resistance over Input Voltage

Chip Complexity: 11 FETs or 3 Equivalent Gates

ON/OFF Control Input has OVT

Chip Complexity: FETs = 11

These Devices are Pb−Free and are RoHS Compliant

= Device Code

= Date Code*

= Pb−Free Package

(Note: Microdot may be in either location)

*Date Code orientation and/or position may

vary depending upon manufacturing location.

PIN ASSIGNMENT

IN/OUT X

OUT/IN Y

GND

ON/OFF CONTROL

FUNCTION TABLE

On/Off Control Input

State of Analog Switch

Off

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

Semiconductor Components Industries, LLC, 2011

May, 2011

−

Rev. 15

Publication Order Number:

MC74VHC1G66/D

MC74VHC1G66DTT1 Related Products

	MC74VHC1G66DTT1	NLVHC1G66MUR2G	MC74VHC1G66DFT1
Description	Analog Switch ICs 2-5.5V Hi Speed ANLG	Analog Switch ICs NSEB THAI ANALOG SW	Analog Switch ICs 2-5.5V Hi Speed ANLG
Brand Name	ON Semiconductor	ON Semiconductor	ON Semiconductor
Is it lead-free?	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	TSOP	DFN	SOT-353
package instruction	TSSOP, TSOP5/6,.11,37	1.20 X 1.00 MM, 0.40 PITCH, LEAD FREE, UDFN-6	TSSOP, TSSOP5/6,.08
Contacts	5	6	5
Manufacturer packaging code	483	517AA	419A-02
Reach Compliance Code	not_compliant	unknown	not_compliant
Analog Integrated Circuits - Other Types	SPST	SPST	SPST
JESD-30 code	R-PDSO-G5	R-PDSO-N6	R-PDSO-G5
JESD-609 code	e0	e4	e0
length	3 mm	1.2 mm	2 mm
normal position	NO	NO	NO
Number of channels	1	1	1
Number of functions	1	1	1
Number of terminals	5	6	5
Nominal off-state isolation	80 dB	80 dB	80 dB
Maximum on-state resistance (Ron)	60 Ω	60 Ω	60 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	VSON	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	SOLCC6,.04,16	TSSOP5/6,.08
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240	260	240
power supply	5 V	2/5.5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	0.55 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V
surface mount	YES	YES	YES
Maximum disconnect time	50 ns	50 ns	50 ns
Maximum connection time	50 ns	50 ns	50 ns
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn80Pb20)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Lead (Sn80Pb20)
Terminal form	GULL WING	NO LEAD	GULL WING
Terminal pitch	0.95 mm	0.4 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	40	30
width	1.5 mm	1 mm	1.25 mm
switch	MAKE-BEFORE-BREAK	-	MAKE-BEFORE-BREAK
Factory Lead Time	-	1 week	1 week
