PHA15DW2RP PHA15DW2RPS
SSR
Function
240V 15 / 25A
(RMS)
PHA25DW2RP PHA25DW2RPS
* Single Pole, Single Throw Normally Open
* With Zero Crossing Voltage Switching Circuit
* Equipped Heat Sink Standard
Futures
* Easy Installation with DIN Rail Mounting
* Low Noise Switching and Rush Current
* Space Save Mounting
* High Voltage Isolation
Characteristics and Ratings
Characteristics / Ratings
PHA15DW2RP PHA15DW2RPS PHA25DW2RP PHA25DW2RPS
Parameter
Symbol
Unit
Output
Rated Voltage
A.C. Line Voltage Range
Operating Frequency
Maximum Load Current
Non-repetitive One Cycle Surge Current
Minimum Operating Current
Maximum off-state Leakage Current
Maximum on-sate Voltage Drop
Response Time
V
(RMS)
V
(RMS)
f
I
T(RMS)
I
TSM
I
op(RMS)
I
leak(RMS)
V
T(RMS)
T
(rps)
I
IN(DC)
I
F(DC)
PUV
DOV
15
150
100
9.0
1.6
1/2 Cycle + 1mS
4.5 to 30
10
4.5
1.0
240
60 to 280
47 to 63
25
250
V
V
HZ
A
A
mA
mA
V
-
V
mA
V
V
Input
Control Signal Voltage Range
Input Current
Pick-up Voltage
Drop-out Voltage
Input/Output
AC Isolation Voltage (
Between
Input ,
Output Terminals and Base)
Capacitance (Between input and output
Operating Temperature Range
Storage Temperature Range
V
iso(RMS)
C
(i-o)
T
op
T
stg
2500
4000 *1
100
-30 to
+80
-35 to +100
2500
4000 *1
V
pF
°C
°C
*1: When the maximum insulation characteristic is necessary , we recommended the use of the insulation sheet.

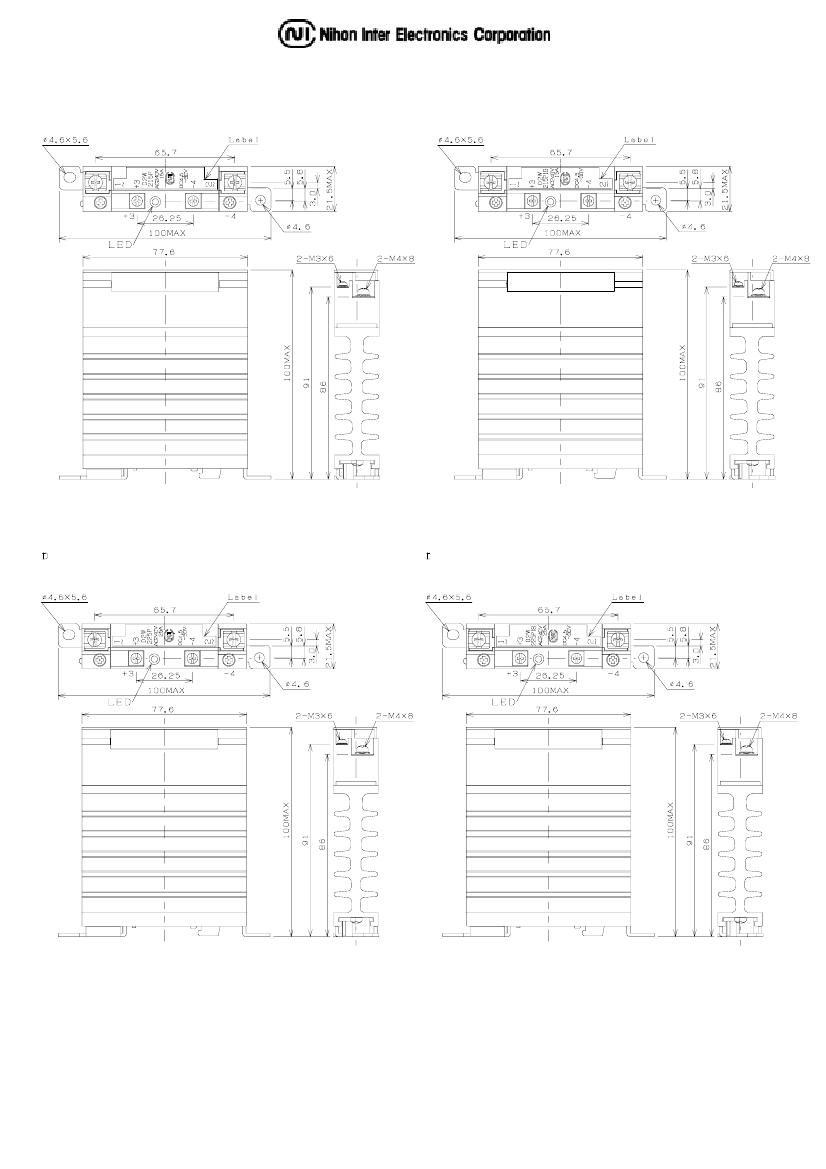

PHA15DW2RP OUT LINE DRAWING
PHA15DW2RPS OUT LINE DRAWING
PHA25DW2RP OUTLINE DRAWING
PHA25DW2RP S OUTLINE DRAWING
