Good attenuation characteristic in high frequency ranges.
APPLICATIONS
High impedance circuits, e.g. digital signal circuits.
I/O interface sections of devices with electric circuits and the area around connectors.
Low-current power line of communication terminal devices, AV, and information devices.
PART NUMBER IDENTIFICATION
YFF
Series
name
21
L×W
dimensions
Code
mm
15
1.0×0.5
18
1.6×0.8
21
2.0×1.2
SC
Product
internal
code
SC Signal line
1E
Rated
voltage
Code
V
1C
16
1E
25
1H
50
473
Capacitance
Code
220
101
221
473
pF
22
100
220
47,000
(47nF)
M
Tolerance
M
±20％
T
Taping
TDK
internal
code
0
Reel size
Code
0
9
mm
ø178
ø330
N
Internal
electrode
Ni
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Type
YFF15SC
YFF18SC
YFF21SC
Package quantity (piece/reel)
ø178
ø330
10,000
50,000
4,000
10,000
4,000
10,000
Individual weight
（g）
0.0008
0.0038
0.0095
The Storage temperature range is for after the circuit board is mounted.
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2011/65/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
Please contact our Sales office when your application is considered the following:
The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.)
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20150721 / emc_esr_yff-sc_en.fm
(2/6)
E M C
C o m p o n e n t s
Overview of YFF-SC Series
RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
Soldering
Preheating
Slow cooling
(Natural cooling)
260˚C max.
Temperature(˚C)
150˚C max.
0
60 seconds or more
10s max.
PRECAUTIONS FOR USE
Before soldering, be sure to preheat components. The
'T
pre-
heating temperature must be 150°C max. with attention paid to
thermal shock.
Natural cooling of components in the air is recommended. On
the other hand, when dipping them in a solvent for purposes,
such as cleaning, make sure that the temperature difference
('T) is 100°
When performing hand soldering for circuit modification, apply
the soldering iron to the copper foil area of the printed circuit
board for 3 seconds or less. The temperature of the iron tip
should not exceed 300°C.
Use a wrist band to discharge static electricity in your body
through the grounding wire.
When incorporating the printed circuit board on which this prod-
uct is mounted into a frame, etc., do not apply stress to the prod-
uct through local bending of the board by tightening of screws,
etc.
HAND SOLDERING
300
Temperature(˚C)
150˚C max.
Preheating
Make as short as possilble (within three seconds)
0
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20150721 / emc_esr_yff-sc_en.fm
(3/6)
E M C
C o m p o n e n t s
YFF-SC
Series

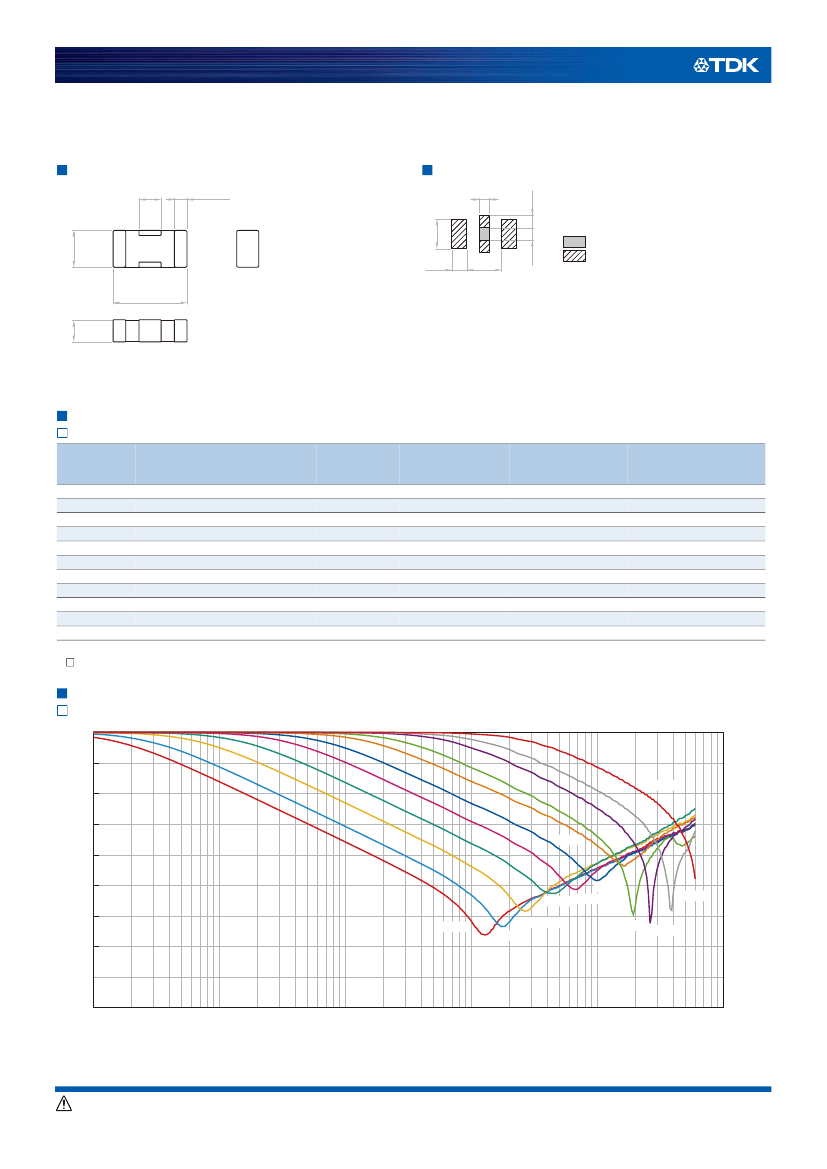

YFF15SC Type (Feed Through Filter)
SHAPES AND DIMENSIONS
0.30± 0.10
GND
4
1
IN/OUT
2
GND
1.00± 0.05
3
OUT/IN
0.09min.
RECOMMENDED LAND PATTERN
0.25
0.19
0.55±0.05
0.60
0.30
0.70
0.25
Land pattern+Solder resist
Land pattern
Dimensions in mm
* Make sure to connect the GND terminal of this product and the GND of the mounting circuit board by using through holes so that the distance between
them is the shortest.
Cutoff
frequency
(MHz)
0.1
0.3
0.6
1
3
6
10
30
60
100
300
0.30±0.05
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Insertion loss
30dB bandwidth
(MHz)
5 to 4000
10 to 4000
20 to 4000
50 to 4000
100 to 4000
200 to 4000
600 to 4000
800 to 6000
1500 to 6000
2000 to 6000
4000 to 6000
Rated voltage
Edc
(V)
16
16
25
25
25
25
25
50
50
50
50
Rated current
Idc
(A)
1
1
1
1
1
1
1
1
1
1
1
Operating
temperature range
(°C)
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
Storage temperature
range(After mount)
(°C)
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
Part No.
YFF15SC1C473MT00
□
N
YFF15SC1C223MT00
□
N
YFF15SC1E103MT00
□
N
YFF15SC1E472MT00
□
N
YFF15SC1E222MT00
□
N
YFF15SC1E102MT00
□
N
YFF15SC1E471MT00
□
N
YFF15SC1H221MT00
□
N
YFF15SC1H101MT00
□
N
YFF15SC1H470MT00
□
N
YFF15SC1H220MT00
□
N
The part numbers are TDK’s standard specification products.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20150721 / emc_esr_yff-sc_en.fm
(4/6)
E M C
C o m p o n e n t s
YFF-SC
Series

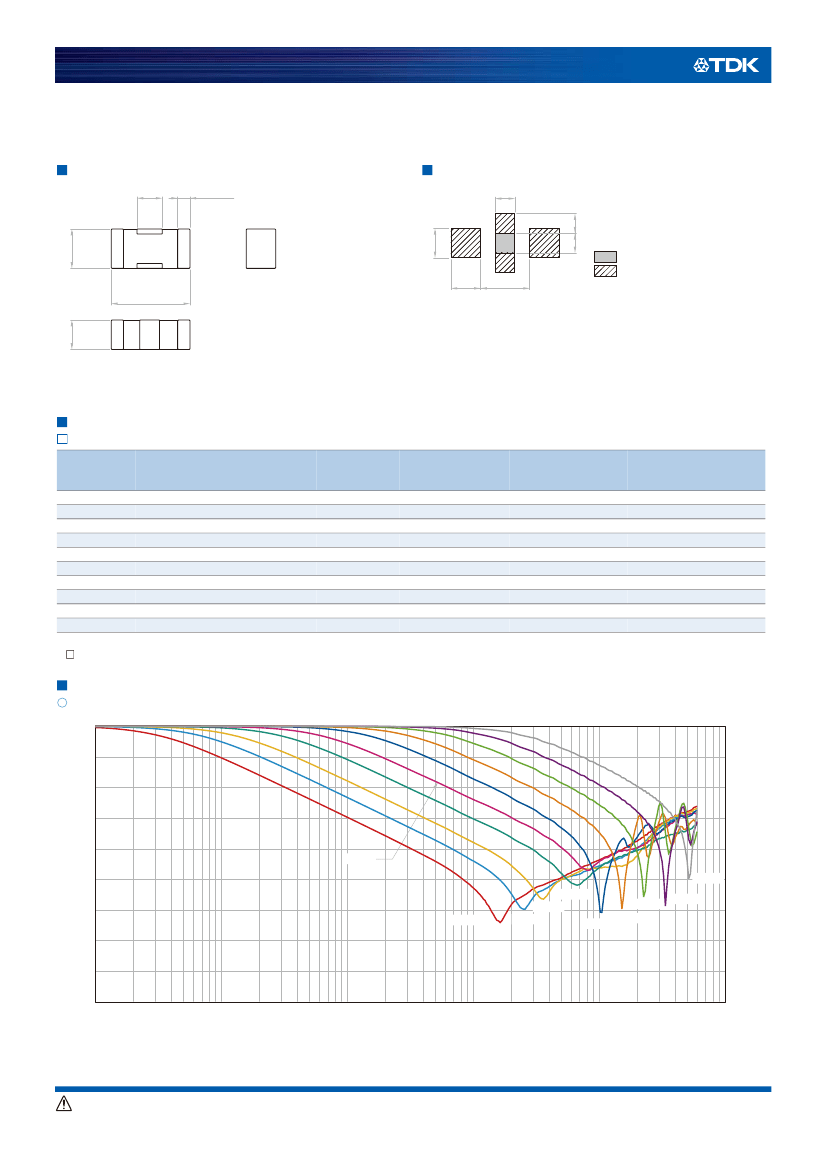

YFF18SC Type (Feed Through Filter)
SHAPES AND DIMENSIONS
0.40± 0.10
GND
4
1
IN/OUT
2
GND
1.60± 0.10
3
OUT/IN
0.10min.
RECOMMENDED LAND PATTERN
0.40
0.80±0.10
0.60
0.400.40
Land pattern+Solder resist
Land pattern
0.60
1.00
Dimensions in mm
* Make sure to connect the GND terminal of this product and the GND of the mounting circuit board by using through holes so that the distance between
them is the shortest.
Cutoff
frequency
(MHz)
0.3
0.6
1
2
6
10
20
60
100
200
0.60±0.10
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Insertion loss
30dB bandwidth
(MHz)
10 to 3000
20 to 3000
40 to 3000
90 to 3000
200 to 3000
400 to 6000
800 to 6000
1500 to 6000
2000 to 6000
4000 to 6000
Rated voltage
Edc
(V)
50
50
50
50
50
50
50
50
50
50
Rated current
Idc
(A)
1
1
1
1
1
1
1
1
1
1
Operating
temperature range
(°C)
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
Storage temperature
range(After mount)
(°C)
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
–55 to 125
Part No.
YFF18SC1H223MT0H
□
N
YFF18SC1H103MT0H
□
N
YFF18SC1H472MT0H
□
N
YFF18SC1H222MT0H
□
N
YFF18SC1H102MT0H
□
N
YFF18SC1H471MT0H
□
N
YFF18SC1H221MT0H
□
N
YFF18SC1H101MT0H
□
N
YFF18SC1H470MT0H
□
N
YFF18SC1H220MT0H
□
N
The part numbers are TDK’s standard specification products.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
