Features
■
Compatible with multiple transceiver
This series is
not recommended for new designs.
M
brands, see below**
■
Cable interface for isolation and low
common mode emissions
■
155ATM, 100Base-TX and TP-FDDI
applications
■
Meets all IEEE802.3 and ANSI X3.263
standards
*R
oH
S
CO
■
RoHS compliant*

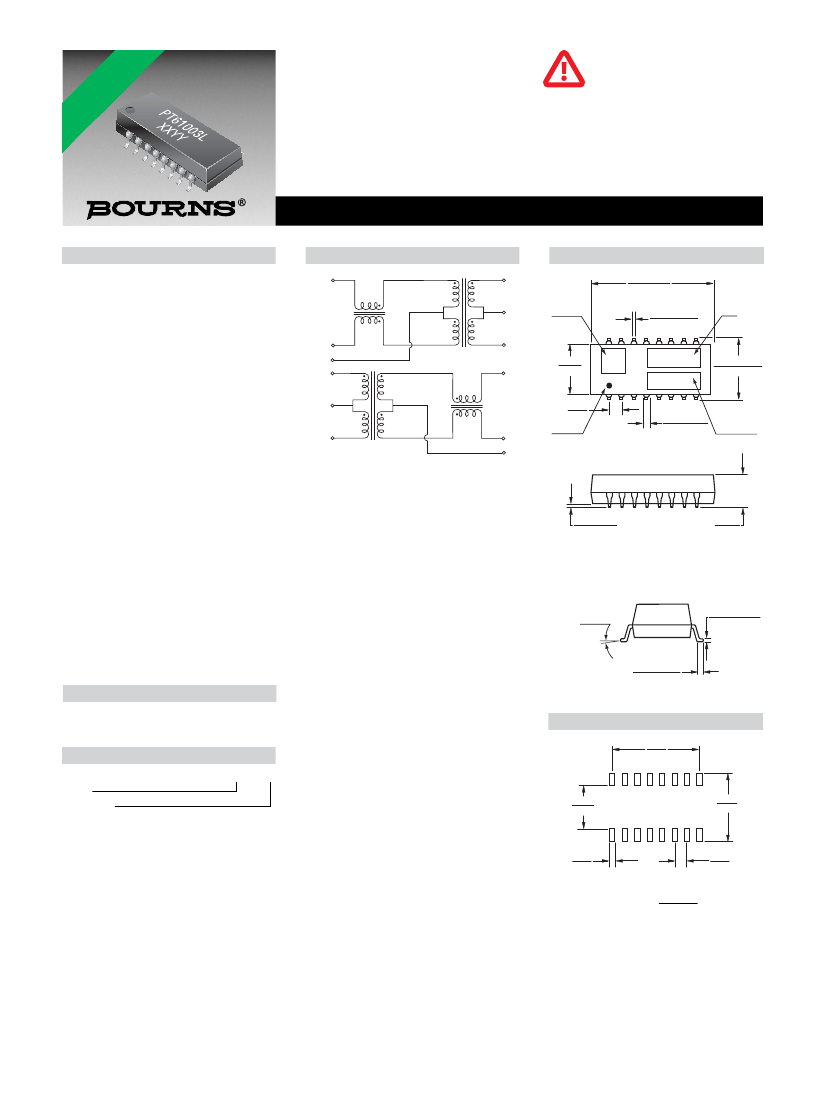

PT61003L LAN 10Base-T/100Base-TX High Speed
Electrical Specifications @ 25 °C
Turns Ratio
TX...................................................1:1
RX ..................................................1:1
OCL @ 8mADC µH min....................350
Rise & Fall Time (ns max.) ................2.5
Insertion Loss (dB max.)
1 to 125 MHz .................................-1.0
Cross Talk (dB min.)
1 to 60 MHz ....................................-40
60 to 100 MHz ................................-30
Hipot 60 sec. (Vrms) .......................1500
Return Loss TX (dB min.)
1 to 60 MHz ....................................-18
60 to 100 MHz ................................-12
Return Loss RX (dB min.)
1 to 60 MHz ....................................-18
60 to 100 MHz ................................-12
Diff to Com Mode Rejection
TX (dB min.)
1 to 60 MHz ...............................-40
60 to 100 MHz ...........................-35
RX (dB min.)
1 to 60 MHz ...............................-40
60 to 100 MHz ...........................-35
Operating Temperature
..................................-40 °C to +85 °C
Other OCL specifications available on
request.
Packaging Specifications
Electrical Schematic
1
1:1
7
Product Dimensions
25.4
±
0.254
(1.00
±
0.010)
LOGO
0.50
±
0.127
(0.020
±
0.005)
P/N
RX
5
2
3
16
6
10
9.6
(0.378)
12.7
±
0.3
(0.500
±
0.012)
TX
14
2.54
TYP.
(0.100)
PIN 1
11
12
Tape & Reel ....................... 400 pcs./reel
How To Order
E
T
E
L
O
S
B
O
15
1:1
1.32
±
0.127
(0.052
±
0.005) DATE CODE
0.25
±
0.127
(0.010
±
.005)
5.8
(0.228)
0˚~8˚
0.25
±
0.127
(0.010
±
.0.005)
1.00
±
0.254
(0.039
±
0.010)
Recommended Layout
17.78
(0.700)
PT61003E L
Model
Termination
L = Tin only (RoHS Compliant)
8.64
(0.340)
13.72
(0.540)
1.02
(0.040)
2.54
(0.100)
DIMENSIONS:
MM
(INCHES)
REV. 05/13
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
