2-Line Filters
for Converters and Power Electronics
Power line filters for single-phase systems
Rated voltage 250 V~, 50/60 Hz
Rated current 10 to 60 A
Construction
s
Two-line filter
s
Metal case
B84142-A*-R
Features
s
s
s
s
s
High insertion loss
Easy to install
Degree of protection: IP 20
1)
Space-saving design
Design complies with
EN 133 200, UL 1283, CSA 22.2 No.8 1986
s
Optimized for long motor cables
and operation under full load
s
EN, UL and CSA approval pending
Applications
s
Frequency converters for motor drives, e.g.
– elevators
– conveyor systems
– pumps
– traction systems
– HVAC systems (heating, ventilation and air conditioning)
s
Power supplies
Terminals
s
Safe-to-touch terminal blocks
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current,
rated temperature, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
1) In accordance with IEC 60529: 1989; EN 60529: 1991; DIN VDE 0470-1
173
03/01
2-Line Filters
for Converters and Power Electronics
Typical circuit diagram
B84142-A*-R
LINE
L
LOAD
L’
N
N’
SSB1515-U
Technical data
Rated voltage
V
R
Rated current
I
R
Test voltage
V
P
Overload capability
Leakage current
I
leak
Climatic category
250 V~, 50/60 Hz
Referred to 40
°
C ambient temperature
1770 V–, 2 s (line/line)
2700 V–, 2 s (lines/case)
1,5 ·
I
R
for 3 min per hour or
2,5 ·
I
R
for 30 s per hour
at 250 V~, 50 Hz
25/100/21 (– 25
°
C/+ 100
°
C/21 days damp heat test)
in accordance with EN 60068-1
Characteristics and ordering codes
I
R
A
10
20
30
40
50
60
Terminal
I
leak
cross section
mm
2
mA
4
4
6
6
16
16
R
typ
m
Ω
18
10
5
3,6
1,8
1,4
Approx.
weight
kg
0,55
1,0
1,0
1,0
2,5
2,5
Ordering code
<
8
<
8
<
8
<
17
<
26
<
26
B84142-A10-R
B84142-A20-R
B84142-A30-R
B84142-A40-R
B84142-A50-R
B84142-A60-R
174
03/01
2-Line Filters
for Converters and Power Electronics

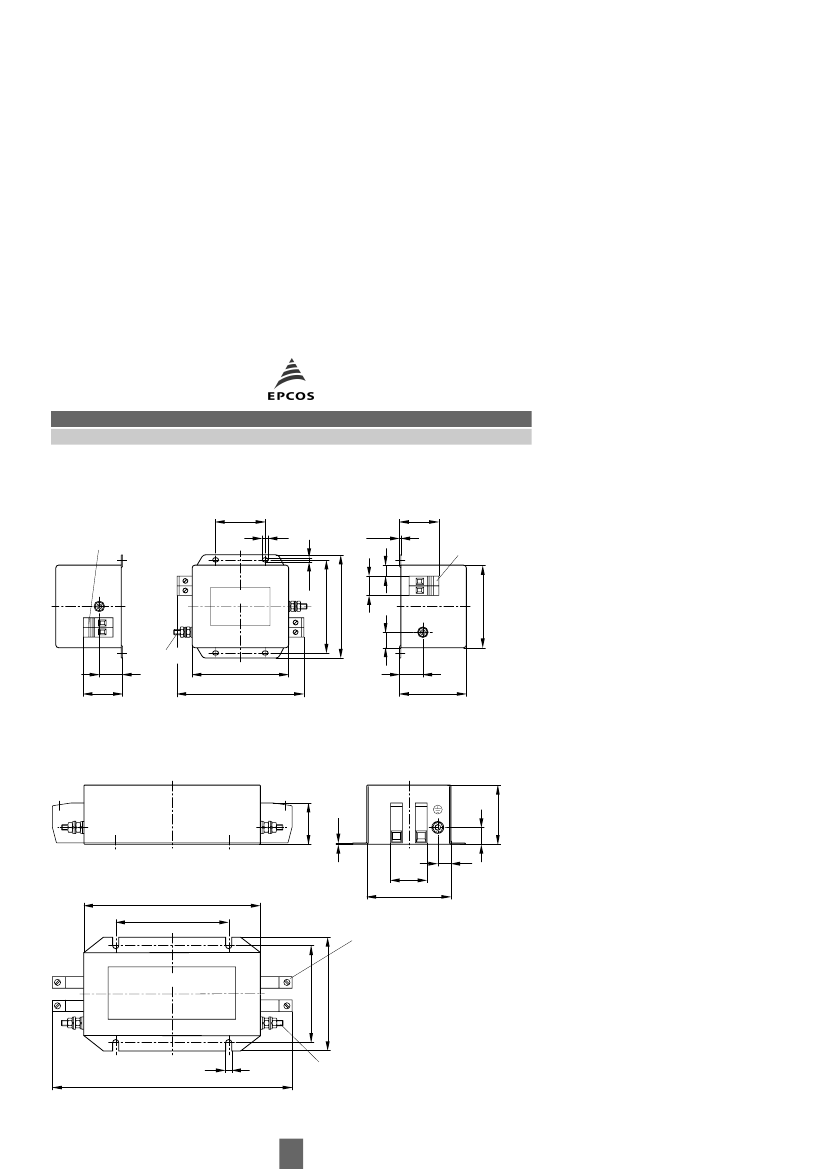

B84142-A30-R, B84142-A40-R
B84142-A*-R
50,8±0,3
6,3
Terminal blocks 6 mm²
0,8±0,1
40±1
Terminal
blocks 6 mm²
4,3±0,1
105
LINE
LOAD
PE M5 x 20
24±1
40±1
99
130
24±1
_
0,6
68
+1
SSB1524-T
B84142-A50-R, B84142-A60-R
16±1
84
13±1
36
85
SSB1525-2
Marking
_
0,5
95,2
+0,1
20
11
1+0,1
42
180
115±0,2
Terminal blocks 16 mm²
100±0,3
Marking
Line
Load
6,6
245
PE
25
PE M6 x
M6
×
25
176
03/01
115
17
60
2-Line Filters
for Converters and Power Electronics

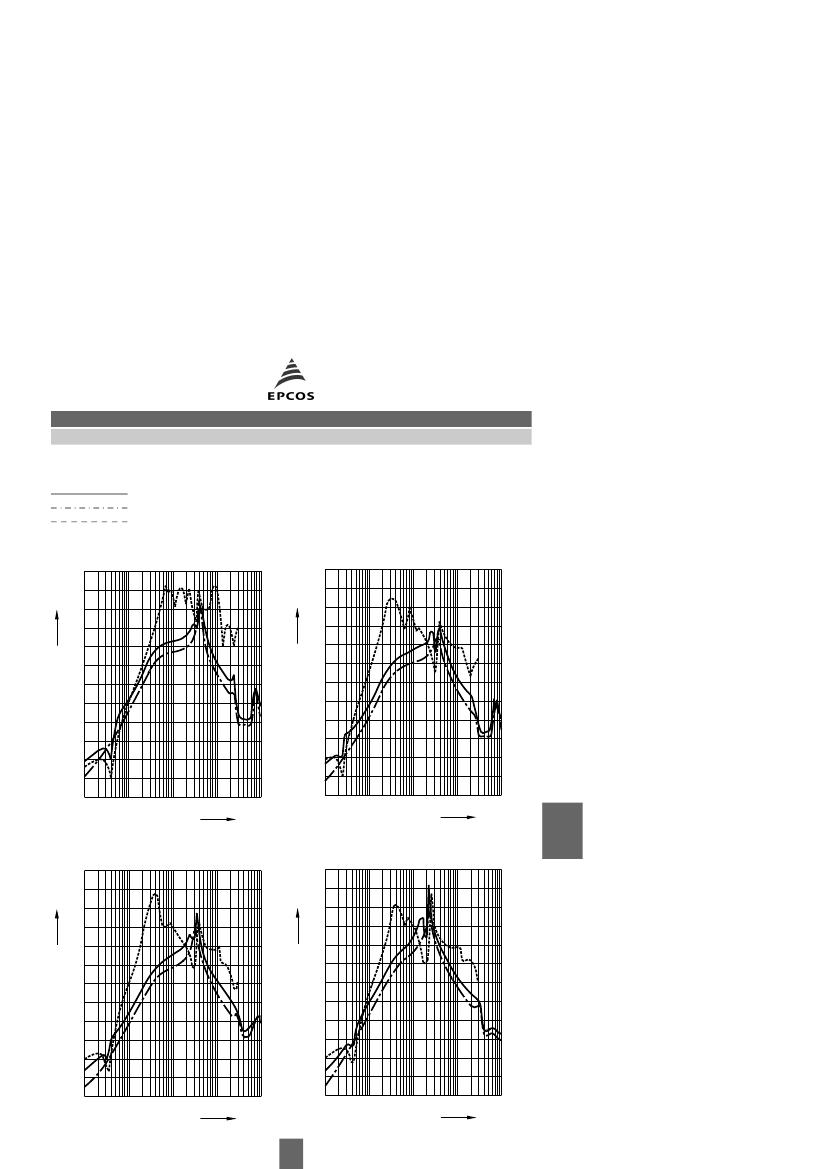

Insertion loss
(typical values at Z = 50
Ω
)
unsymmetrical, adjacent branches terminated
common mode, all branches in parallel (asymmetrical)
differential mode (symmetrical)
B84142-A10-R
120
dB
α
e
SSB1516-3
B84142-A*-R
B84142-A20-R
120
dB
α
e
SSB1517-B
100
90
80
70
60
50
40
30
20
10
0
4
10
10
5
10
6
10
7
Hz 10
8
100
90
80
70
60
50
40
30
20
10
0
4
10
10
5
10
6
10
7
Hz 10
8
f
B84142-A30-R
120
dB
α
e
SSB1518-J
f
B84142-A40-R
120
dB
α
e
SSB1519-S
100
90
80
70
60
50
40
30
20
10
0
4
10
10
5
10
6
10
7
Hz 10
8
100
90
80
70
60
50
40
30
20
10
0
4
10
10
5
10
6
10
7
Hz 10
8
f
177
03/01
f
