74AC573SJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74AC573SJ

74AC573SJ: DescriptionACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20; Categorylogic logic; File Size260KB，13 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74AC573SJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74AC573SJ	-	-	View	Buy Now

74AC573SJ Overview

ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20

74AC573SJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP, SOP20,.3
Contacts	20
Reach Compliance Code	compli
Other features	BROADSIDE VERSION OF 373
series	AC
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	12.6 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	RAIL
Peak Reflow Temperature (Celsius)	260
power supply	3.3/5 V
Prop。Delay @ Nom-Su	11 ns
propagation delay (tpd)	12.5 ns
Certification status	Not Qualified
Maximum seat height	2.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

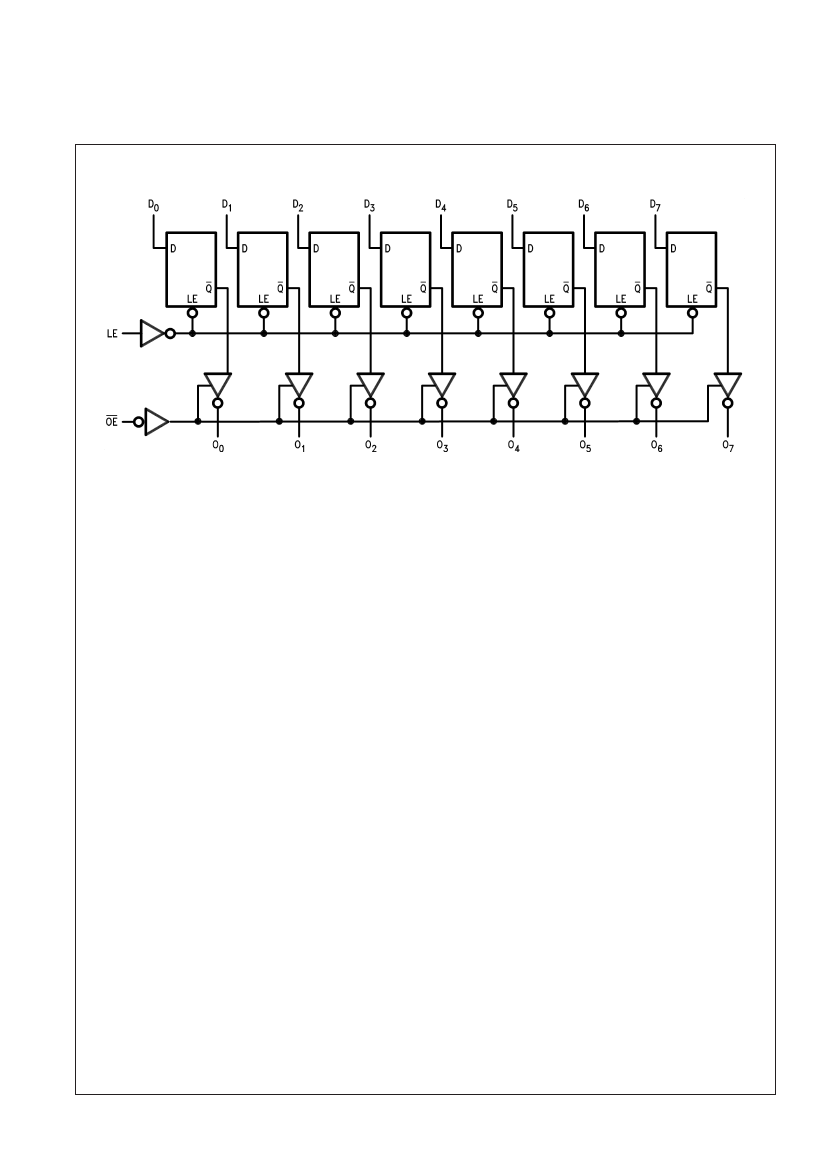

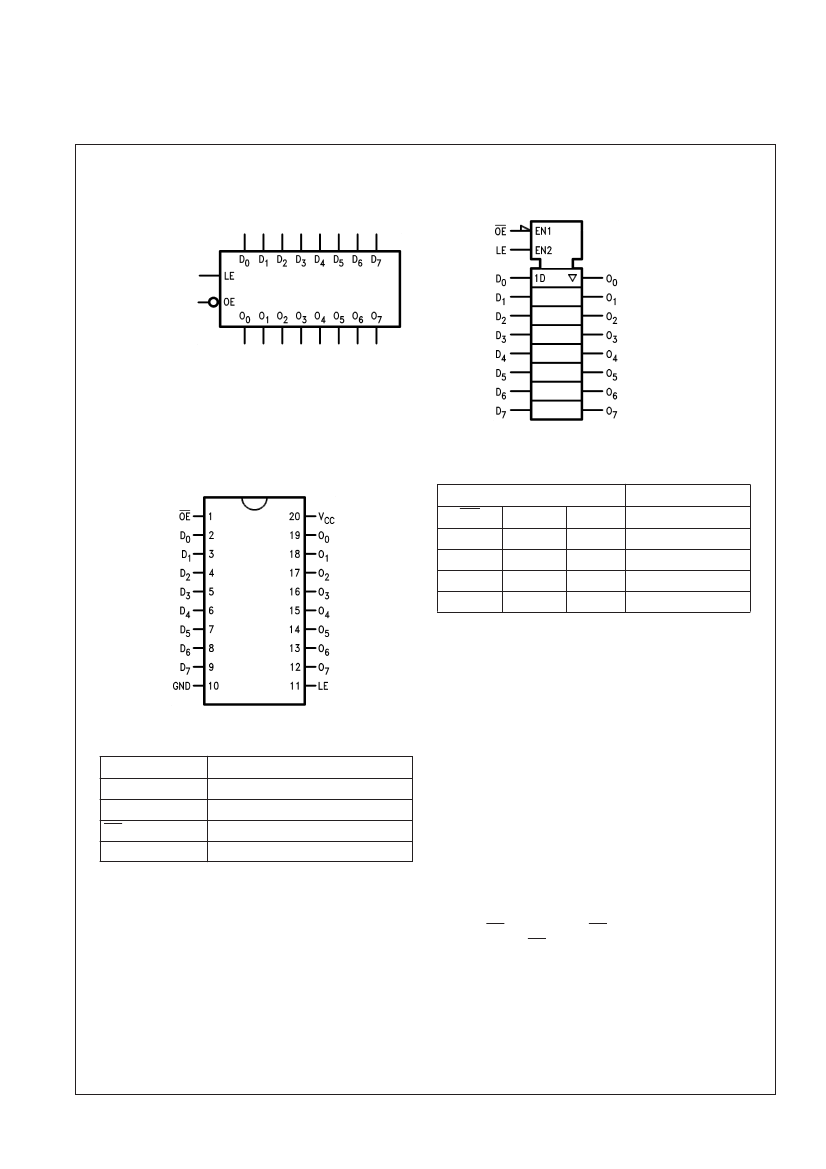

74AC573, 74ACT573 Octal Latch with 3-STATE Outputs

March 2007

74AC573, 74ACT573

Octal Latch with 3-STATE Outputs

Features

■

and I

reduced by 50%

■

Inputs and outputs on opposite sides of package

■

General Description

The 74AC573 and 74ACT573 are high-speed octal

latches with buffered common Latch Enable (LE) and

buffered common Output Enable (OE) inputs.

The 74AC573 and 74ACT573 are functionally identical

to the 74AC373 and 74ACT373 but with inputs and out-

puts on opposite sides.

allowing easy interface with microprocessors

Useful as input or output port for microprocessors

Functionally identical to 74AC373 and 74ACT373

3-STATE outputs for bus interfacing

Outputs source/sink 24mA

74ACT573 has TTL-compatible inputs

Ordering Information

Order Number

74AC573SC

74AC573SJ

74AC573MTC

74ACT573SC

74ACT573SCX_NL

(1)

74ACT573SJ

74ACT573MTC

74ACT573PC

Package

Number

M20B

M20D

MTC20

M20B

M20D

MTC20

N20A

Package Description

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300"

Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,

4.4mm Wide

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300"

Wide

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300"

Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,

4.4mm Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

Pb-Free package per JEDEC J-STD-020B.

Note:

1. Device available in Tape and Reel only.

FACT™ is a trademark of Fairchild Semiconductor Corporation

74AC573, 74ACT573 Rev. 1.5

www.fairchildsemi.com

74AC573SJ Related Products

	74AC573SJ	74AC573_07	74AC573	74AC573SC	74ACT573	74ACT573SJ	74ACT573SCX_NL	74ACT573PC	74AC573MTC
Description	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20	ACT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20
series	AC	ACT	ACT	AC	ACT	ACT	ACT	ACT	AC
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 Cel	85 Cel	85 °C	85 Cel	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 Cel	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-ST	3-ST	3-STATE	3-ST	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
surface mount	YES	Yes	Yes	YES	Yes	YES	YES	NO	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	pair	pair	DUAL	pair	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	conform to	-	-	conform to	-	conform to	conform to	conform to	conform to
Maker	Fairchild	-	-	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SOIC	-	-	SOIC	-	SOIC	SOIC	DIP	TSSOP
package instruction	SOP, SOP20,.3	-	-	SOP, SOP20,.4	-	SOP, SOP20,.3	SOP, SOP20,.4	DIP, DIP20,.3	TSSOP, TSSOP20,.25
Contacts	20	-	-	20	-	20	20	20	20
Reach Compliance Code	compli	-	-	unknown	-	compliant	compliant	unknown	unknow
JESD-30 code	R-PDSO-G20	-	-	R-PDSO-G20	-	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e3	-	-	e3	-	e3	e3	e3	e3
length	12.6 mm	-	-	12.8015 mm	-	12.6 mm	12.8015 mm	26.075 mm	6.5 mm
Load capacitance (CL)	50 pF	-	-	50 pF	-	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	-	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	-	-	0.012 A	-	0.024 A	0.024 A	0.024 A	0.012 A
Humidity sensitivity level	1	-	-	1	-	1	1	-	1
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	-	SOP	-	SOP	SOP	DIP	TSSOP
Encapsulate equivalent code	SOP20,.3	-	-	SOP20,.4	-	SOP20,.3	SOP20,.4	DIP20,.3	TSSOP20,.25
Package shape	RECTANGULAR	-	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	RAIL	-	-	RAIL	-	RAIL	TAPE AND REEL	RAIL	RAIL
Peak Reflow Temperature (Celsius)	260	-	-	260	-	260	260	NOT APPLICABLE	260
power supply	3.3/5 V	-	-	3.3/5 V	-	5 V	5 V	5 V	3.3/5 V
propagation delay (tpd)	12.5 ns	-	-	12.5 ns	-	12 ns	12 ns	12 ns	12.5 ns
Certification status	Not Qualified	-	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	-	-	2.642 mm	-	2.1 mm	2.642 mm	5.08 mm	1.2 mm
Maximum supply voltage (Vsup)	6 V	-	-	6 V	-	5.5 V	5.5 V	5.5 V	6 V
Minimum supply voltage (Vsup)	2 V	-	-	2 V	-	4.5 V	4.5 V	4.5 V	2 V
Nominal supply voltage (Vsup)	3.3 V	-	-	3.3 V	-	5 V	5 V	5 V	3.3 V
technology	CMOS	-	-	CMOS	-	CMOS	CMOS	CMOS	CMOS
Terminal surface	Matte Tin (Sn)	-	-	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	1.27 mm	-	-	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm	0.65 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED
width	5.3 mm	-	-	7.493 mm	-	5.3 mm	7.493 mm	7.62 mm	4.4 mm
Base Number Matches	1	-	-	1	-	1	1	1	1
