Low Profile “Swing-Lock” Board to Wire Connector for Power
DF57 Series
(Compliant with UL, C-UL standards)

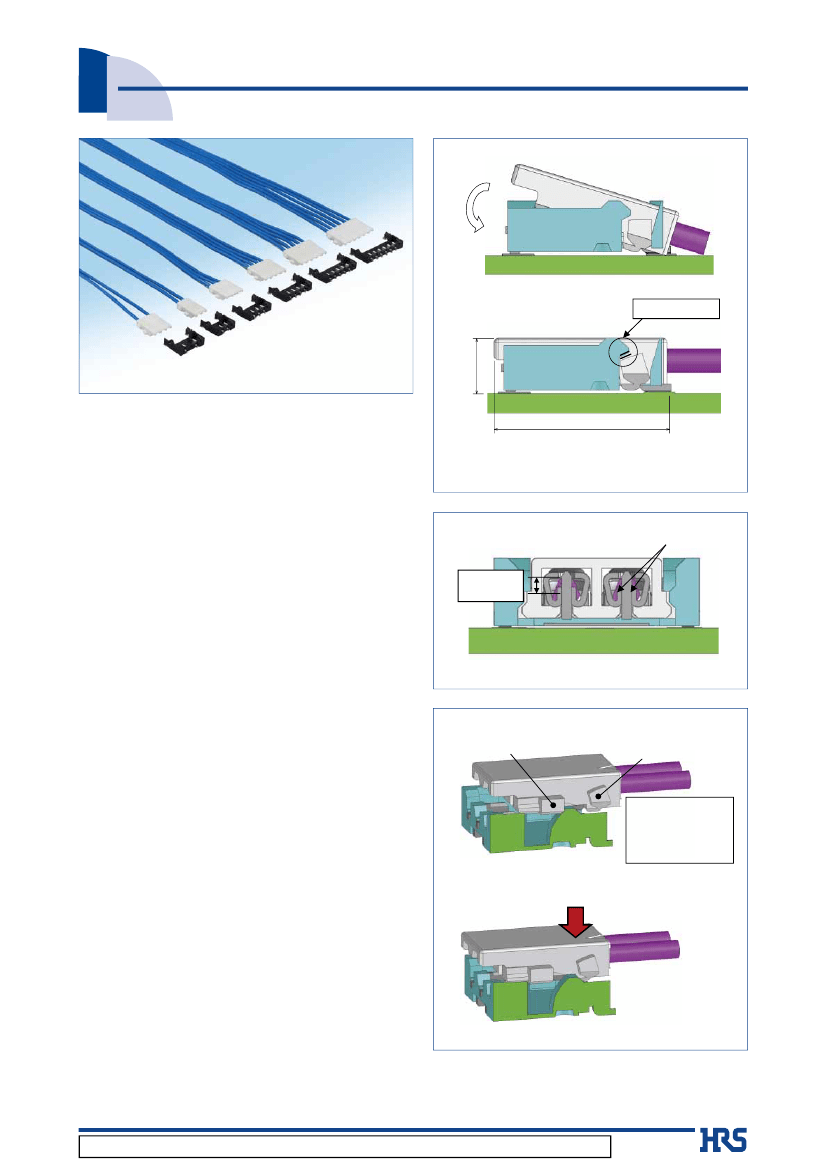

Swing-Lock Structure explanatory drawing
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Before mating
Lock portion
■
Features
1.Reinforced lock structure with swing lock
A swing-lock structure, featuring our own unique
connection method, reinforces the lock structure of
the electric cable side, with a structure resistant to
tough electric cable routing and disengagement of
cables under load.
In addition, the connection surface has a guide
insertion to facilitate insertability (patented)
A
4.65mm
After mating
Mating HeightA : DF57H
DF57AH
1.4mm
1.6mm
Fig.1
Contact Structure
2.Header lock improves plug retention
When connecting, the header connector secures the
molded-lance. Play of molded lance is prevented for
added strength. (patented)
3.Highly reliable contact structure
Despite the low-profile design, with a stacking height
of 1.4mm, an effective mating length of 0.42mm is
achieved. The structure features two-point contact
terminal geometry with high contact reliability.
Fig.2
Incorrect Positioning
Insert Guide Key
Positive Lock
4.Insert guide key prevents misalignment
Insert guide key guides the crimp socket to the
correct mating position and prevents misalignment,
which improves mating operation and prevents
possible connector breakage with incorrect mating.
5.Solder wicking prevention
The integral molding eliminates any gap between the
terminals and case to prevent solder wicking.
Insert guide key touches to
the header prior to the
positive lock, which guides
the socket to the correct
mating position.
6.Case disengagement prevention
Reinforcing hardware (metal fittings) are integrated in
the molding, which help prevent the case from
disengaging with the terminals due to tough electric
cable routing and load.
Starts mating after the socket is aligned to
the correct position
7.Cost effective
Terminals and metal fittings are collectively integrated
into the molding to reduce assembly cost.
Insert Guide Key Structure
Fig.3
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.6③
1
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power
■Specifications
2pos.
AWG#26
Current rating AWG#28
(Note 1)
AWG#30
AWG#32
AWG#34
Voltage rating
3.0A
2.5A
1.5A
1.0A
0.8A
3pos.
_
2.0A
4pos.
_
1.5A
1.0A
0.8A
0.5A
Storage temperature range -10ç to 60ç (Note 4)
Storage humidity range 40% to 70% (Note 4)
5,6pos.
1.5A
Operating temperature range -35ç to 85ç (Note 2)
Operating humidity range 20% to 80% (Note 3)
Rating
2 to 6 pos. : 50V AC/DC
2 pos. (Middle pin of 3 pos. is removed) : 100V AC/DC
UL, C-UL certified specifications
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2pos.
AWG#26
Rating
Current rating AWG#28
(Note 1)
AWG#30
AWG#32
AWG#34
3.0A
2.5A
1.5A
1.0A
0.8A
3pos.
_
2.0A
4pos.
_
5,6pos.
1.5A
1.5A
1.0A
0.8A
0.5A
Voltage rating 2 - 6 pos. : 29V AC/DC
Item
1.Insulation
resistance
2.Withstanding
voltage
3.Contact
resistance
4.Vibration
5.Shock
6.Humidity
7.Temperature
cycle
8.Durability
9.Resistance to
soldering heat
Specification
100Mø min.
No flashover or insulation breakdown
10mø max.
No electrical discontinuity of 1µs or longer
No damage, cracks or parts dislocation.
No electrical discontinuity of 1µs or longer
No damage, cracks or parts dislocation.
Contact resistance : 20mø max.,
Insulation resistance : 500Mø min.
No damage, cracks or parts dislocation.
Contact resistance : 20mø max.,
Insulation resistance : 500Mø min.
No damage, cracks or parts dislocation.
Contact resistance : 20mø max.,
No damage, cracks or parts dislocation.
No deformation of components affecting
performance
100V DC
500V AC / 1 minute
20mV max., at 1mA.
Frequency : 10 to 55Hz, single amplitude of 0.75mm,
10 cycles, 3 direction
Acceleration of 490m/s
2
, 11ms duration, sine half-
wave, 3 cycles in each of the 3 axis
96 hours at 40 ±2ç, and humidity of 90 to 95%
-55°C
→
5 to 35°C
→
85°C
→
5 to 35°C
Times : 30 min.
→
2 min. to 3 min.
→
30 min.
→
2 min.
to 3 min. 5 cycles
30 cycles
Reflow : At the recommended temperature profile
Manual soldering : 350°C for 3 seconds
Conditions
Note 1 : This is the maximum current rating while all pins are powered or used as all power lines. When isolating power lines
into multiple circuits, current ratings may go above the stated current ratings. Please consult Hirose for specific details
before doing this.
Note 2 : Includes the temperature rise of power lines.
Note 3 : The connector should be completely dry. (no condensation present)
Note 4 : The term “storage” refers to the long-term storage condition of unused products before PCB mounting. The operating
temperature and humidity ranges are applied while in a non-energized state, while in transport or after PCB mounting.
■Material
/ Finish
Item
Header
Component
Insulator
Contact
Material
LCP
Brass
PBT
Crimp socket
Insulator
LCP
Crimp contacts
Contact
Phosphor bronze
Finish
Black
Beige
Tin plating or gold plating
White
Black
Beige
Black
Tin plating or gold plating
---------
UL94V-0
UL Flammability rating
UL94V-0
---------
2
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Header
DF 57 H −
*
P − 1.2 V
❶
❷
❸
❹
❺
❻
❼
❺
Connector type
P
：
Plug
❻
Contact pitch：1.2mm
❼
Termination section
V
: Straight SMT
❶
Series name
：
DF
❷
Series No.
：
57
❸
Insert guide key
H
: Yes
❹
Number of contacts： 2, 3, 4, 5, 6
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF 57 H − 2 P − 2.4 V
❹
❹
Number of contacts：2
❻
❻
Contact pitch：2.4mm
(Middle pin of 3 pos. is removed, and rated voltage is 100 V）
●Socket
DF 57
❶
❷
❸
❶
Series name
：DF
❷
Series No.
：57
H −
*
S − 1.2 C
❹
❺
❻
❼
½
❺
Number of contacts：2, 3, 4, 5, 6
❻
Connector type
S：Crimp socket
❼
Contact pitch：1.2mm
½
Termination section
C：Crimp
socket
❸
Applicable wire size :
Blank
: 28 to 34 AWG
❹
Insert guide key
H
: Yes
DF 57 A H −
*
S − 1.2 C
❸
❸
Applicable wire size :
A：26
to 34 AWG
❺
❺
Number of contacts：2, 5, 6
●Crimp
contact
DF 57 − 2830 SCF A
❶
❶
Applicable wire size :
2628：26 to 28 AWG
2830：28 to 30 AWG
3234：32 to 34 AWG
❷
❸
❷
Packaging
SCF ：SCF
: Female crimp contact / reel
❸
Plating type
Blank ：Tin
plating
A
：Gold
plating
3
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power

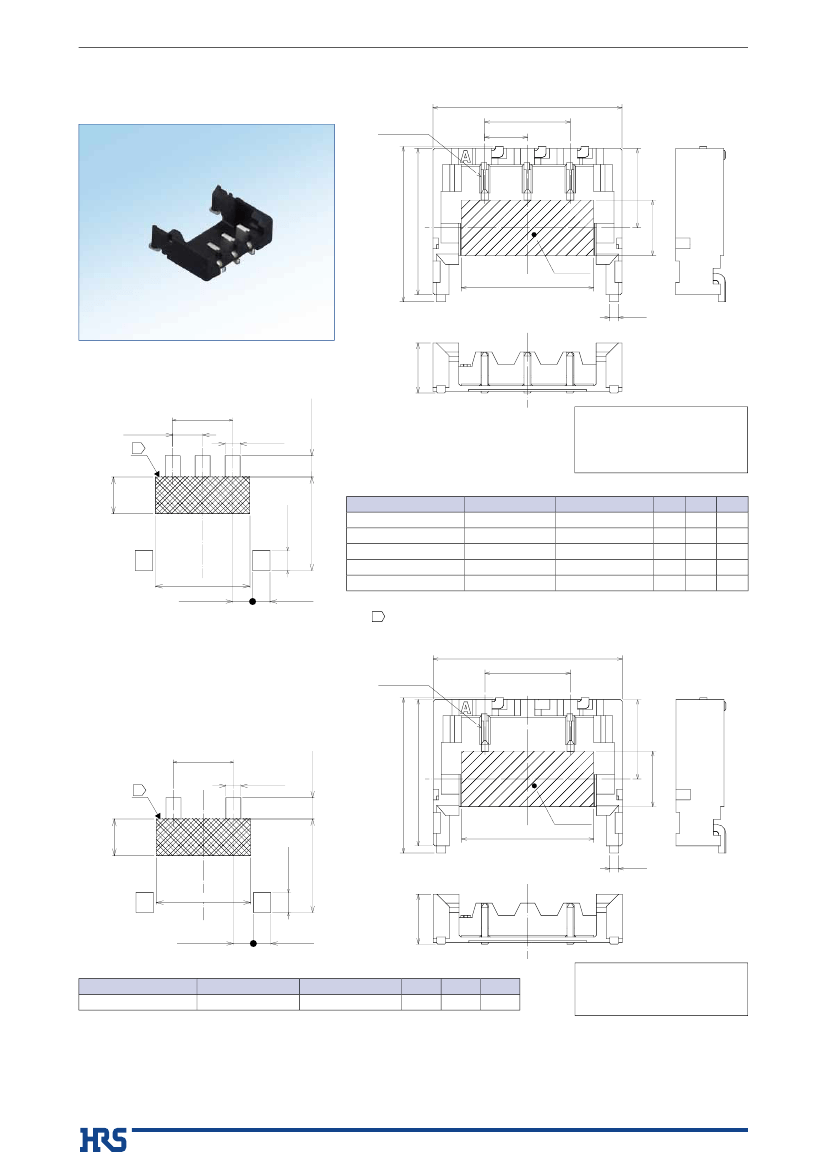

■Header(SMT)
A
B
Contact No.1
P=1.2
4.35
4.1
2.225
Vacuum area
C
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.25
Above image is 3 pos.
Recommended PCB layout
(Thickness : 1.0mm)
1.4
[Specification number]
**
(21) : Tin plated, color : black
(23) : Tin plated, color : beige
(51) : Gold plated, color : black
Unit : mm
Part No.
DF57H-2P-1.2V(**)
DF57H-3P-1.2V(**)
DF57H-4P-1.2V(**)
DF57H-5P-1.2V(**)
DF57H-6P-1.2V(**)
HRS No.
666-0104-7 **
666-0105-0 **
666-0106-2 **
666-0107-5 **
666-0108-8 **
No. of contacts
2
3
4
5
6
A
4.1
5.3
6.5
7.7
8.9
B
1.2
2.4
3.6
4.8
6.0
C
2.5
3.7
4.9
6.1
7.3
Note 1 : Embossed tape reel packaging (5,000 pcs/reel).
Note 2 : The crossed-shaded area is a no conductive trace area.
A
B
Contact No.1
4.35
4.1
2.225
Vacuum area
C
0.25
1.4
Recommended PCB layout
(Thickness : 1.0mm)
Unit : mm
Part No.
DF57H-2P-2.4V(**)
HRS No.
666-0109-0 **
No. of contacts
2
A
5.3
B
2.4
C
3.7
[Specification number]
**
(21) : Tin plated, color : black
(23) : Tin plated, color : beige
4
1.55
1.55
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power
●Packaging
Specification
1.75±0.1
DF57H-2P-1.2V(**)
DF57H-3P-1.2V(**)
DF57H-2P-2.4V(**)
4±0.1
2±0.1
8±0.1
E
E-E
.1
+0 0
Ø1
.5
7.5±0.1
7.375±0.3
16±0.3
(CENTER OF
VACUUM AREA)
D
D-D
D
E
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF57H-4P-1.2V(**)
DF57H-5P-1.2V(**)
DF57H-6P-1.2V(**)
1.75±0.1
DIRECTION OF UNREELING
2.125±0.3
(CENTER OF
VACUUM AREA)
4±0.1
2±0.1
8±0.1
G
G-G
.5
Ø1
.1
+0 0
H±0.3
J±0.1
Unit : mm
F
F-F
DIRECTION OF UNREELING
F
G
Part No.
DF57H-4P-1.2V(**)
DF57H-5P-1.2V(**)
DF57H-6P-1.2V(**)
No. of contacts
4
5
6
H
16
16
24
J
7.5
7.5
11.5

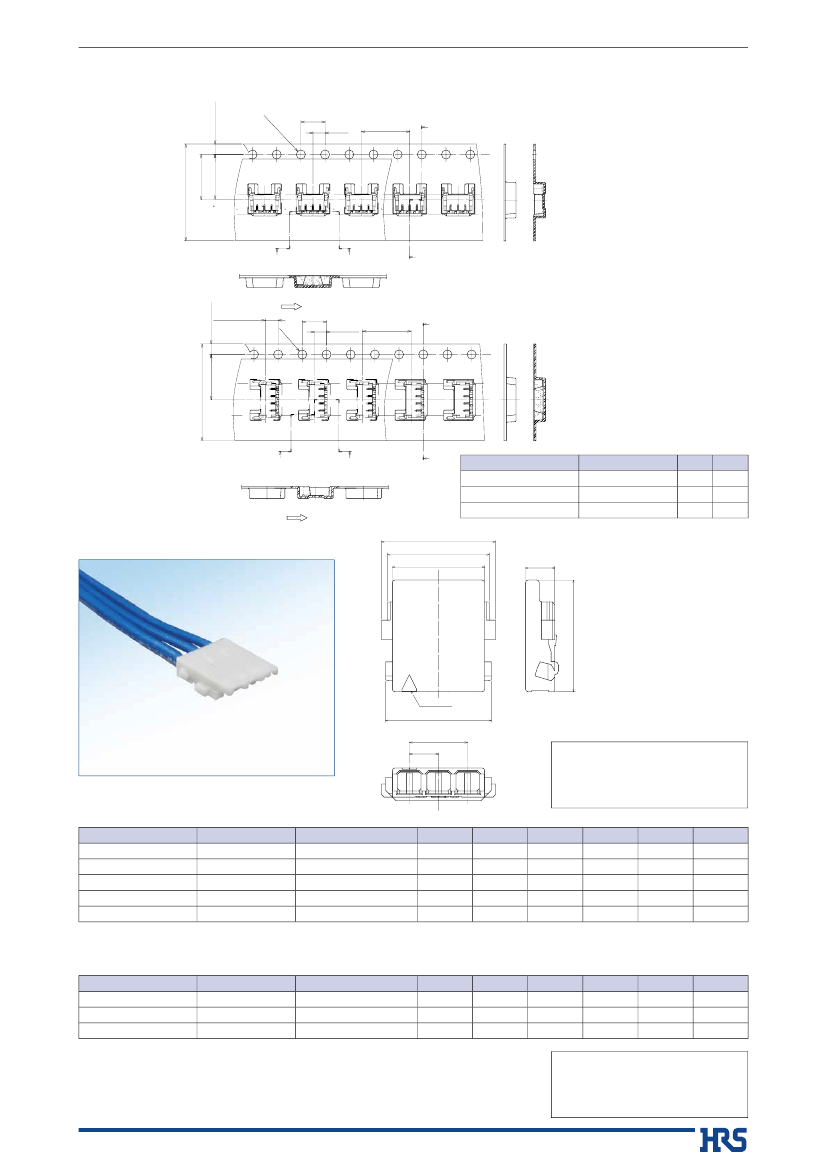

■Crimp
socket
Above image is 3 pos.
[Specification number]
**
Blank : Material : PBT, color : white
(08) : Material : LCP, color : beige
(15) : Material : LCP, color : black
Unit : mm
HRS No.
666-0100-6 **
666-0012-0 **
666-0101-9 **
666-0102-1 **
666-0103-4 **
No. of contacts
2
3
4
5
6
A
3.5
4.7
5.9
7.1
8.3
B
2.98
4.18
5.38
6.58
7.78
C
2.6
3.8
5.0
6.2
7.4
D
3.2
4.4
5.6
6.8
8.0
Ｅ
1.2
2.4
3.6
4.8
6.0
Ｆ
1.2
1.2
1.2
1.2
1.2
Part No.
DF57H-2S-1.2C(**)
DF57H-3S-1.2C(**)
DF57H-4S-1.2C(**)
DF57H-5S-1.2C(**)
DF57H-6S-1.2C(**)
Note 1 : The quantity is delivered per pack (1,000 pcs.). Order by number of pack.
■Socket
for 26 AWG
Part No.
HRS No.
DF57AH-2S-1.2C(**) 666-0112-0 **
DF57AH-5S-1.2C(**) 666-0110-0 **
DF57AH-6S-1.2C(**) 666-0111-2 **
No. of contacts
2
5
6
Ａ
3.5
7.1
8.3
Ｂ
2.98
6.58
7.78
Ｃ
2.6
6.2
7.4
Ｄ
3.2
6.8
8.0
Ｅ
1.2
4.8
6.0
Unit : mm
Ｆ
1.4
1.4
1.4
Note 1 : The quantity is delivered per pack (1,000 pcs.). Order by number of pack.
[Specification number]
**
Blank : Material : PBT, color : black
(10) : Material : PBT, color : white
(15) : Material : LCP, color : black
5
